ARC-10W33

Series: ARC

Manufactured byAvalue

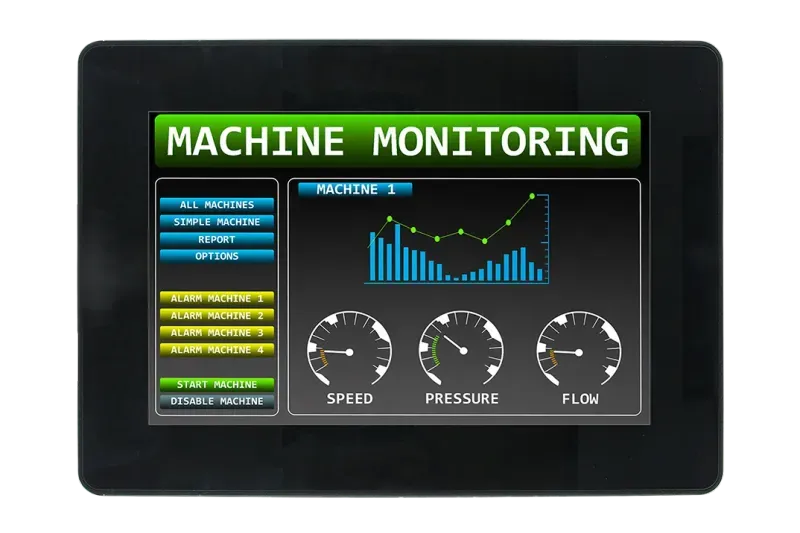

The Avalue ARC-10W33 is a rugged industrial panel PC designed for harsh environments. It features a 10.1" WXGA display, is fanless, and operates with low power consumption. It offers versatile connectivity options, including multiple I/O ports and supports various mounting solutions. The ARC-10W33 is suitable for a range of industrial applications, providing reliable performance and durability in challenging conditions.

Key Features

10.1” WXGA LCD with PCAP Multi-Touch
Onboard Intel® Celeron® N3350/J3455 SoC BGA Processor
1 x 204-pin DDR3L SODIMM Socket, Supports Up to 8GB DDR3L 1600MTs SDRAM
Rich I/Os, 2 LAN, 2 COM, 4 USB, SIM Card Slot, Swappable Drive Bay, Speaker out for Flexible Expansion Modules
1 x Mini PCIe Slot
Rugged Design for Vibration & Shock Protection
Cableless Design
Fanless Operation from -10 ~ 50°C
Wide Range DC Power Input from +9 ~ 36Vdc
Service Window, Easy to Install Memory Module
Front panel: IP65, Rear: IP41(except I/O)
TPM2.0 (optional)

Technical Specifications

System Information

Processor	Intel® Celeron® Processor N3350/J3455, Intel® Celeron® Processor N3350, 2M Cache, up to 2.40 GHz, Intel® Celeron® Processor J3455, 2M Cache, up to 2.30 GHz
System Memory	One 204-pin DDR3L SODIMM Socket, Supports Up to 8GB DDR3L 1600Mhz SDRAM (Non-ECC)
Watchdog Timer	H/W Reset, 1sec. ~ 65535sec./1sec.step
H/W Status Monitor	Monitoring CPU & System Temperature and Voltage
CPU Cooler (Type)	Fanless Heatsink
SBC	ARC-APL
Other	3 x Knockouts for antenna mounting

Panel

LCD Size	10.1" 16:10
Display Type	WXGA
Resolution	1280x800
Pixel pitch	0.1695mm(H) x 0.1695mm(V)
Luminance	350 cd/m2
Contrast ratio	800
Viewing angle	85 (U), 85 (D), 85 (L), 85 (R)
Response time	25 ms
Backlight	LED
Touch Type	PCAP Multi-Touch support up to 10 points
Touch Light Transmission	88 %
Touch Controller	EETI

Expansion

Expansion	1 x mSATA supports on the 1st Mini PCIe slot, Auto switch for mSATA or Mini PCIe, 1 x 80-pin IET interface

Storage

Storage	1 x 2.5” Drive Bay(7mm HDD Restricted)
HDD/ SSD	1 x SATA3
Other Storage Device	1 x mSATA supports on the 1st Mini PCIe slot, Auto switch for mSATA or Mini PCIe

External And Internal I/O

USB Port	4 x USB3.0 (2 x Double deck)
COM Port	1 x RS-232/422/485, selectable by BIOS, RS-485 supports Auto Flow, Pin-9 selected by Ring/+5V/+12V), 1 x RS-232
DIO	16-bit GPIO
Expansion	1 x mSATA supports on the 1st Mini PCIe slot, Auto switch for mSATA or Mini PCIe, 1 x Optional by IET module

System Control

LED Indicator	HDD LED, Power LED

Audio

Audio Codec	Realtek ALC888S
Speaker Output	2 x 2W

Certifications

Certification Information	CE / FCC Class B

Software Support

OS Information	Linux, Windows 10

Ethernet

LAN Chipset	2 x Intel I211AT for APL-M
Ethernet Interface	10/100/1000 Base-Tx GbE compatible

Power Requirement

DC Input	DC +9V ~ +36V, wide voltage single power input, TVS component for surge protection, Reverse current/voltage protection
DC Input Connector	Lockable DC Jack (Default), Optional for phoenix connector
ACPI	Single power ATX Support S0, S3, S4, S5 and ACPI 3.0 Compliant
Power Mode	AT/ATX
Adapter	Input: 100 ~ 240Vac/ 50 ~ 60Hz, Output: 60W Adapter (12V @ 5A Adapter) AC-DC Adapter

Mechanical & Environmental

Operating Temperature	-10°C ~ 50°C (14°F ~ 122°F)
Storage Temperature	-20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity	40°C @ 95% Relative Humidity, Non-condensing
Dimension (W x L x H)	282.29 x 200.93 x 50.9mm
Weight	2.17Kgs
Vibration Test	With SSD/mSATA : 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 1hr/axis
Shock Test	Operating with SSD/CFast/mSATA : MIL-STD-810G, Method 516.6, Procedure I, functional shock=20G
IP Rating	Front Panel IP65, Back cover IP41
Mounting Kit	Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm, Panel Mount with mounting kits
Power Requirement	DC +9V ~ +36V, wide voltage single power input, TVS component for surge protection, Reverse current/voltage protection
Power Mode	AT/ATX (ATX is default)
System Fan	Fanless
Construction - Front	Die Casting with Cover lens
Construction - Rear	Black Die Casting
Relative Humidity	40°C @ 95% Relative Humidity, Non-condensing
Drop Test	ISTA 2A, IEC-60068-2-32 Test:Ed

Ordering Information

ARC-10W33-33-B3-1R, Intel® Celeron® Processor N3350 1.10GHz F1-CPU/2GLAN/2COM/4USB/SPK/12V Adapter/PCAP, ARC-10W33-34-B3-1R, Intel® Celeron® Processor J3455 1.50GHz F1-CPU/2GLAN/2COM/4USB/SPK/12V Adapter/PCAP, ACC-ARC-USB-1R, 4 x USB 3.0 Kit for ARC Series, ACC-ARC-AUDIO-1R, HDMI + 5.1 CH Audio Kit for ARC Series, ACC-ARC-MPCIE-1R, HDMI + MPCIE w/SIM Kit for ARC Series, ACC-ARC-COM-1R, 2 x Isolated RS-232 Kit for ARC Series, ACC-ARC-COM-2R, 3 x RS-232 Kit for ARC Series, ACC-ARC-COM-3R, 2 x RS-232 + USB Kit for ARC Series, ACC-ARC-COM-4R, 2 x RS-232 + LAN Kit for ARC Series, ACC-ARC-GPIO-1R, 12-bit GPIO + 2-pin CAN Bus Kit for ARC Series, ACC-ARC-OBDII-1R, OBDII - CAN Bus Kit for ARC Series (OBDII/EOBD for Small Vehicle), ACC-ARC-OBDII-2R, OBDII - CAN Bus Kit for ARC Series (J1939J1708 for Large Vehicle), ACC-ARC-OBDII-3R, OBDII - CAN Bus Kit for ARC Series (ISO15765-4 for Special Large Vehicle)

Certifications

FCCCertified

CECertified

UKCACertified

RoHSCompliant
