Avalue · Panel PC / Monitor / Mobile

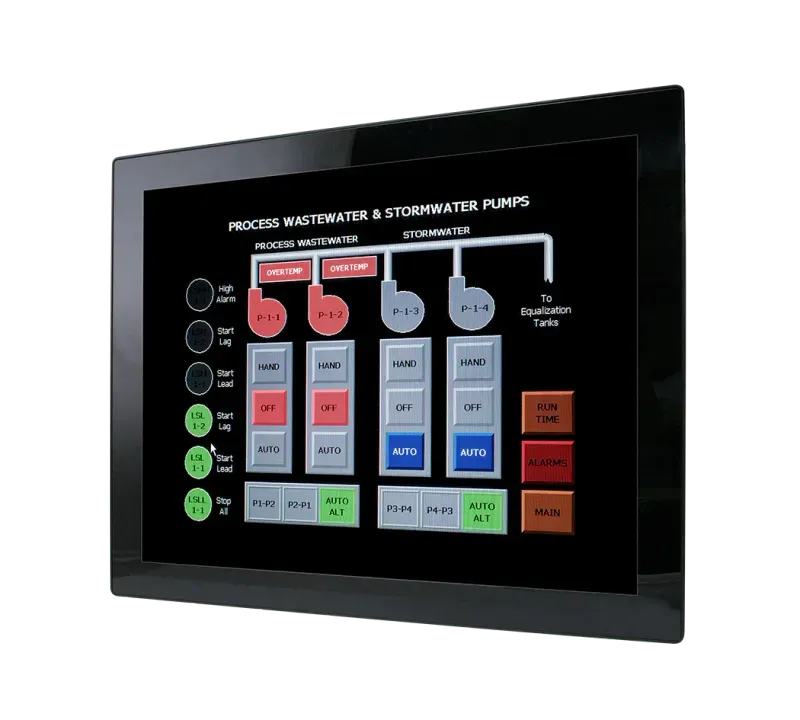

ARC-1713

Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

17" SXGA (1280x1024) PCAP 10-point multi-touch, fanless
Zhaoxin KX-6000G series quad-core (15W, EMX-KX60G SBC)
2 x DDR4 3200MHz SO-DIMM, up to 64GB
Optional TPM 2.0 / TCM (Nationz)
Triple Realtek RTL8111K Gigabit Ethernet
Dual M.2 Key-M NVMe + M.2 Key-B (WWAN+GNSS) + M.2 Key-E (Wi-Fi)
4 x USB 3.2 Gen2, HDMI 2.0 + VGA
Wide +12V ~ +24V DC input
Windows 10 / Linux (Kylin / UOS)

Product Description

The Avalue ARC-1713 is a 17" SXGA fanless industrial touch panel PC built on the Zhaoxin KX-6000G series quad-core processor (15W TDP), offering a domestically-sourced x86 platform for secure and localized deployments.

Dual DDR4 3200MHz SO-DIMM sockets support up to 64GB, with optional TPM 2.0 / TCM and the EMX-KX60G SBC.

The 17" 1280x1024 panel features 250-nit brightness and 10-point projected-capacitive multi-touch.

Connectivity includes triple Realtek Gigabit Ethernet, four USB 3.2 Gen2, HDMI 2.0 and VGA, multiple RS-232/422/485 COM ports, an M.2 Key-B (WWAN+GNSS, Nano-SIM) and M.2 Key-E (Wi-Fi) plus dual M.2 Key-M NVMe storage.

A wide +12~24V input and fanless design make it well suited to Chinese-OS (Kylin/UOS) and Windows/Linux industrial HMI applications.

Technical Specifications

Processor

Zhaoxin KX-6000G series 4 core BGA Processor BGA CPU Only TDP15W

System Memory

2 x 260-pin DDR4 3200 MHz SO-DIMM socket, supports up to 64GB Max

I/O Chipset

EC-ITE: IT5782VG

Watchdog Timer

H/W Reset, 1sec. – 65535sec./min.1sec. or 1min. step

H/W Status Monitor

CPU temperature monitoring

Voltages monitoring

TPM

Onboard Nationz TCM Z32H330TC-SQN-2701 or Nationz TPM 2.0 or equivalent products(By optional)

SBC

EMX-KX60G

CPU Cooler (Type)

Fanless

Other

AUX-089 (SIM card expansion card)

Expansion

1 x M.2 Key B 3042/3052 with 1 x PCI-e x1, USB2.0, USB 3.2 Gen1with 1 x Nano SIM card slot/co-lay FPC connector (10Pin,P=0.5mm) support WWAN+GNSS

1 x M.2 Key E 2230 support Wi-Fi module (1 x PCI-e x1 & USB 2.0 Signal)

2 x M.2 Key M 2280 (PCI-e x4) slot for storage NVMe SSD

Storage

2 x M.2 Key M 2280 (PCI-e x4) slot for storage NVMe SSD

Other Storage Device

Reserve space for future1 x 2.5 drive Bay design

Audio Codec

Realtek ALC888S

Speaker Output

2 x 5W

(*Realtek ALC105 Stereo Class-D 2W 4Ω x 2 Audio Amplifier)

LAN Chipset

3 x Realtek RTL8111K 1G (default)

Ethernet Interface

Realtek RTL8111K: 10/100/1000 Base-Tx GbE compatible

DC Input

+12V ~ +24V

DC Input Connector

Lockable DC Jack

OS

Win10 / Linux（中标麒麟/UOS）

Certification Information

CCC

LCD Size

17", 4:3

LCD Panel

17" 1280*1024 250 nits

Display Type

SXGA

Resolution

1280 x 1024

Pixel pitch

0.264mm(H) x 0.264mm(V)

Luminance

250 cd/m2

Contrast ratio

1000

Viewing angle

80 (U), 80 (D), 85 (L), 85 (R)

Response time

5 ms

Backlight

TFT-LCD

Touch Type

Projective capacitive multi-touch up to 10 points

Touch Light Transmission

89%

Touch Controller

ILLITEK ICI2510P

USB Port

4 x USB3.2 Gen2

3 x USB 2.0 (optional)

*USB2.0 for option shared the same port with COM

Video Port

1 x HDMI 2.0 3840 x 2160 @ 30Hz, 4096x2160 @ 60Hz

1 x VGA: 1920 x 1080@ 60 Hz

LAN Port

3 x Realtek RTL8111K 1G Gigabit Ethernet

Wireless LAN Antenna

2 x Antenna Mounting with Dust Cover

4 x Antenna Mounting with Dust Cover for 5G

COM Port

1 x RS232/422/ 485, 2 x RS232(default) ,2 x RS232/GPIO/USB2.0 (optional)

WLAN

IEEE802.11 ac/a/b/g/n 2.4 GHz, 5 GHz (optional)

Bluetooth

BT5.1 (optional)

Operating Temp.

0°C ~ 50°C (32°F ~ 122°F)

Storage Temp.

-20°C ~ 60°C (-4°F ~ 140°F)

Operating Humidity

40°C @ 95% Relative humidity, non-condensing

Dimension (W x L x H)

392.7 x 325.3 x 71.65 mm

Weight

5.2 Kg

Drop Test

ISTA 2A, IEC-60068-2-32 Test:Ed

IP Rating

Front panel IP65

Mounting Kit

Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm

Panel mount with mounting kits

Power Mode

AT/ATX (ATX is default)

System Fan

Fanless

Construction - Front

Die casting with cover lens

Construction - Rear

Aluminum + SGCC

Fanless

Yes

Adapter

Input: 100~240Vac / 50~60Hz

Output: 120W adapter (12V @ 10A)

Ordering Information

C170P060040R | US Power Cord SM001/3P+SM006/3P 1.83M

C170P060050R | EU Power Cord SH005/3P+SH006/3P 1.83M

C170P060060R | JP Power Cord SH001/3P+SH006/3P 1.83M

C170P060070R | UK Power Cord YP61A/3P+YC12/3P 1.83M

C170P060080R | AU Power Cord SH051/3P+SH006/3P 1.83M
