Avalue · Panel PC / Monitor / Mobile

ARC-1738-C1

Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

17” Advanced Rugged Panel PC
10 points multiple PCAP touch
11th Generation Intel® Core™ i3/i5 Processors
2 x 260-pin DDR4 3200 MHz SO-DIMM socket, supports up to 64GB max
2 x LAN, 4 x USB3.2 Gen2
3 x USB2.0 (optional)
1 x RS232/422/ 485, 2 x RS232(default)
3 x RS232/GPIO/USB2.0 (optional)
Wi-Fi & BT (optional)
Front panel IP65
TPM 2.0

Product Description

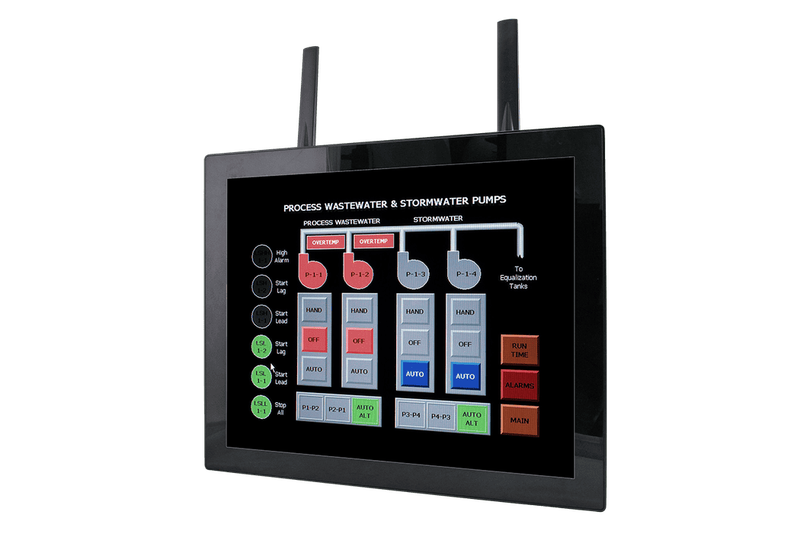

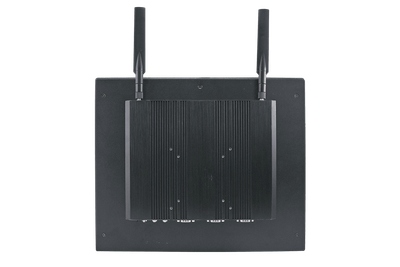

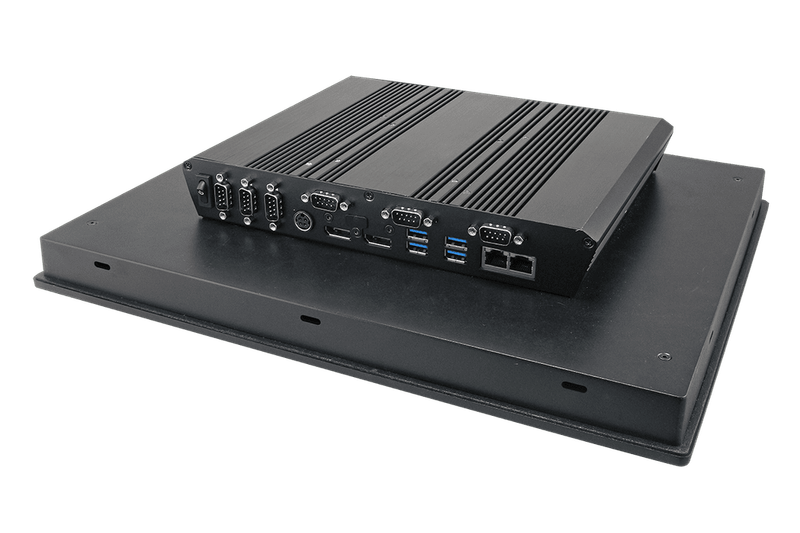

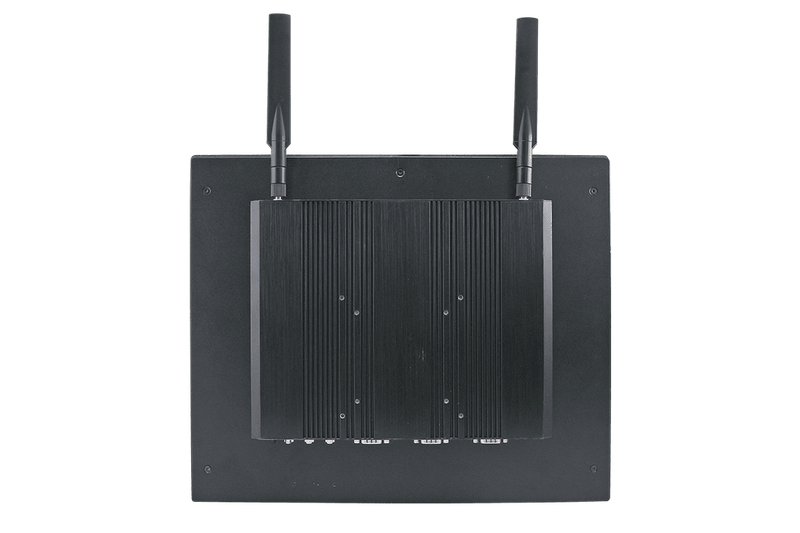

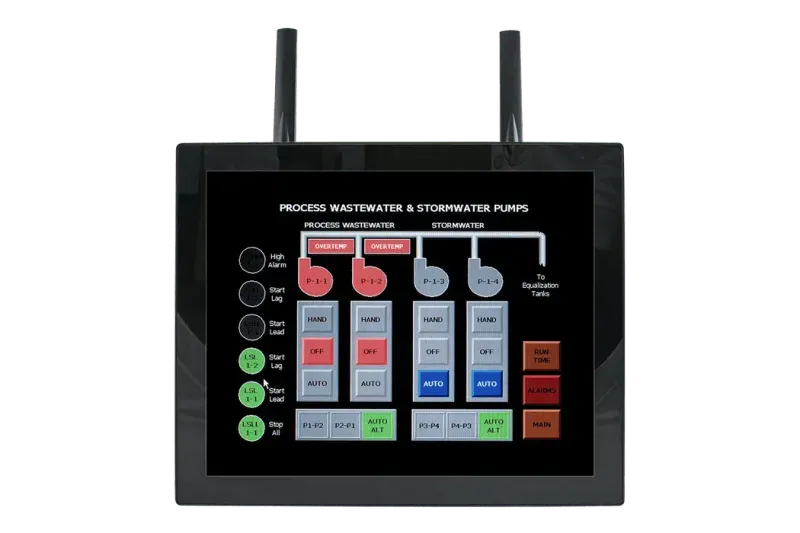

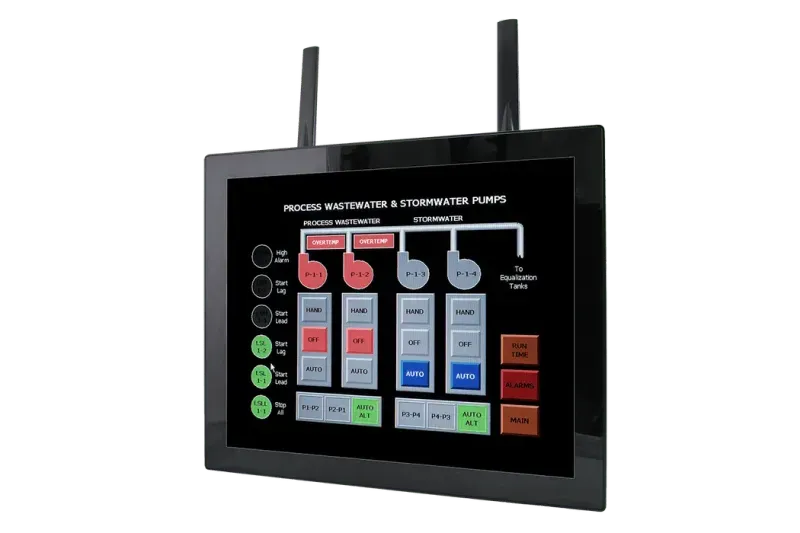

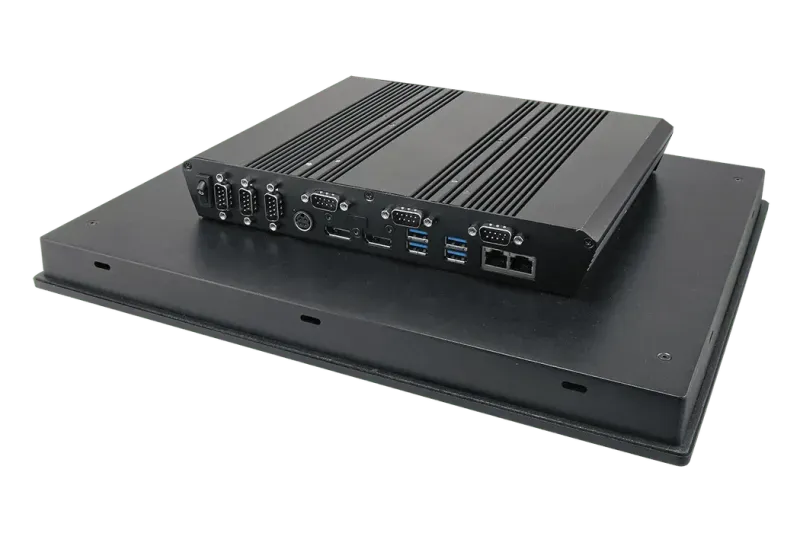

The Avalue ARC-1738-C is a 17" industrial touch panel PC powered by 11th Generation Intel® Core™ i3/i5/i7 processors. It features a fanless design, projected capacitive multi-touch screen, dual Gigabit LAN, and multiple USB and COM ports.

The panel is IP65 front and IP41 rear rated for durability, and supports Wi-Fi, Bluetooth, 4G, and 5G connectivity. It's suitable for harsh environments with flexible mounting options and a wide operating temperature range.

Technical Specifications

Processor

11th Generation Intel® Core™ i3/i5/i7 Processors

Intel® Core™ i3-1115G4E Processor, 6M Cache, up to 3.00 GHz

Intel® Core™ i5-1145G7E Processor, 8M Cache, up to 2.60 GHz

Intel® Core™ i7-1185G7E Processor, 12M Cache, up to 2.80 GHz

System Memory

2 x 260-pin DDR4 3200 MHz SO-DIMM socket, supports up to 64GB max

SBC

EMX-TGLC

CPU Cooler (Type)

Fanless heatsink

TPM

Onboard NuvoTon NPCT754AABYX support TPM 2.0

Other

AUX-089 (SIM card expansion card)

LCD Size

17", 4:3

LCD Panel

AUO M170ETN01.1，17“ 1280*1024 250 nits

Display Type

SXGA

Resolution

1280 x 1024

Pixel pitch

0.264mm(H) x 0.264mm(V)

Luminance

250 cd/m2

Contrast ratio

1000

Viewing angle

80 (U), 80 (D), 85 (L), 85 (R)

Response time

5 ms

Backlight

TFT-LCD

Touch Type

Projective Capacitive Multi-Touch up to 10 points

Touch Light Transmission

89 %

Touch Controller

ILLITEK ICI2510P

Expansion

1 x M.2 Key B 3042/3052/2242/2260/2280 support 1xPCIEx1/SATA/USB3.0/USB2.0 with 1 x SIM card slot, support WWAN+GNSS

1 x M.2 Key E 2230 support WiFi module and CNVi (1 x PCI-e x1 & USB 2.0 signal)

Storage

M.2 type B 3042/3052/2242/2260/2280 SSD (SATA/NVMe)

Other Storage Device

Reserve space for future1 x 2.5 drive Bay design

USB Port

4 x USB3.1 Gen2

3 x USB 2.0 (optional)

*1 x USB2.0 for option shared the same port with COM

COM Port

1 x RS232/422/485(default)

2 x RS232

3 x RS232/GPIO/USB 2.0 (optional)

LAN Port

2 x RJ-45

Display Port

2 x DP++： 1920 x 1080@60 Hz

Antenna

6 x Antenna mounting with dust cover

2x for WIFI/BT

4x for 4G/5G

Audio Codec

Realtek ALC897 co-lay ALC888S HD audio decoding controller (default ALC897)

Speaker Output

2 x 5W

LAN Chipset

1 x Intel® I219LM Gigabit Ethernet PHY (LAN1)

1 x Intel® I226LM 2.5 Gigabit Ethernet (LAN2)

Ethernet Interface

Intel® I219LM : 10/100/1000 Base-Tx GbE compatible

Intel® I225LM: 10/100/1000/2.5G Base-Tx GbE compatible

Certification Information

CE / FCC Class A / CCC

OS Information

Win10 / Win11 / Linux

LED Indicator

HDD LED, power LED

WLAN

IEEE802.11 ac/a/b/g/n 2.4 GHz, 5 GHz (optional)

Bluetooth

BT5.1 (optional)

DC Input

+12V ~ +24V

DC Input Connector

Lockable DC Jack (default)

Optional for phoenix connector

Adapter

Input: 100 ~ 240Vac/ 50 ~ 60Hz

Output: 120W adapter (24V @ 5.0A adapter) AC-DC adapter

ACPI

Single power ATX support S0, S3, S4, S5 and ACPI 3.0 compliant

Operating Temperature

0°C ~ 50°C (32°F ~ 122°F)

Storage Temperature

-20°C ~ 60°C (-4°F ~ 140°F)

Operating Humidity

40°C @ 95% Relative humidity, non-condensing

Dimension (W x L x H)

392.7 x 325.3 x 71.65mm

Weight

5.6 Kg

Drop Test

ISTA 2A, IEC-60068-2-32 Test:Ed

Mounting Kit

Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm

Panel mount with mounting kits

Power Mode

AT/ATX (ATX is default setting)

System Fan

Fanless

Construction - Front

Die Casting with Cover lens

Ordering Information

ARC-1738-3G4-C1R

ARC-1738 w/i3-1115G4/3COM/4USB/2LAN/2DP/Barebone, w/o Memory/storage/Kit

ARC-1738-5G7-C1R

ARC-1738 w/i5-1135G7/3COM/4USB/2LAN/2DP/Barebone, w/o Memory/storage/Kit

C971XAR38C1000R

Intel AX210 WIFI6 M.2 2230 A-Key kit

C971XAR38C1001R

Intel8265NGW M.2 2230 NGFF BT4.2 kit

C971XAR38C1002R

Wifi 802.11 ac/a/b/g/n,2T2R, BT5.1 kit

C971XAR38C1003R

4G LTE Module, SIM7600G-H-M2, SIMCOM

C971XAR38C1004R

SIMCOM, SIM8202G(USB3.0

C971XAR38C1005R

COM Kit for ARC-1738-C1

C971XAR38C1006R

USB Kit for ARC-1738-C1

C971XAR38C1007R

GPIO Kit for ARC-1738-C1

C170P060040R

US Power Cord SM001/3P+SM006/3P 1.83M

C170P060050R

EU Power Cord SH005/3P+SH006/3P 1.83M

C170P060060R

JP Power Cord SH001/3P+SH006/3P 1.83M

C170P060070R

UK Power Cord YP61A/3P+YC12/3P 1.83M

C170P060080R

AU Power Cord SH051/3P+SH006/3P 1.83M

What is ARC-1738-C1?

The ARC-1738-C1 is a panel pc / monitor / mobile manufactured by Avalue, designed specifically for industrial-panel-pc applications. It features processor of 11th Generation Intel® Core™ i3/i5/i7 Processors, Intel® Core™ i3-1115G4E Processor, 6M Cache, up to 3.00 G…, display of 17", 4:3 and touch of Projective Capacitive Multi-Touch up to 10 points. The Avalue ARC-1738-C is a 17" industrial touch panel PC powered by 11th Generation Intel® Core™ i3/i5/i7 processors. It features a fanless design, projected capacitive multi-touch screen, dual Gigabit LAN, and multiple USB and COM ports. The panel is IP65 front and IP41 rear rated for durability, and supports Wi-Fi, Bluetooth, 4G, and 5G connectivity. It's suitable for harsh environments with flexible mounting options and a wide operating temperature range.

Key Features & Benefits

17” Advanced Rugged Panel PC
10 points multiple PCAP touch
11th Generation Intel® Core™ i3/i5 Processors
2 x 260-pin DDR4 3200 MHz SO-DIMM socket, supports up to 64GB max
2 x LAN, 4 x USB3.2 Gen2
3 x USB2.0 (optional)
1 x RS232/422/ 485, 2 x RS232(default)
3 x RS232/GPIO/USB2.0 (optional)
Wi-Fi & BT (optional)
Front panel IP65
TPM 2.0

Applications & Use Cases

The ARC-1738-C1 is ideal for various industrial automation applications:

Harsh environments with flexible mounting options and a wide operating temperature range
Harsh industrial environments requiring dust and water protection
Rugged industrial applications with high durability requirements
Wireless connectivity and remote monitoring applications
High-performance computing and data processing tasks
Networked industrial systems and data communication
Interactive control interfaces and operator panels
Peripheral device connectivity and data transfer

Frequently Asked Questions

The ARC-1738-C features a 17" industrial touch panel PC with SXGA resolution (1280x1024), powered by 11th Generation Intel® Core™ i3/i5/i7 processors, up to 64GB DDR4 memory, projected capacitive multi-touch up to 10 points, dual Gigabit LAN, multiple USB and COM ports, fanless design, and IP65 front panel protection. It also supports optional Wi-Fi, Bluetooth, 4G, and 5G connectivity, making it versatile for various industrial applications.

The ARC-1738-C offers comprehensive connectivity with 4 USB 3.2 Gen2 ports, 3 COM ports (1 RS-232/422/485 and 2 RS-232 by default), optional additional ports (3 RS-232/GPIO/USB2.0), dual Gigabit LAN interfaces, expansion via M.2 slots, and support for wireless options including Wi-Fi, Bluetooth, 4G, and 5G. This extensive I/O capability makes it suitable for integration with diverse industrial equipment and systems.

The ARC-1738-C features a robust industrial design with IP65 front panel protection and IP41 rear enclosure. It supports various mounting options including panel mount, VESA mount, and desktop stand configurations. The unit operates in a wide temperature range of -10°C to 50°C and can withstand vibration and shock in industrial environments, making it suitable for deployment in harsh manufacturing conditions.
