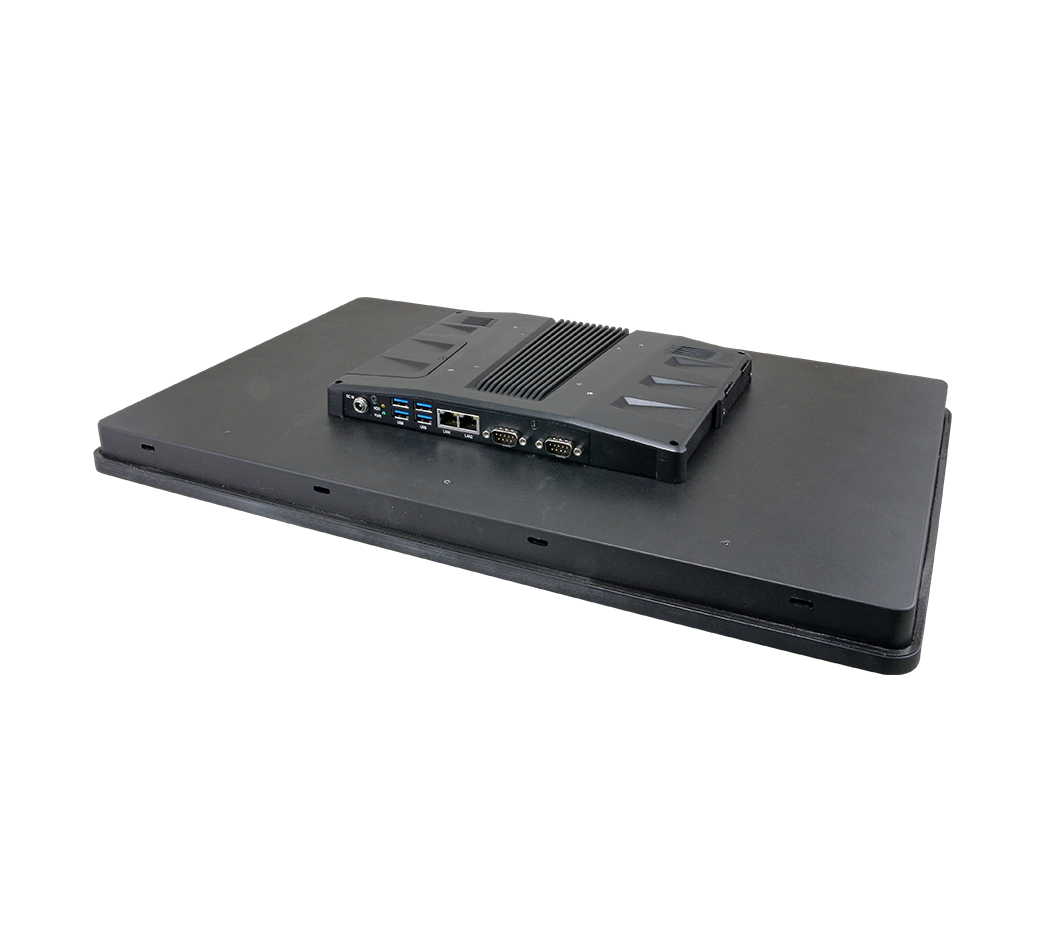

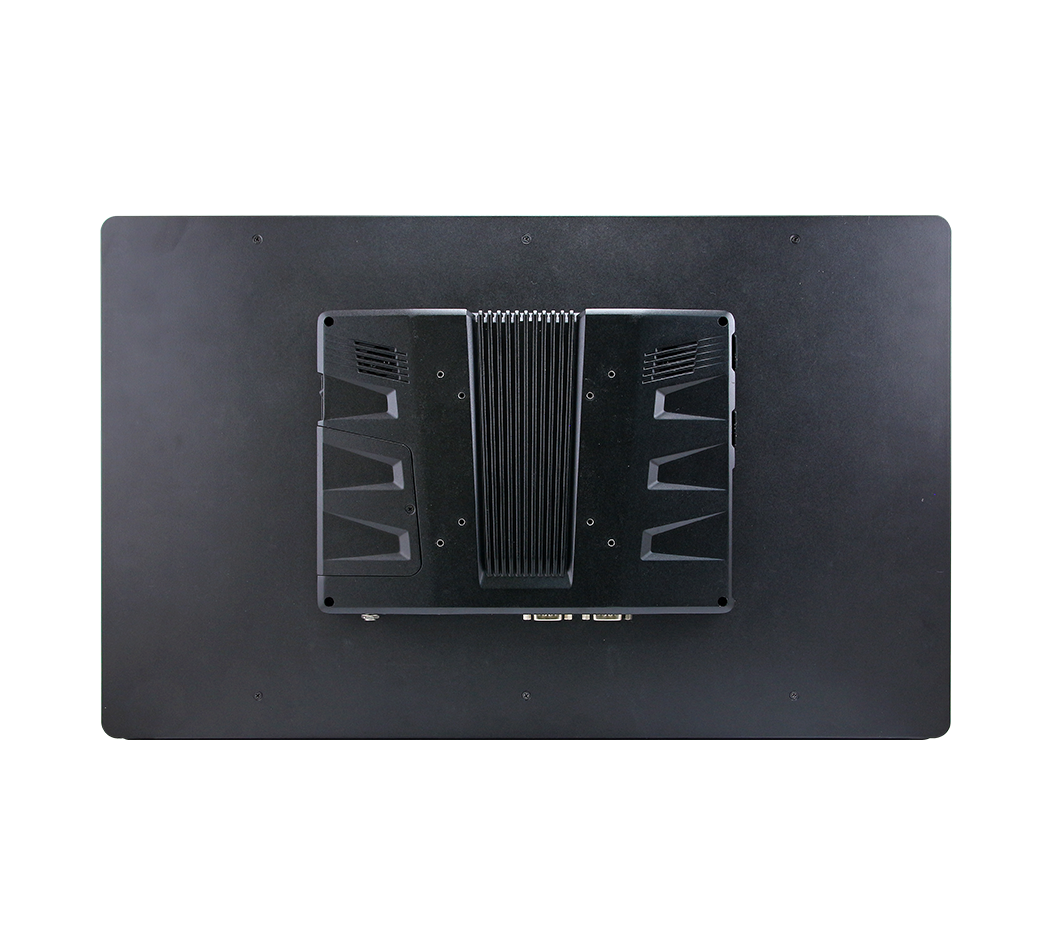

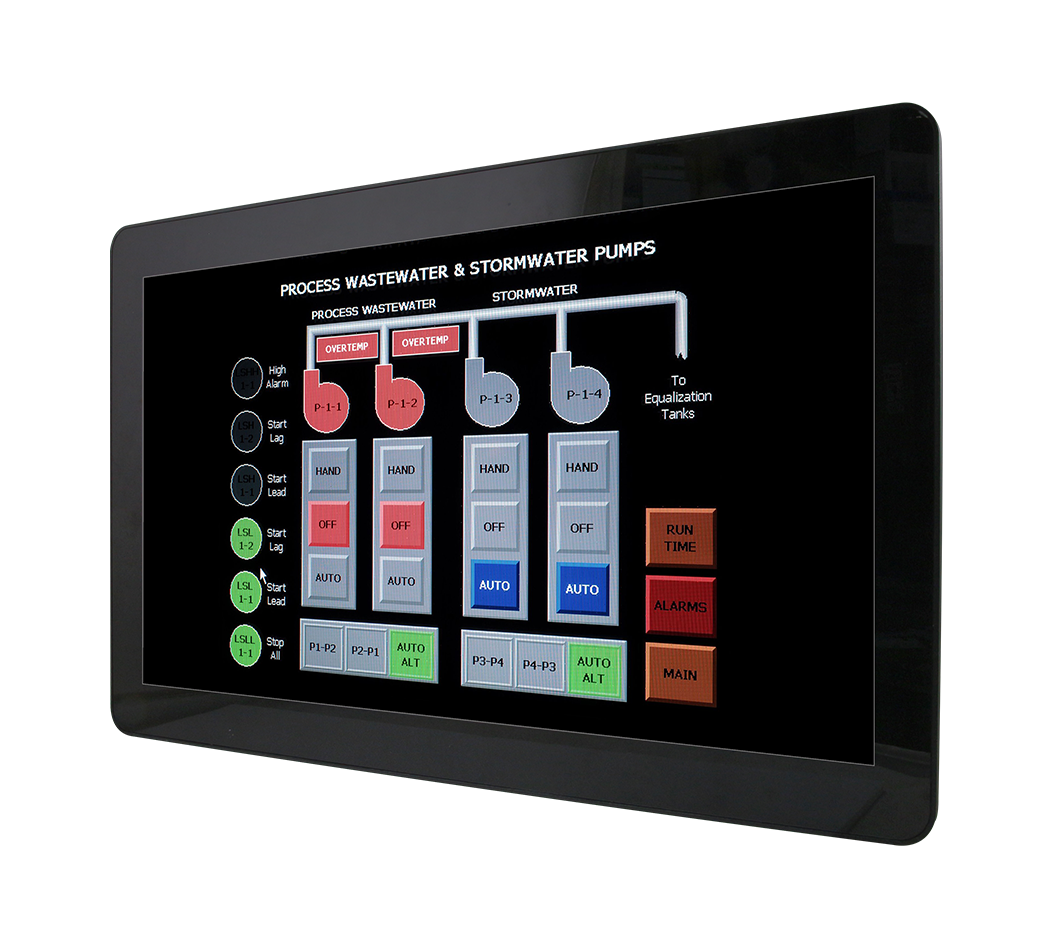

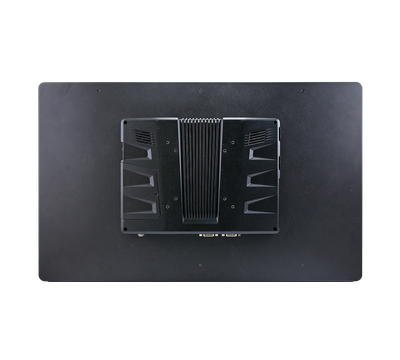

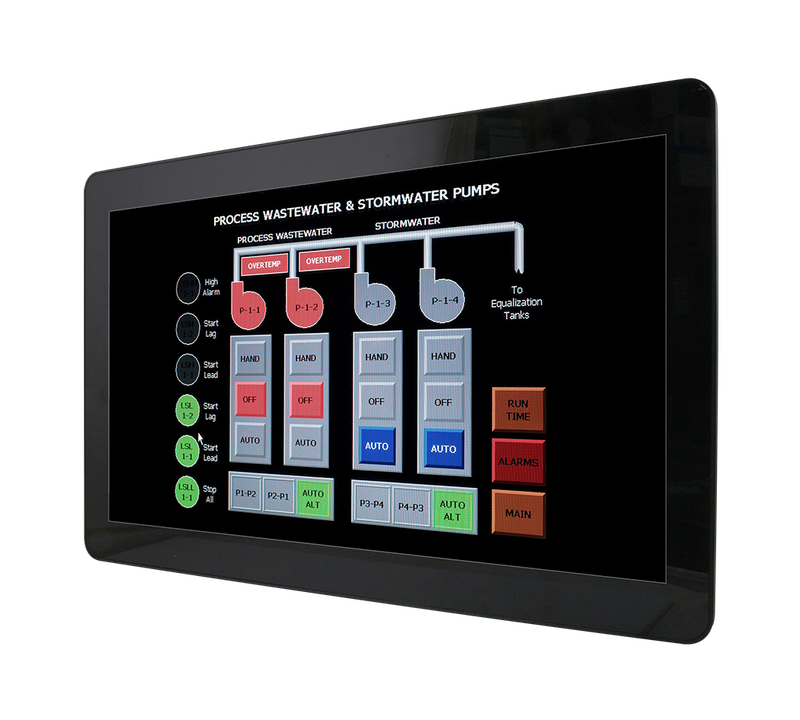

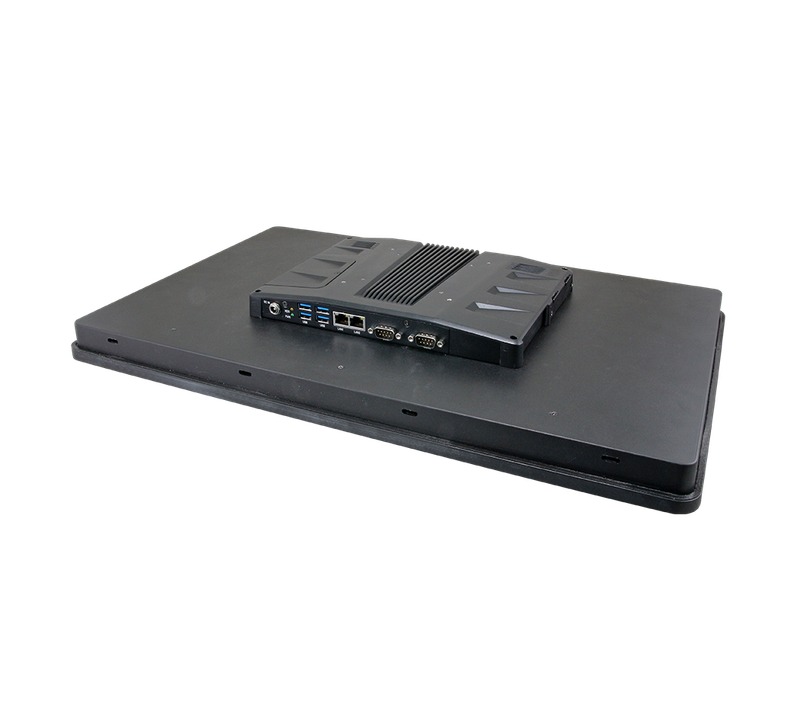

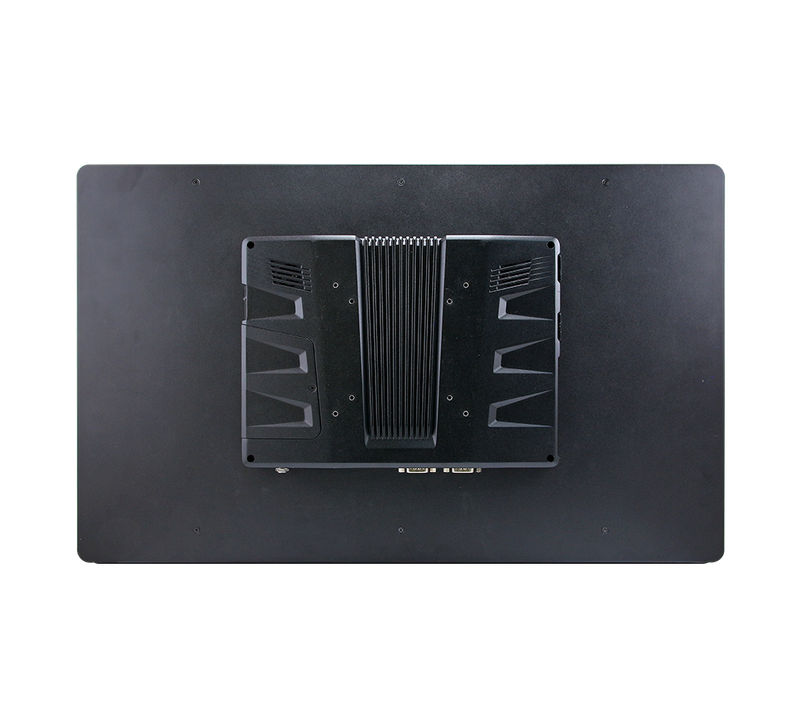

ARC-21W33

*Price on request. Contact us for a quote.

Manufacturer: Avalue

21.5" Full HD LCD with PCAP multi-touch
Intel® Celeron® Processor J3455
1 x 204-pin DDR3L SODIMM socket, supports up to 8GB DDR3L 1600MTs SDRAM
Rich I/Os, 2 LAN, 2 COM, 4 USB, SIM card slot, swappable drive bay, speaker out for flexible expansion modules
1 x Mini PCIe slot
Rugged design for vibration & shock protection
Fanless operation from -10 ~ 50°C
Wide range DC power input from +9~36Vdc
Service window, easy to install memory module
Front panel: IP65, rear: IP41(except I/O)
TPM2.0 (optional)

Product Description

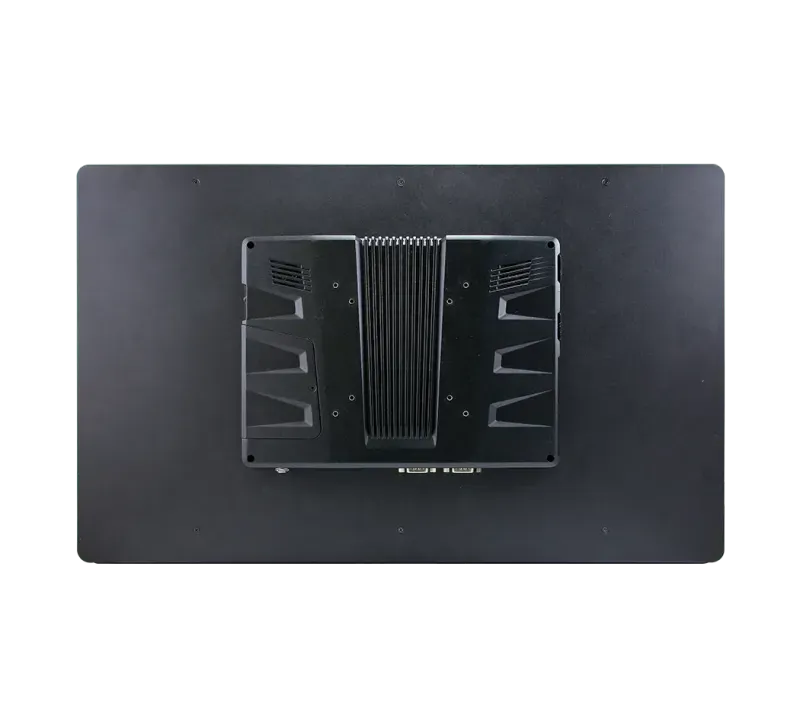

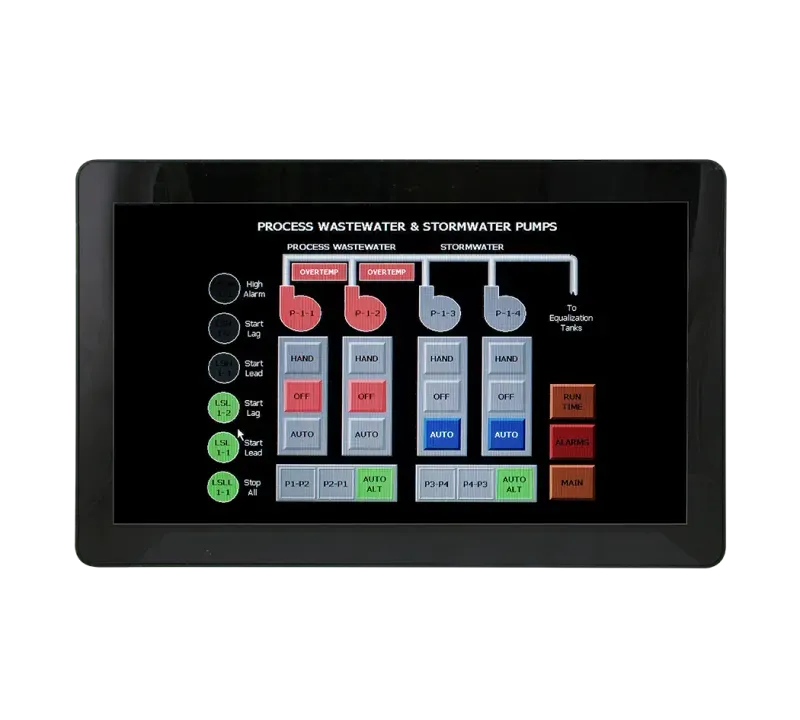

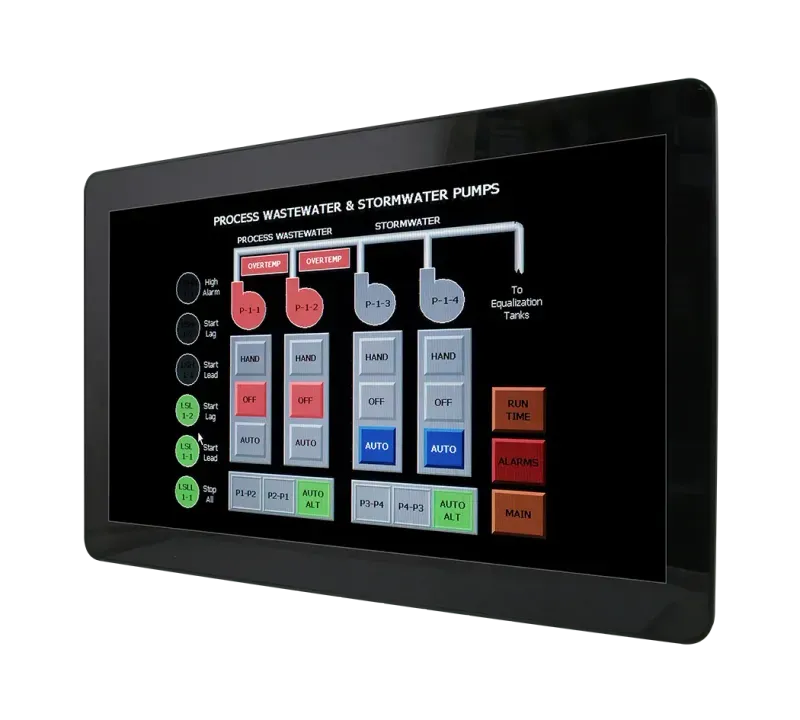

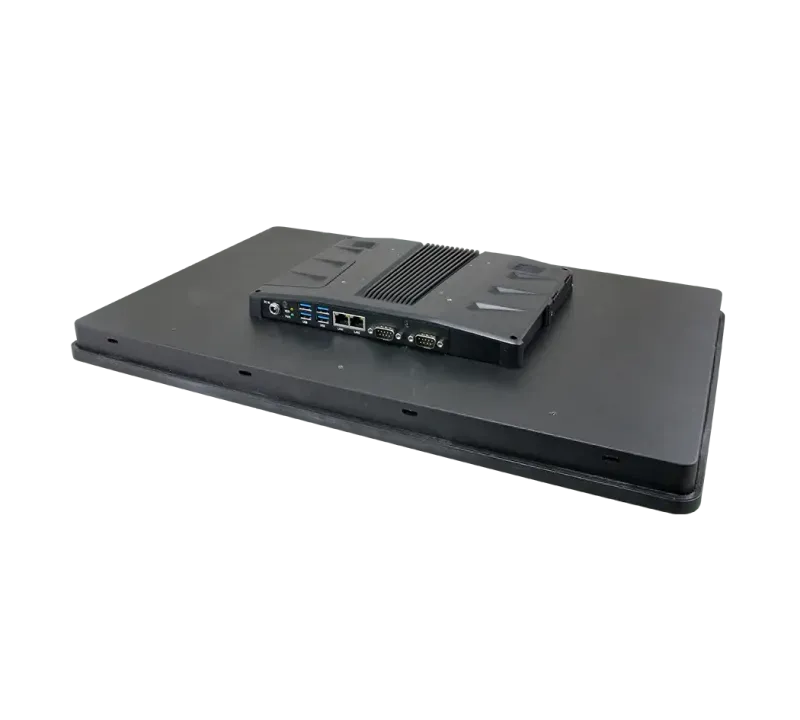

The Avalue ARC-21W33 is a 21.5" industrial touch panel PC featuring an Intel® Celeron® Processor J3455. It includes a Full-HD PCAP multi-touch screen, fanless design, dual Gigabit LAN, multiple USB and COM ports, and HDMI support.

The panel is IP65 front and IP41 rear rated for rugged environments, supports wide voltage input, and operates in temperatures from -10°C to 50°C.

Technical Specifications

System Information

Processor

Intel® Celeron® Processor J3455, 2M Cache, up to 2.30 GHz

System Memory

One 204-pin DDR3L SODIMM socket, supports up to 8GB DDR3L 1600Mhz SDRAM (non-ECC)

Watchdog Timer

H/W reset, 1sec. ~ 65535sec./1sec.step

H/W Status Monitor

Monitoring CPU & System Temperature and Voltage

SBC

ARC-APL

CPU Cooler (Type)

Fanless Heatsink

Other

3 x Knockouts for antenna mounting

Panel

LCD Size

21.5" 16:9

Display Type

Full HD

Resolution

1920 x 1080

Pixel pitch

0.24795mm(H) x 0.24795mm(V)

Luminance

250 cd/m²

Contrast ratio

3000

Viewing angle

89 (U), 89 (D), 89 (L), 89 (R)

Response time

20 ms

Backlight

LED

Touch Type

Projective capacitive multi-touch up to 10 points

Touch Light Transmission

89 %

Touch Controller

EETI

Expansion

1 x mSATA support on the 1st mini PCIe slot, auto switch for mSATA or mini PCIe

1 x optional by IET module

Storage

1 x 2.5" Drive Bay (7mm HDD Restricted)

HDD/SSD

1 x SATA3

Other Storage Device

1 x mSATA support on the 1st mini PCIe slot, auto switch for mSATA or mini PCIe

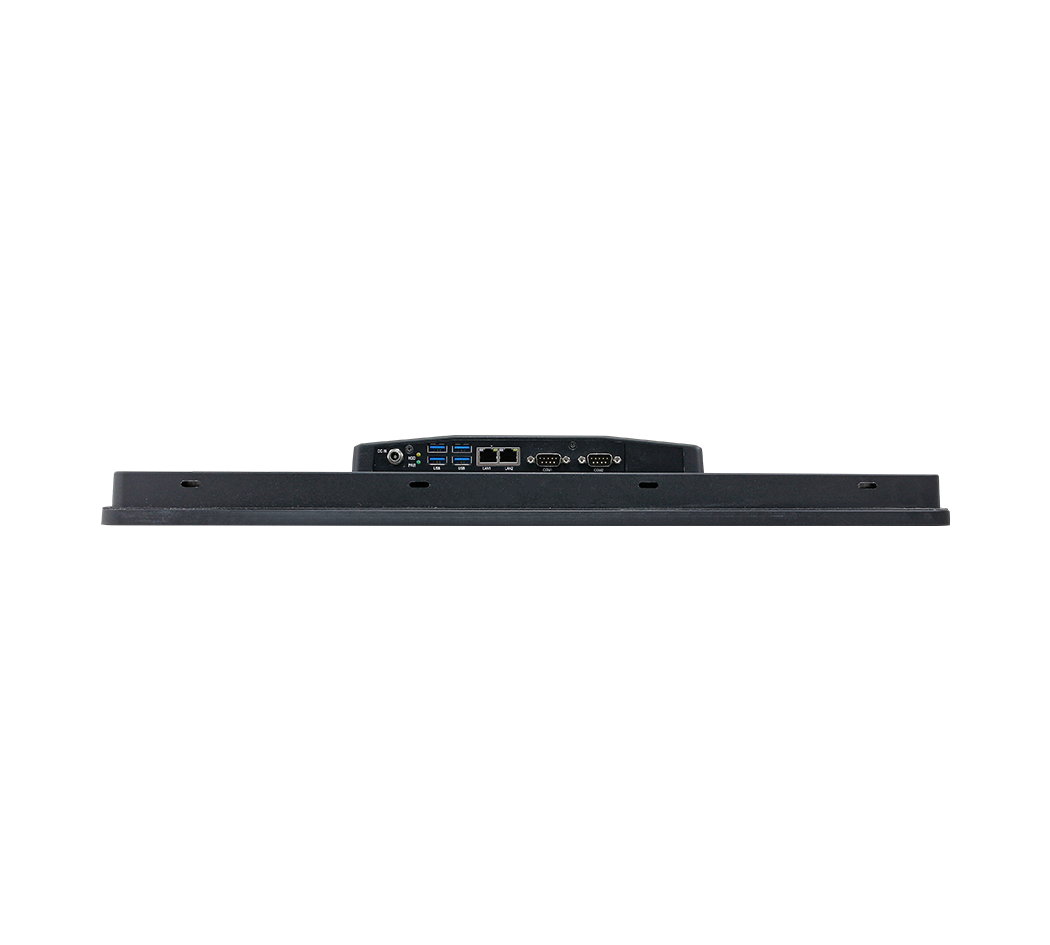

External And Internal I/O

USB Port

4 x USB3.0 (2 x double deck)

COM Port

1 x RS-232/422/485, selectable by BIOS, RS-485 supports auto flow, pin-9 selected by ring/+5V/+12V)

1 x RS-232

DIO

16-bit GPIO (option by IET DB)

LAN Port

2 x RJ-45

Audio

Audio Codec

Realtek ALC888S

Speaker Output

2 x 2W

Certifications

Certification Information

CE / FCC Class B

Software Support

OS Information

Win 10 / Linux

Ethernet

LAN Chipset

2 x Intel I211AT for APL-M

Ethernet Interface

10/100/1000 Base-Tx GbE compatible

Power Requirement

DC Input

+9V ~ +36V

DC Input Connector

Lockable DC Jack

Optional for phoenix connector

Adapter

Input: 100 ~ 240Vac/ 50 ~ 60Hz

Output: 60W Adapter (12V @ 5A Adapter) AC-DC Adapter

ACPI

Single power ATX support S0, S3, S4, S5 and ACPI 3.0 compliant

Mechanical & Environmental

Operating Temperature

-10°C ~ 50°C (14°F ~ 122°F)

Storage Temperature

-20°C ~ 60°C (-4°F ~ 140°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

7.3 Kg

Vibration Test

With SSD/mSATA : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 1hr/axis

Shock Test

Operating with SSD/CFast/mSATA : MIL-STD-810G, method 516.6, procedure I, functional shock=20G

Drop Test

ISTA 2A, IEC-60068-2-32 Test:Ed

IP Rating

Front IP65

Rear IP41

Mounting Kit

Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm

Panel Mount with mounting kits

Power Mode

AT/ATX (ATX is default setting)

System Fan

Fanless

Construction - Front

Die casting with cover lens

Construction - Rear

Black Die Casting

Dimension

538.05 x 341.05 x 60.05mm

Ordering Information

ARC-21W33-345-B2R

21.5 1920x1080 Industrial Touch Panel PC, ErP Design, PCAP Multi Touch

Intel Celeron SoC J3455 1.5GHz CPU/2GLAN/2COM/4USB/SPK/9~36V input/12V Adapter

ACC-ARC-USB-1R

4 x USB 3.0 Kit for ARC Series

ACC-ARC-AUDIO-1R

HDMI + 5.1 CH Audio Kit for ARC Series

ACC-ARC-MPCIE-1R

HDMI + MPCIE w/SIM Kit for ARC Series

ACC-ARC-COM-1R

2 x Isolated RS-232 Kit for ARC Series

ACC-ARC-COM-2R

3 x RS-232 Kit for ARC Series

ACC-ARC-COM-3R

2 x RS-232 + USB Kit for ARC Series

ACC-ARC-COM-4R

2 x RS-232 + LAN Kit for ARC Series

ACC-ARC-GPIO-1R

12-bit GPIO + 2-pin CAN Bus Kit for ARC Series

ACC-ARC-OBDII-1R

OBDII - CAN Bus Kit for ARC Series (OBDII/EOBD for Small Vehicle)

ACC-ARC-OBDII-2R

OBDII - CAN Bus Kit for ARC Series (J1939J1708 for Large Vehicle)

ACC-ARC-OBDII-3R

OBDII - CAN Bus Kit for ARC Series (ISO15765-4 for Special Large Vehicle)

E1702031833R

USA Power Cord

E1702031000R

EU Power Cord

E1702031834R

Japan Power Cord

E1702031830R

UK Power Cord

E1702031831R

Australia Power Cord

What is ARC-21W33?

The ARC-21W33 is a panel pc / monitor / mobile manufactured by Avalue, designed specifically for industrial-panel-pc applications. The Avalue ARC-21W33 is a 21.5" industrial touch panel PC featuring an Intel® Celeron® Processor J3455. It includes a Full-HD PCAP multi-touch screen, fanless design, dual Gigabit LAN, multiple USB and COM ports, and HDMI support. The panel is IP65 front and IP41 rear rated for rugged environments, supports wide voltage input, and operates in temperatures from -10°C to 50°C.

Key Features & Benefits

21.5" Full HD LCD with PCAP multi-touch
Intel® Celeron® Processor J3455
1 x 204-pin DDR3L SODIMM socket, supports up to 8GB DDR3L 1600MTs SDRAM
Rich I/Os, 2 LAN, 2 COM, 4 USB, SIM card slot, swappable drive bay, speaker out for flexible expansion modules
1 x Mini PCIe slot
Rugged design for vibration & shock protection
Fanless operation from -10 ~ 50°C
Wide range DC power input from +9~36Vdc
Service window, easy to install memory module
Front panel: IP65, rear: IP41(except I/O)
TPM2.0 (optional)

Applications & Use Cases

The ARC-21W33 is ideal for various industrial automation applications:

Harsh industrial environments requiring dust and water protection
Rugged industrial applications with high durability requirements
Dust-sensitive environments and silent operation requirements
DC-powered industrial installations and mobile applications
High-performance computing and data processing tasks
Networked industrial systems and data communication
Interactive control interfaces and operator panels
Peripheral device connectivity and data transfer

Frequently Asked Questions

The ARC-21W33 features a 21.5" widescreen Full HD display, Intel Celeron processors, projected capacitive multi-touch interface, comprehensive I/O including USB and COM ports, dual Gigabit LAN connectivity, fanless thermal design, IP65 front panel protection, and robust construction for industrial environments. It provides a large-format visualization solution for industrial applications requiring detailed interfaces.

The ARC-21W33 achieves a balance between performance and energy efficiency through its Intel Celeron processor platform, which provides sufficient computing power for industrial visualization applications while maintaining moderate power consumption. This balance supports the fanless thermal design and enables deployment in applications where power efficiency is a consideration alongside performance requirements.

The ARC-21W33 is ideal for industrial applications requiring large-format displays, including control room monitoring stations, production line visualization systems, complex process control interfaces, manufacturing execution systems, and centralized monitoring dashboards. Its combination of screen size, resolution, and industrial durability makes it particularly suited for applications where operators need to view and interact with detailed information.
