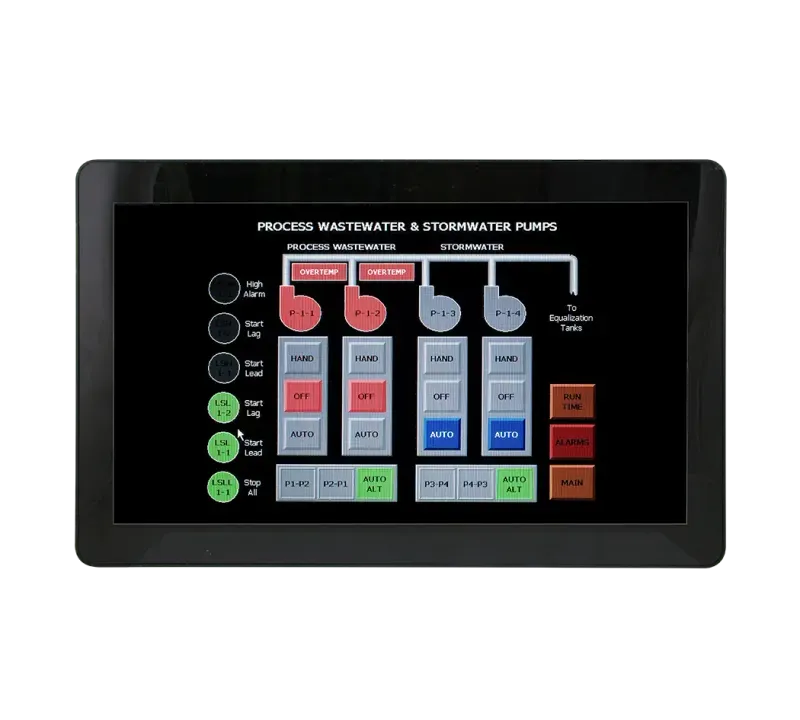

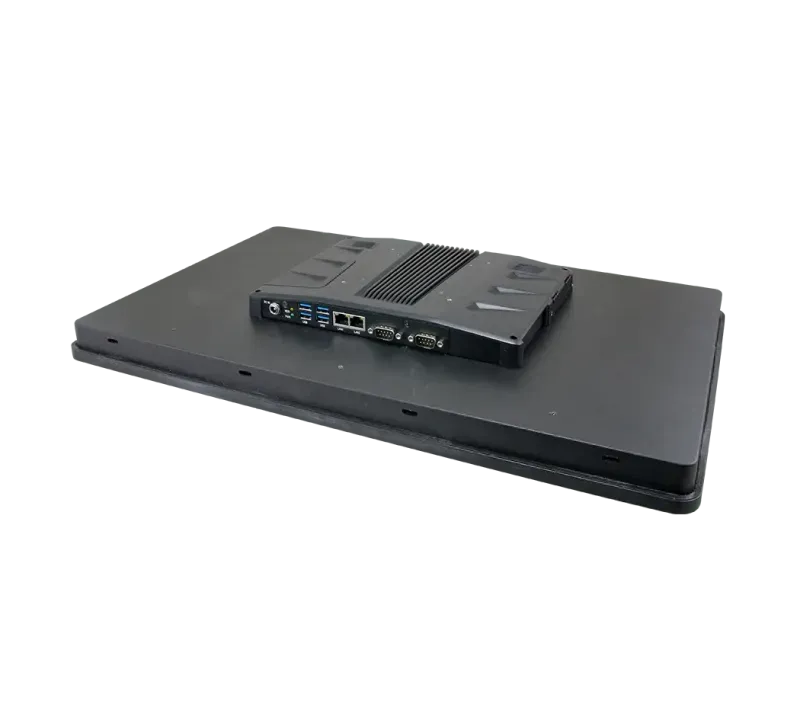

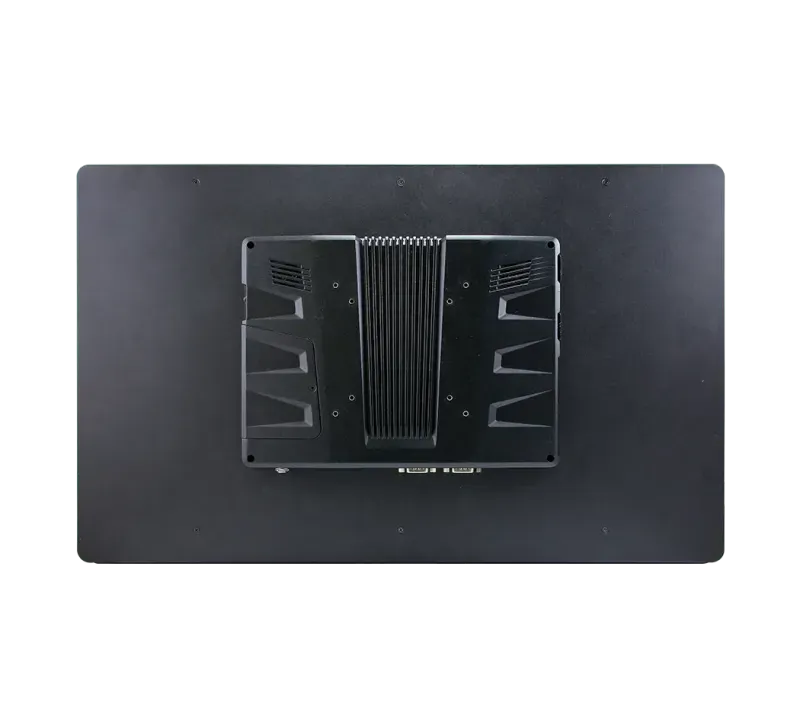

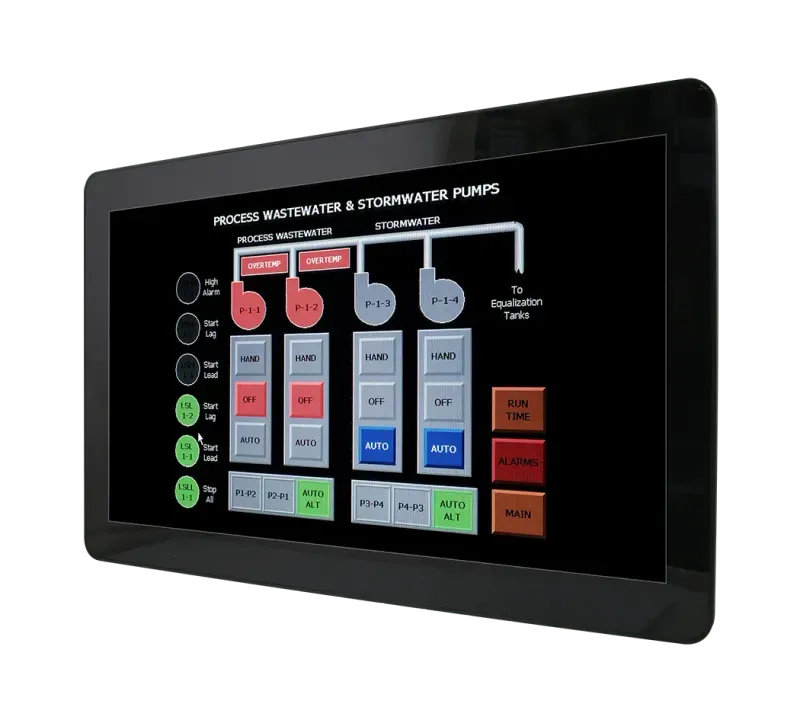

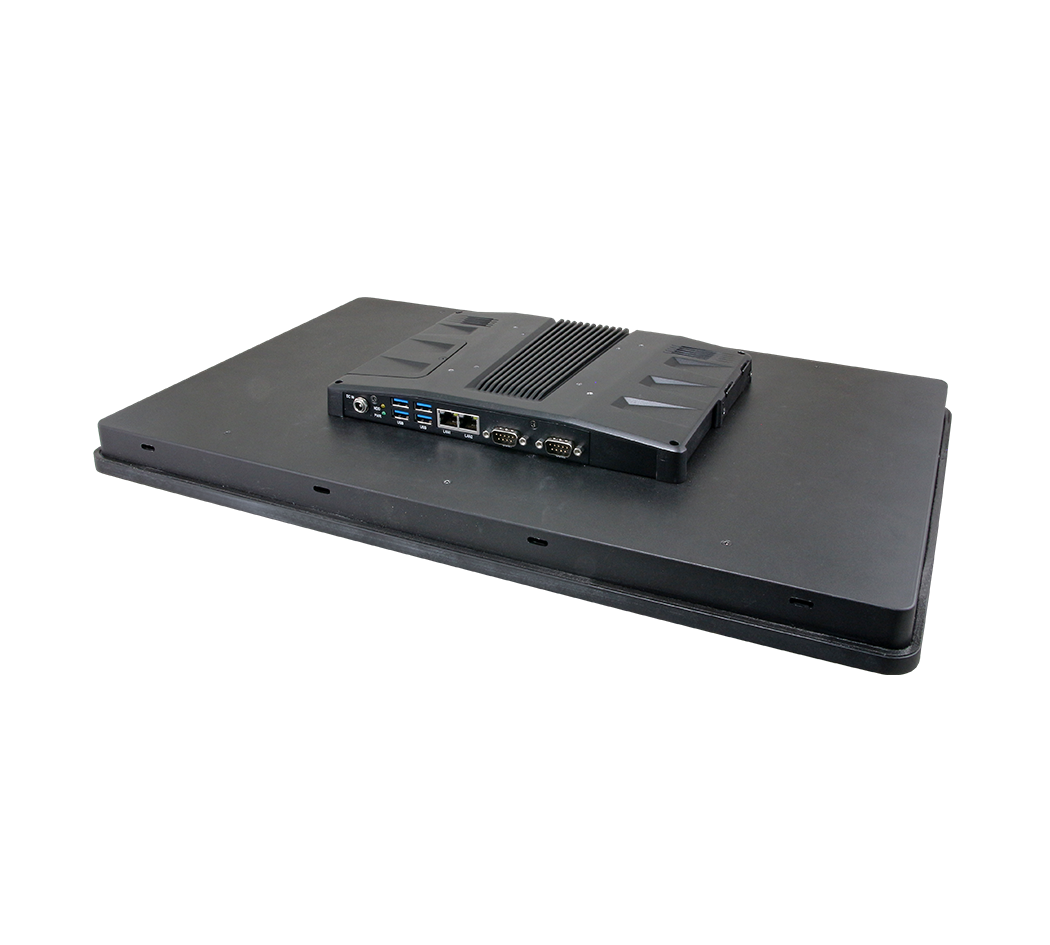

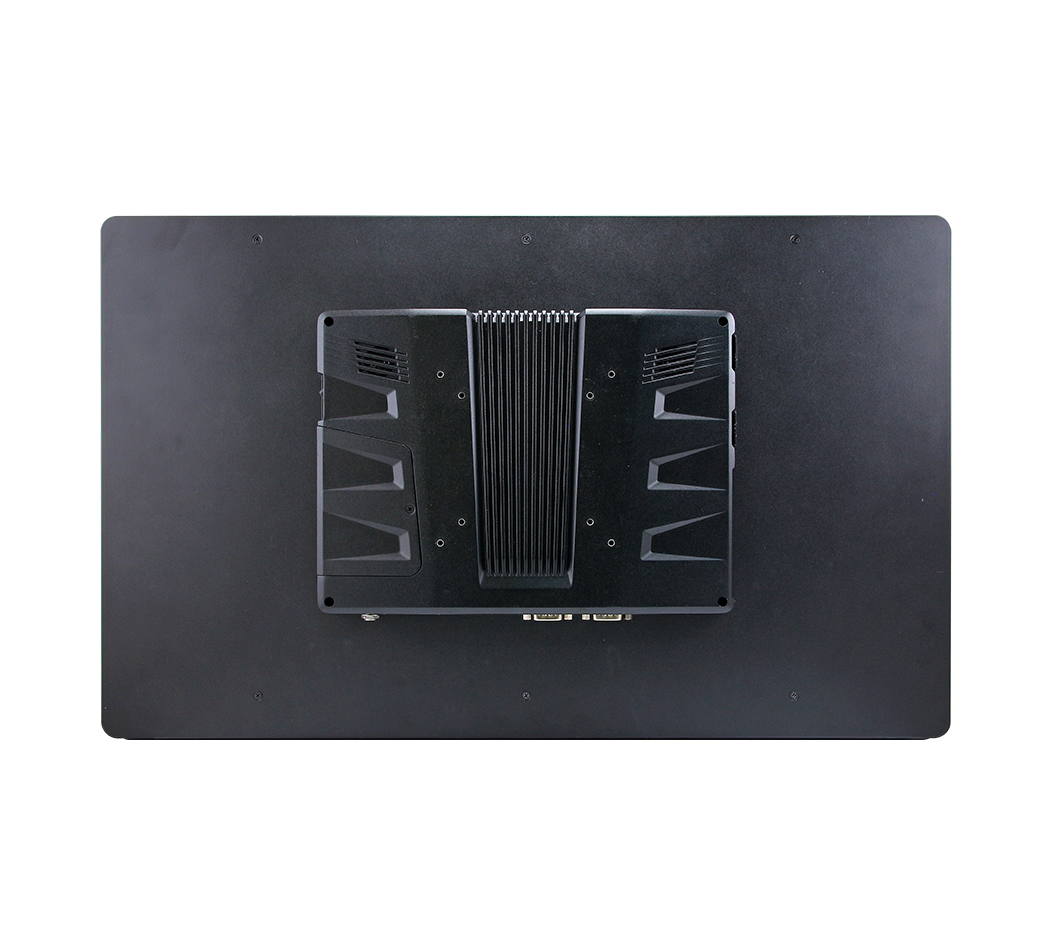

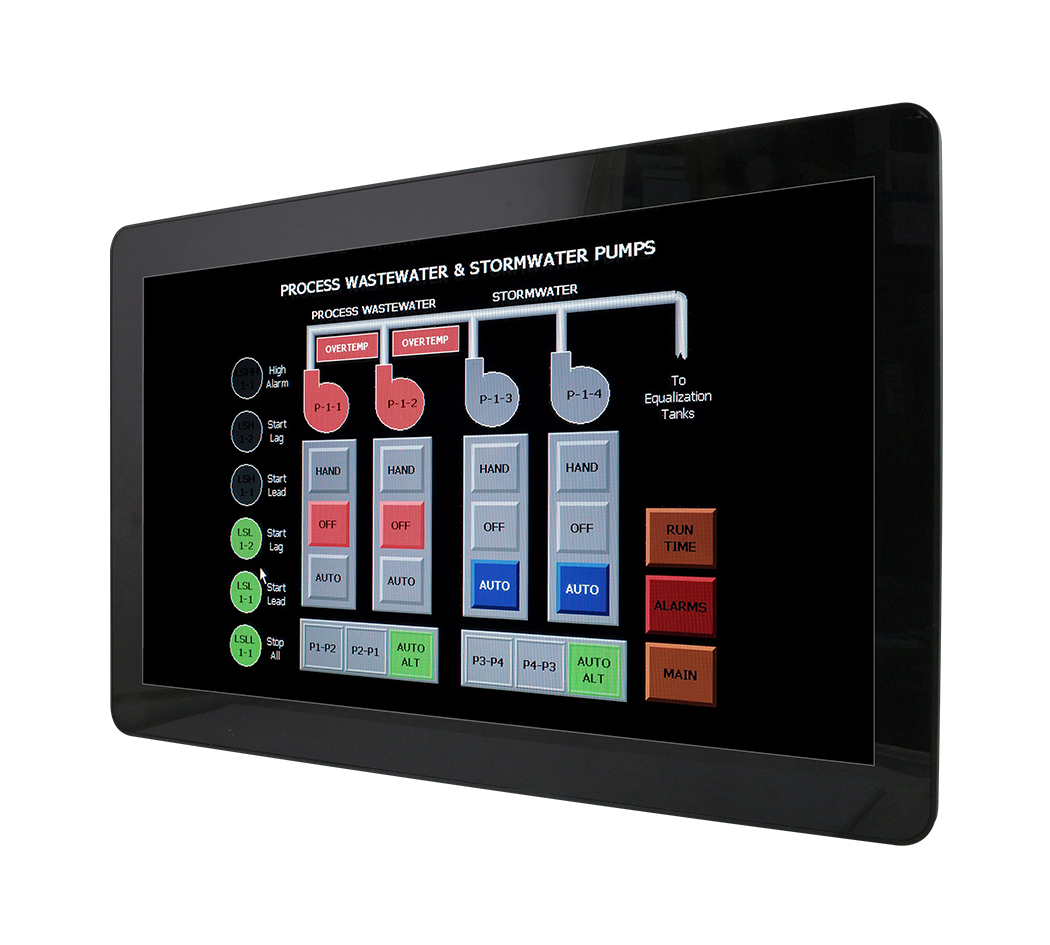

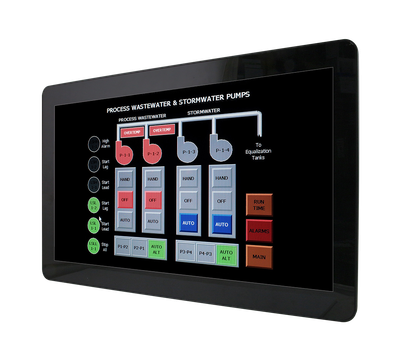

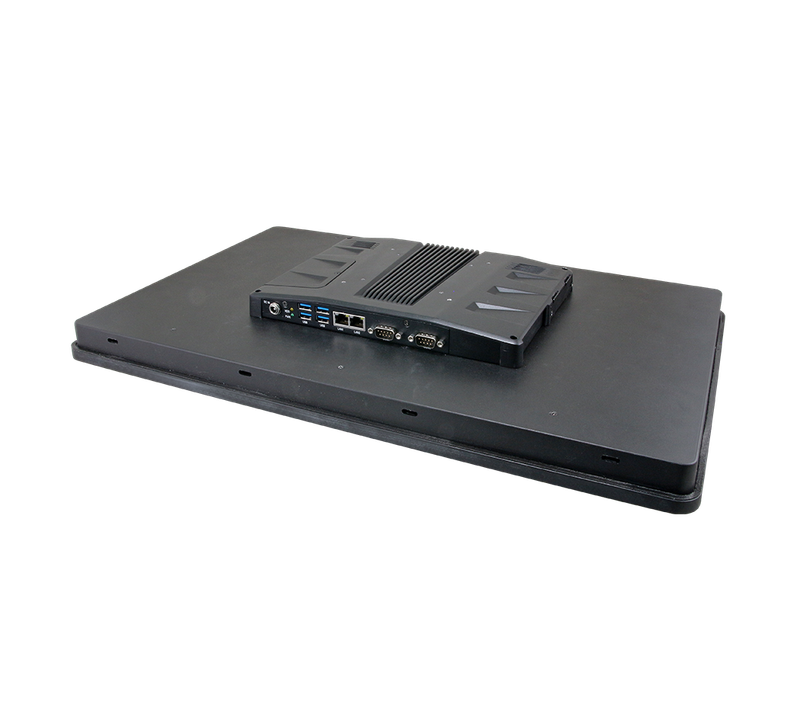

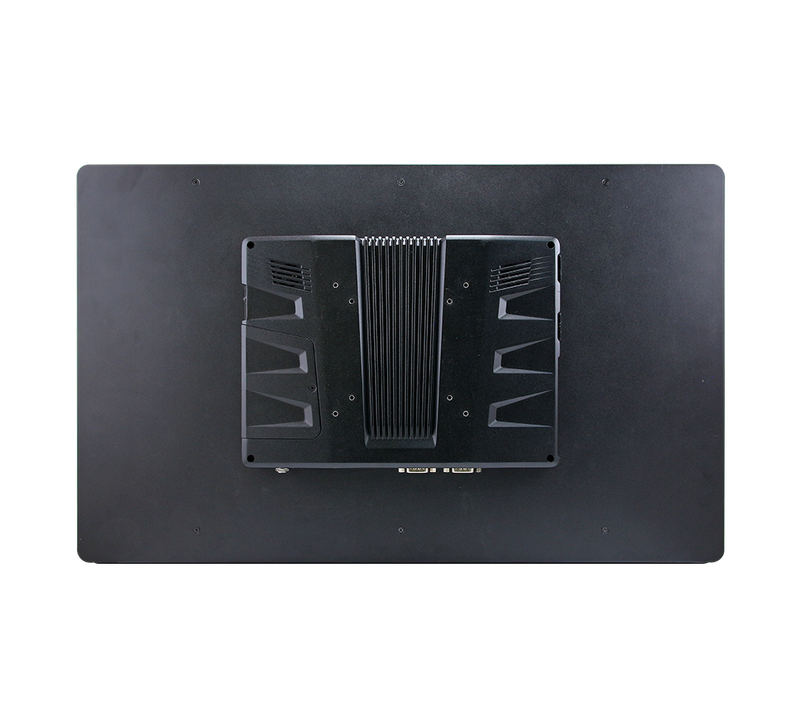

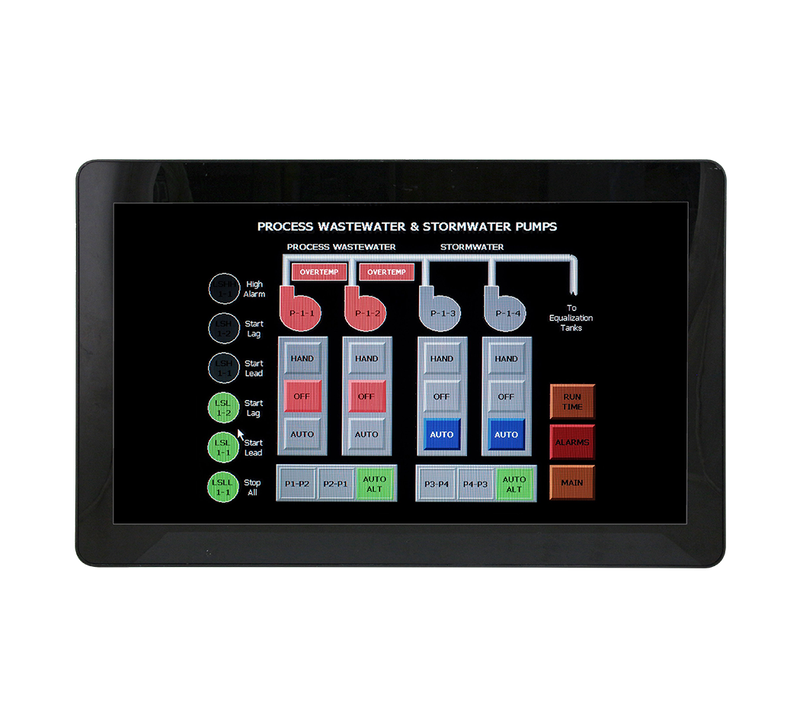

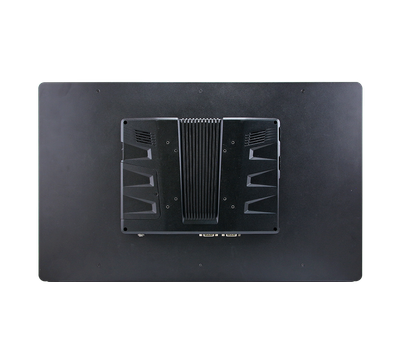

ARC-21W34

*Price on request. Contact us for a quote.

Manufacturer: Avalue

21.5" Full HD LCD with PCAP multi-touch
7th Generation Intel® Core™ i5 Processor
1 x 260-pin DDR4 SODIMM socket, supports up to 16GB DDR4 2133Mhz SDRAM
Rich I/Os, 2 LAN, 2 COM, 4 USB, SIM card slot, swappable drive bay, speaker out for flexible expansion modules
1 x Mini PCIe slot
Rugged design for vibration & shock protection
Fanless operation from -10 ~ 50°C
Wide range DC power input from +12~26Vdc
Service window, easy to install memory module
Front panel: IP65, rear: IP41(except I/O)
TPM2.0 (optional)

Product Description

The Avalue ARC-21W34 is a 21.5" industrial touch panel PC featuring a Full-HD display and a 7th Generation Intel® Core™ i5 processor. It includes a projected capacitive multi-touch screen, fanless design, dual Gigabit LAN, multiple USB and COM ports, and HDMI support.

The panel is IP65 front and IP41 rear rated, suitable for rugged environments, and offers flexible mounting options and wide operating temperature range.

Technical Specifications

System Information

Processor

Intel® Core™ i5-7300U Processor, 3M Cache, up to 2.6 GHz

System Memory

One 260-pin DDR4 SODIMM socket, supports up to 16GB DDR4 2133Mhz SDRAM (non-ECC)

Watchdog Timer

H/W reset, 1sec. ~ 65535sec./1sec.step

H/W Status Monitor

Monitoring CPU & System Temperature and Voltage

SBC

ARC-TGL

CPU Cooler (Type)

Fanless Heatsink

Other

3 x Knockouts for antenna mounting

Panel

LCD Size

21.5" 16:9

Display Type

Full HD

Resolution

1920 x 1080

Pixel pitch

0.24795mm(H) x 0.24795mm(V)

Luminance

250 cd/m²

Contrast ratio

3000

Viewing angle

89 (U), 89 (D), 89 (L), 89 (R)

Response time

20 ms

Backlight

LED

Touch Type

Projective capacitive multi-touch up to 10 points

Touch Light Transmission

89 %

Touch Controller

EETI

Expansion

1 x mSATA support on the 1st mini PCIe slot, auto switch for mSATA or mini PCIe

1 x optional by IET module

Storage

1 x 2.5" Drive Bay (7mm HDD Restricted)

HDD/SSD

1 x SATA3

External And Internal I/O

USB Port

4 x USB3.0 (2 x double deck)

COM Port

1 x RS-232/422/485, selectable by BIOS, RS-485 supports auto flow, pin-9 selected by ring/+5V/+12V)

1 x RS-232

DIO

16-bit GPIO (option by IET DB)

LAN Port

2 x RJ-45

Audio

Audio Codec

Realtek ALC888S

Speaker Output

2 x 2W

Certifications

Certification Information

CE / FCC Class B

Software Support

OS Information

Win10 / Win11 / Linux

Ethernet

LAN Chipset

1 x Intel® I211AT

1 x Intel® I219LM

Ethernet Interface

10/100/1000 Base-Tx GbE compatible

Power Requirement

DC Input

+12V ~ +26V

DC Input Connector

Lockable DC Jack

Optional for phoenix connector

Adapter

Input: 100 ~ 240Vac/ 50 ~ 60Hz

Output: 60W Adapter (12V @ 5A Adapter) AC-DC Adapter

Mechanical & Environmental

Operating Temperature

-10°C ~ 50°C (14°F ~ 122°F)

Storage Temperature

-20°C ~ 60°C (-4°F ~ 140°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

7.3 Kg

Vibration Test

With SSD/mSATA : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 1hr/axis

Shock Test

Operating with SSD/CFast/mSATA : MIL-STD-810G, method 516.6, procedure I, functional shock=20G

Drop Test

ISTA 2A, IEC-60068-2-32 Test:Ed

IP Rating

Front IP65

Rear IP41

Mounting Kit

Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm

Panel Mount with mounting kits

Power Mode

AT/ATX (ATX is default setting)

System Fan

Fanless

Construction - Front

Die casting with cover lens

Construction - Rear

Black Die Casting

Dimension

538.05 x 341.05 x 60.05mm

Ordering Information

ARC-21W34-730-B2R

21.5 1920x1080 Industrial Touch Panel PC, ErP Design, PCAP Multi Touch

7th Gen Intel Core i5 7300U 2.6GHz CPU/2GLAN/2COM/4USB/SPK/12~26V input/12V Adapter

ACC-ARC-USB-1R

4 x USB 3.0 Kit for ARC Series

ACC-ARC-AUDIO-1R

HDMI + 5.1 CH Audio Kit for ARC Series

ACC-ARC-MPCIE-1R

HDMI + MPCIE w/SIM Kit for ARC Series

ACC-ARC-COM-1R

2 x Isolated RS-232 Kit for ARC Series

ACC-ARC-COM-2R

3 x RS-232 Kit for ARC Series

ACC-ARC-COM-3R

2 x RS-232 + USB Kit for ARC Series

ACC-ARC-COM-4R

2 x RS-232 + LAN Kit for ARC Series

ACC-ARC-GPIO-1R

12-bit GPIO + 2-pin CAN Bus Kit for ARC Series

ACC-ARC-OBDII-1R

OBDII - CAN Bus Kit for ARC Series (OBDII/EOBD for Small Vehicle)

ACC-ARC-OBDII-2R

OBDII - CAN Bus Kit for ARC Series (J1939J1708 for Large Vehicle)

ACC-ARC-OBDII-3R

OBDII - CAN Bus Kit for ARC Series (ISO15765-4 for Special Large Vehicle)

E1702031833R

USA Power Cord

E1702031000R

EU Power Cord

E1702031834R

Japan Power Cord

E1702031830R

UK Power Cord

E1702031831R

Australia Power Cord
