BFC-10W9

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Intel Atom® Processor E3845

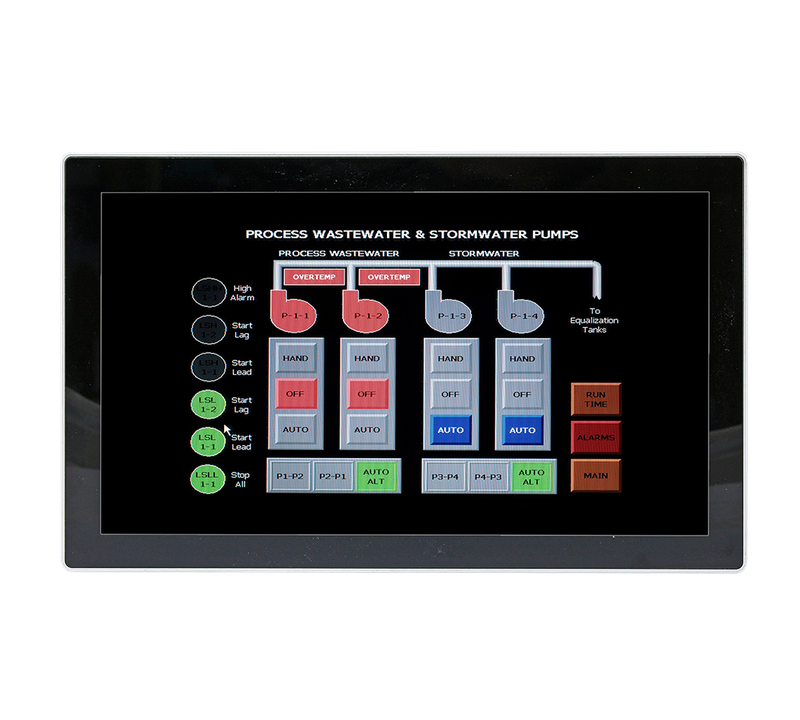

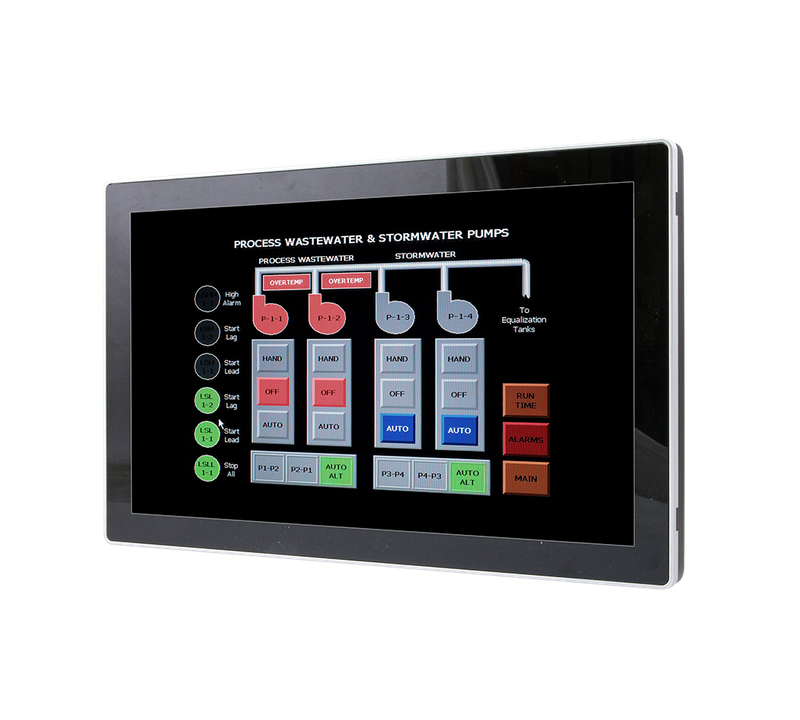

Full flat front panel with projected capacitive touch supports multi touch
2 x Intel® Gigabit Ethernet, 5.1-CH audio

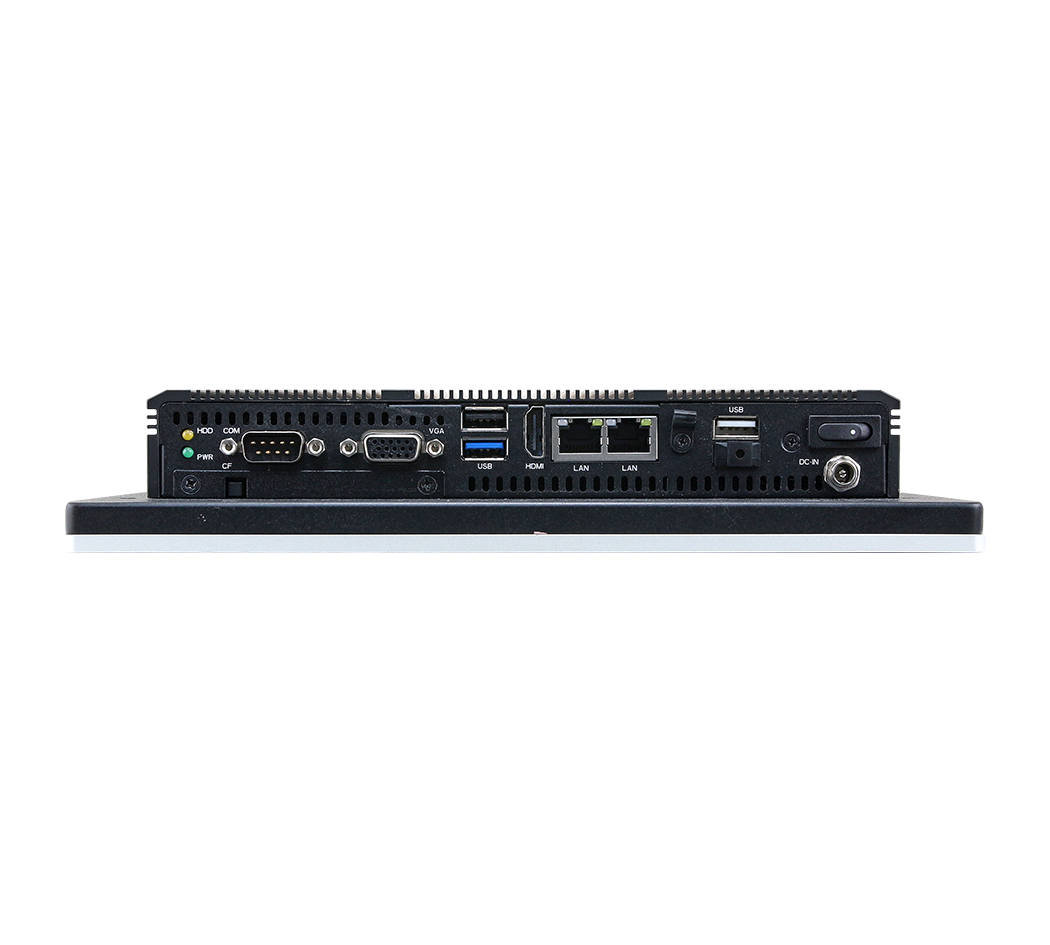

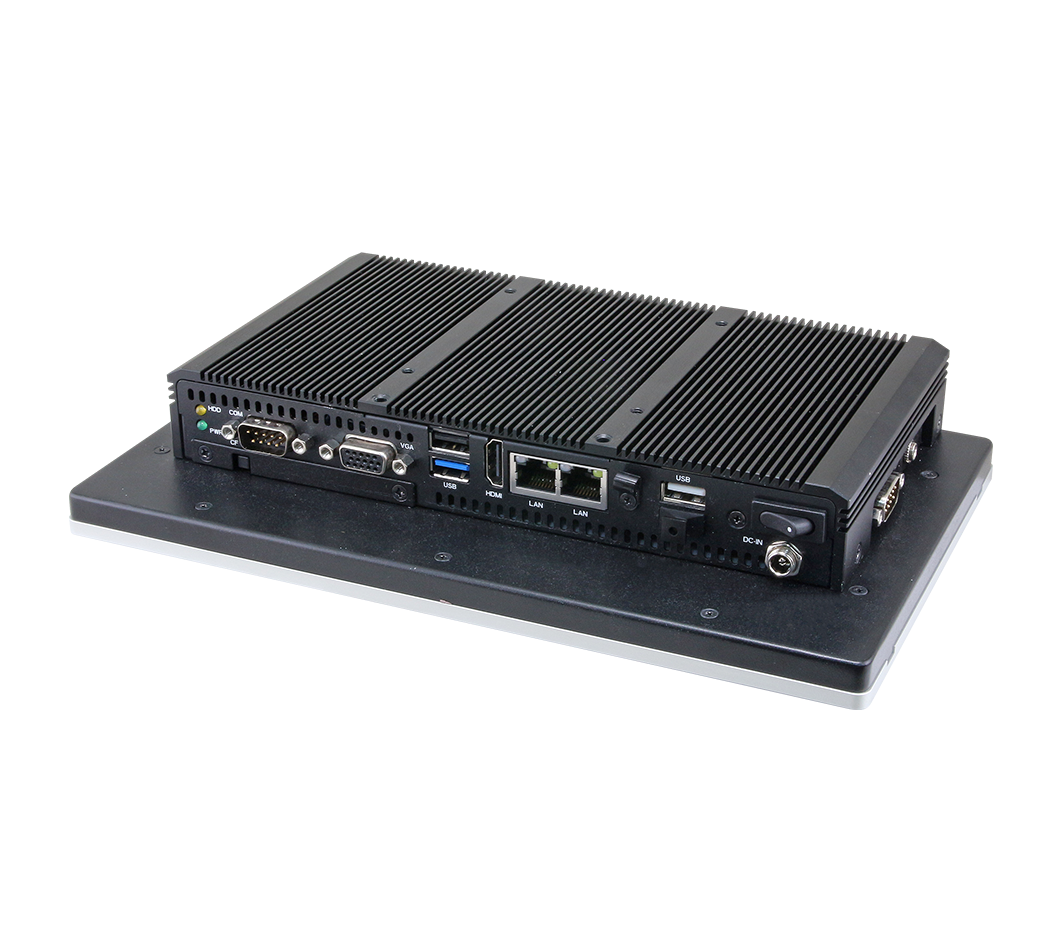

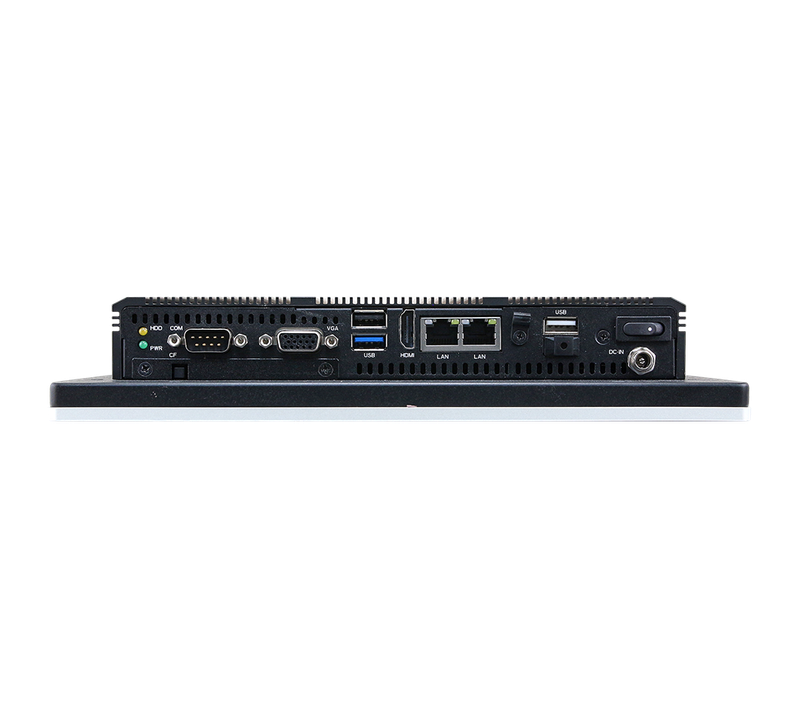

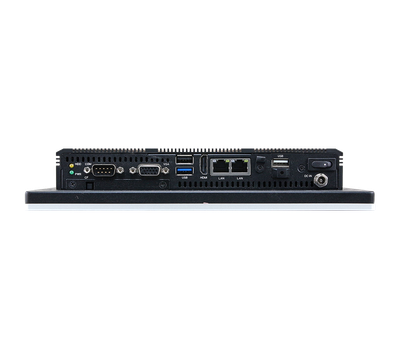

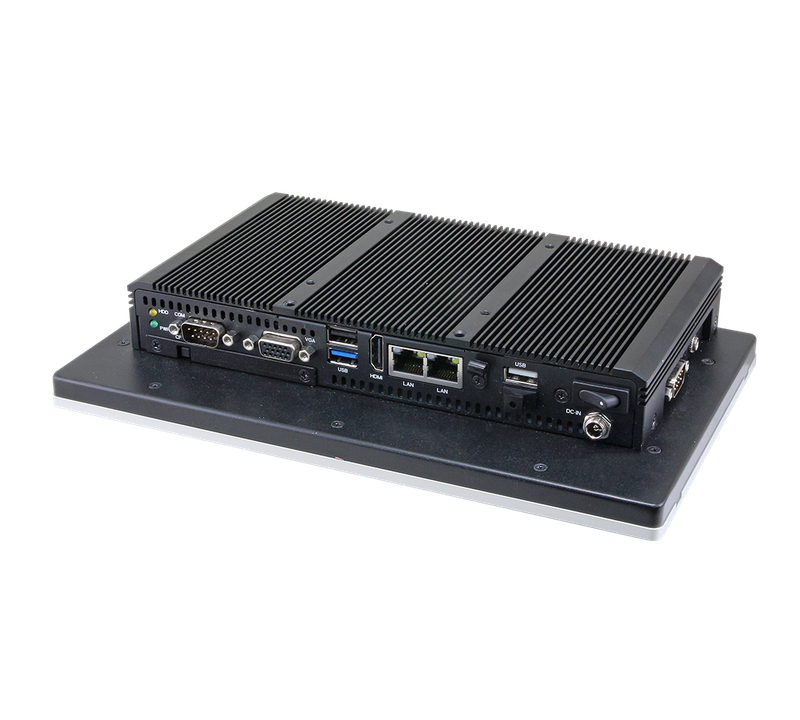

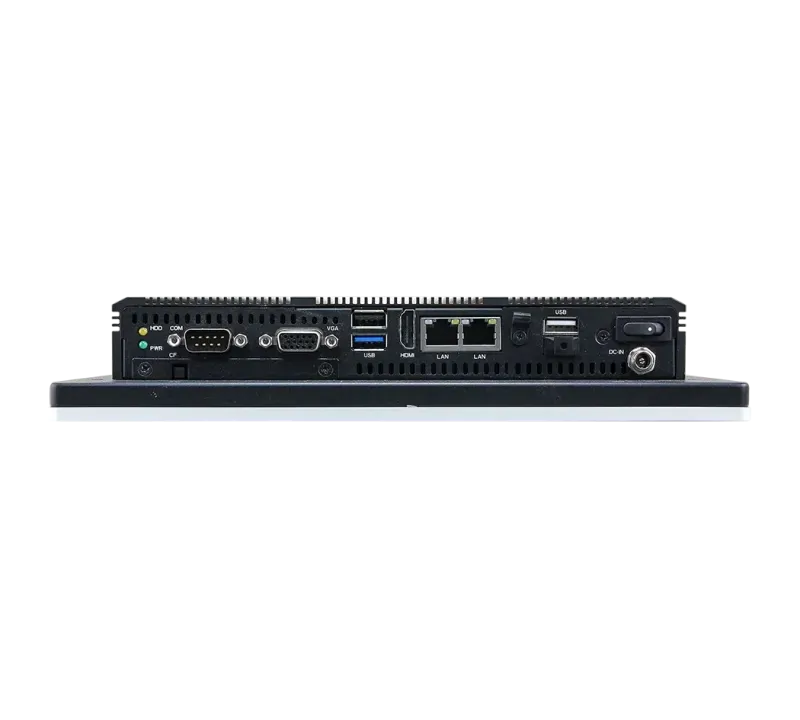

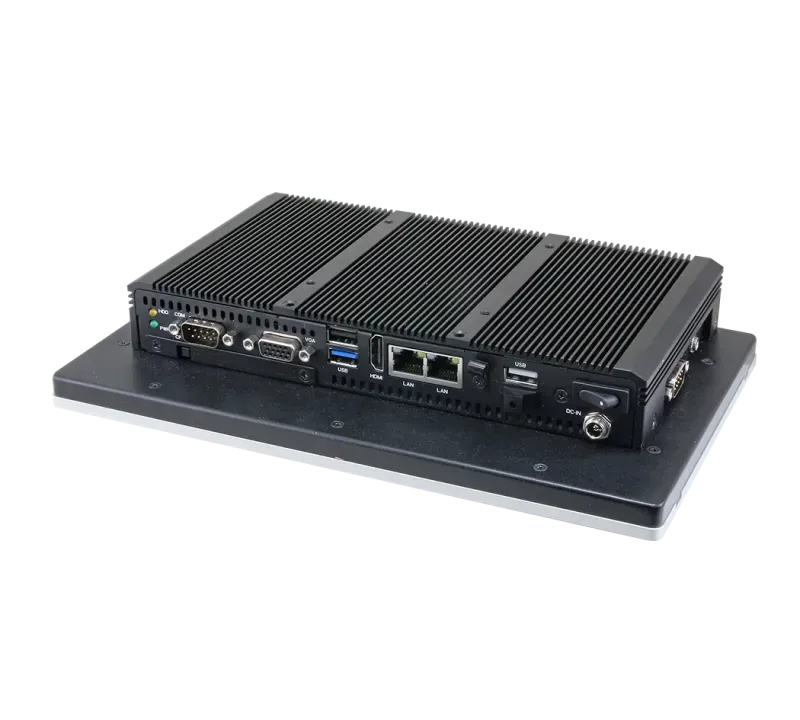

1 VGA, 1 HDMI, 2 LAN, 1 CF slot, 2 COM,1 USB3.0, 3 USB 2.0M

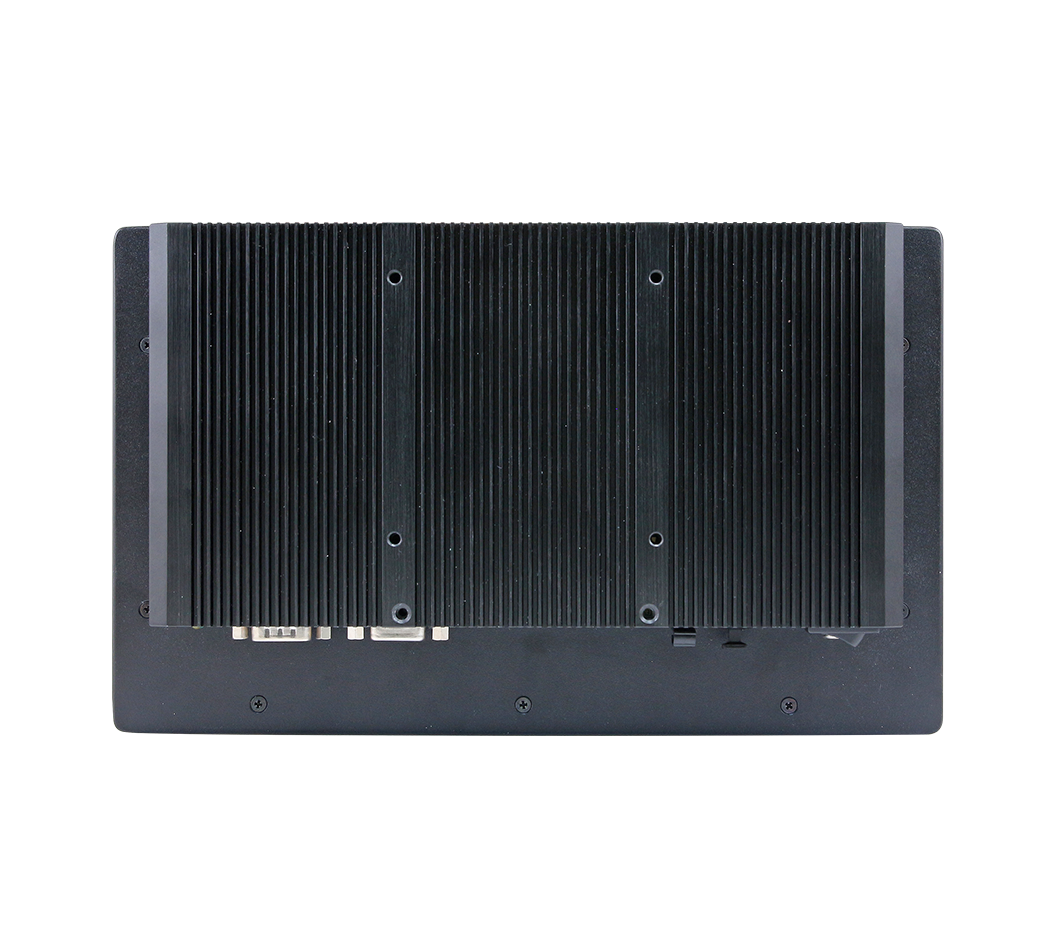

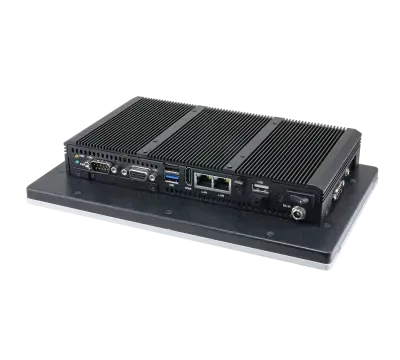

Fanless system & VESA compliance
Wide voltage +12V ~ +26V input, ErP power
Timer-power-on
Front side IP65 dust and water proof
Optional WiFi/BT module

Product Description

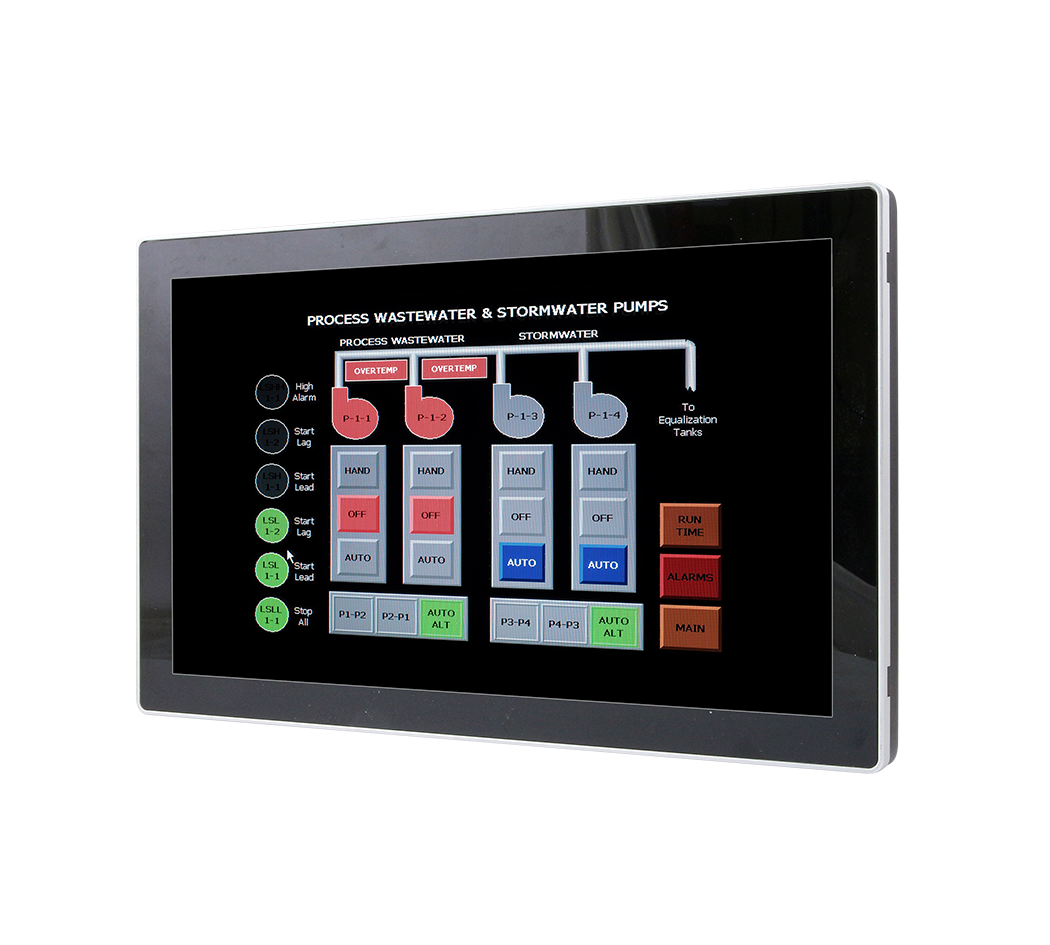

The Avalue BFC-10W9 is a 10.1" industrial touch panel PC featuring an Intel Atom® Processor E3845. It offers a fanless design, projected capacitive multi-touch screen, dual Gigabit LAN, multiple USB and COM ports, and HDMI support.

The panel is IP65 front and IP41 rear rated, suitable for rugged environments. It supports wide voltage input and operates in temperatures from 0°C to 40°C.

Technical Specifications

System Information

Processor

Intel Atom® Processor E3845, 2M Cache, 1.91 GHz

Platform Controller Hub

Intel® Valleyview SoC

System Memory

1 x 204-pin DDR3L 1066/1333MHz SO-DIMM up to 8 GB

I/O Chipset

EC ITE IT8528E

Watchdog Timer

H/W reset: 1sec.~255min. and 1sec. or 1min./step

H/W Status Monitor

Monitoring CPU & System Temperature and Voltage

SBC

ECM-BYT

CPU Cooler (Type)

Fanless Heatsink

Panel

LCD Size

10.1" 16:10

Resolution

1024 x 600

Pixel pitch

0.2175mm (H) x 0.2088mm (V)

Luminance

200 cd/m²

Contrast ratio

500

Viewing angle

60 (U), 60 (D), 70 (L), 70 (R)

Response time

7 ms

Backlight

LED

Touch Type

Projective capacitive multi-touch up to 10 points

Touch Light Transmission

86 %

Touch Controller

USB touch (EETI)

Expansion

1 x Mini PCIe support mSATA

Storage

1 x CompactFlash type I/II socket

External And Internal I/O

USB Port

1 x USB 3.0

3 x USB 2.0

COM Port

1 x RS-232/422/485

1 x RS-232

LAN Port

2 x RJ-45

Audio

Audio Codec

Realtek ALC888S

Audio Interface

Line-out

Display

Graphic Chipset

Intel® Baytrail integrated graphics

supports dual display

Spec. & Resolution

HDMI:Max. Resolution 1920x1200@ 60Hz

LVDS:Max. Resolution 1920x1200@ 60Hz

Certifications

Certification Information

CE / FCC Class B

Ethernet

LAN Chipset

1 x Intel® I210AT

1 x Intel® I219LM

Ethernet Interface

10/100/1000 Base-Tx GbE compatible

Power Requirement

DC Input

+12V ~ +26V

DC Input Connector

Lockable DC Jack

Optional for phoenix connector

Adapter

Input: 100 ~ 240Vac/ 50 ~ 60Hz

Output: 60W adapter (12V @ 5A adapter) AC-DC adapter

ACPI

Single power ATX support S0, S3, S4, S5 and ACPI 3.0 compliant

Software Support

OS Information

Win 7 / Win 8 / Win 10 / Linux

System Control

LED Indicator

HDD LED, power LED

Mechanical & Environmental

Operating Temperature

0°C ~ 40°C (32°F ~ 104°F)

Storage Temperature

-10°C ~ 50°C (14°F ~ 122°F)

Operating Humidity

0% ~ 90% Relative humidity, non-condensing

Weight

1.2 Kg

Vibration Test

With SSD/mSATA : 3Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30 mins/axis

Shock Test

With CF/SSD : 10Grms, IEC 60068-2-27, half sine, 11ms

Drop Test

ISTA 2A, IEC-60068-2-32 Test:Ed

IP Rating

Front IP65

Mounting Kit

Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm

Panel Mount with mounting kits

Power Mode

AT/ATX (ATX is default setting)

System Fan

Fanless

Construction - Front

Silver aluminum

Construction - Rear

Silver alloy

Dimension

251.94 x 154.5 x 45.25mm

Ordering Information

BFC-10W9-190-A3R

Intel® Atom™ SoC E3845 1.91GHz D1 CPU/2G DDR3L/2LAN/2COM/4USB/12~26V Input/12V Adaptor

ACC-ARM-D22R

VESA STAND, 75x75 & 100x100 mm

ACC-ARM-D29R

ARM A800B VESA standard 75*75 & 100*100mm

ACC-LPC-WIFI-01R

MPCIE WIFI-Kit for LPC Series(half-card) Antenna/Cable/BT4.0/802.11a/b/g/n/ac

E1702031833R

USA Power Cord

E1702031000R

EU Power Cord

E1702031834R

Japan Power Cord

E1702031830R

UK Power Cord

E1702031831R

Australia Power Cord
