Avalue · Panel PC / Monitor / Mobile

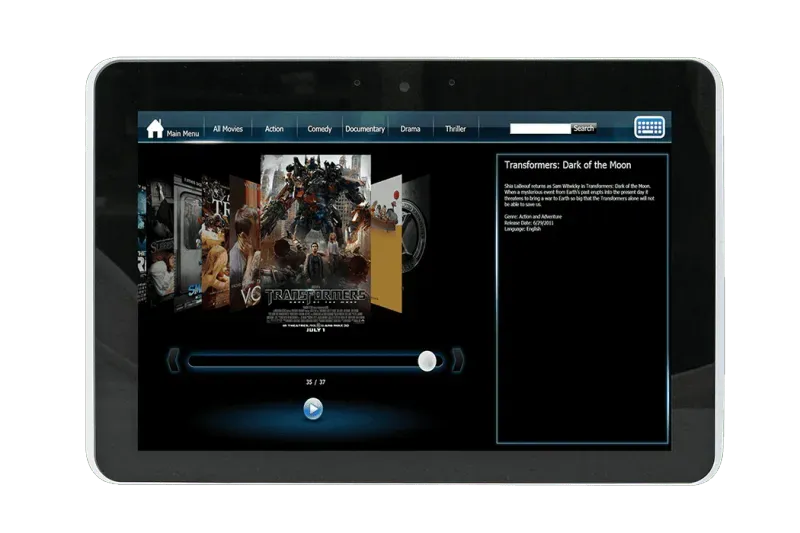

CCD-10WR2

Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

10.1" WXGA (1280x800) TFT PCAP 10-point multi-touch cloud-connection display, fanless
Rockchip RK3568 Arm quad-core Cortex-A55, up to 2.0GHz
2GB DDR4, 32GB eMMC
Mali-G52 GPU (OpenGL ES 3.2, Vulkan 1.1, OpenCL 2.0)
Integrated 2.0MP camera with digital microphone
Android 11 / Debian 11
Realtek Gigabit LAN, 2x USB 3.0, HDMI 2.0
Optional Wi-Fi 802.11ac / BT 5.0, front panel IP65
Wide +12 ~ +24V lockable DC input, fanless; CE / FCC Class B

Product Description

The Avalue CCD-10WR2 is a 10.1" WXGA cloud-connection display powered by the Rockchip RK3568 (quad-core Arm Cortex-A55 up to 2.0GHz) processor, designed as a compact, fanless networked display node for cloud-managed signage and self-service applications.

With 2GB DDR4, 32GB eMMC, an integrated 2MP camera with digital microphone, and Android 11 or Debian 11 support, it delivers a lightweight cloud-connected experience in a slim plastic enclosure with an IP65 front.

The 1280x800 PCAP 10-point multi-touch panel pairs with a Mali-G52 GPU and a bright 350 cd/m² display.

Connectivity includes Realtek Gigabit LAN, 2x USB 3.0, a headphone jack, HDMI 2.0, and optional Wi-Fi/BT 5.0. A wide +12~24V lockable DC input and fanless operation make the CCD-10WR2 a durable, low-maintenance cloud display endpoint.

Technical Specifications

Processor

Rockchip RK3568 Arm Quad Cortex-A55, up to 2.0GHz

System Memory

2GB DDR4

Storage

32GB eMMC

Graphic Chipset

Mali-G52 support OpenGL ES 1.1/2.0/3.2, Vulkan 1.0/1.1, OpenCL 2.0

Speaker Output

1 x 2W

LAN Chipset

Realtek RTL8211F-CG

Ethernet Interface

10/100/1000 Base-Tx GbE compatible

DC Input

+12V ~ +24V

DC Input Connector

Lockable DC Jack

Adapter

Input: 100~240 Vac/50~60 Hz Output: 50W Adapter (19V @ 2.63A Adapter)

OS

Android 11 / Debian 11

Certification Information

CE, FCC Class B

LCD Size

10.1"

LCD Panel

TFT

Resolution

1280 x 800

Pixel pitch

0.1695 (H) x 0.1695 (V) mm

Luminance

350 cd/m²

Contrast ratio

800

Viewing angle

85 (U), 85 (D), 85 (L), 85 (R)

Response time

30 ms

Backlight

LED

Touch Type

Projective capacitive multi-touch up to 10 points

Touch Light Transmission

86%

USB Port

2 x USB 3.0

Audio Port

1 x Headphone Jack

LAN Port

1 x RJ45

HDMI

1 x HDMI 2.0

Switch

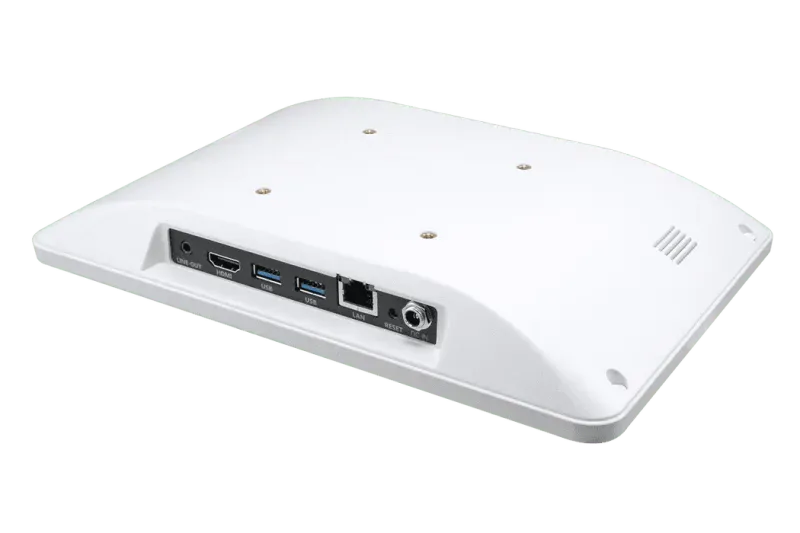

1 x Reset button

DC input

1 x DC Jack

Camera

1 x 2.0MP Camera

WLAN

Optional Wi-Fi 802.11ac/a/b/g/n

Bluetooth

Optional BT 5.0

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Storage Temp.

-20°C ~ 60°C (-4°F ~ 140°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Dimension (W x L x H)

260.8 x 174.7 x 34 mm

Weight

0.8 Kg

IP Rating

Front panel IP65

VESA

75 x 75

Power Requirement

DC +12 ~ +24V

Power Mode

System Fan

Fanless

Color

White

Construction

Plastic

Packing List

1 x AC/DC 50W Adapter 19V/2.63A

1 x Power Cord

Ordering Information

CCD-10WR2-CV39C-1R : CCD-10WR2--32G-Android 11, CCD-10WR2-CV38C-1R : CCD-10WR2--32G-Debian 11

What is CCD-10WR2?

The CCD-10WR2 is a panel pc / monitor / mobile manufactured by Avalue, designed specifically for industrial-panel-pc applications. The Avalue CCD-10WR2 is a 10.1" WXGA cloud-connection display powered by the Rockchip RK3568 (quad-core Arm Cortex-A55 up to 2.0GHz) processor, designed as a compact, fanless networked display node for cloud-managed signage and self-service applications. With 2GB DDR4, 32GB eMMC, an integrated 2MP camera with digital microphone, and Android 11 or Debian 11 support, it delivers a lightweight cloud-connected experience in a slim plastic enclosure with an IP65 front. The 1280x800 PCAP 10-point multi-touch panel pairs with a Mali-G52 GPU and a bright 350 cd/m² display. Connectivity includes Realtek Gigabit LAN, 2x USB 3.0, a headphone jack, HDMI 2.0, and optional Wi-Fi/BT 5.0. A wide +12~24V lockable DC input and fanless operation make the CCD-10WR2 a durable, low-maintenance cloud display endpoint.
