Product Datasheet
20 May 2026
Panel PC / Monitor / Mobile · Industrial-Panel-PC

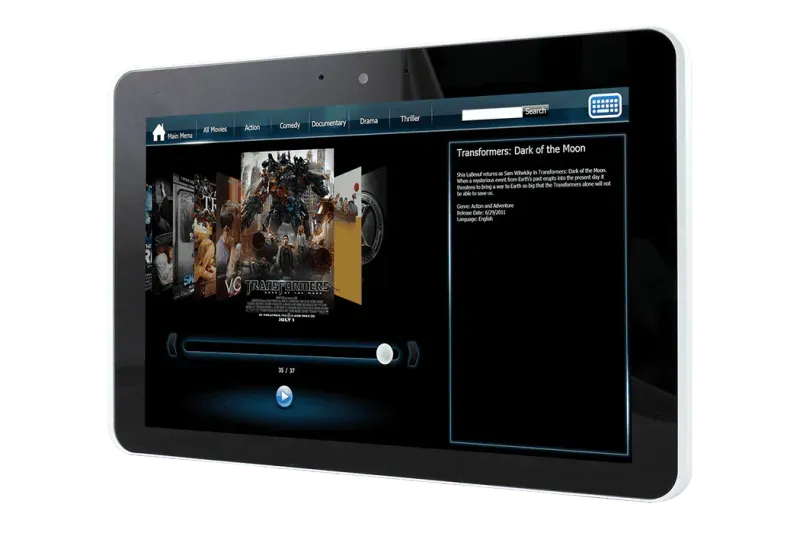

CCD-10WR2
Series: CCD
The Avalue CCD-10WR2 is a 10.1" WXGA cloud-connection display powered by the Rockchip RK3568 (quad-core Arm Cortex-A55 up to 2.0GHz) processor, designed as a compact, fanless networked display node for cloud-managed signage and self-service applications. With 2GB DDR4, 32GB eMMC, an integrated 2MP camera with digital microphone, and Android 11 or Debian 11 support, it delivers a lightweight cloud-connected experience in a slim plastic enclosure with an IP65 front. The 1280x800 PCAP 10-point multi-touch panel pairs with a Mali-G52 GPU and a bright 350 cd/m² display. Connectivity includes Realtek Gigabit LAN, 2x USB 3.0, a headphone jack, HDMI 2.0, and optional Wi-Fi/BT 5.0. A wide +12~24V lockable DC input and fanless operation make the CCD-10WR2 a durable, low-maintenance cloud display endpoint.
Key Features
- 10.1" WXGA (1280x800) TFT PCAP 10-point multi-touch cloud-connection display, fanless
- Rockchip RK3568 Arm quad-core Cortex-A55, up to 2.0GHz
- 2GB DDR4, 32GB eMMC
- Mali-G52 GPU (OpenGL ES 3.2, Vulkan 1.1, OpenCL 2.0)
- Integrated 2.0MP camera with digital microphone
- Android 11 / Debian 11
- Realtek Gigabit LAN, 2x USB 3.0, HDMI 2.0
- Optional Wi-Fi 802.11ac / BT 5.0, front panel IP65
- Wide +12 ~ +24V lockable DC input, fanless; CE / FCC Class B
Technical Specifications
System Information
| Processor | Rockchip RK3568 Arm Quad Cortex-A55, up to 2.0GHz |
|---|---|
| System Memory | 2GB DDR4 |
Storage
| Storage | 32GB eMMC |
|---|
Display
| Graphic Chipset | Mali-G52 support OpenGL ES 1.1/2.0/3.2, Vulkan 1.0/1.1, OpenCL 2.0 |
|---|
Audio
| Speaker Output | 1 x 2W |
|---|
Ethernet
| LAN Chipset | Realtek RTL8211F-CG |
|---|---|
| Ethernet Interface | 10/100/1000 Base-Tx GbE compatible |
Power Requirement
| DC Input | +12V ~ +24V |
|---|---|
| DC Input Connector | Lockable DC Jack |
| Adapter | Input: 100~240 Vac/50~60 Hz Output: 50W Adapter (19V @ 2.63A Adapter) |
Software Support
| OS | Android 11 / Debian 11 |
|---|
Certification
| Certification Information | CE, FCC Class B |
|---|
Panel
| LCD Size | 10.1" |
|---|---|
| LCD Panel | TFT |
| Resolution | 1280 x 800 |
| Pixel pitch | 0.1695 (H) x 0.1695 (V) mm |
| Luminance | 350 cd/m² |
| Contrast ratio | 800 |
| Viewing angle | 85 (U), 85 (D), 85 (L), 85 (R) |
| Response time | 30 ms |
| Backlight | LED |
| Touch Type | Projective capacitive multi-touch up to 10 points |
| Touch Light Transmission | 86% |
External I/O
| USB Port | 2 x USB 3.0 |
|---|---|
| Audio Port | 1 x Headphone Jack |
| LAN Port | 1 x RJ45 |
| HDMI | 1 x HDMI 2.0 |
| Switch | 1 x Reset button |
| DC input | 1 x DC Jack |
Data Collection
| Camera | 1 x 2.0MP Camera |
|---|
Wireless Communication
| WLAN | Optional Wi-Fi 802.11ac/a/b/g/n |
|---|---|
| Bluetooth | Optional BT 5.0 |
Mechanical & Environmental
| Operating Temp. | 0°C ~ 40°C (32°F ~ 104°F) |
|---|---|
| Storage Temp. | -20°C ~ 60°C (-4°F ~ 140°F) |
| Operating Humidity | 40°C @ 95% Relative Humidity, Non-condensing |
| Dimension (W x L x H) | 260.8 x 174.7 x 34 mm |
| Weight | 0.8 Kg |
| IP Rating | Front panel IP65 |
| VESA | 75 x 75 |
| Power Requirement | DC +12 ~ +24V |
| Power Mode | AT |
| System Fan | Fanless |
| Color | White |
| Construction | Plastic |
Packing List
| Packing List | 1 x AC/DC 50W Adapter 19V/2.63A, 1 x Power Cord |
|---|
Ordering Information
| Ordering Information | CCD-10WR2-CV39C-1R : CCD-10WR2--32G-Android 11, CCD-10WR2-CV38C-1R : CCD-10WR2--32G-Debian 11 |
|---|
