What is an Industrial Panel PC?

An Industrial Panel PC is a robust computing device designed for industrial environments, featuring a touchscreen display integrated with a computer. These systems are built to withstand harsh conditions including dust, moisture, temperature extremes, and vibration, while providing reliable operation for factory automation, control systems, and HMI applications.

What makes a Panel PC 'industrial grade'?

Industrial grade Panel PCs feature rugged construction with IP65/IP66 front panel protection, extended temperature operation, shock and vibration resistance, fanless cooling for reliability, wide voltage input tolerance, and long product lifecycles designed for 24/7 operation in challenging environments.

What is the difference between a Panel PC and an HMI?

While both provide operator interface functionality, a Panel PC is a full-featured computer running a standard operating system (Windows, Linux) that can host any software application. An HMI is typically a simpler device with an embedded operating system designed specifically for machine/process control with limited functionality beyond its control software.

What mounting options are available for Panel PCs?

Panel PCs typically offer multiple mounting options including panel mount (cutout installation in cabinets/enclosures), VESA mount (standard bracket mounting to walls or arms), and sometimes desktop stands. Some specialized models may offer additional mounting options for specific industries.

What operating systems are supported on industrial Panel PCs?

Most industrial Panel PCs support Windows 10 IoT Enterprise, Windows 11 Pro, and various Linux distributions like Ubuntu. The specific OS support depends on the hardware configuration, with some models offering pre-installed options or being compatible with multiple operating systems.

What is IP65/IP66 protection and why is it important?

IP65/IP66 protection ratings indicate dust-tight (6) protection and resistance to water jets (5/6). This is essential for industrial Panel PCs that may be exposed to harsh factory environments with dust, splashes, or washdown procedures, ensuring reliable operation and longevity in challenging conditions.

Why are fanless designs important in industrial Panel PCs?

Fanless designs eliminate moving parts that could fail, prevent dust and contaminant ingress through ventilation openings, reduce maintenance requirements, increase reliability in high-vibration environments, and allow sealed enclosures for protection against harsh industrial conditions.

What is the difference between resistive and capacitive touchscreens?

Resistive touchscreens work with any input device (finger, gloved hand, stylus) and are more suitable for harsh environments, but offer less optical clarity and typically support single-touch. Capacitive touchscreens provide better optical clarity and multi-touch capability but require bare finger or special stylus input and are more sensitive to environmental conditions.

What is a watchdog timer and why is it important?

A watchdog timer is a hardware-based timer that triggers a system reset if the software becomes unresponsive. This is crucial for industrial systems requiring high reliability and 24/7 operation, as it automatically recovers from software crashes or freezes without human intervention.

What does wide voltage input range mean for Panel PCs?

A wide voltage input range (typically 9-36VDC) allows Panel PCs to operate reliably in industrial environments with fluctuating power conditions. This provides flexibility in power source options and protection against voltage spikes and drops common in factory settings.

What is TPM and why is it included in industrial Panel PCs?

TPM (Trusted Platform Module) is a security chip that provides hardware-based encryption capabilities and secure storage for authentication credentials. In industrial settings, it helps protect sensitive data, secure communication channels, and ensure the integrity of control systems against unauthorized access.

How are Panel PCs typically mounted in industrial environments?

Panel PCs are typically installed using panel mount (where the unit is fitted into a cutout in a control cabinet with mounting clips or screws), VESA mount (attached to arms or wall mounts using standardized mounting patterns), or sometimes with custom mounting solutions for specific applications.

What cutout dimensions are needed for panel mounting?

Cutout dimensions vary by model and screen size. It's essential to refer to the specific Panel PC's installation guide for precise measurements. Most manufacturers provide detailed dimensional drawings showing the exact cutout size and mounting hole positions required.

What environmental conditions should be considered when installing Panel PCs?

Consider operating temperature range, humidity levels, exposure to dust or liquids, vibration/shock conditions, available power supply stability, electromagnetic interference sources, and ambient light conditions that might affect screen visibility when installing Panel PCs.

Do Panel PCs require additional cooling?

Most industrial Panel PCs are designed with fanless cooling systems that dissipate heat through the chassis. While they typically don't require additional cooling, it's important to ensure adequate air circulation around the unit and to avoid installing them in locations that exceed their specified operating temperature range.

What power supply requirements should be considered for Panel PCs?

Consider voltage requirements (typically 9-36VDC), current/power consumption specifications, power supply stability, surge protection needs, and whether battery backup or uninterruptible power supply (UPS) is necessary for critical applications to prevent data loss during power interruptions.

What should I do if the touchscreen becomes unresponsive?

First, try restarting the Panel PC. If the issue persists, check if the touch driver is installed and functioning properly, verify the touchscreen cable connection, ensure the operating environment is within specifications (especially for capacitive screens in high humidity), and check for physical damage to the screen surface.

How can I resolve overheating issues with fanless Panel PCs?

To address overheating: ensure the Panel PC is installed with adequate clearance for passive cooling, check that the ambient temperature is within specified operating range, clean dust buildup on cooling fins/chassis, verify that CPU-intensive applications aren't causing excessive load, and consider adding external cooling to the enclosure if necessary.

What causes Panel PCs to restart unexpectedly?

Unexpected restarts can be caused by unstable power supply, overheating, hardware failures, software issues, or watchdog timer activations due to system hangs. Check power stability, environmental conditions, system logs for error messages, and consider disabling the watchdog timer temporarily for diagnostic purposes.

How can I improve the visibility of the Panel PC screen in bright environments?

To improve visibility in bright environments, adjust the screen brightness to maximum, install an anti-glare shield or hood, position the Panel PC to avoid direct light sources, consider a higher-brightness model (500+ cd/m²) for new installations, or apply an anti-reflective film designed for industrial displays.

What should I do if Windows fails to boot on my Panel PC?

If Windows fails to boot, try booting in Safe Mode, use System Restore to revert to a working state, run startup repair from recovery options, check for hardware issues (particularly storage drives), verify BIOS/UEFI settings are correct, or restore from a system image backup if available.

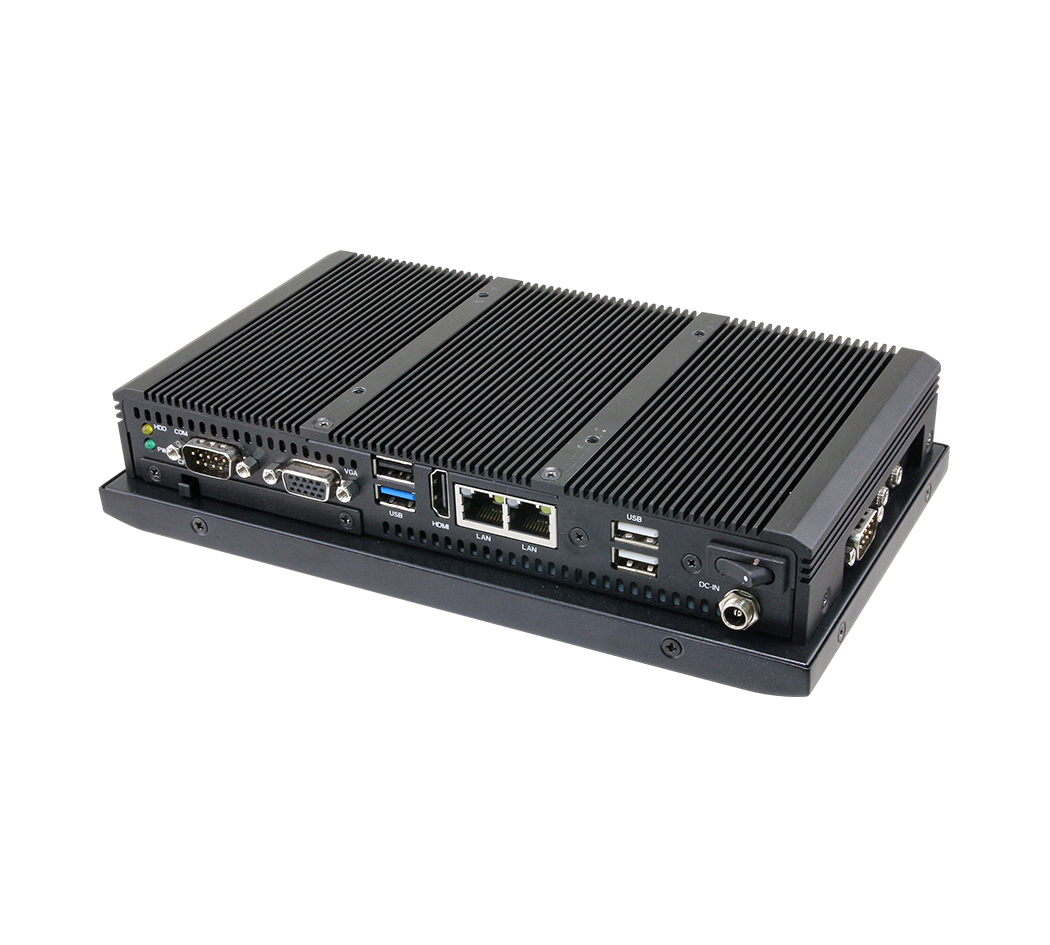

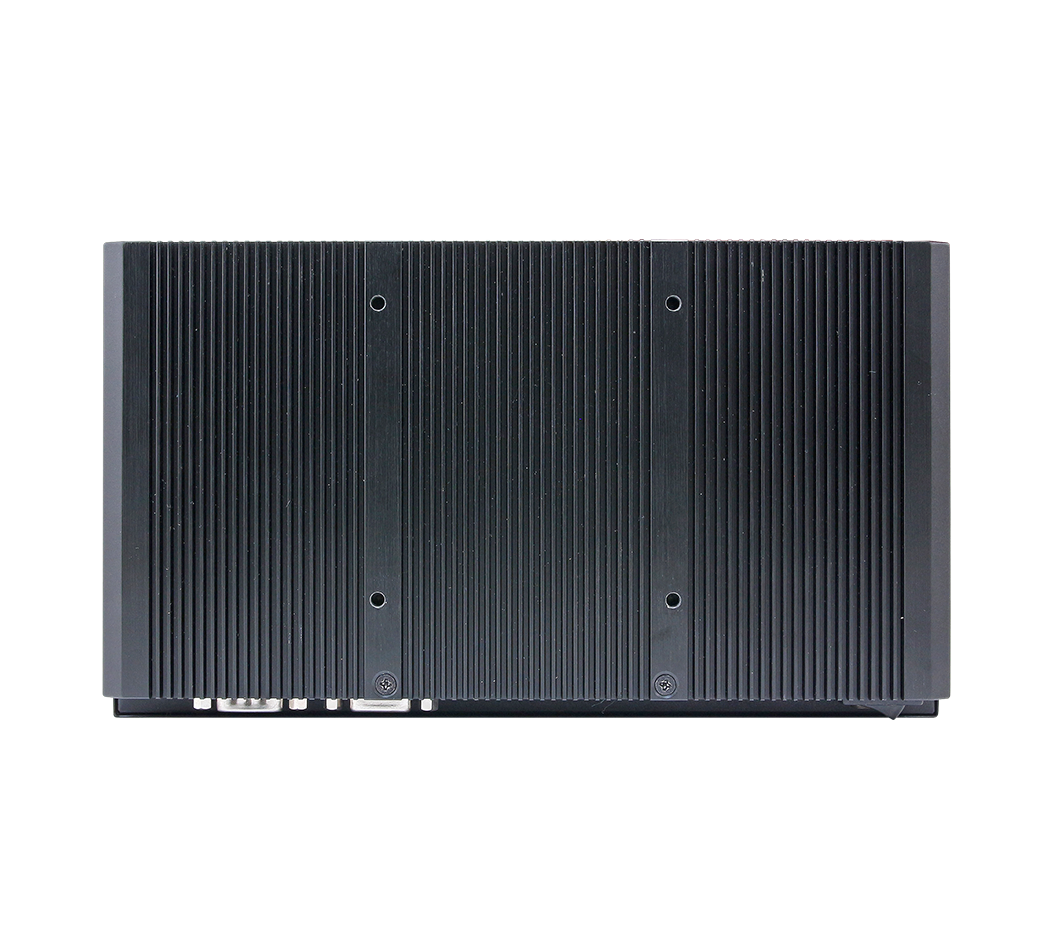

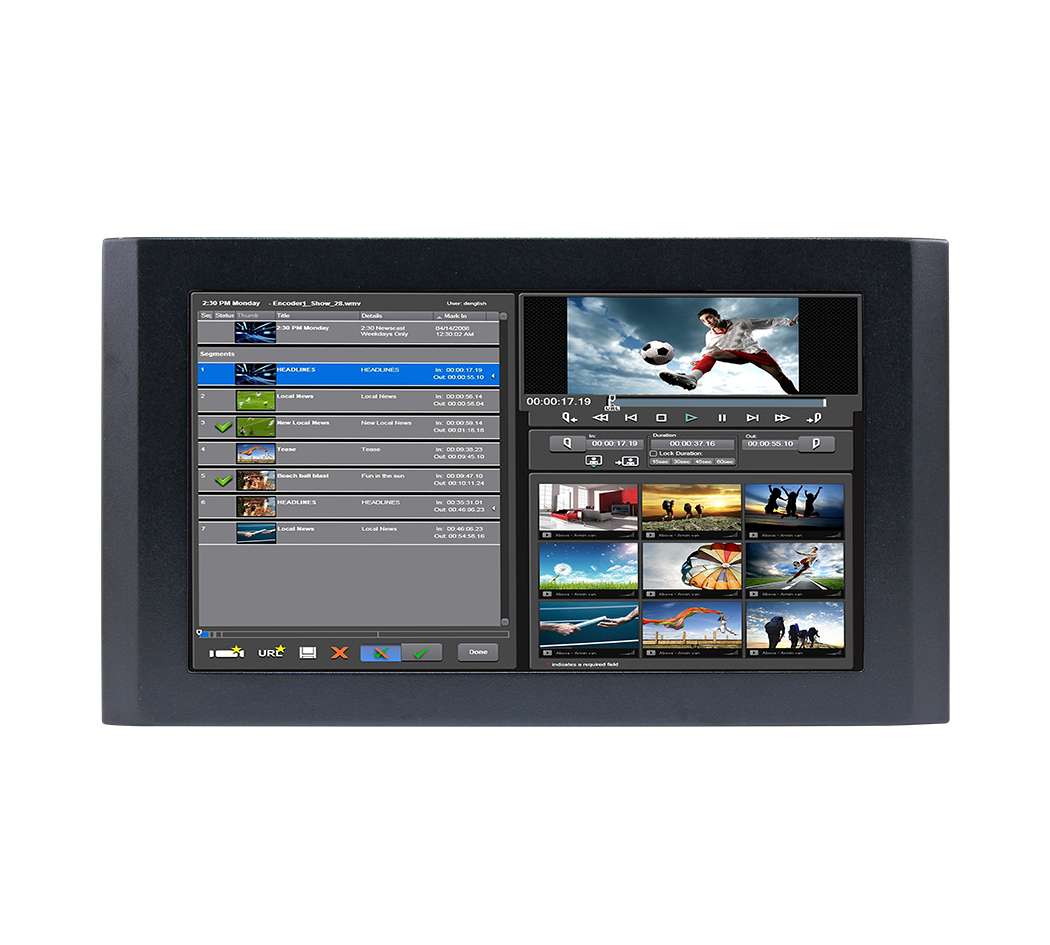

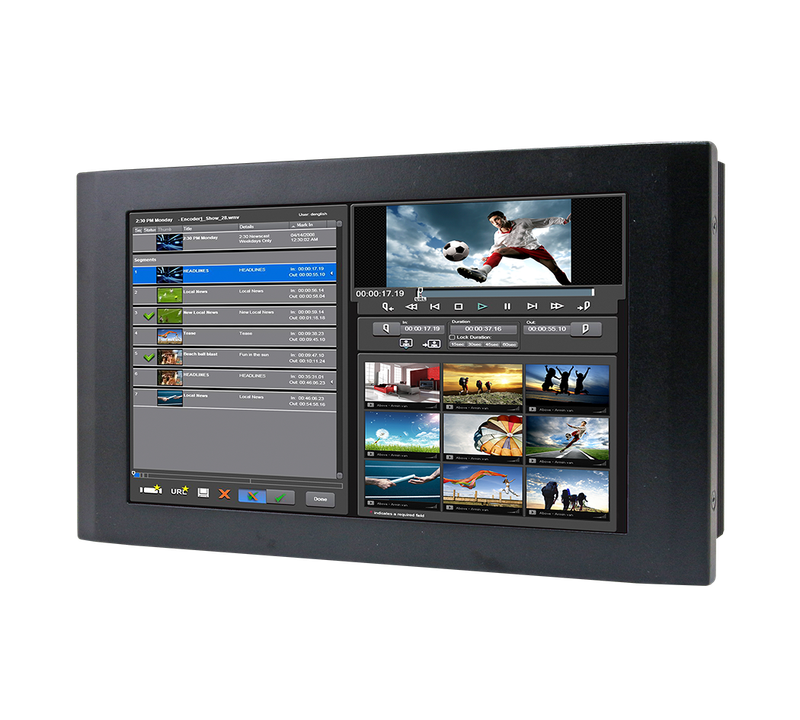

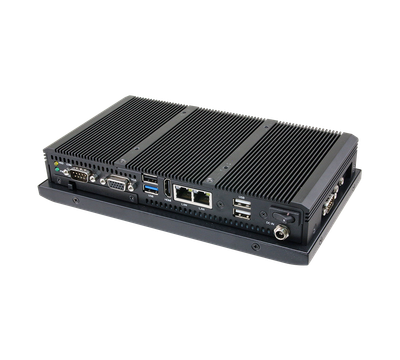

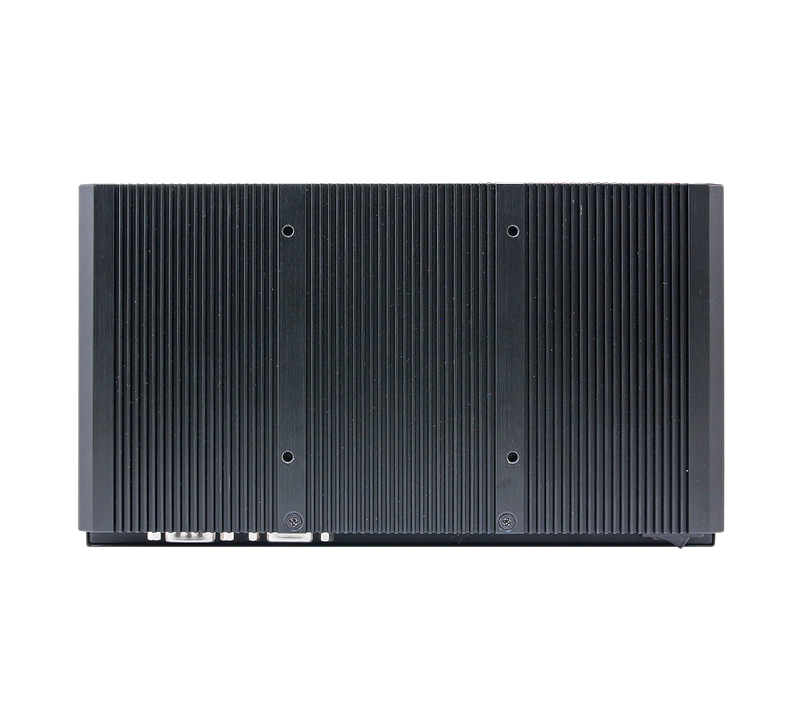

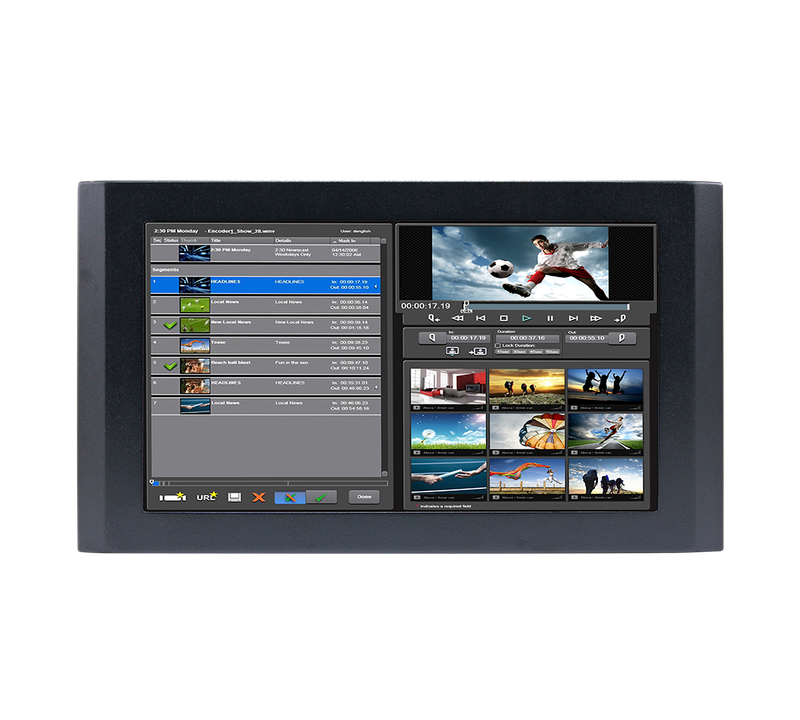

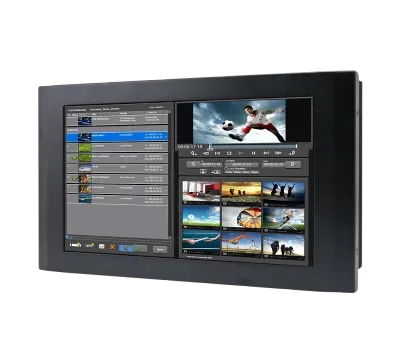

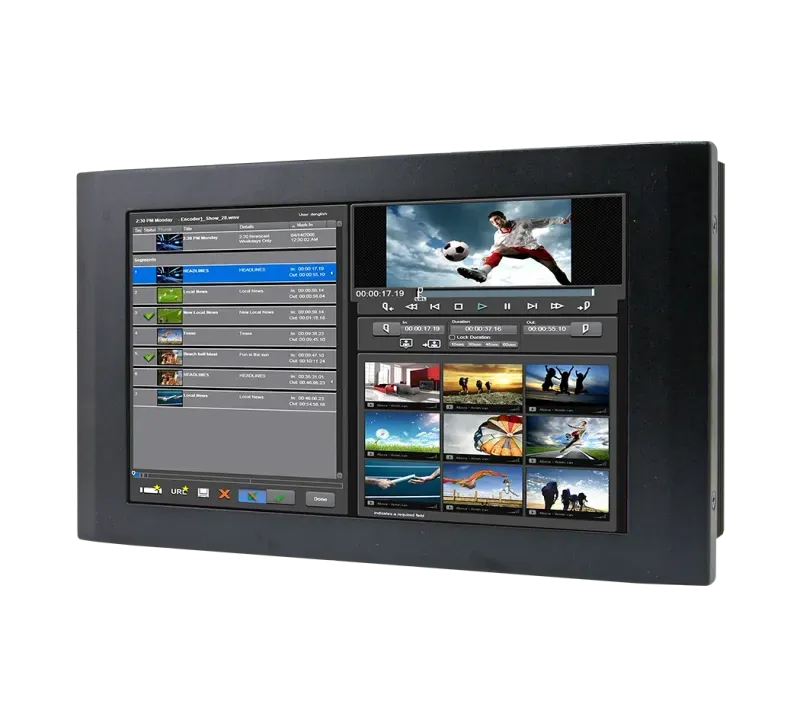

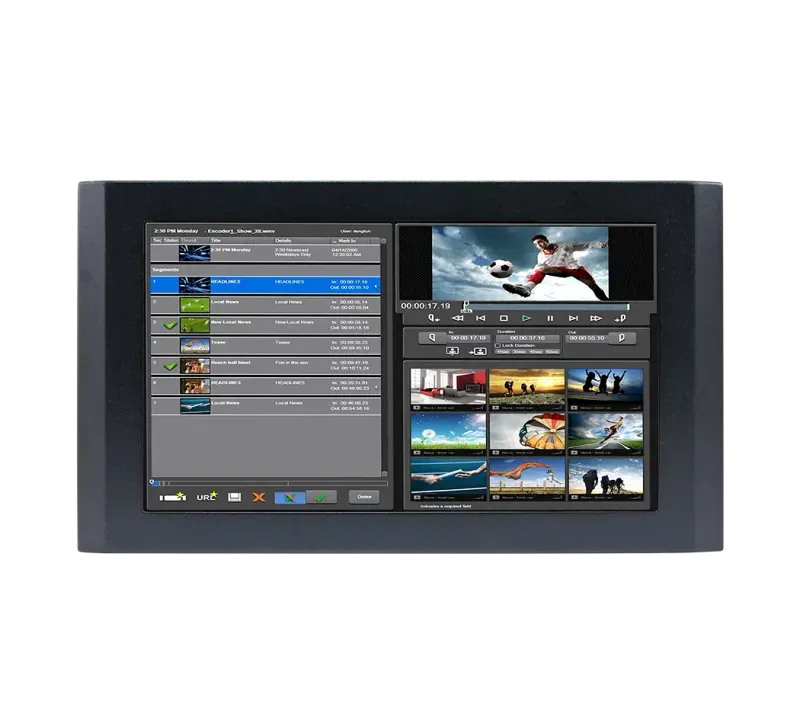

FPC-08W29

*Price on request. Contact us for a quote.

Manufacturer: Avalue

8” WSVGA TFT Touch Panel PC
5-wire resistive touch screen
Intel Atom® Processor E3845
VGA,HDMI, audio, Gigabit Ethernet
1 CF, 2 COM, 4 USB
Fanless, VESA compliance
IP-65 compliant front panel
Wide range voltage input +12V ~ +26V

Product Description

The Avalue FPC-08W29 is an 8" industrial touch panel PC featuring an Intel Atom® Processor E3845. It includes a fanless design, 5-wire resistive touch screen, dual Gigabit LAN, multiple USB and COM ports, and HDMI support.

The panel is IP65 front rated for rugged environments, supports wide voltage input from +12V to +26V, and operates within a temperature range from -20°C to 60°C.

Technical Specifications

System Information

Processor

Intel Atom® Processor E3845, 2M Cache, 1.91 GHz

System Memory

1 x 204-pin DDR3L 1333MHz SO-DIMMup to 8 GB

I/O Chipset

Nuvoton W83627DHG-P

Watchdog Timer

H/W reset, 1sec. ~ 65535sec and 1sec. or 1min./step

H/W Status Monitor

Monitoring CPU & system temperature and voltage

SBC

ECM-BYT

CPU Cooler (Type)

Fanless Heatsink

Platform Controller Hub

Intel® Valleyview SoC

Panel

LCD Size

8" , 16:10

Display Type

WVGA

Resolution

1024 x 600

Pixel pitch

0.1725mm (W) x 0.1656mm (H)

Luminance

500 cd/m²

Contrast ratio

700

Viewing angle

70 (U), 75 (D), 75 (L), 75 (R)

Response time

20 ms

Backlight

LED

Touch Type

5 wires resistive

Touch Light Transmission

80%

Touch Controller

Onboard USB touch (PenMount)

Expansion

1 x Mini PCIe support mSATA

Storage

2.5 SSD/HDD

Other Storage Device

1 x CompactFlash type I/II socket

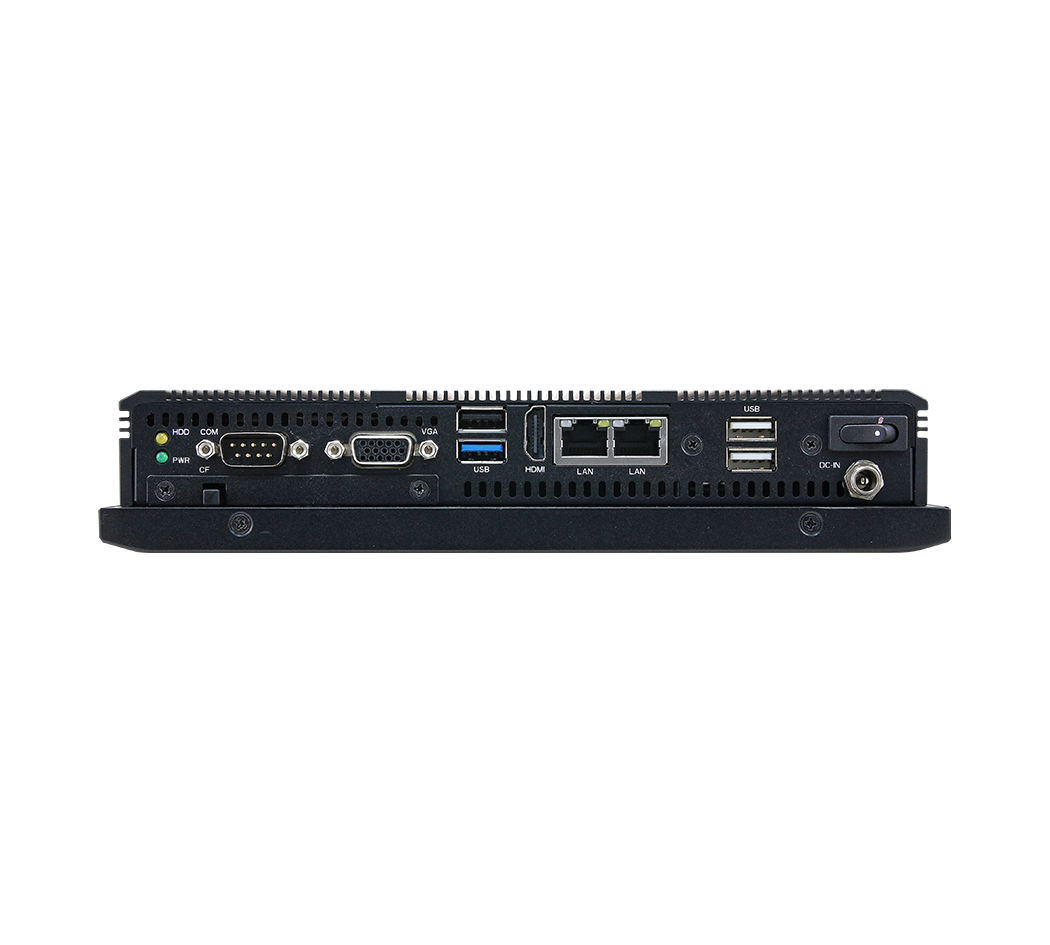

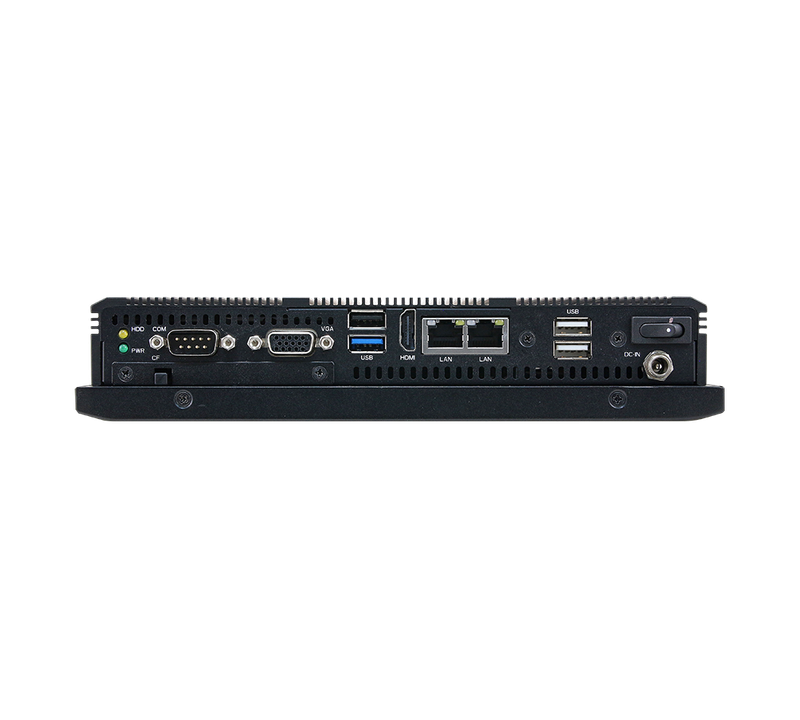

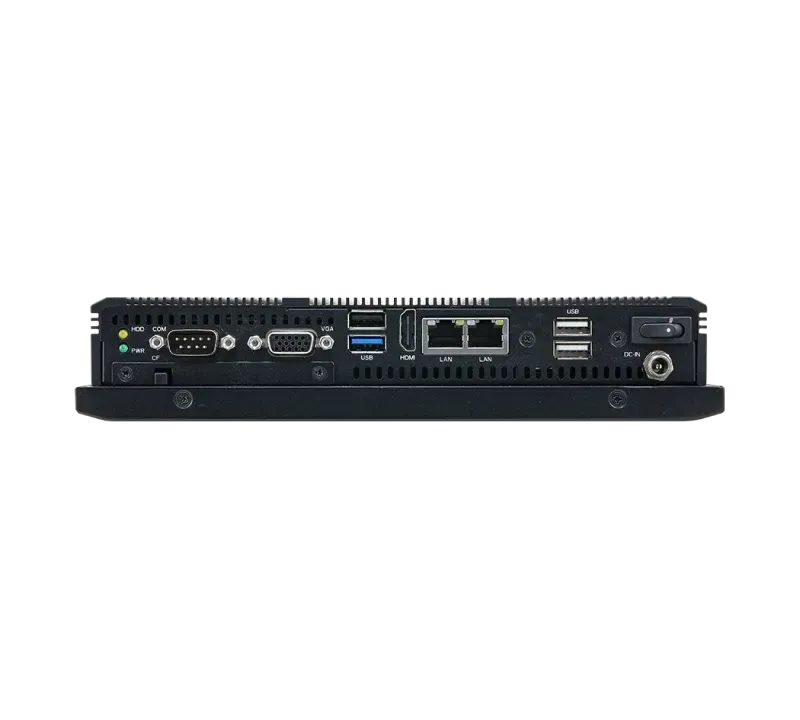

External And Internal I/O

USB Port

1 x USB 3.0

3 x USB 2.0

COM Port

1 x RS-232/422/485

1 x RS-232

LAN Port

2 x RJ-45

Audio

Audio Codec

Realtek ALC888S

Audio Interface

Line-out

Mic-in

Speaker Output

2 x 2W

Display

Graphic Chipset

Intel® Valleyview SoC integrated graphicssupports dual display

Spec. & Resolution

VGA:Max. Resolution 2560x1080@ 60Hz

HDMI:Max. Resolution 1920x1200@ 60Hz

Certifications

Certification Information

CE / FCC Class B

Ethernet

LAN Chipset

2 x Intel® I211AT

Ethernet Interface

10/100/1000 Base-Tx GbE compatible

Power Requirement

DC Input

+12V ~ +26V

DC Input Connector

Lockable DC Jack(default)

Optional for phoenix connector

ACPI

Single power ATX support S0, S3, S4, S5 and ACPI 3.0 compliant

Adapter

Input: 100 ~ 240Vac/ 50 ~ 60Hz

Output: 60W adapter (12V @ 5A adapter)

Software Support

OS Information

Win 7 / Win 8 / Linux

System Control

LED Indicator

HDD LED, power LED

Mechanical & Environmental

Operating Temperature

0°C ~ 40°C (32°F ~ 104°F)

Storage Temperature

-10°C ~ 50°C (14°F ~ 122°F)

Operating Humidity

0% ~ 90% Relative humidity, non-condensing

Weight

1.27 Kg

Dimension (W x L x H)

225 x 129 x 43.4mm

Vibration Test

With SSD/mSATA : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis

Shock Test

With CF/SSD : 10Grms, IEC 60068-2-27, half sine, 11ms

Drop Test

ISTA 2A, IEC-60068-2-32 Test:Ed

IP Rating

Front panel IP65

Mounting Kit

Wall / Stand / VESA 75mm x 75mm

Power Mode

AT/ATX (ATX is default setting)

System Fan

Fanless

Construction - Front

Metal black

Construction - Rear

Metal black

Ordering Information

FPC-08W29-00300-3R

Intel Atom SoC E3845 1.91GHz/2G DDR3L / 2xGLAN / 2xCOM / Audio / 12~26V in / 12V Adapter

ACC-FPC-WALLMT-07R

Wall Mount Bracket Kit for FPC-08W2x

ACC-FPC-08WPM-02R

Panel Mount Kit for FPC-08W2x Series

ACC-ARM-D22R

VESA STAND, 75x75 & 100x100 mm

ACC-CF-XX CompactFlash Card Series

(xx=Capacity, Capacity Option: 128, 256, 512MB, 1, 2, 4, 8GB)

E1702031833R

USA Power Cord

E1702031000R

EU Power Cord

E1702031834R

Japan Power Cord

E1702031830R

UK Power Cord

E1702031831R

Australia Power Cord

What is FPC-08W29?

The FPC-08W29 is a panel pc / monitor / mobile manufactured by Avalue, designed specifically for industrial-panel-pc applications. The Avalue FPC-08W29 is an 8" industrial touch panel PC featuring an Intel Atom® Processor E3845. It includes a fanless design, 5-wire resistive touch screen, dual Gigabit LAN, multiple USB and COM ports, and HDMI support. The panel is IP65 front rated for rugged environments, supports wide voltage input from +12V to +26V, and operates within a temperature range from -20°C to 60°C.

Key Features & Benefits

8” WSVGA TFT Touch Panel PC
5-wire resistive touch screen
Intel Atom® Processor E3845
VGA,HDMI, audio, Gigabit Ethernet
1 CF, 2 COM, 4 USB
Fanless, VESA compliance
IP-65 compliant front panel
Wide range voltage input +12V ~ +26V

Applications & Use Cases

The FPC-08W29 is ideal for various industrial automation applications:

Harsh industrial environments requiring dust and water protection
Dust-sensitive environments and silent operation requirements
DC-powered industrial installations and mobile applications
High-performance computing and data processing tasks
Networked industrial systems and data communication
Interactive control interfaces and operator panels
Panel-mounted installations and control cabinets
Peripheral device connectivity and data transfer

Frequently Asked Questions

The FPC-08W29 is a compact 8" widescreen fully-sealed industrial panel PC featuring Intel processors, stainless steel construction with complete IP65/IP66 protection, projected capacitive multi-touch, essential I/O ports, fanless design, and ultra-compact form factor. It's designed for harsh environments requiring the smallest possible interface with comprehensive protection against liquids, dust, and physical impact.

The FPC-08W29 combines the smallest screen size in the FPC series (8") with full stainless steel construction and complete IP65/IP66 protection, making it perfect for hygiene-critical applications where space is extremely limited. This combination is particularly valuable in compact food processing equipment, pharmaceutical manufacturing devices, laboratory instruments, and medical equipment where both cleanability and space efficiency are essential.

Despite its compact 8" size, the FPC-08W29's widescreen format provides an efficient 16:9 aspect ratio that maximizes horizontal space for control elements and process visualization. This wider format is particularly beneficial for applications requiring horizontal data presentation, timelines, or process flows, and aligns better with modern HMI software designed for widescreen displays, all within a fully-sealed, washable unit.

The FPC-08W29 stands apart from other compact panel PCs through its combination of full stainless steel construction, complete IP65/IP66 protection for the entire unit (not just the front panel), and ultra-compact 8" widescreen format. This unique combination makes it suitable for the most demanding environments requiring regular washdown procedures, chemical resistance, and extremely efficient use of space without compromising on durability or cleanability.
