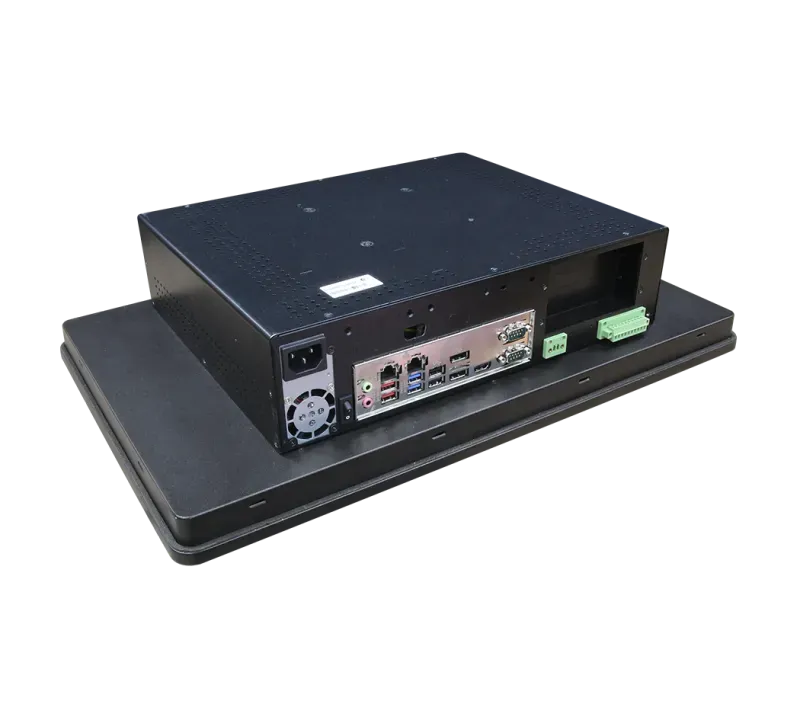

FPC-21W42

Series: FPC

Manufactured byAvalue

The Avalue FPC-21W42 is a 21.5" Full HD industrial touch panel PC powered by 13th Generation Intel Core i3/i5/i7 (LGA1700) processors, combining desktop-class performance with a rugged projected-capacitive multi-touch front. Dual DDR5 4800MHz SO-DIMM sockets support up to 64GB, with onboard TPM 2.0 and a PCIe x16 Gen4 slot on the MX610H SBC for flexible expansion. The 1920x1080 IPS-class panel offers 250 cd/m² brightness, 10-point PCAP touch (89% transmission, EETI controller) and wide viewing angles. Connectivity includes dual DisplayPort plus HDMI, four USB 3.2 Gen1 and two USB 2.0, dual RS-232/422/485 (plus optional COM/GPIO), Intel I219-LM Gigabit and I225-V 2.5GbE, 2 x 5W speakers, and an internal Flex ATX 300W PSU. With CE/FCC/VCCI/UKCA certification it suits HMI, SCADA, and factory-floor visualization on Windows or Linux.

Key Features

21.5" Full HD (1920x1080) PCAP 10-point multi-touch
13th Gen Intel Core i3/i5/i7 (LGA1700, MX610H SBC)
2 x DDR5 4800MHz SO-DIMM, up to 64GB
Onboard TPM 2.0; 1 x PCIe x16 Gen4 + M.2 E-Key (Wi-Fi)
M.2 M-Key NVMe/SATA + optional 2.5" drive bay
2 x DP + HDMI; 4 x USB 3.2 Gen1 + 2 x USB 2.0
Dual LAN: Intel I219-LM GbE + I225-V 2.5GbE
2 x 5W speakers; Flex ATX 300W PSU
CE / FCC Class A / VCCI / UKCA; Windows / Linux

Technical Specifications

System Information

Processor	13th Generation Intel® Core™ i3/ i5/ i7 Processors (LGA1700 Socket), Intel® Core™ i7-13700TE (35W, 30M Cache, up to 1.10 GHz), Intel® Core™ i5-13500E (65W, 24M Cache, up to 2.40 GHz), Intel® Core™ i3-13100TE (35W, 12M Cache, up to 2.40 GHz)
System Memory	2 x 262-pin DDR5 4800 MHz SO-DIMM sockets support up to 64GB (non ECC only)
I/O Chipset	Fintek® F81966AB-I
Watchdog Timer	H/W Reset, 5~255 Seconds/5~255 Minutes
H/W Status Monitor	CPU Temperature Monitoring, Voltage Monitoring, CPU Fan Speed Control
TPM	TPM 2.0
SBC	MX610H
CPU Cooler (Type)	1 x PWM FAN for CPU

Expansion

Expansion	1 x PCIe x16 Gen4 Slot, 1 x M.2 (2230) E-Key support WiFi module, with 1 x PCI-e x1 & USB 2.0 (CNVi Supported)

Storage

Solid State Drive	1 x 2.5” Drive Bay design (optional)
Other Storage Device	1 x 2280 & 2242 M.2 Slot M Key with PCIe x4 & SATA 3.0 signal (optional)

Display

Graphic Chipset	Intel® UHD Graphic
Spec. & Resolution	2 x DP: Up to 4096×2304 @60Hz, 1 x HDMI: Up to 3840x2160 @30Hz

Audio

Audio Codec	Realtek® ALC897
Audio Interface	Mic-in, Line-out
Speaker Output	2 x 5W

Ethernet

LAN Chipset	1 x Intel® I219-LM GbE LAN PHY, 1 x Intel® I225-V 2.5GbE LAN

Power Requirement

Power Supply Unit	PSU Flex ATX 300W, 100-240V~, 5-2.5A, 50-60Hz
Power Mode	AT/ATX by jumper (Default Setting: ATX)
Power Connector Type	AC Power input 3P (Male) Connector

Software Support

OS	Win10 / Win11 / Linux

Certification

Certification Information	CE / FCC Class A / VCCI / UKCA

Panel

LCD Size	21.5", 16:9
Display Type	Full HD
Resolution	1920 x 1080
Pixel pitch	247.95um(H) x 247.95um(V)
Luminance	250 cd/m²
Contrast ratio	1000
Viewing angle	89 (U), 89 (D), 89 (L), 89 (R)
Response time	14 ms
Backlight	LED
Touch Type	Projective capacitive multi-touch up to 10 points
Touch Light Transmission	89 %
Touch Controller	USB touch (EETI)

External I/O

USB Port	4 x USB 3.2 Gen 1, 2 x USB 2.0
Video Port	2 x DP, 1 x HDMI
LAN Port	1 x Intel® I219-LM GbE LAN PHY, 1 x Intel® i225-V 2.5GbE LAN
COM Port	2 x RS232(default)/422/485, 2 x RS232 (optional)
DIO Port	1x8-bit GPIO (optional)
Switch	1x Extend Power Switch (optional)

System Control

LED Indicator	HDD LED, power LED

Wireless Communication

WLAN	M.2 keyA/E 802.11ax Dual-band, BT5.2,AX210.NGWGIE.NV, 99ARN4,Intel (optional)
Bluetooth	BT5.2 (optional)

Mechanical & Environmental

Operating Temp.	0°C ~ 45°C
Storage Temp.	-20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity	40°C @ 95% Relative Humidity, Non-condensing
Dimension (W x L x H)	538 x 341 x 122 mm
Weight	12.6 Kg
Vibration Test	With SSD/M.2 SSD : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30mins/axis
Shock Test	Operating with SSD/M.2 : MIL-STD-810G, method 516.6, procedure I, functional shock=10G
Drop Test	ISTA 2A, IEC-60068-2-32 Test:Ed
IP Rating	Front IP65
Mounting Kit	Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm, Panel mount with mounting kits
Power Mode	AT/ATX by jumper (Default Setting: ATX)
System Fan	1 x PWM FAN for System
Construction - Front	Aluminum Die-casting
Construction - Rear	Metal black

Component

Adapter	PSU Flex ATX 300W

Ordering Information

FPC-21W42-X0000-1R | w/MX610H/2LAN/4USB/HDMI/2DP/2COM/PSU/LineOut/MicIn/Barebone, Without CPU/memory/storage/OS/Power Cord, ACC-CPU-13700TER | Intel Core I7-13700TE 1.10GHz Processor, ACC-CPU-13500ER | Intel Core I5-13500E 2.40GHz Processor, ACC-CPU-13100TER | Intel Core I3-13100TE 2.40GHz Processor, ACC-PSU-300N-04R | Power Supply ATX 300W 150x81.5x40.5mm, E971XFP1W42003R | WiFi module KIT for FPC-21W42, E971XFP1W42001R | Terminal Block Switch KIT For FPC-21W42, E971XFP1W42000R | Terminal Block GPIO KIT For FPC-21W42, E971XFP1W42002R | PCIe x16 to x16 1slot Riser card KIT For FPC-21W42, C971XFP1736009R | PCIe x16 to x4 1slot Riser card KIT For FPC-1736, E1702031833R | USA Power Cord, E1702031000R | EU Power Cord, E1702031834R | Japan Power Cord, E1702031830R | UK Power Cord, E1702031831R | Australia Power Cord
