What are the key features of the FPC-21W42 Panel PC?

The FPC-21W42 is a 21.5" Full HD (1920x1080) PCAP 10-point multi-touch industrial panel PC with 13th Gen Intel Core i3/i5/i7 (LGA1700, MX610H SBC), 2 x DDR5 4800 SO-DIMM up to 64GB, onboard TPM 2.0, PCIe x16 Gen4, M.2 NVMe, dual LAN (I219-LM GbE + I225-V 2.5GbE), 2x DP + HDMI, and a Flex ATX 300W PSU.

What display and touch does the FPC-21W42 offer?

It has a 21.5" 16:9 Full HD (1920x1080) LED-backlit panel at 250 cd/m², 1000:1 contrast, 89° viewing angles, with projected-capacitive 10-point multi-touch (89% light transmission, EETI USB controller).

Which processors does the FPC-21W42 support?

It supports 13th Gen Intel Core on LGA1700 — including i7-13700TE (35W), i5-13500E (65W), and i3-13100TE (35W), providing desktop-class performance for demanding HMI workloads.

How much memory does the FPC-21W42 support?

It has two 262-pin DDR5 4800MHz SO-DIMM sockets supporting up to 64GB (non-ECC only).

What expansion does the FPC-21W42 provide?

It includes a PCIe x16 Gen4 slot for add-in cards and an M.2 2230 E-Key for a Wi-Fi module (PCIe x1 & USB 2.0, CNVi supported).

What storage options does the FPC-21W42 support?

It supports an M.2 2280/2242 M-Key (PCIe x4 + SATA 3.0) and an optional 2.5" drive bay.

What I/O does the FPC-21W42 provide?

It offers 4 x USB 3.2 Gen1, 2 x USB 2.0, 2 x DisplayPort, 1 x HDMI, 2 x RS-232/422/485 (plus 2 optional RS-232), optional 8-bit GPIO, and dual LAN (Intel I219-LM GbE + I225-V 2.5GbE).

Does the FPC-21W42 include hardware security?

Yes, it has onboard TPM 2.0 for hardware key storage and platform integrity in secure industrial deployments.

What power supply does the FPC-21W42 use?

It has an internal Flex ATX 300W PSU (100-240VAC, 50-60Hz), AT/ATX selectable by jumper (ATX default), with a 3-pin AC power input connector.

What applications is the FPC-21W42 best suited for?

With a large 21.5" multi-touch display, 13th Gen Core performance, PCIe Gen4 expansion, dual LAN, and full certification, it suits HMI, SCADA, MES, factory-floor visualization, and demanding industrial control front-ends.

What is an Industrial Panel PC?

An Industrial Panel PC is a robust computing device designed for industrial environments, featuring a touchscreen display integrated with a computer. These systems are built to withstand harsh conditions including dust, moisture, temperature extremes, and vibration, while providing reliable operation for factory automation, control systems, and HMI applications.

What makes a Panel PC 'industrial grade'?

Industrial grade Panel PCs feature rugged construction with IP65/IP66 front panel protection, extended temperature operation, shock and vibration resistance, fanless cooling for reliability, wide voltage input tolerance, and long product lifecycles designed for 24/7 operation in challenging environments.

What is the difference between a Panel PC and an HMI?

While both provide operator interface functionality, a Panel PC is a full-featured computer running a standard operating system (Windows, Linux) that can host any software application. An HMI is typically a simpler device with an embedded operating system designed specifically for machine/process control with limited functionality beyond its control software.

What mounting options are available for Panel PCs?

Panel PCs typically offer multiple mounting options including panel mount (cutout installation in cabinets/enclosures), VESA mount (standard bracket mounting to walls or arms), and sometimes desktop stands. Some specialized models may offer additional mounting options for specific industries.

What operating systems are supported on industrial Panel PCs?

Most industrial Panel PCs support Windows 10 IoT Enterprise, Windows 11 Pro, and various Linux distributions like Ubuntu. The specific OS support depends on the hardware configuration, with some models offering pre-installed options or being compatible with multiple operating systems.

What is IP65/IP66 protection and why is it important?

IP65/IP66 protection ratings indicate dust-tight (6) protection and resistance to water jets (5/6). This is essential for industrial Panel PCs that may be exposed to harsh factory environments with dust, splashes, or washdown procedures, ensuring reliable operation and longevity in challenging conditions.

Why are fanless designs important in industrial Panel PCs?

Fanless designs eliminate moving parts that could fail, prevent dust and contaminant ingress through ventilation openings, reduce maintenance requirements, increase reliability in high-vibration environments, and allow sealed enclosures for protection against harsh industrial conditions.

What is PCAP multi-touch technology?

PCAP (Projected Capacitive) multi-touch technology allows multiple simultaneous touch points on the screen, enabling intuitive gestures like pinch-to-zoom. It offers better optical clarity than resistive touchscreens, with a durable glass surface resistant to scratches, though it requires bare finger or special stylus operation.

What is a watchdog timer and why is it important?

A watchdog timer is a hardware-based timer that triggers a system reset if the software becomes unresponsive. This is crucial for industrial systems requiring high reliability and 24/7 operation, as it automatically recovers from software crashes or freezes without human intervention.

What does wide voltage input range mean for Panel PCs?

A wide voltage input range (typically 9-36VDC) allows Panel PCs to operate reliably in industrial environments with fluctuating power conditions. This provides flexibility in power source options and protection against voltage spikes and drops common in factory settings.

What is TPM and why is it included in industrial Panel PCs?

TPM (Trusted Platform Module) is a security chip that provides hardware-based encryption capabilities and secure storage for authentication credentials. In industrial settings, it helps protect sensitive data, secure communication channels, and ensure the integrity of control systems against unauthorized access.

How are Panel PCs typically mounted in industrial environments?

Panel PCs are typically installed using panel mount (where the unit is fitted into a cutout in a control cabinet with mounting clips or screws), VESA mount (attached to arms or wall mounts using standardized mounting patterns), or sometimes with custom mounting solutions for specific applications.

What cutout dimensions are needed for panel mounting?

Cutout dimensions vary by model and screen size. It's essential to refer to the specific Panel PC's installation guide for precise measurements. Most manufacturers provide detailed dimensional drawings showing the exact cutout size and mounting hole positions required.

What environmental conditions should be considered when installing Panel PCs?

Consider operating temperature range, humidity levels, exposure to dust or liquids, vibration/shock conditions, available power supply stability, electromagnetic interference sources, and ambient light conditions that might affect screen visibility when installing Panel PCs.

Do Panel PCs require additional cooling?

Most industrial Panel PCs are designed with fanless cooling systems that dissipate heat through the chassis. While they typically don't require additional cooling, it's important to ensure adequate air circulation around the unit and to avoid installing them in locations that exceed their specified operating temperature range.

What power supply requirements should be considered for Panel PCs?

Consider voltage requirements (typically 9-36VDC), current/power consumption specifications, power supply stability, surge protection needs, and whether battery backup or uninterruptible power supply (UPS) is necessary for critical applications to prevent data loss during power interruptions.

What should I do if the touchscreen becomes unresponsive?

First, try restarting the Panel PC. If the issue persists, check if the touch driver is installed and functioning properly, verify the touchscreen cable connection, ensure the operating environment is within specifications (especially for capacitive screens in high humidity), and check for physical damage to the screen surface.

How can I resolve overheating issues with fanless Panel PCs?

To address overheating: ensure the Panel PC is installed with adequate clearance for passive cooling, check that the ambient temperature is within specified operating range, clean dust buildup on cooling fins/chassis, verify that CPU-intensive applications aren't causing excessive load, and consider adding external cooling to the enclosure if necessary.

What causes Panel PCs to restart unexpectedly?

Unexpected restarts can be caused by unstable power supply, overheating, hardware failures, software issues, or watchdog timer activations due to system hangs. Check power stability, environmental conditions, system logs for error messages, and consider disabling the watchdog timer temporarily for diagnostic purposes.

How can I improve the visibility of the Panel PC screen in bright environments?

To improve visibility in bright environments, adjust the screen brightness to maximum, install an anti-glare shield or hood, position the Panel PC to avoid direct light sources, consider a higher-brightness model (500+ cd/m²) for new installations, or apply an anti-reflective film designed for industrial displays.

What should I do if Windows fails to boot on my Panel PC?

If Windows fails to boot, try booting in Safe Mode, use System Restore to revert to a working state, run startup repair from recovery options, check for hardware issues (particularly storage drives), verify BIOS/UEFI settings are correct, or restore from a system image backup if available.

Avalue · Panel PC / Monitor / Mobile

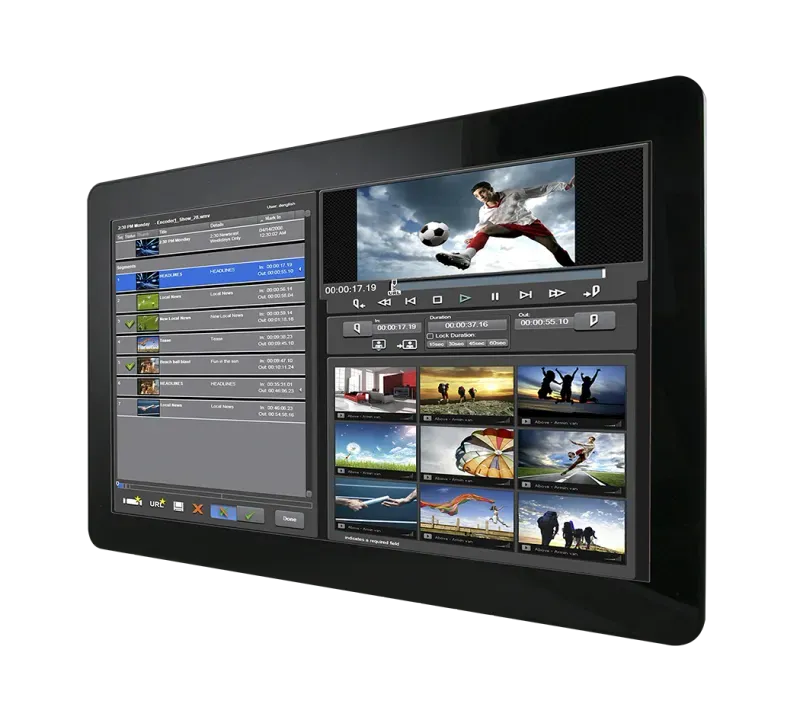

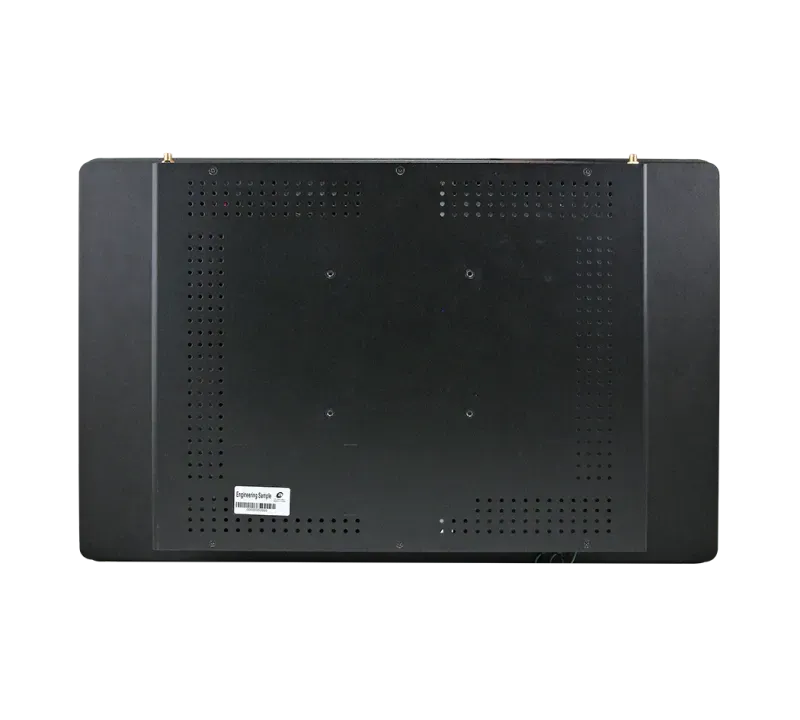

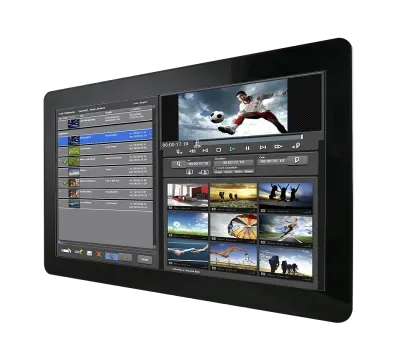

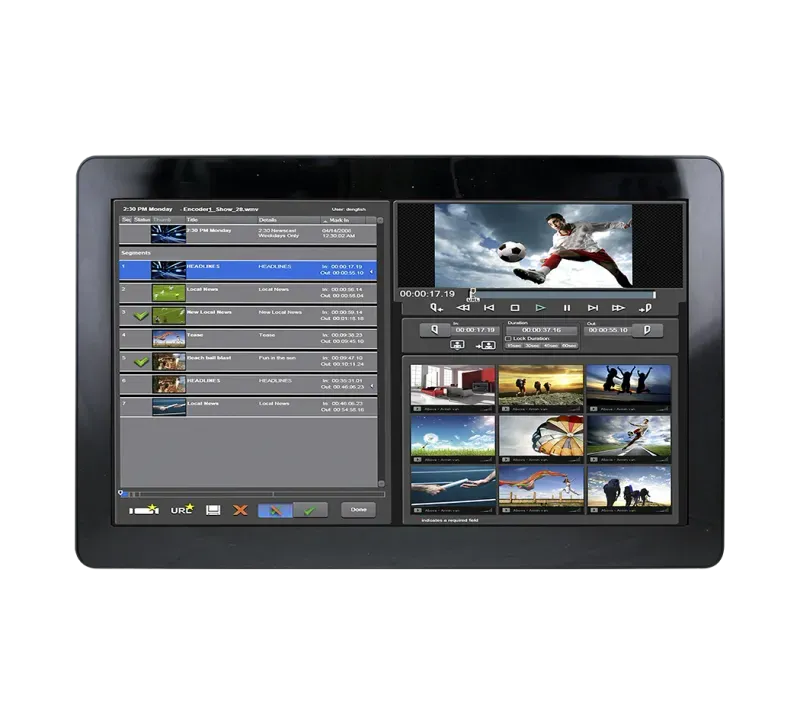

FPC-21W42

Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

21.5" Full HD (1920x1080) PCAP 10-point multi-touch
13th Gen Intel Core i3/i5/i7 (LGA1700, MX610H SBC)
2 x DDR5 4800MHz SO-DIMM, up to 64GB
Onboard TPM 2.0; 1 x PCIe x16 Gen4 + M.2 E-Key (Wi-Fi)
M.2 M-Key NVMe/SATA + optional 2.5" drive bay
2 x DP + HDMI; 4 x USB 3.2 Gen1 + 2 x USB 2.0
Dual LAN: Intel I219-LM GbE + I225-V 2.5GbE
2 x 5W speakers; Flex ATX 300W PSU
CE / FCC Class A / VCCI / UKCA; Windows / Linux

Product Description

The Avalue FPC-21W42 is a 21.5" Full HD industrial touch panel PC powered by 13th Generation Intel Core i3/i5/i7 (LGA1700) processors, combining desktop-class performance with a rugged projected-capacitive multi-touch front.

Dual DDR5 4800MHz SO-DIMM sockets support up to 64GB, with onboard TPM 2.0 and a PCIe x16 Gen4 slot on the MX610H SBC for flexible expansion.

The 1920x1080 IPS-class panel offers 250 cd/m² brightness, 10-point PCAP touch (89% transmission, EETI controller) and wide viewing angles.

Connectivity includes dual DisplayPort plus HDMI, four USB 3.2 Gen1 and two USB 2.0, dual RS-232/422/485 (plus optional COM/GPIO), Intel I219-LM Gigabit and I225-V 2.5GbE, 2 x 5W speakers, and an internal Flex ATX 300W PSU.

With CE/FCC/VCCI/UKCA certification it suits HMI, SCADA, and factory-floor visualization on Windows or Linux.

Technical Specifications

Processor

13th Generation Intel® Core™ i3/ i5/ i7 Processors (LGA1700 Socket)

Intel® Core™ i7-13700TE (35W, 30M Cache, up to 1.10 GHz)

Intel® Core™ i5-13500E (65W, 24M Cache, up to 2.40 GHz)

Intel® Core™ i3-13100TE (35W, 12M Cache, up to 2.40 GHz)

System Memory

2 x 262-pin DDR5 4800 MHz SO-DIMM sockets support up to 64GB (non ECC only)

I/O Chipset

Fintek® F81966AB-I

Watchdog Timer

H/W Reset, 5~255 Seconds/5~255 Minutes

H/W Status Monitor

CPU Temperature Monitoring

Voltage Monitoring

CPU Fan Speed Control

TPM

TPM 2.0

SBC

MX610H

CPU Cooler (Type)

1 x PWM FAN for CPU

Expansion

1 x PCIe x16 Gen4 Slot

1 x M.2 (2230) E-Key support WiFi module, with 1 x PCI-e x1 & USB 2.0 (CNVi Supported)

Solid State Drive

1 x 2.5” Drive Bay design (optional)

Other Storage Device

1 x 2280 & 2242 M.2 Slot M Key with PCIe x4 & SATA 3.0 signal (optional)

Graphic Chipset

Intel® UHD Graphic

Spec. & Resolution

2 x DP: Up to 4096×2304 @60Hz

1 x HDMI: Up to 3840x2160 @30Hz

Audio Codec

Realtek® ALC897

Audio Interface

Mic-in

Line-out

Speaker Output

2 x 5W

LAN Chipset

1 x Intel® I219-LM GbE LAN PHY

1 x Intel® I225-V 2.5GbE LAN

Power Supply Unit

PSU Flex ATX 300W, 100-240V~, 5-2.5A, 50-60Hz

Power Mode

AT/ATX by jumper (Default Setting: ATX)

Power Connector Type

AC Power input 3P (Male) Connector

OS

Win10 / Win11 / Linux

Certification Information

CE / FCC Class A / VCCI / UKCA

LCD Size

21.5", 16:9

Display Type

Full HD

Resolution

1920 x 1080

Pixel pitch

247.95um(H) x 247.95um(V)

Luminance

250 cd/m²

Contrast ratio

1000

Viewing angle

89 (U), 89 (D), 89 (L), 89 (R)

Response time

14 ms

Backlight

LED

Touch Type

Projective capacitive multi-touch up to 10 points

Touch Light Transmission

89 %

Touch Controller

USB touch (EETI)

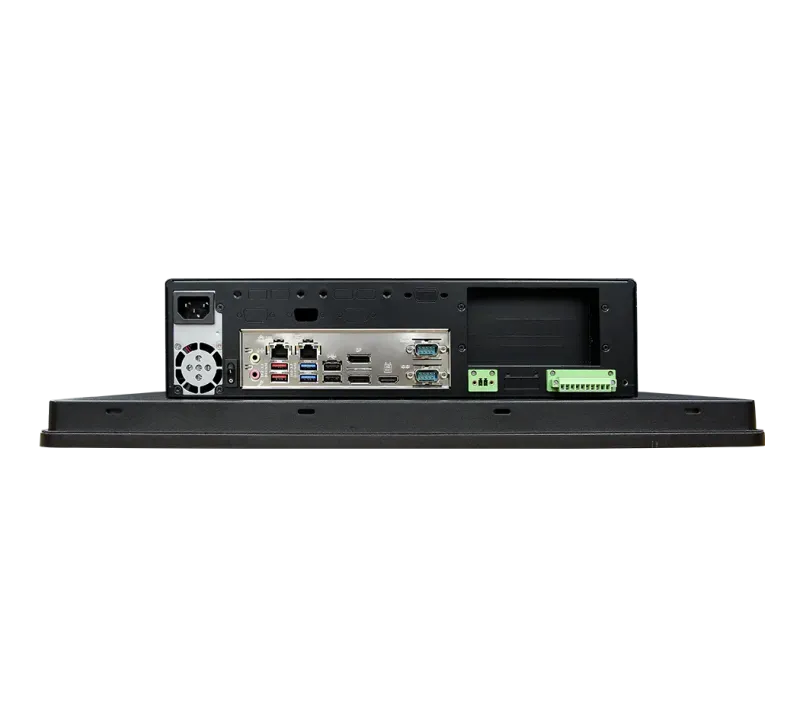

USB Port

4 x USB 3.2 Gen 1

2 x USB 2.0

Video Port

2 x DP

1 x HDMI

LAN Port

1 x Intel® I219-LM GbE LAN PHY

1 x Intel® i225-V 2.5GbE LAN

COM Port

2 x RS232(default)/422/485

2 x RS232 (optional)

DIO Port

1x8-bit GPIO (optional)

Switch

1x Extend Power Switch (optional)

LED Indicator

HDD LED, power LED

WLAN

M.2 keyA/E 802.11ax Dual-band, BT5.2,AX210.NGWGIE.NV, 99ARN4,Intel (optional)

Bluetooth

BT5.2 (optional)

Operating Temp.

0°C ~ 45°C

Storage Temp.

-20°C ~ 60°C (-4°F ~ 140°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Dimension (W x L x H)

538 x 341 x 122 mm

Weight

12.6 Kg

Vibration Test

With SSD/M.2 SSD : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30mins/axis

Shock Test

Operating with SSD/M.2 : MIL-STD-810G, method 516.6, procedure I, functional shock=10G

Drop Test

ISTA 2A, IEC-60068-2-32 Test:Ed

IP Rating

Front IP65

Mounting Kit

Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm

Panel mount with mounting kits

Power Mode

AT/ATX by jumper (Default Setting: ATX)

System Fan

1 x PWM FAN for System

Construction - Front

Aluminum Die-casting

Construction - Rear

Metal black

Adapter

PSU Flex ATX 300W

Ordering Information

FPC-21W42-X0000-1R | w/MX610H/2LAN/4USB/HDMI/2DP/2COM/PSU/LineOut/MicIn/Barebone, Without CPU/memory/storage/OS/Power Cord

ACC-CPU-13700TER | Intel Core I7-13700TE 1.10GHz Processor

ACC-CPU-13500ER | Intel Core I5-13500E 2.40GHz Processor

ACC-CPU-13100TER | Intel Core I3-13100TE 2.40GHz Processor

ACC-PSU-300N-04R | Power Supply ATX 300W 150x81.5x40.5mm

E971XFP1W42003R | WiFi module KIT for FPC-21W42

E971XFP1W42001R | Terminal Block Switch KIT For FPC-21W42

E971XFP1W42000R | Terminal Block GPIO KIT For FPC-21W42

E971XFP1W42002R | PCIe x16 to x16 1slot Riser card KIT For FPC-21W42

C971XFP1736009R | PCIe x16 to x4 1slot Riser card KIT For FPC-1736

E1702031833R | USA Power Cord

E1702031000R | EU Power Cord

E1702031834R | Japan Power Cord

E1702031830R | UK Power Cord

E1702031831R | Australia Power Cord

What is FPC-21W42?

The FPC-21W42 is a panel pc / monitor / mobile manufactured by Avalue, designed specifically for industrial-panel-pc applications. The Avalue FPC-21W42 is a 21.5" Full HD industrial touch panel PC powered by 13th Generation Intel Core i3/i5/i7 (LGA1700) processors, combining desktop-class performance with a rugged projected-capacitive multi-touch front. Dual DDR5 4800MHz SO-DIMM sockets support up to 64GB, with onboard TPM 2.0 and a PCIe x16 Gen4 slot on the MX610H SBC for flexible expansion. The 1920x1080 IPS-class panel offers 250 cd/m² brightness, 10-point PCAP touch (89% transmission, EETI controller) and wide viewing angles. Connectivity includes dual DisplayPort plus HDMI, four USB 3.2 Gen1 and two USB 2.0, dual RS-232/422/485 (plus optional COM/GPIO), Intel I219-LM Gigabit and I225-V 2.5GbE, 2 x 5W speakers, and an internal Flex ATX 300W PSU. With CE/FCC/VCCI/UKCA certification it suits HMI, SCADA, and factory-floor visualization on Windows or Linux.

Key Features & Benefits

21.5" Full HD (1920x1080) PCAP 10-point multi-touch
13th Gen Intel Core i3/i5/i7 (LGA1700, MX610H SBC)
2 x DDR5 4800MHz SO-DIMM, up to 64GB
Onboard TPM 2.0; 1 x PCIe x16 Gen4 + M.2 E-Key (Wi-Fi)
M.2 M-Key NVMe/SATA + optional 2.5" drive bay
2 x DP + HDMI; 4 x USB 3.2 Gen1 + 2 x USB 2.0
Dual LAN: Intel I219-LM GbE + I225-V 2.5GbE
2 x 5W speakers; Flex ATX 300W PSU
CE / FCC Class A / VCCI / UKCA; Windows / Linux

Applications & Use Cases

The FPC-21W42 is ideal for various industrial automation applications:
