What makes the LPC-0833 suitable for space-constrained industrial applications?

The LPC-0833's ultra-thin form factor and 8" display size make it ideal for installations where both panel space and mounting depth are limited. Its compact dimensions allow it to fit into small equipment enclosures, machine control panels, and space-limited operator stations without compromising on functionality, display quality, or industrial durability.

What is an Industrial Panel PC?

An Industrial Panel PC is a robust computing device designed for industrial environments, featuring a touchscreen display integrated with a computer. These systems are built to withstand harsh conditions including dust, moisture, temperature extremes, and vibration, while providing reliable operation for factory automation, control systems, and HMI applications.

What makes a Panel PC 'industrial grade'?

Industrial grade Panel PCs feature rugged construction with IP65/IP66 front panel protection, extended temperature operation, shock and vibration resistance, fanless cooling for reliability, wide voltage input tolerance, and long product lifecycles designed for 24/7 operation in challenging environments.

What is the difference between a Panel PC and an HMI?

While both provide operator interface functionality, a Panel PC is a full-featured computer running a standard operating system (Windows, Linux) that can host any software application. An HMI is typically a simpler device with an embedded operating system designed specifically for machine/process control with limited functionality beyond its control software.

What mounting options are available for Panel PCs?

Panel PCs typically offer multiple mounting options including panel mount (cutout installation in cabinets/enclosures), VESA mount (standard bracket mounting to walls or arms), and sometimes desktop stands. Some specialized models may offer additional mounting options for specific industries.

What operating systems are supported on industrial Panel PCs?

Most industrial Panel PCs support Windows 10 IoT Enterprise, Windows 11 Pro, and various Linux distributions like Ubuntu. The specific OS support depends on the hardware configuration, with some models offering pre-installed options or being compatible with multiple operating systems.

What is IP65/IP66 protection and why is it important?

IP65/IP66 protection ratings indicate dust-tight (6) protection and resistance to water jets (5/6). This is essential for industrial Panel PCs that may be exposed to harsh factory environments with dust, splashes, or washdown procedures, ensuring reliable operation and longevity in challenging conditions.

Why are fanless designs important in industrial Panel PCs?

Fanless designs eliminate moving parts that could fail, prevent dust and contaminant ingress through ventilation openings, reduce maintenance requirements, increase reliability in high-vibration environments, and allow sealed enclosures for protection against harsh industrial conditions.

What is the difference between resistive and capacitive touchscreens?

Resistive touchscreens work with any input device (finger, gloved hand, stylus) and are more suitable for harsh environments, but offer less optical clarity and typically support single-touch. Capacitive touchscreens provide better optical clarity and multi-touch capability but require bare finger or special stylus input and are more sensitive to environmental conditions.

What is a watchdog timer and why is it important?

A watchdog timer is a hardware-based timer that triggers a system reset if the software becomes unresponsive. This is crucial for industrial systems requiring high reliability and 24/7 operation, as it automatically recovers from software crashes or freezes without human intervention.

What does wide voltage input range mean for Panel PCs?

A wide voltage input range (typically 9-36VDC) allows Panel PCs to operate reliably in industrial environments with fluctuating power conditions. This provides flexibility in power source options and protection against voltage spikes and drops common in factory settings.

What is TPM and why is it included in industrial Panel PCs?

TPM (Trusted Platform Module) is a security chip that provides hardware-based encryption capabilities and secure storage for authentication credentials. In industrial settings, it helps protect sensitive data, secure communication channels, and ensure the integrity of control systems against unauthorized access.

How are Panel PCs typically mounted in industrial environments?

Panel PCs are typically installed using panel mount (where the unit is fitted into a cutout in a control cabinet with mounting clips or screws), VESA mount (attached to arms or wall mounts using standardized mounting patterns), or sometimes with custom mounting solutions for specific applications.

What cutout dimensions are needed for panel mounting?

Cutout dimensions vary by model and screen size. It's essential to refer to the specific Panel PC's installation guide for precise measurements. Most manufacturers provide detailed dimensional drawings showing the exact cutout size and mounting hole positions required.

What environmental conditions should be considered when installing Panel PCs?

Consider operating temperature range, humidity levels, exposure to dust or liquids, vibration/shock conditions, available power supply stability, electromagnetic interference sources, and ambient light conditions that might affect screen visibility when installing Panel PCs.

Do Panel PCs require additional cooling?

Most industrial Panel PCs are designed with fanless cooling systems that dissipate heat through the chassis. While they typically don't require additional cooling, it's important to ensure adequate air circulation around the unit and to avoid installing them in locations that exceed their specified operating temperature range.

What power supply requirements should be considered for Panel PCs?

Consider voltage requirements (typically 9-36VDC), current/power consumption specifications, power supply stability, surge protection needs, and whether battery backup or uninterruptible power supply (UPS) is necessary for critical applications to prevent data loss during power interruptions.

What should I do if the touchscreen becomes unresponsive?

First, try restarting the Panel PC. If the issue persists, check if the touch driver is installed and functioning properly, verify the touchscreen cable connection, ensure the operating environment is within specifications (especially for capacitive screens in high humidity), and check for physical damage to the screen surface.

How can I resolve overheating issues with fanless Panel PCs?

To address overheating: ensure the Panel PC is installed with adequate clearance for passive cooling, check that the ambient temperature is within specified operating range, clean dust buildup on cooling fins/chassis, verify that CPU-intensive applications aren't causing excessive load, and consider adding external cooling to the enclosure if necessary.

What causes Panel PCs to restart unexpectedly?

Unexpected restarts can be caused by unstable power supply, overheating, hardware failures, software issues, or watchdog timer activations due to system hangs. Check power stability, environmental conditions, system logs for error messages, and consider disabling the watchdog timer temporarily for diagnostic purposes.

How can I improve the visibility of the Panel PC screen in bright environments?

To improve visibility in bright environments, adjust the screen brightness to maximum, install an anti-glare shield or hood, position the Panel PC to avoid direct light sources, consider a higher-brightness model (500+ cd/m²) for new installations, or apply an anti-reflective film designed for industrial displays.

What should I do if Windows fails to boot on my Panel PC?

If Windows fails to boot, try booting in Safe Mode, use System Restore to revert to a working state, run startup repair from recovery options, check for hardware issues (particularly storage drives), verify BIOS/UEFI settings are correct, or restore from a system image backup if available.

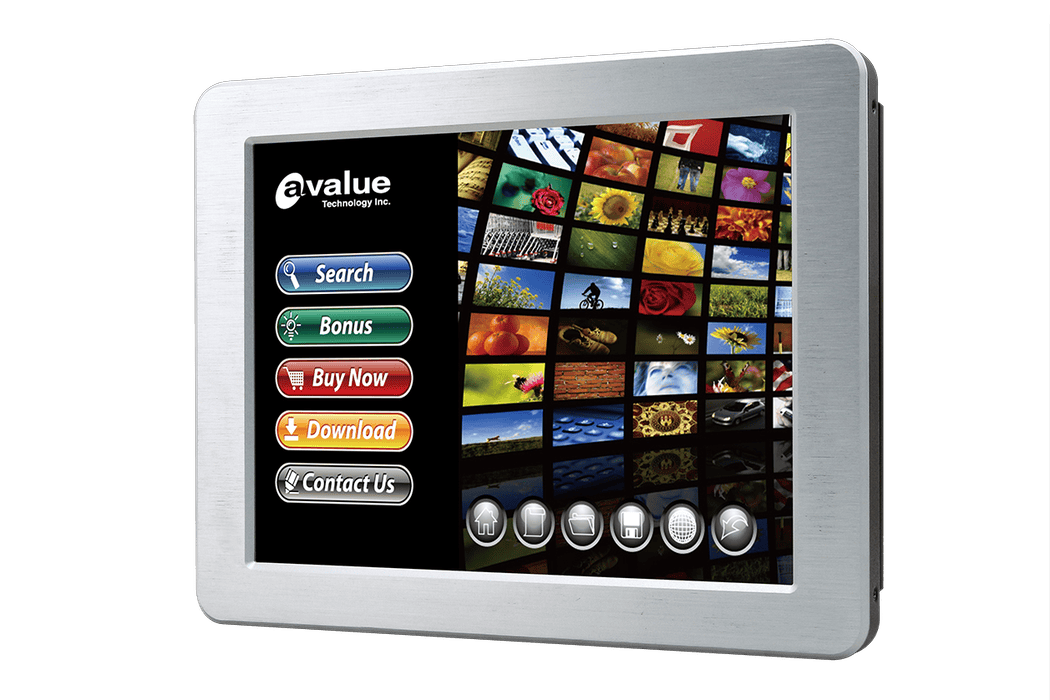

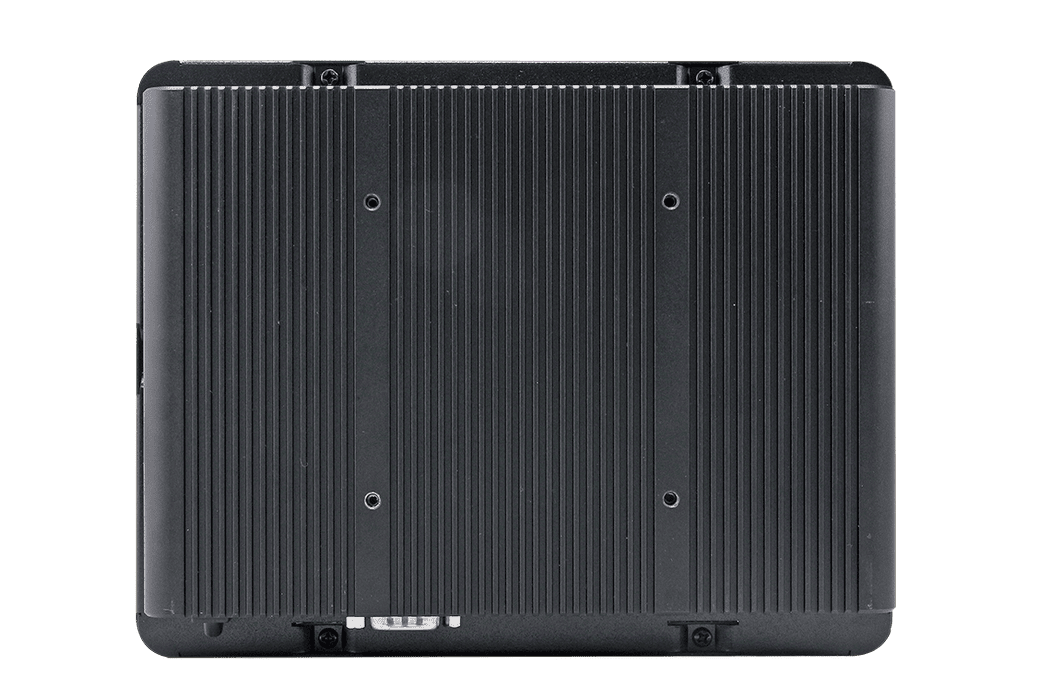

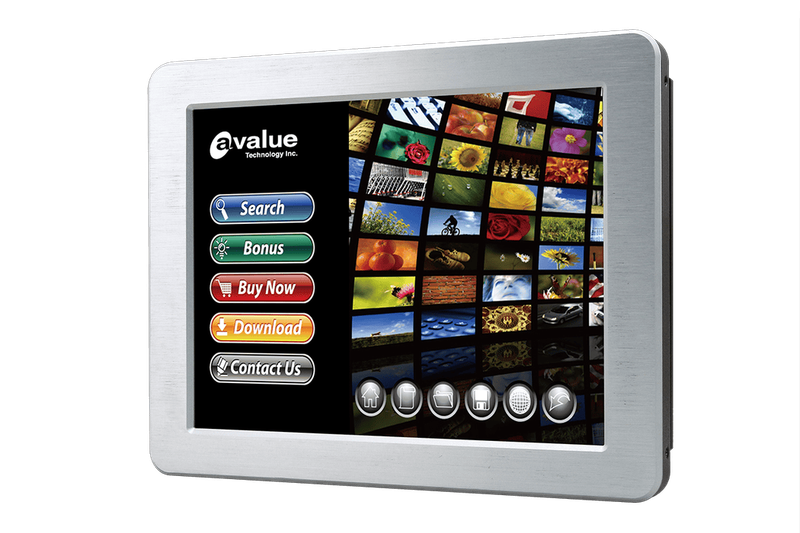

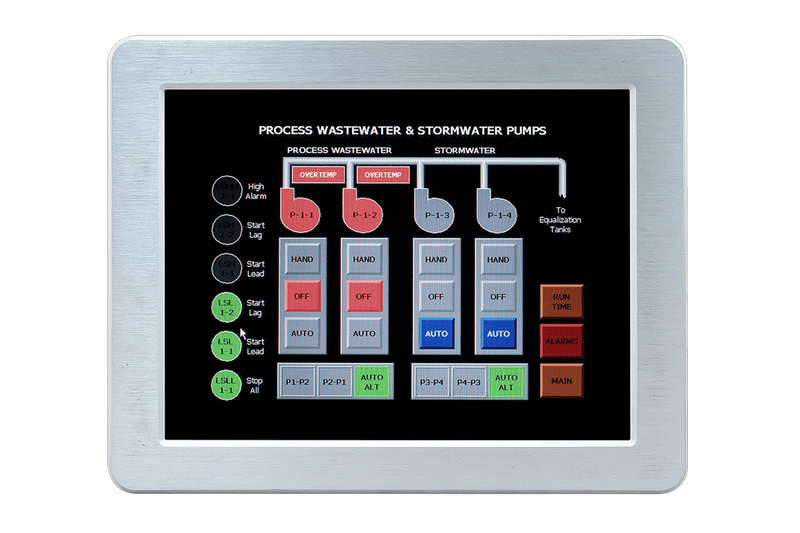

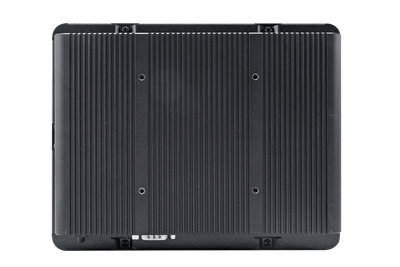

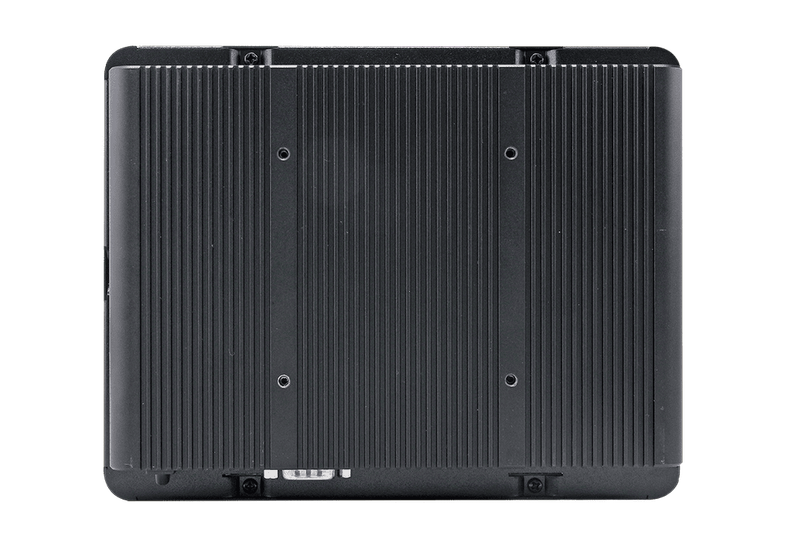

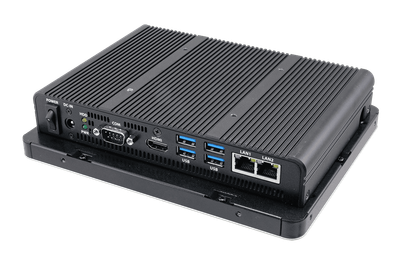

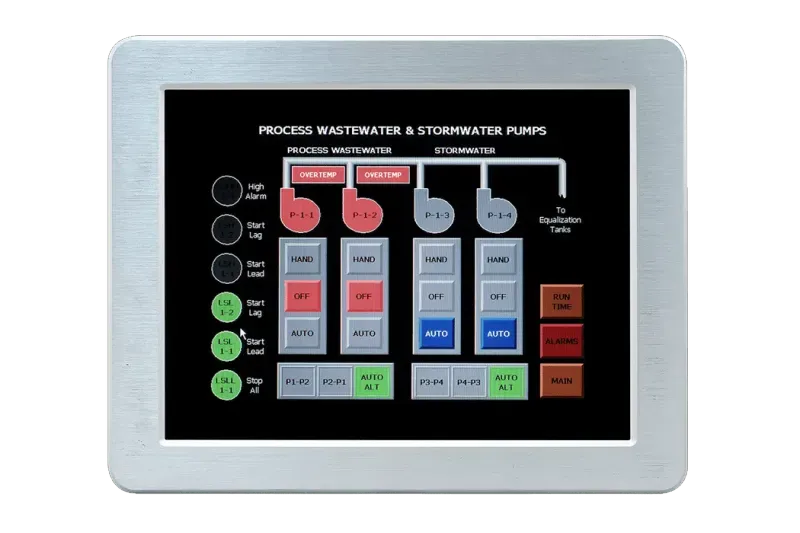

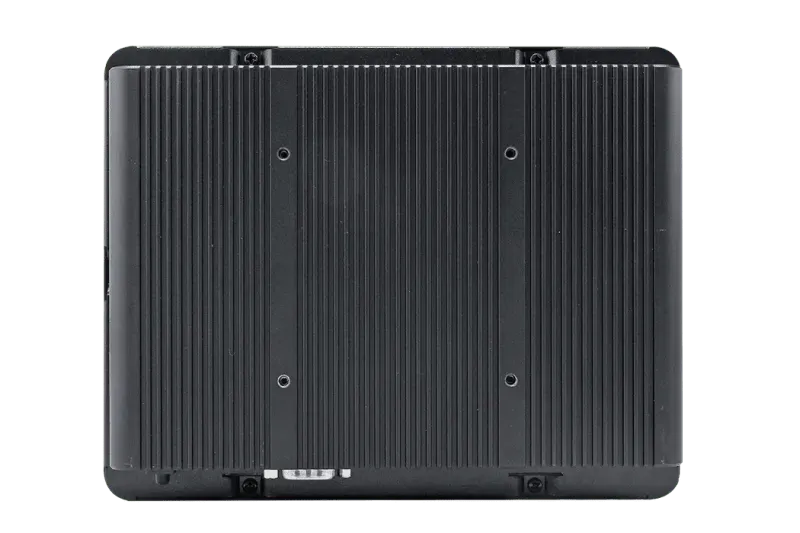

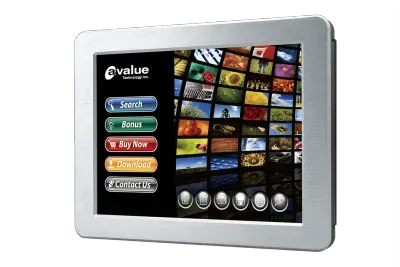

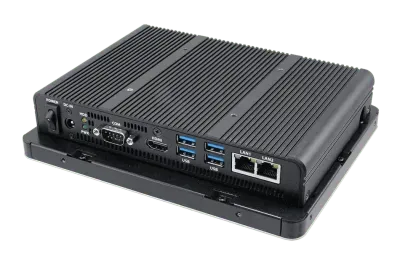

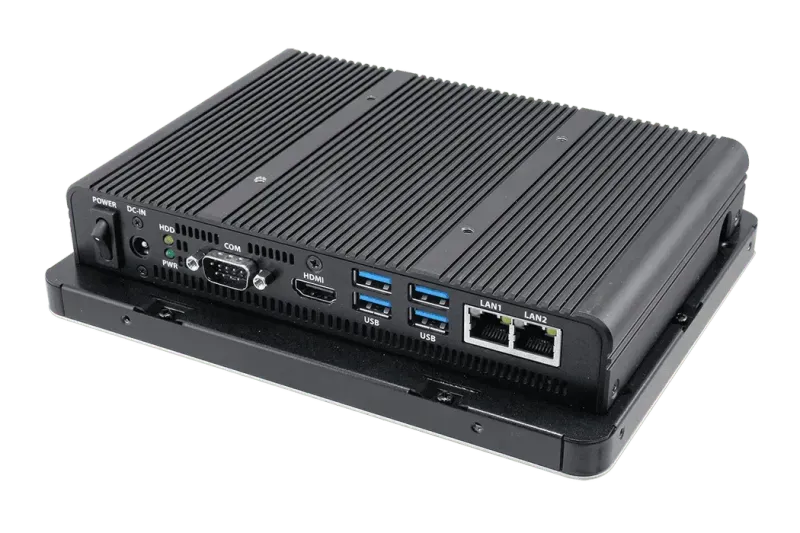

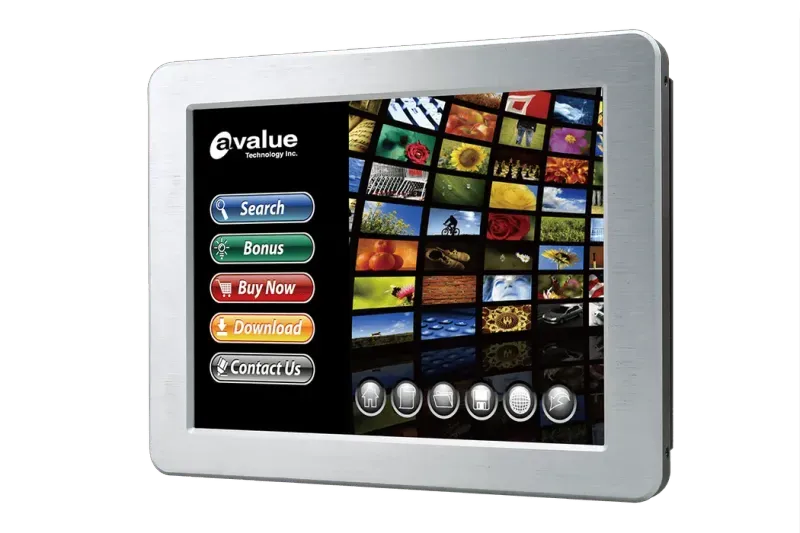

LPC-0833

*Price on request. Contact us for a quote.

Manufacturer: Avalue

8" SVGA TFT Touch Panel PC
5-wire resistive touch screen
Intel® Celeron® Processor J3455
HDMI x 1, 2x GbE LAN, 2x COM, 4 x USB 3.2 (Gen1x1, 5Gbps)
Optional TPM 2.0
No HDD support
Fanless
Wide range voltage input +12V ~ +24V
IP65 compliant front panel
VESA compliance

Product Description

The Avalue LPC-0833 is an 8" industrial touch panel PC featuring an Intel® Atom® x5-E3940 processor. It includes a fanless design, resistive touch screen, dual Gigabit LAN, multiple USB and COM ports, and HDMI support.

The panel is IP65 rated at the front, suitable for rugged environments, and supports wide voltage input. It operates within a temperature range from -20°C to 60°C.

Technical Specifications

System Information

Processor

Intel® Celeron® Processor J3455, 2M Cache, up to 2.30 GHz

Platform Controller Hub

Intel® Pentium®/Celeron®/Atom™ SoC

System Memory

1 x 204-pin DDR3L SODIMM socket, supports up to 8GB DDR3L 1866MTs SDRAM (non-ECC

I/O Chipset

EC ITE IT8528E

Watchdog Timer

H/W reset: 1sec.~255min. and 1sec. or 1min./step

H/W Status Monitor

Monitoring CPU & System Temperature and Voltage

SBC

ECM-APL

CPU Cooler (Type)

Fanless Heatsink

Other

1 x HDMI

Panel

LCD Size

8" 4:3

Display Type

SVGA

Resolution

800 x 600

Pixel pitch

0.0675mm(H) x 0.2025mm(V)

Luminance

500 cd/m²

Contrast ratio

500

Viewing angle

50(U), 70(D), 70(L), 70 (R)

Response time

25 ms

Backlight

LED

Touch Type

5 wires resistive

Touch Light Transmission

80 %

Touch Controller

USB touch (EETI)

Expansion

1 x Full-Size mini PCI express mini card (for PCIe &USB2.0) 1 x M.2 (2242) B-Key

Storage

1 xM.2 B key (2242 support SATA/PCIex1/USB interface & with Micro SIM card connector) for SSD

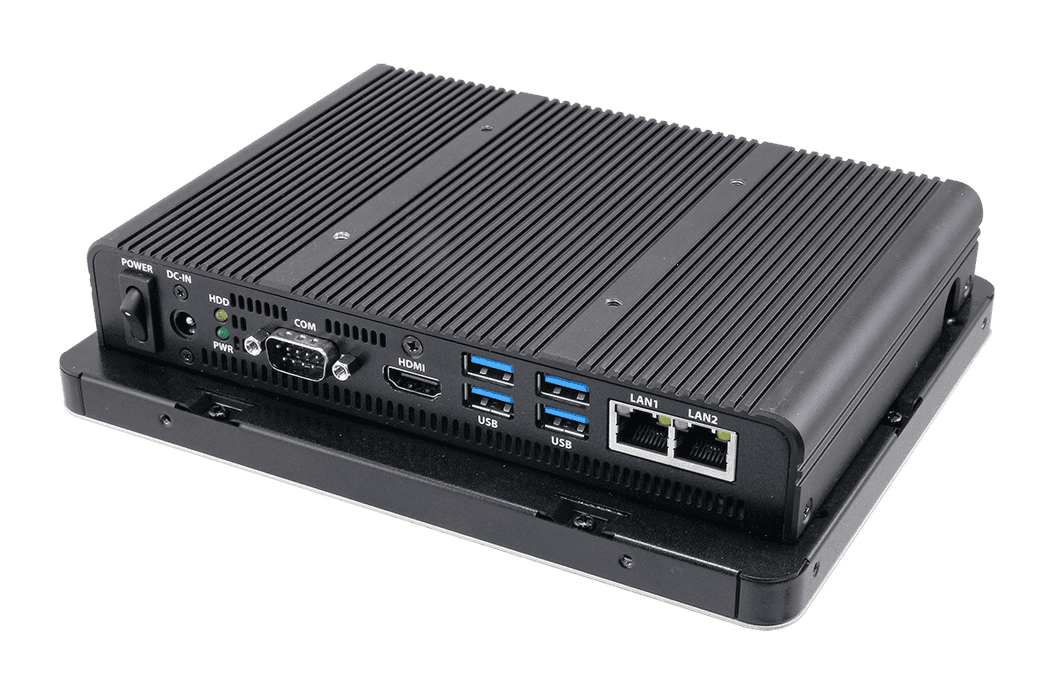

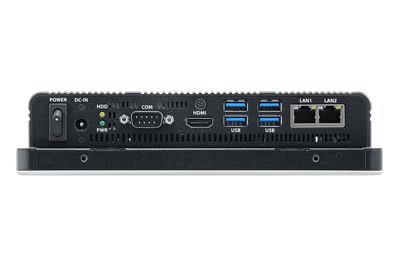

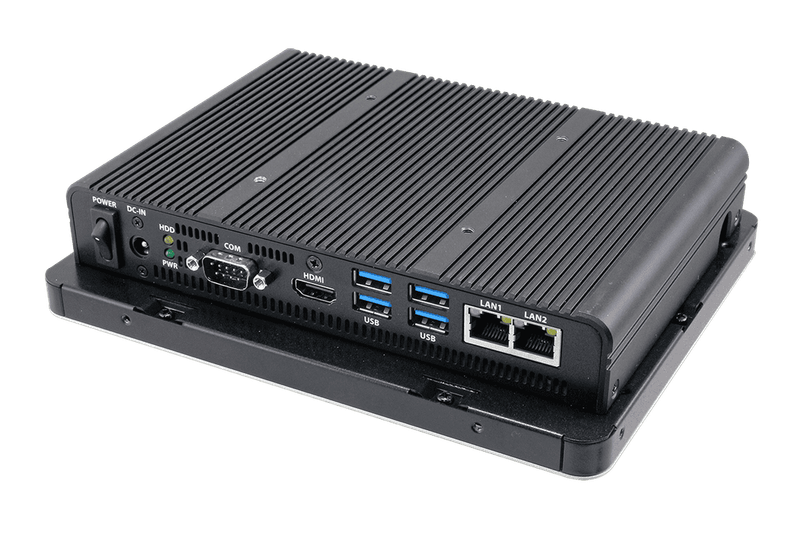

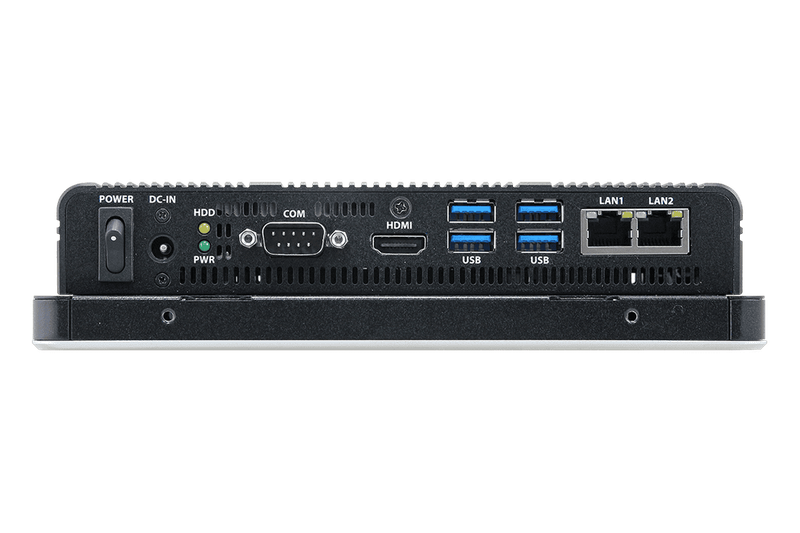

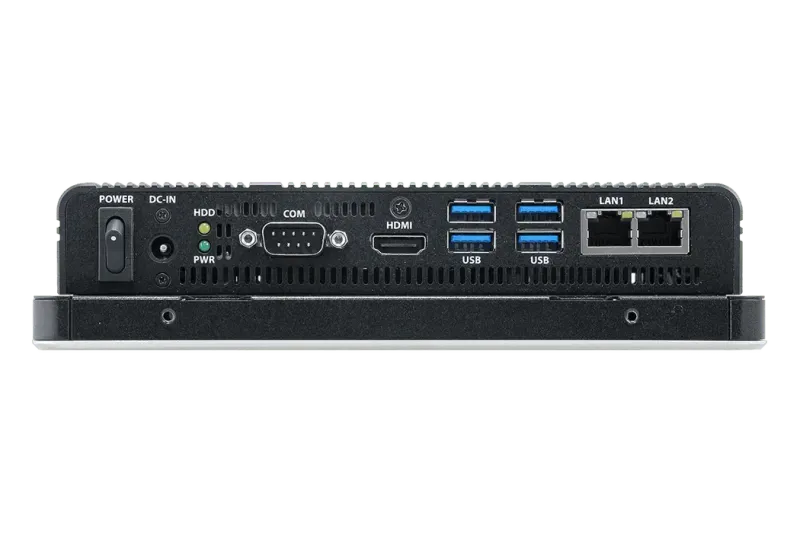

External And Internal I/O

USB Port

1 x USB 3.0

3 x USB 2.0

COM Port

1 x DB-9 male connector for COM1 supports RS232 (BOM option for RS422/485)

1 x DB-9 male connector for COM2 supports RS232

LAN Port

2 x RJ-45

Audio

Audio Codec

Realtek ALC888S

Audio Interface

Line-out

Display

Graphic Chipset

Intel® Valleyview SoC integrated graphics

supports dual display

Certifications

Certification Information

CE / FCC Class B

Ethernet

LAN Chipset

Dual Intel® I211AT Gigabit LAN

Ethernet Interface

10/100/1000 Base-Tx GbE compatible

Power Requirement

DC Input

+12V ~ +24V

DC Input Connector

Lockable DC Jack

Optional for phoenix connector

Adapter

Input: 100 ~ 240Vac/ 50 ~ 60Hz

Output: 60W adapter (12V @ 5A adapter) AC-DC adapter

ACPI

Single power ATX support S0, S3, S4, S5 and ACPI 3.0 compliant

Software Support

OS Information

Win 10 / Android / Linux

System Control

LED Indicator

HDD LED, power LED

Mechanical & Environmental

Operating Temperature

0°C ~ 40°C (32°F ~ 104°F)

Storage Temperature

-20°C ~ 60°C (-4°F ~ 140°F)

Operating Humidity

40°C @ 95% Relative humidity, non-condensing

Weight

1.39 Kg

Dimension (W x L x H)

202.5 x 159.5 x 46.5mm

Vibration Test

With SSD/mSATA : 3Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30 mins/axis

Shock Test

With CF/SSD : 10Grms, IEC 60068-2-27, half sine, 11ms

Drop Test

ISTA 2A, IEC-60068-2-32 Test:Ed

IP Rating

Front IP65

Mounting Kit

Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm

Panel Mount with mounting kits

Power Mode

AT/ATX (ATX is default setting)

System Fan

Fanless

Construction - Front

Silver aluminum

Construction - Rear

Silver alloy

Ordering Information

LPC-0833-345-A1R

LPC-0833 w/J3455/SVGA/4GR/888S/Resistive/F1/12~24V/Adapter

ACC-LPC-WIFI-01R

MPCIE WIFI-Kit for LPC Series(half-card) Antenna/Cable/BT4.0/802.11a/b/g/n/ac

ACC-LPC-08-PMT-03R

Front Panel Mount Kit for LPC-08 Series, w/o IP-65

ACC-LPC-08-PMT-04R

Front Panel Mount Kit for LPC-08 Series, w/ IP-65

E1702031833R

USA Power Cord

E1702031000R

EU Power Cord

E1702031834R

Japan Power Cord

E1702031830R

UK Power Cord

E1702031831R

Australia Power Cord

What is LPC-0833?

The LPC-0833 is a panel pc / monitor / mobile manufactured by Avalue, designed specifically for industrial-panel-pc applications. The Avalue LPC-0833 is an 8" industrial touch panel PC featuring an Intel® Atom® x5-E3940 processor. It includes a fanless design, resistive touch screen, dual Gigabit LAN, multiple USB and COM ports, and HDMI support. The panel is IP65 rated at the front, suitable for rugged environments, and supports wide voltage input. It operates within a temperature range from -20°C to 60°C.

Key Features & Benefits

8" SVGA TFT Touch Panel PC
5-wire resistive touch screen
Intel® Celeron® Processor J3455
HDMI x 1, 2x GbE LAN, 2x COM, 4 x USB 3.2 (Gen1x1, 5Gbps)
Optional TPM 2.0
No HDD support
Fanless
Wide range voltage input +12V ~ +24V
IP65 compliant front panel
VESA compliance

Applications & Use Cases

The LPC-0833 is ideal for various industrial automation applications:

Harsh industrial environments requiring dust and water protection
Dust-sensitive environments and silent operation requirements
DC-powered industrial installations and mobile applications
High-performance computing and data processing tasks
Networked industrial systems and data communication
Interactive control interfaces and operator panels
Panel-mounted installations and control cabinets
Peripheral device connectivity and data transfer

Frequently Asked Questions

The LPC-0833 is a compact 8" industrial panel PC featuring an Intel processor, thin form factor for space-constrained applications, resistive or projected capacitive touch options, multiple I/O ports, fanless design, IP65 front panel protection, and lightweight construction. It's designed for applications requiring a reliable but compact interface in challenging settings, particularly where installation depth is limited.

The LPC-0833 offers display options optimized for industrial environments with good brightness and contrast ratios. Touch technologies include resistive touch (suitable for gloved operation and harsh environments) and projected capacitive multi-touch (offering better optical clarity and more intuitive gesture-based interaction), allowing customers to select the technology best suited to their specific application requirements.

The LPC-0833's ultra-thin profile minimizes the intrusion into control cabinets and equipment enclosures, freeing up valuable space behind the panel for other components or reducing the overall enclosure depth requirements. This thin design also facilitates installation in applications with strict space constraints, such as machine arms, mobile equipment, or retrofits to existing systems where installation depth is limited.
