Avalue · Panel PC / Monitor / Mobile

OFP-07W33

Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

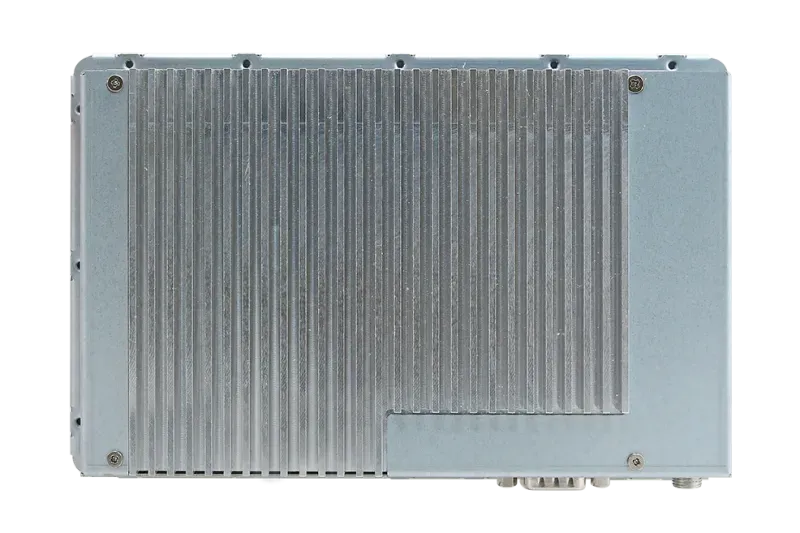

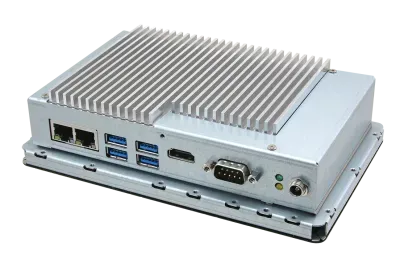

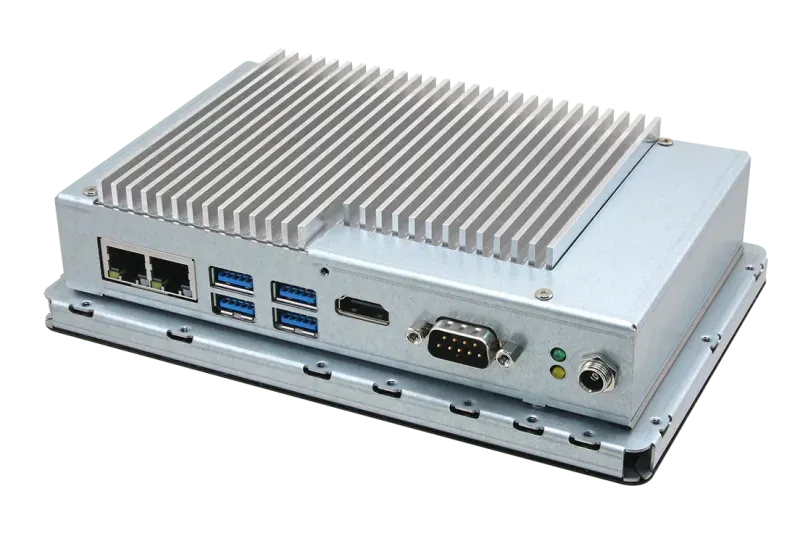

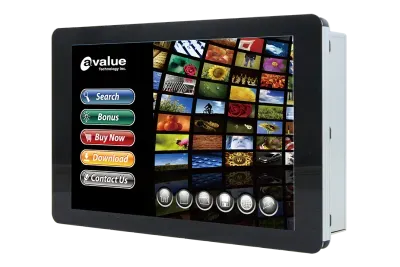

7" WXGA (1280x800) PCAP 10-point multi-touch open-frame panel PC, fanless
Intel Celeron Processor N3350 / J3455 (ECM-APL2-B1)
1 x 204-pin DDR3L 1866/1600/1333MHz SO-DIMM, up to 8GB
HDMI 1.4b output up to 3840 x 2160
2x GbE LAN (Intel I210AT), 4x USB 3.2 Gen1 (5Gbps)
1x RS-232, 1x RS-232/422/485 (pin header)
1x Full-size mini-PCIe (mSATA), 1x half-size mini-PCIe (optional Wi-Fi/BT)
8-bit GPIO (pin header)
Wide +12 ~ +26V DC input, fanless 0~45°C; CE / FCC Class A

Product Description

The Avalue OFP-07W33 is a 7" WXGA fanless open-frame industrial panel PC built on the low-power Intel Celeron N3350/J3455 processor with the ECM-APL2-B1 SBC, designed as a slim, cost-effective integration-ready compute-and-display module for compact kiosks, machines, and OEM enclosures.

With a DDR3L SO-DIMM socket supporting up to 8GB and a wide +12~26V DC input, it delivers reliable fanless operation in a small bezel-free form.

The 1280x800 PCAP 10-point multi-touch panel pairs with HDMI output up to 3840x2160, dual Intel I210AT Gigabit Ethernet, 4x USB 3.2 Gen1, and configurable RS-232/422/485 COM ports.

A full-size mini-PCIe (mSATA) plus a half-size mini-PCIe for optional Wi-Fi/BT add expansion. Fanless 0~45°C operation makes the OFP-07W33 a rugged, embeddable touch front-end for compact industrial HMI and signage.

Technical Specifications

Processor

Intel® Celeron® Processor N3350/J3455

Intel® Celeron® Processor N3350, 2M Cache, up to 2.40 GHz

Intel® Celeron® Processor J3455, 2M Cache, up to 2.30 GHz

System Memory

Default with 4GB DDR3L memory

option supports up to 8GB DDR3L 1866/1600/1333 MHz SO-DIMM

I/O Chipset

EC iTE IT8528

Watchdog Timer

H/W reset: 1sec. ~ 65535sec./min. and 1sec. or 1min./step

BIOS

AMI 128Mbit SPI BIOS

H/W Status Monitor

Monitoring system temperature and voltage with auto throttling control

SBC

ECM-APL2-B1

CPU Cooler (Type)

Fanless heatsink

Expansion

1 x Full size mini PCIe support mSATA

1 x Half size mini PCIe for option Wi-Fi/BT

Storage

Default with 64GB mSATA

(support up to 512GB)

Spec. & Resolution

HDMI 1.4b: Max. Resolution 3840 x 2160 @ 30Hz

Audio Codec

Realtek ALC888S

LAN Chipset

2 x Intel® I210AT

Ethernet Interface

10/100/1000 Base-Tx GbE compatible

DC Input

+12V ~ +26V

ACPI

Single power ATX support S0, S3, S4, S5 and ACPI 3.0 compliant

OS

Win10 / Ubuntu / Android 8.1

Certification Information

CE / FCC Class A

LCD Size

7", 16:10

Display Type

WXGA

Resolution

1280 x 800

Pixel pitch

0.03925mm(H) x 0.11775mm(V)

Luminance

300 cd/m2

Contrast ratio

900

Viewing angle

89 (U), 89 (D), 89 (L), 89 (R)

Response time

30 ms

Backlight

LED

Touch Type

Projective capacitive multi-touch up to 10 points

Touch Light Transmission

89%

Touch Controller

EETI

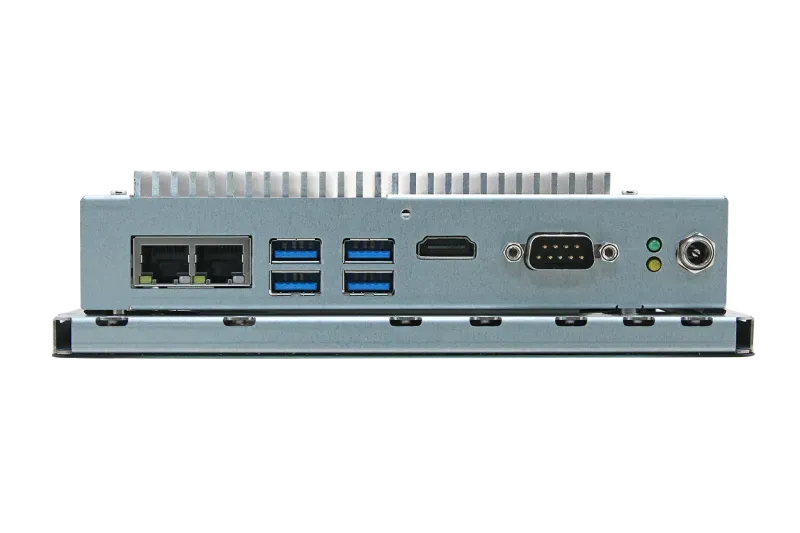

USB Port

4 x USB 3.2 (Gen1x1, 5Gbps)

2 x USB 2.0 (option by pin header)

LAN Port

2 x RJ-45

COM Port

1 x RS-232

1 x RS-232/422/485 option by pin header

DIO

8-bit GPIO option by pin header

LED Indicator

HDD LED, power LED

Operating Temp.

0°C ~ 45°C

Storage Temp.

-10°C ~ 50°C (14°F ~ 122°F)

Operating Humidity

40°C @ 95% Relative humidity, non-condensing

Dimension (W x L x H)

183.1 x 115.85 x 48.1mm

Weight

700 g

Vibration Test

With mSATA : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 0.5hr/axis

Shock Test

Operating with mSATA : IEC 60068-2-27 testing procedures, 10G for operation mode

Drop Test

ISTA 2A, IEC-60068-2-32 Test:Ed

Mounting Kit

Wall / Stand / VESA 75mm x 75mm

Power Mode

AT/ATX (ATX is default)

System Fan

Fanless

Ordering Information

OFP-07W33-345-A2R | 7 WXGA Multi Touch Open Frame Panel PC / Intel Celeron J3455, 4GR,64GB mSATA,4USB3,COM,2LAN,HDMI without adapter

OFP-07W33-335-A2R | 7 WXGA Multi Touch Open Frame Panel PC / Intel Celeron N3350, 4GR,64GB mSATA,4USB3,COM,2LAN,HDMI without adapter

ACC-ADP-060N-08R | AC/DC adapter 12V/5A 90 degree Screw Type

E1702031833R | USA Power Cord

E1702031000R | EU Power Cord

E1702031834R | Japan Power Cord

E1702031830R | UK Power Cord

E1702031831R | Australia Power Cord

ACC-OFP-07-SDC-01R | System Dust Cover kit with Panel Mount kit

ACC-OFT-07-PMT-01R | Panel Mount Kit

ACC-OFP-WIFI-02R | mPCIE WIFI-Kit(Half-card)
