OFP-07W33

Series: OFP

Manufactured byAvalue

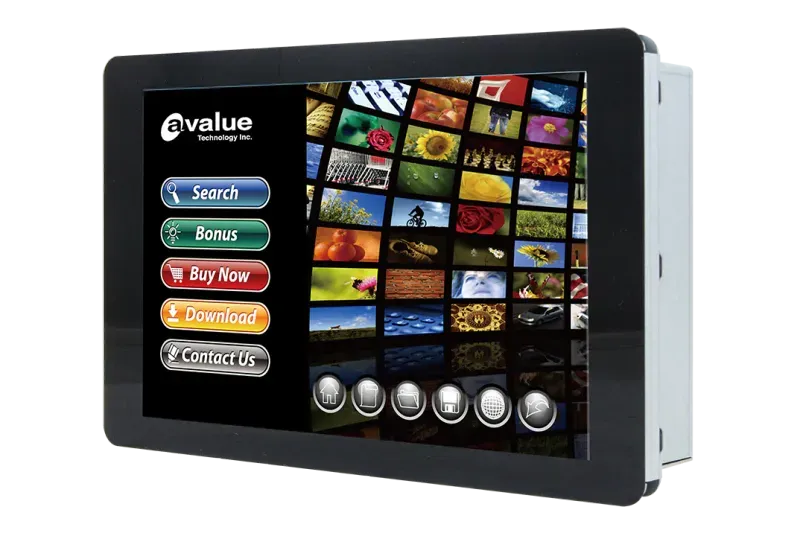

The Avalue OFP-07W33 is a 7" WXGA fanless open-frame industrial panel PC built on the low-power Intel Celeron N3350/J3455 processor with the ECM-APL2-B1 SBC, designed as a slim, cost-effective integration-ready compute-and-display module for compact kiosks, machines, and OEM enclosures. With a DDR3L SO-DIMM socket supporting up to 8GB and a wide +12~26V DC input, it delivers reliable fanless operation in a small bezel-free form. The 1280x800 PCAP 10-point multi-touch panel pairs with HDMI output up to 3840x2160, dual Intel I210AT Gigabit Ethernet, 4x USB 3.2 Gen1, and configurable RS-232/422/485 COM ports. A full-size mini-PCIe (mSATA) plus a half-size mini-PCIe for optional Wi-Fi/BT add expansion. Fanless 0~45°C operation makes the OFP-07W33 a rugged, embeddable touch front-end for compact industrial HMI and signage.

Key Features

7" WXGA (1280x800) PCAP 10-point multi-touch open-frame panel PC, fanless
Intel Celeron Processor N3350 / J3455 (ECM-APL2-B1)
1 x 204-pin DDR3L 1866/1600/1333MHz SO-DIMM, up to 8GB
HDMI 1.4b output up to 3840 x 2160
2x GbE LAN (Intel I210AT), 4x USB 3.2 Gen1 (5Gbps)
1x RS-232, 1x RS-232/422/485 (pin header)
1x Full-size mini-PCIe (mSATA), 1x half-size mini-PCIe (optional Wi-Fi/BT)
8-bit GPIO (pin header)
Wide +12 ~ +26V DC input, fanless 0~45°C; CE / FCC Class A

Technical Specifications

System Information

Processor	Intel® Celeron® Processor N3350/J3455, Intel® Celeron® Processor N3350, 2M Cache, up to 2.40 GHz, Intel® Celeron® Processor J3455, 2M Cache, up to 2.30 GHz
System Memory	Default with 4GB DDR3L memory, option supports up to 8GB DDR3L 1866/1600/1333 MHz SO-DIMM
I/O Chipset	EC iTE IT8528
Watchdog Timer	H/W reset: 1sec. ~ 65535sec./min. and 1sec. or 1min./step
BIOS	AMI 128Mbit SPI BIOS
H/W Status Monitor	Monitoring system temperature and voltage with auto throttling control
SBC	ECM-APL2-B1
CPU Cooler (Type)	Fanless heatsink

Expansion

Expansion	1 x Full size mini PCIe support mSATA, 1 x Half size mini PCIe for option Wi-Fi/BT

Storage

Storage	Default with 64GB mSATA, (support up to 512GB)

Display

Spec. & Resolution	HDMI 1.4b: Max. Resolution 3840 x 2160 @ 30Hz

Audio

Audio Codec	Realtek ALC888S

Ethernet

LAN Chipset	2 x Intel® I210AT
Ethernet Interface	10/100/1000 Base-Tx GbE compatible

Power Requirement

DC Input	+12V ~ +26V
ACPI	Single power ATX support S0, S3, S4, S5 and ACPI 3.0 compliant

Software Support

OS	Win10 / Ubuntu / Android 8.1

Certification

Certification Information	CE / FCC Class A

Panel

LCD Size	7", 16:10
Display Type	WXGA
Resolution	1280 x 800
Pixel pitch	0.03925mm(H) x 0.11775mm(V)
Luminance	300 cd/m2
Contrast ratio	900
Viewing angle	89 (U), 89 (D), 89 (L), 89 (R)
Response time	30 ms
Backlight	LED
Touch Type	Projective capacitive multi-touch up to 10 points
Touch Light Transmission	89%
Touch Controller	EETI

External I/O

USB Port	4 x USB 3.2 (Gen1x1, 5Gbps), 2 x USB 2.0 (option by pin header)
LAN Port	2 x RJ-45
COM Port	1 x RS-232, 1 x RS-232/422/485 option by pin header

Internal I/O

DIO	8-bit GPIO option by pin header

System Control

LED Indicator	HDD LED, power LED

Mechanical & Environmental

Operating Temp.	0°C ~ 45°C
Storage Temp.	-10°C ~ 50°C (14°F ~ 122°F)
Operating Humidity	40°C @ 95% Relative humidity, non-condensing
Dimension (W x L x H)	183.1 x 115.85 x 48.1mm
Weight	700 g
Vibration Test	With mSATA : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 0.5hr/axis
Shock Test	Operating with mSATA : IEC 60068-2-27 testing procedures, 10G for operation mode
Drop Test	ISTA 2A, IEC-60068-2-32 Test:Ed
Mounting Kit	Wall / Stand / VESA 75mm x 75mm
Power Mode	AT/ATX (ATX is default)
System Fan	Fanless

Ordering Information

OFP-07W33-345-A2R | 7 WXGA Multi Touch Open Frame Panel PC / Intel Celeron J3455, 4GR,64GB mSATA,4USB3,COM,2LAN,HDMI without adapter, OFP-07W33-335-A2R | 7 WXGA Multi Touch Open Frame Panel PC / Intel Celeron N3350, 4GR,64GB mSATA,4USB3,COM,2LAN,HDMI without adapter, ACC-ADP-060N-08R | AC/DC adapter 12V/5A 90 degree Screw Type, E1702031833R | USA Power Cord, E1702031000R | EU Power Cord, E1702031834R | Japan Power Cord, E1702031830R | UK Power Cord, E1702031831R | Australia Power Cord, ACC-OFP-07-SDC-01R | System Dust Cover kit with Panel Mount kit, ACC-OFT-07-PMT-01R | Panel Mount Kit, ACC-OFP-WIFI-02R | mPCIE WIFI-Kit(Half-card)
