Avalue · Panel PC / Monitor / Mobile

OFT-1502

Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

15" (1024x768) PCAP touch open-frame tablet/panel, fanless
Intel Atom x5-Z8350 processor
2GB LPDDR3 memory, 32GB eMMC storage
Onboard 802.11 b/g/n Wi-Fi
HDMI, Gigabit Ethernet, DB9 COM, USB 2.0
Micro-USB client, Micro-SD slot
Internal IET / Mini-PCIe / SIM interfaces
Wide DC 12~24V input
Windows 10 IoT (64-bit)

Product Description

The Avalue OFT-1502 is a 15" open-frame industrial tablet/panel built on the low-power Intel Atom x5-Z8350 processor, designed as a cost-effective integration-ready display module for kiosks, machines, and OEM enclosures.

With 2GB LPDDR3, 32GB eMMC, and onboard 802.11 b/g/n Wi-Fi, it runs Windows 10 IoT in a compact fanless package.

The 1024x768 panel features PCAP touch over USB.

Connectivity includes HDMI, Gigabit Ethernet, a DB9 COM port, USB 2.0, Micro-USB client and Micro-SD, plus internal IET/Mini-PCIe/SIM interfaces for embedded expansion. A wide DC 12~24V input and a 0–40°C range make the OFT-1502 a simple, embeddable touch front-end for light HMI and signage.

Technical Specifications

Processor

Intel Atom® x5-Z8350 Processor

System Memory

2GB LPDDR3

Other

802.11 b/g/n WiFi

Storage

32GB eMMC

Multiple Display

Windows support extended mode and clone mode

DC Input

DC 12~24V

OS

Windows 10 IoT (64 bit)

LCD Size

15"

Resolution

1024x768

Luminance

250 cd/m²

Contrast ratio

Typ 700 ,Min 450

Viewing angle

80 (U), 80 (D), 80 (L), 80 ( R)

Touch Type

PCAP

Touch Interface

USB

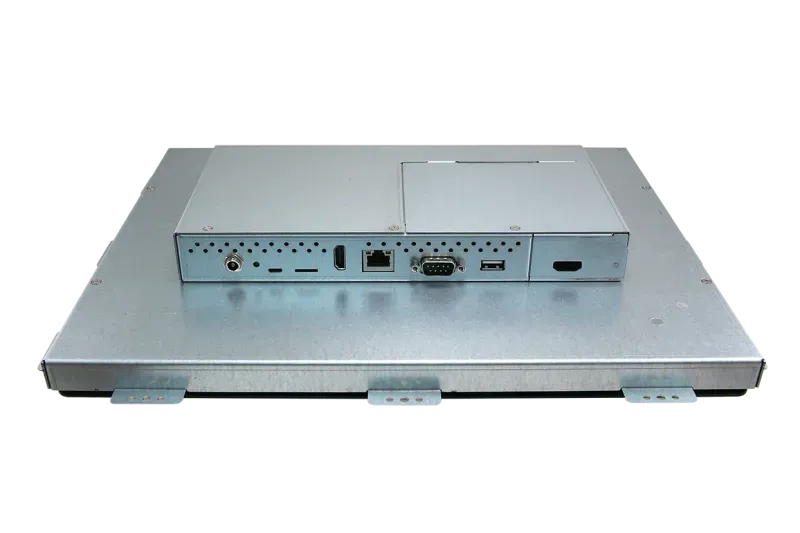

External I/O Connector

1 x DC jack

1 x Micro USB Client(Android only)

1 x Micro SD slot

1 x HDMI

1 x LAN for 10/100/1000 Ethernet

1 x DB9 for COM

1 x USB 2.0

Internal I/O Connector

1x IET interface

1x Mini PCIE interface

1x SIM

1x COM interface for RS232

1x USB 2.0 interface 1x Touch Button interface

1x backlight control & power

1x I2C interface for PCAP

1x Audio interface(Earphone+Microphone)

1x Speaker interface

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Storage Temp.

-10°C ~ 60°C(-14°F ~ 140°F)

Operating Humidity

0% ~ 90% Relative Humidity, Non-condensing

Power Requirement

DC 12~24V

Ordering Information

OFT-1502-BV38C-0R | 15" open frame tablet, Z8350, 32GB eMMC, 2GB RAM, PCAP, Windows 10

What is OFT-1502?

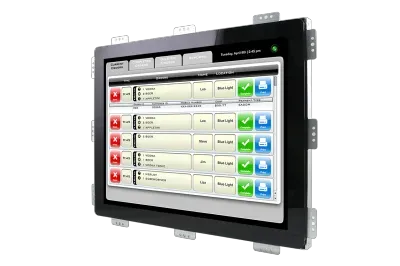

The OFT-1502 is a panel pc / monitor / mobile manufactured by Avalue, designed specifically for industrial-panel-pc applications. The Avalue OFT-1502 is a 15" open-frame industrial tablet/panel built on the low-power Intel Atom x5-Z8350 processor, designed as a cost-effective integration-ready display module for kiosks, machines, and OEM enclosures. With 2GB LPDDR3, 32GB eMMC, and onboard 802.11 b/g/n Wi-Fi, it runs Windows 10 IoT in a compact fanless package. The 1024x768 panel features PCAP touch over USB. Connectivity includes HDMI, Gigabit Ethernet, a DB9 COM port, USB 2.0, Micro-USB client and Micro-SD, plus internal IET/Mini-PCIe/SIM interfaces for embedded expansion. A wide DC 12~24V input and a 0–40°C range make the OFT-1502 a simple, embeddable touch front-end for light HMI and signage.

Key Features & Benefits

15" (1024x768) PCAP touch open-frame tablet/panel, fanless
Intel Atom x5-Z8350 processor
2GB LPDDR3 memory, 32GB eMMC storage
Onboard 802.11 b/g/n Wi-Fi
HDMI, Gigabit Ethernet, DB9 COM, USB 2.0
Micro-USB client, Micro-SD slot
Internal IET / Mini-PCIe / SIM interfaces
Wide DC 12~24V input
Windows 10 IoT (64-bit)

Applications & Use Cases

The OFT-1502 is ideal for various industrial automation applications:

Dust-sensitive environments and silent operation requirements
DC-powered industrial installations and mobile applications
Wireless connectivity and remote monitoring applications
High-performance computing and data processing tasks
Networked industrial systems and data communication
Interactive control interfaces and operator panels
Peripheral device connectivity and data transfer
Memory-intensive applications and multitasking
