Product Datasheet
20 May 2026
Panel PC / Monitor / Mobile · Industrial-Panel-PC
OFT-1502
Series: OFT

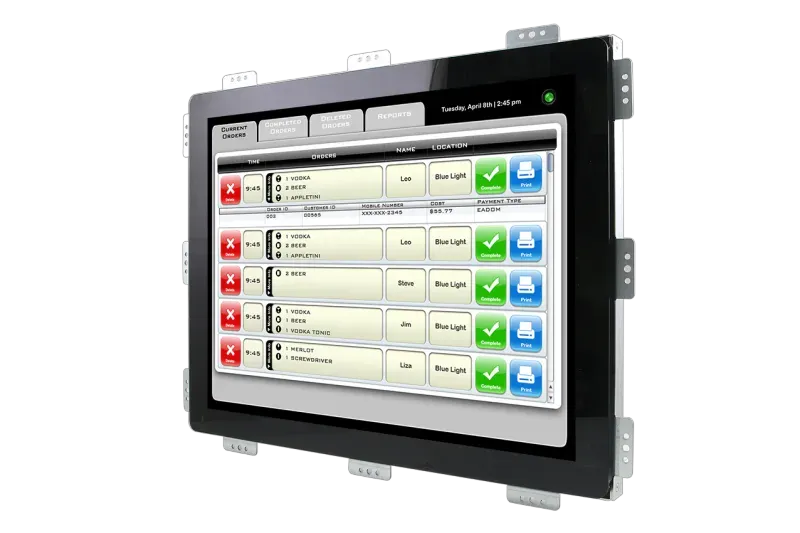

The Avalue OFT-1502 is a 15" open-frame industrial tablet/panel built on the low-power Intel Atom x5-Z8350 processor, designed as a cost-effective integration-ready display module for kiosks, machines, and OEM enclosures. With 2GB LPDDR3, 32GB eMMC, and onboard 802.11 b/g/n Wi-Fi, it runs Windows 10 IoT in a compact fanless package. The 1024x768 panel features PCAP touch over USB. Connectivity includes HDMI, Gigabit Ethernet, a DB9 COM port, USB 2.0, Micro-USB client and Micro-SD, plus internal IET/Mini-PCIe/SIM interfaces for embedded expansion. A wide DC 12~24V input and a 0–40°C range make the OFT-1502 a simple, embeddable touch front-end for light HMI and signage.
Key Features
- 15" (1024x768) PCAP touch open-frame tablet/panel, fanless
- Intel Atom x5-Z8350 processor
- 2GB LPDDR3 memory, 32GB eMMC storage
- Onboard 802.11 b/g/n Wi-Fi
- HDMI, Gigabit Ethernet, DB9 COM, USB 2.0
- Micro-USB client, Micro-SD slot
- Internal IET / Mini-PCIe / SIM interfaces
- Wide DC 12~24V input
- Windows 10 IoT (64-bit)
Technical Specifications
System Information
| Processor | Intel Atom® x5-Z8350 Processor |
|---|---|
| System Memory | 2GB LPDDR3 |
| Other | 802.11 b/g/n WiFi |
Storage
| Storage | 32GB eMMC |
|---|
Display
| Multiple Display | Windows support extended mode and clone mode |
|---|
Power Requirement
| DC Input | DC 12~24V |
|---|
Software Support
| OS | Windows 10 IoT (64 bit) |
|---|
Panel
| LCD Size | 15" |
|---|---|
| Resolution | 1024x768 |
| Luminance | 250 cd/m² |
| Contrast ratio | Typ 700 ,Min 450 |
| Viewing angle | 80 (U), 80 (D), 80 (L), 80 ( R) |
| Touch Type | PCAP |
| Touch Interface | USB |
Internal I/O
| External I/O Connector | 1 x DC jack, 1 x Micro USB Client(Android only), 1 x Micro SD slot, 1 x HDMI, 1 x LAN for 10/100/1000 Ethernet, 1 x DB9 for COM, 1 x USB 2.0 |
|---|---|
| Internal I/O Connector | 1x IET interface, 1x Mini PCIE interface, 1x SIM, 1x COM interface for RS232, 1x USB 2.0 interface 1x Touch Button interface, 1x backlight control & power, 1x I2C interface for PCAP, 1x Audio interface(Earphone+Microphone), 1x Speaker interface |
Mechanical & Environmental
| Operating Temp. | 0°C ~ 40°C (32°F ~ 104°F) |
|---|---|
| Storage Temp. | -10°C ~ 60°C(-14°F ~ 140°F) |
| Operating Humidity | 0% ~ 90% Relative Humidity, Non-condensing |
| Power Requirement | DC 12~24V |
Ordering Information
| Ordering Information | OFT-1502-BV38C-0R | 15" open frame tablet, Z8350, 32GB eMMC, 2GB RAM, PCAP, Windows 10 |
|---|
