What are the key features of the SPC-10W35 stainless-steel Panel PC?

The SPC-10W35 is a compact 10.1" WXGA (1280x800) stainless-steel fanless washdown industrial touch panel PC with an Intel Celeron J6412 (Elkhart Lake), DDR4 3200 up to 32GB, onboard TPM 2.0, a bright 500-nit panel with 10-point PCAP touch, triple M.2 expansion, dual Intel I210 GbE, and sealed M12 waterproof USB/LAN/COM/power connectors.

What makes the SPC-10W35 suitable for washdown environments?

It combines stainless-steel construction with fully sealed M12 waterproof connectors (covers and chains) for USB, LAN, COM, and DC power — built for compact hygienic HMI on food, beverage, and pharmaceutical washdown lines.

Which processor does the SPC-10W35 use?

It uses the Intel Celeron J6412 (Elkhart Lake, up to 2.60 GHz) — an efficient low-power x86 SoC enabling fanless hygienic operation.

How much memory does the SPC-10W35 support?

It has a single 260-pin DDR4 3200MHz SO-DIMM socket supporting up to 32GB max (non-ECC).

What expansion does the SPC-10W35 offer?

Triple M.2: Key-E 2230 for Wi-Fi, Key-B 3042/2242 with SIM for WWAN+GNSS or SSD, and a Key-M 2260 slot with PCIe x1 signal.

What networking does the SPC-10W35 provide?

Dual Intel I210AT (co-lay I210IT/I211AT) Gigabit Ethernet via sealed M12 4-pin D-coded waterproof connectors.

Does the SPC-10W35 include hardware security?

Yes, it has onboard TPM 2.0 for hardware key storage and platform integrity.

What I/O does the SPC-10W35 provide?

2 x waterproof USB 2.0, 2 x M12 LAN, and 1 x M12 8-pin COM1 (RS-232), all with waterproof covers and chains; DC power via a sealed M12 4-pin connector.

What power input does the SPC-10W35 use?

A wide +12V ~ +24V DC input in ATX mode via a sealed M12 4-pin waterproof power connector.

What applications is the SPC-10W35 best suited for?

With compact stainless-steel washdown construction, sealed M12 I/O, and an efficient Elkhart Lake platform, it suits food and beverage, pharmaceutical, clean-room, and compact hygienic HMI.

What is an Industrial Panel PC?

An Industrial Panel PC is a robust computing device designed for industrial environments, featuring a touchscreen display integrated with a computer. These systems are built to withstand harsh conditions including dust, moisture, temperature extremes, and vibration, while providing reliable operation for factory automation, control systems, and HMI applications.

What makes a Panel PC 'industrial grade'?

Industrial grade Panel PCs feature rugged construction with IP65/IP66 front panel protection, extended temperature operation, shock and vibration resistance, fanless cooling for reliability, wide voltage input tolerance, and long product lifecycles designed for 24/7 operation in challenging environments.

What is the difference between a Panel PC and an HMI?

While both provide operator interface functionality, a Panel PC is a full-featured computer running a standard operating system (Windows, Linux) that can host any software application. An HMI is typically a simpler device with an embedded operating system designed specifically for machine/process control with limited functionality beyond its control software.

What mounting options are available for Panel PCs?

Panel PCs typically offer multiple mounting options including panel mount (cutout installation in cabinets/enclosures), VESA mount (standard bracket mounting to walls or arms), and sometimes desktop stands. Some specialized models may offer additional mounting options for specific industries.

What operating systems are supported on industrial Panel PCs?

Most industrial Panel PCs support Windows 10 IoT Enterprise, Windows 11 Pro, and various Linux distributions like Ubuntu. The specific OS support depends on the hardware configuration, with some models offering pre-installed options or being compatible with multiple operating systems.

What is IP65/IP66 protection and why is it important?

IP65/IP66 protection ratings indicate dust-tight (6) protection and resistance to water jets (5/6). This is essential for industrial Panel PCs that may be exposed to harsh factory environments with dust, splashes, or washdown procedures, ensuring reliable operation and longevity in challenging conditions.

Why are fanless designs important in industrial Panel PCs?

Fanless designs eliminate moving parts that could fail, prevent dust and contaminant ingress through ventilation openings, reduce maintenance requirements, increase reliability in high-vibration environments, and allow sealed enclosures for protection against harsh industrial conditions.

What is PCAP multi-touch technology?

PCAP (Projected Capacitive) multi-touch technology allows multiple simultaneous touch points on the screen, enabling intuitive gestures like pinch-to-zoom. It offers better optical clarity than resistive touchscreens, with a durable glass surface resistant to scratches, though it requires bare finger or special stylus operation.

What is a watchdog timer and why is it important?

A watchdog timer is a hardware-based timer that triggers a system reset if the software becomes unresponsive. This is crucial for industrial systems requiring high reliability and 24/7 operation, as it automatically recovers from software crashes or freezes without human intervention.

What does wide voltage input range mean for Panel PCs?

A wide voltage input range (typically 9-36VDC) allows Panel PCs to operate reliably in industrial environments with fluctuating power conditions. This provides flexibility in power source options and protection against voltage spikes and drops common in factory settings.

What is TPM and why is it included in industrial Panel PCs?

TPM (Trusted Platform Module) is a security chip that provides hardware-based encryption capabilities and secure storage for authentication credentials. In industrial settings, it helps protect sensitive data, secure communication channels, and ensure the integrity of control systems against unauthorized access.

How are Panel PCs typically mounted in industrial environments?

Panel PCs are typically installed using panel mount (where the unit is fitted into a cutout in a control cabinet with mounting clips or screws), VESA mount (attached to arms or wall mounts using standardized mounting patterns), or sometimes with custom mounting solutions for specific applications.

What cutout dimensions are needed for panel mounting?

Cutout dimensions vary by model and screen size. It's essential to refer to the specific Panel PC's installation guide for precise measurements. Most manufacturers provide detailed dimensional drawings showing the exact cutout size and mounting hole positions required.

What environmental conditions should be considered when installing Panel PCs?

Consider operating temperature range, humidity levels, exposure to dust or liquids, vibration/shock conditions, available power supply stability, electromagnetic interference sources, and ambient light conditions that might affect screen visibility when installing Panel PCs.

Do Panel PCs require additional cooling?

Most industrial Panel PCs are designed with fanless cooling systems that dissipate heat through the chassis. While they typically don't require additional cooling, it's important to ensure adequate air circulation around the unit and to avoid installing them in locations that exceed their specified operating temperature range.

What power supply requirements should be considered for Panel PCs?

Consider voltage requirements (typically 9-36VDC), current/power consumption specifications, power supply stability, surge protection needs, and whether battery backup or uninterruptible power supply (UPS) is necessary for critical applications to prevent data loss during power interruptions.

What should I do if the touchscreen becomes unresponsive?

First, try restarting the Panel PC. If the issue persists, check if the touch driver is installed and functioning properly, verify the touchscreen cable connection, ensure the operating environment is within specifications (especially for capacitive screens in high humidity), and check for physical damage to the screen surface.

How can I resolve overheating issues with fanless Panel PCs?

To address overheating: ensure the Panel PC is installed with adequate clearance for passive cooling, check that the ambient temperature is within specified operating range, clean dust buildup on cooling fins/chassis, verify that CPU-intensive applications aren't causing excessive load, and consider adding external cooling to the enclosure if necessary.

What causes Panel PCs to restart unexpectedly?

Unexpected restarts can be caused by unstable power supply, overheating, hardware failures, software issues, or watchdog timer activations due to system hangs. Check power stability, environmental conditions, system logs for error messages, and consider disabling the watchdog timer temporarily for diagnostic purposes.

How can I improve the visibility of the Panel PC screen in bright environments?

To improve visibility in bright environments, adjust the screen brightness to maximum, install an anti-glare shield or hood, position the Panel PC to avoid direct light sources, consider a higher-brightness model (500+ cd/m²) for new installations, or apply an anti-reflective film designed for industrial displays.

What should I do if Windows fails to boot on my Panel PC?

If Windows fails to boot, try booting in Safe Mode, use System Restore to revert to a working state, run startup repair from recovery options, check for hardware issues (particularly storage drives), verify BIOS/UEFI settings are correct, or restore from a system image backup if available.

Avalue · Panel PC / Monitor / Mobile

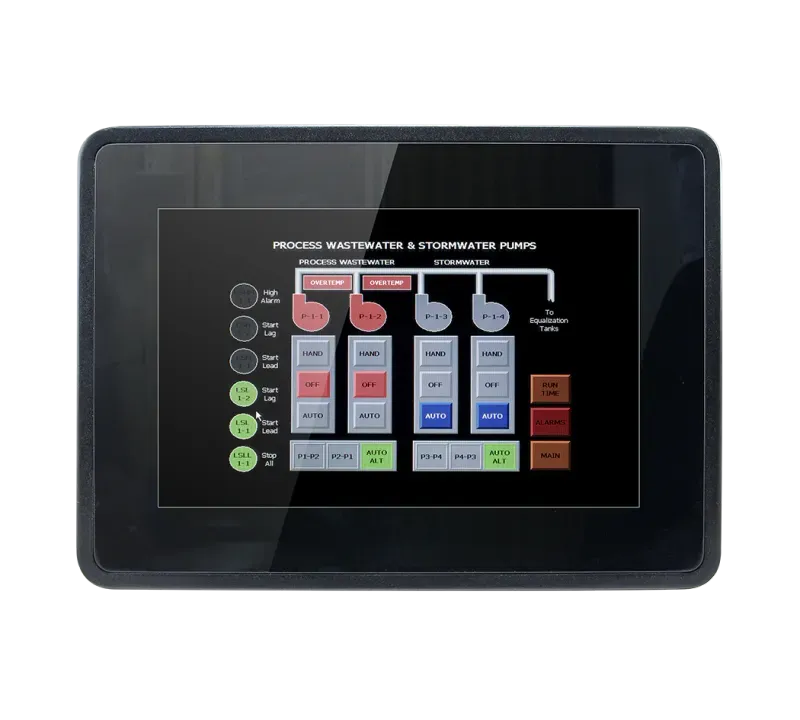

SPC-10W35

Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

10.1" WXGA (1280x800) 16:10, 500-nit, PCAP 10-point multi-touch
Stainless-steel washdown design with sealed M12 connectors
Intel Celeron J6412 (Elkhart Lake), ECM-EHL3 SBC
1 x DDR4 3200MHz SO-DIMM, up to 32GB (non-ECC)
Onboard TPM 2.0
Triple M.2: Key-E (Wi-Fi), Key-B (SIM, WWAN+GNSS/SSD), Key-M (PCIe)
Dual Intel I210AT Gigabit Ethernet via sealed M12
Waterproof M12 USB / LAN / COM / power connectors
Wide +12V ~ +24V input, fanless; CE / FCC Class B

Product Description

The Avalue SPC-10W35 is a 10.1" WXGA stainless-steel fanless industrial touch panel PC built for hygienic, washdown environments, powered by the Intel Celeron J6412 (Elkhart Lake) processor.

With sealed M12 waterproof connectors and onboard TPM 2.0 on the ECM-EHL3 SBC, it is engineered for food, beverage, and pharmaceutical line-side computing in a compact form.

The 1280x800 16:10 panel offers a bright 500 cd/m² display and 10-point projected-capacitive touch.

A single DDR4 3200MHz SO-DIMM supports up to 32GB, with triple M.2 expansion (Key-E Wi-Fi, Key-B with SIM for WWAN+GNSS/SSD, Key-M PCIe) and dual Intel I210 Gigabit Ethernet over sealed M12 connectors.

Waterproof M12 USB, LAN, COM and power connectors with covers and chains, and a wide +12~24V input make the SPC-10W35 a durable compact hygienic HMI on Windows or Linux.

Technical Specifications

Processor

Intel® Celeron® J6412 Processor (1.5M Cache, up to 2.60 GHz)

System Memory

1 x 260-pin DDR4 3200MHz SO-DIMM Socket, Supports Up to 32GB Max. (non ECC only)

I/O Chipset

EC iTE IT5571

Watchdog Timer

H/W Reset, 1sec. ~ 65535sec and 1sec. or 1min./step

H/W Status Monitor

CPU & system temperature monitoring Voltages monitoring

TPM

TPM 2.0

SBC

ECM-EHL3 A1 J6412 Lite

CPU Cooler (Type)

Fanless heatsink

Expansion

M/B with 3 M.2 slot:

1 x M.2 Type E 2230 supports WiFi module (PCIe x1 & USB 2.0 Signal)

1 x M.2 Type B 3042/2242, standard package with 3042 to 3052 bracket + screw set (with SATA and USB 3.0/USB 2.0, with 1 x SIM card slot, supports WWAN+GNSS or SSD)

1 x M.2 Type M supports 2260 slot, standard package with 2260 to 2242 bracket + screw set (with 1 x PCIe x1 signal)

Other Storage Device

1 x M.2 Type B 3042/2242 slot for M.2 SSD

LAN Chipset

2 x Intel® I210AT (Co-lay I210IT/I211AT) Gigabit Ethernet

Ethernet Interface

2 x M12 4-pin(D-coded female) for LAN with waterproof cover and chain

DC Input

+12V ~ +24V

Power Mode

ATX mode

Power Connector Type

1 x M12 4-pin (male) for DC power with waterproof cover and chain

OS

Win10 / Linux

Certification Information

CE / FCC Class B

LCD Size

10.1", 16:10

Display Type

WXGA

Resolution

1280 x 800

Pixel pitch

0.1695mm(H) x 0.1695mm(V)

Luminance

500 cd/m2

Contrast ratio

800

Viewing angle

89 (U), 89 (D), 89(L), 89 (R)

Response time

29 ms

Backlight

LED

Touch Type

Projective capacitive multi-touch up to 10 points

Touch Light Transmission

85%

Touch Controller

EETI

USB Port

2 x Waterproof USB 2.0(plastic USB-socket) with waterproof cover and chain

LAN Port

2 x M12 4-pin(D-coded female) for LAN with waterproof cover and chain

COM Port

1 x M12 8-pin (male) COM1(RS-232) with waterproof cover and chain

Switch

1 x Power Switch on the back

SATA

1 x SATA III

Operating Temp.

0℃ ~ 40℃

Storage Temp.

0℃ ~ 60℃

Operating Humidity

10% to 85%, non condensing

Dimension (W x L x H)

295.4 x 213.4 X48 mm

Weight

3.5 Kg

Vibration Test

DIN EN 60068-2:2008

Frequency range: 10~150 Hz

Amplitude: 0,15mm bzw. 2g

Gradient: 1 Okt/min

Test duration: 20 Cycles per axis(40 sweeps)

Axis: 3 (X,Y,Z)

Shock Test

DIN EN 60068-2-27:2010

Shock: 15g / 6ms

Form: Semi-sinus

Quantity: 4.000 per direction and axis (+-X;+-Y;=-Z;24.000 total)

Drop Test

Package drop test

Reference ISTA 2A, Method : IEC-60068-2-32 Test:Ed

Test Ea : Drop Test

1 Test phase : One corner, three edges, six faces

2 Test high : 96.5cm

3 Package weight : 5Kg

4 Test drawing

IP Rating

Front IP65 / Rear IP54

Mounting Kit

Wall / Stand / VESA 100mm x 100mm

Power Mode

ATX

System Fan

Fanless

Construction - Front

Sheet metal, SECC + black painting, matt finish

Construction - Rear

Sheet metal, SECC + black painting, matt finish

Ordering Information

M12 external M12 DC-in cable (TBD)

ACC-ADP-060N-09R | AC/DC adapter 24V/2.5A 90 Plug Type

E1702031833R | USA Power Cord

E1702031000R | EU Power Cord

E1702031834R | Japan Power Cord

E1702031830R | UK Power Cord

E1702031831R | Australia Power Cord

What is SPC-10W35?

The SPC-10W35 is a panel pc / monitor / mobile manufactured by Avalue, designed specifically for industrial-panel-pc applications. The Avalue SPC-10W35 is a 10.1" WXGA stainless-steel fanless industrial touch panel PC built for hygienic, washdown environments, powered by the Intel Celeron J6412 (Elkhart Lake) processor. With sealed M12 waterproof connectors and onboard TPM 2.0 on the ECM-EHL3 SBC, it is engineered for food, beverage, and pharmaceutical line-side computing in a compact form. The 1280x800 16:10 panel offers a bright 500 cd/m² display and 10-point projected-capacitive touch. A single DDR4 3200MHz SO-DIMM supports up to 32GB, with triple M.2 expansion (Key-E Wi-Fi, Key-B with SIM for WWAN+GNSS/SSD, Key-M PCIe) and dual Intel I210 Gigabit Ethernet over sealed M12 connectors. Waterproof M12 USB, LAN, COM and power connectors with covers and chains, and a wide +12~24V input make the SPC-10W35 a durable compact hygienic HMI on Windows or Linux.

Key Features & Benefits

10.1" WXGA (1280x800) 16:10, 500-nit, PCAP 10-point multi-touch
Stainless-steel washdown design with sealed M12 connectors
Intel Celeron J6412 (Elkhart Lake), ECM-EHL3 SBC
1 x DDR4 3200MHz SO-DIMM, up to 32GB (non-ECC)
Onboard TPM 2.0
Triple M.2: Key-E (Wi-Fi), Key-B (SIM, WWAN+GNSS/SSD), Key-M (PCIe)
Dual Intel I210AT Gigabit Ethernet via sealed M12
Waterproof M12 USB / LAN / COM / power connectors
Wide +12V ~ +24V input, fanless; CE / FCC Class B

Applications & Use Cases

The SPC-10W35 is ideal for various industrial automation applications:

Dust-sensitive environments and silent operation requirements
DC-powered industrial installations and mobile applications
Wireless connectivity and remote monitoring applications
Food and beverage processing with hygiene requirements
High-performance computing and data processing tasks
Networked industrial systems and data communication
Interactive control interfaces and operator panels
Peripheral device connectivity and data transfer
