SPC-2142

Series: SPC

Manufactured byAvalue

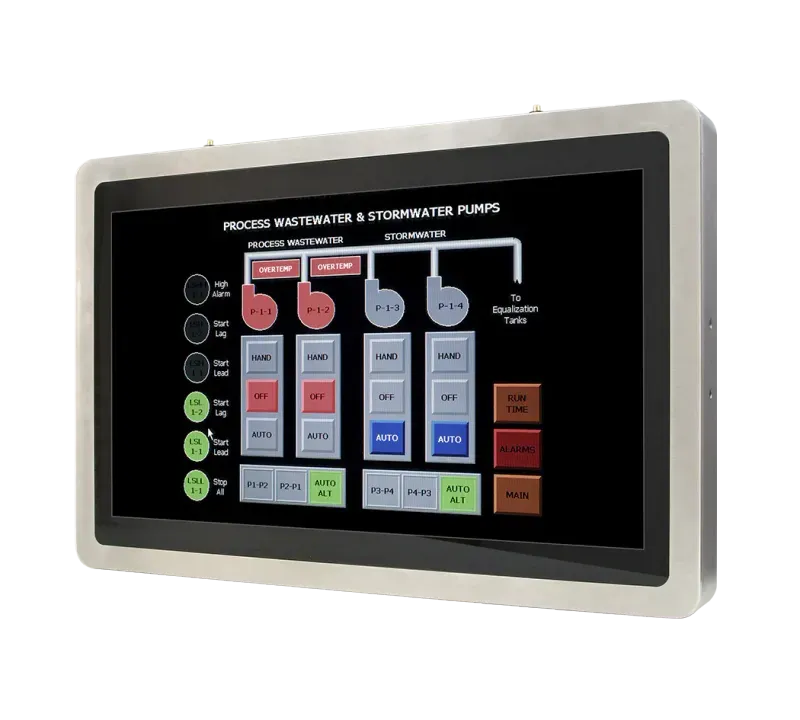

The Avalue SPC-2142 is a 21.5" Full HD stainless-steel fanless industrial touch panel PC engineered for hygienic, washdown environments, powered by 13th Gen Intel Raptor Lake-PS Core 3/5/7 processors (LGA1700). It pairs x86 performance with fully sealed M12 waterproof connectors and onboard TPM 2.0 on the HID-2340 SBC, for food, beverage, and pharmaceutical line-side computing on a large display. The 1920x1080 16:9 panel features 10-point projected-capacitive touch. A single DDR5 4800MHz SO-DIMM supports up to 32GB, with a default 128GB SSD and optional M.2 NVMe storage. Waterproof M12 USB, LAN, and COM (RS-232/422/485) connectors with covers and chains, optional waterproof-antenna Wi-Fi, and a +19~24V input make the SPC-2142 a durable, high-performance large-format hygienic HMI on Windows or Linux.

Key Features

21.5" Full HD (1920x1080) 16:9, PCAP 10-point multi-touch
Stainless-steel washdown design with sealed M12 connectors
13th Gen Intel Raptor Lake-PS Core 3/5/7 (LGA1700, HID-2340 SBC)
1 x DDR5 4800MHz SO-DIMM, up to 32GB; default 128GB SSD
Onboard TPM 2.0; M.2 Key-B/E + optional M.2 Key-M NVMe
M12 waterproof USB / LAN / COM (RS-232/422/485) connectors
Intel I225LM Gigabit Ethernet; optional waterproof Wi-Fi
+19V ~ +24V input, fanless
CE / FCC Class A; Windows / Linux

Technical Specifications

System Information

Processor	Intel® 13th Gen Raptor Lake-PS Core™ 3/5/7 Processor (LGA1700 Socket Type)
System Memory	1x 262-pin DDR5 4800MHz SO-DIMM socket, supports up to 32GB
I/O Chipset	EC ITE IT8883FN-I
Watchdog Timer	H/W reset, 1sec. ~ 65535sec./1sec.step
H/W Status Monitor	Monitoring CPU & System Temperature and Voltage
TPM	TPM 2.0
SBC	HID-2340
CPU Cooler (Type)	Fanless heatsink
Other	1 x WiFi with waterproof antenna (optional)

Expansion

Expansion	1 x M.2 Key B 3042/3052/2280 with 1 x PCI-e x2 & 1 x USB 3.0/2.0 signal, 1 x M.2 Key E 2230 support WiFi module

Storage

Storage	Default with 128GB SSD
Other Storage Device	1 x M.2 Key M 2280 (PCI-e x4) slot for storage (Optional)

Display

Graphic Chipset	Intel® Graphics
Spec. & Resolution	LVDS: Max. Resolution 1920x1080 @ 60Hz, eDP: Max. Resolution 1920 x 1080 @ 60Hz

Audio

Audio Codec	Realtek ALC888S

Ethernet

LAN Chipset	1 x Intel I225LM Gigabit Ethernet
Ethernet Interface	10/100/1000 Base-Tx GbE compatible

Power Requirement

DC Input	+19V ~ +24V
ACPI	Single power ATX support S0, S3, S4, S5 and ACPI 3.0 compliant

Software Support

OS	Win10 / 11, Linux

Certification

Certification Information	CE / FCC Class A

Panel

LCD Size	21.5", 16:9
Display Type	Full HD
Resolution	1920 x 1080
Pixel pitch	247.95um(H) x 247.95um(V)
Luminance	250 cd/m2
Contrast ratio	1000
Viewing angle	89 (U), 89 (D), 89(L), 89 (R)
Response time	22 ms
Backlight	LED
Touch Type	Projective capacitive multi-touch up to 10 points
Touch Light Transmission	85%
Touch Controller	EETI 80H84

External I/O

USB Port	2 x M12 8-pin (male) for 2 x USB 2.0 with waterproof cover and chain
LAN Port	1 x RJ-45 8-pin (male) for LAN with waterproof cover and chain
COM Port	1 x M12 8-pin (male) for COM (RS-232/422/485) with waterproof cover and chain

Internal I/O

SATA	1 x SATA III

System Control

LED Indicator	HDD LED, power LED

Mechanical & Environmental

Operating Temp.	-10°C ~ 45°C (14°F ~ 113°F), by flow = 0.5
Storage Temp.	-20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity	40°C @ 95% Relative humidity, non-condensing
Dimension (W x L x H)	562 x 365.8 x 49mm
Weight	12.2 Kg
Vibration Test	With SSD/mSATA : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis
Shock Test	With CF/SSD : 10Grms, IEC 60068-2-27, half sine, 11ms
Drop Test	ISTA 2A, IEC-60068-2-32 Test:Ed
IP Rating	Whole system IP69K, IP66
Mounting Kit	Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm
Power Mode	AT/ATX (ATX is default)
System Fan	Fanless
Construction - Front	Stainless steel
Construction - Rear	Stainless steel

Component

Adapter	Input: 100 ~ 240Vac/ 50 ~ 60Hz, Output: 90W adapter (24V @ 3.75A adapter) AC-DC adapter (need waterproof M12/4pin-D2.5 DC Jack-plug 200cm cable for M12 DC in connector --> E170W060030R)

Ordering Information

SPC-2142-100-A1R | 21.5" 1920 x 1080 Full IP-66 Stainless Steel panel PC/PCap/IP-69K/Intel 3-100UL/ 8GR/128GSSD/5M12/LAN/2x2USB/COM/DCin)/VentValve/HID-2340/without Adapter, SPC-2142-120-A1R | 21.5" 1920 x 1080 Full IP-66 Stainless Steel panel PC/PCap/IP-69K/Intel 5-120UL/ 8GR/128GSSD/5M12/LAN/2x2USB/COM/DCin)/VentValve/HID-2340/without Adapter, ACC-ARM-D1R | VESA STAND, 75mm & 100 mm, ACC-ARM-D23R | VESA STAND, 75mm & 100 mm, ACC-ADP-090N-04R | AC/DC adapter 24V/3.75A Plug Type, *(Suggest DC Jack to M12 cable E170W060030R (Waterproof M12 DC Cable) when adapter needed), E971XSP1542000R | WiFi module Kit for SPC-xx42/M.2 WIFI Intel® Wi-Fi 6E AX210/2 Antenna, E170W060030R | Waterproof M12 DC Cable, E170W160030R | Waterproof M12 USB Cable, E170W160040R | Waterproof M12 Lan Cable, E170W170010R | Waterproof M12 COM Cable, E1702031833R | USA Power Cord, E1702031000R | EU Power Cord, E1702031834R | Japan Power Cord, E1702031830R | UK Power Cord, E1702031831R | Australia Power Cord
