Product Datasheet
20 May 2026
Panel PC / Monitor / Mobile · Industrial-Panel-PC
VNS-10WAD
Series: VNS

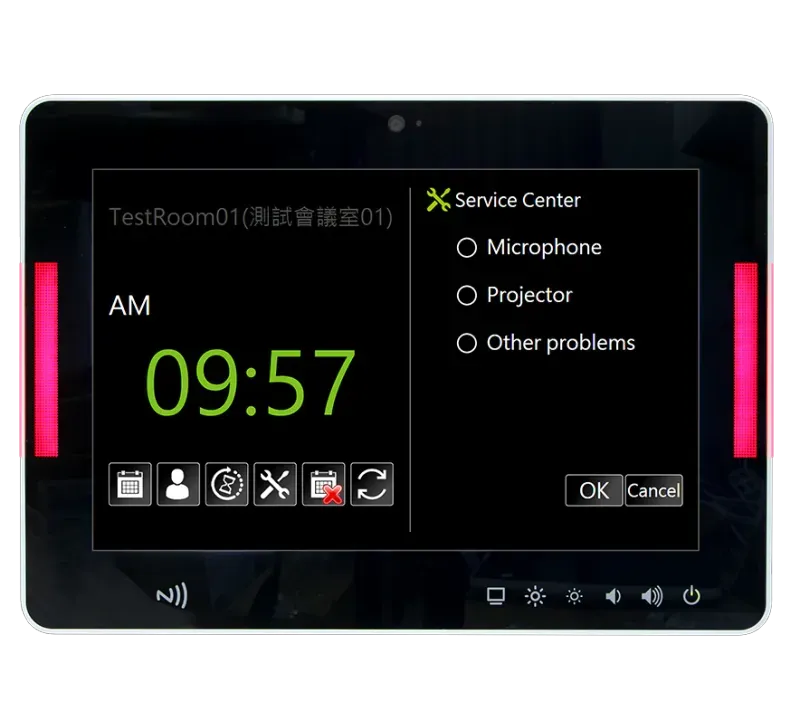

The Avalue VNS-10WAD is a 10.1" ultra-slim industrial touch panel PC powered by the Intel Processor N50 (6M cache, up to 3.4 GHz), designed as a sleek, fanless front-end for digital signage, public information displays, and self-service applications. With 8GB LPDDR5, 64GB eMMC, a Micro-SD slot, and Windows 10/11 or Ubuntu 24.04 support, it delivers responsive x86 performance with a distinctive full-color LED indicator light bar. The 1280x800 PCAP 10-point multi-touch panel features an IP65 front and an antibacterial PC+ABS housing. Connectivity includes Realtek Gigabit LAN with Powered-LAN (802.3at) support, 2x USB 3.0, a headphone jack, an RJ45-type RS-232/422/485 COM port, NFC, a 2.0MP camera, Wi-Fi 6, and optional BT 5.2. A wide +12~24V DC input and fanless 0~40°C operation make the VNS-10WAD a hygienic, low-maintenance interactive display.
Key Features
- 10.1" (1280x800) PCAP 10-point multi-touch ultra-slim panel PC, fanless
- Intel Processor N50, 6M Cache, up to 3.4 GHz
- 8GB LPDDR5, 64GB eMMC, 1x Micro-SD slot
- Full-color LED indicating light bar (2x true-color light bar)
- Realtek RTL8111I-CG Gigabit LAN with Powered-LAN (802.3at)
- 2x USB 3.0, headphone jack, RJ45-type RS-232/422/485 COM
- NFC, 2.0MP camera, Wi-Fi 6 (802.11ax), optional BT 5.2
- Front panel IP65, antibacterial PC+ABS construction
- Wide +12 ~ +24V DC input, fanless 0~40°C; CE / FCC Class B
Technical Specifications
System Information
| Processor | Intel® Processor N50, 6M Cache, up to 3.4 GHz |
|---|---|
| System Memory | 8GB LPDDR5 |
| CPU Cooler (Type) | Heatsink |
Storage
| Storage | 64GB eMMC |
|---|---|
| Other Storage Device | 1 x Micro SD Slot |
Audio
| Speaker Output | 2 x 4Ω 2.0W /2.2W (MAX) |
|---|
Ethernet
| LAN Chipset | Realtek RTL8111I-CG |
|---|---|
| Ethernet Interface | 10/100/1000 Base-Tx GbE compatible |
Power Requirement
| DC Input | +12V ~ +24V |
|---|---|
| DC Input Connector | Lockable DC Jack |
Software Support
| OS | Windows 10/11, ubuntu 24.04 |
|---|
Certification
| Certification Information | CE/FCC Class B |
|---|
Panel
| LCD Size | 10.1" |
|---|---|
| Resolution | 1280 x 800 |
| Pixel pitch | 0.1695 (H) x 0.1695 (V) mm |
| Luminance | 350 cd/m² |
| Contrast ratio | 800 |
| Viewing angle | 85 (U), 85 (D), 85 (L), 85 (R) |
| Response time | 30 ms |
| Backlight | LED |
| Touch Type | Projective capacitive multi-touch up to 10 points |
| Touch Light Transmission | >86% |
External I/O
| USB Port | 2 x USB 3.0 |
|---|---|
| Audio Port | 1 x Headphone Jack |
| LAN Port | 1 x RJ45 |
| COM Port | 1 x RS232/RS422/485 (RJ45 Type) |
| DC input | 1 x DC Jack |
| Other | 1 x Touch key (Brightness/Volume/Power) |
System Control
| LED Indicator | 2 x Ture color light bar |
|---|
Data Collection
| NFC | Support ISO/IEC 14443 A/B, ISO/IEC 15693/18092,NFCIP-1, NFCIP-2, MIFARE & Felica |
|---|---|
| Camera | 1 x 2.0MP Camera |
Wireless Communication
| WLAN | Wi-Fi 802.11a/b/g/n/ac/ax |
|---|---|
| Bluetooth | Optional BT 5.2 |
DC In / Out Characteristics
| Input Voltage Range | DC +12 ~ +24V |
|---|---|
| Power Type | AT |
Mechanical & Environmental
| Operating Temp. | 0°C ~ 40°C (32°F ~ 104°F) |
|---|---|
| Storage Temp. | -10°C ~ 60°C(-14°F ~ 140°F) |
| Operating Humidity | 40°C @ 95% Relative Humidity, non-condensing |
| Dimension (W x L x H) | 270 x 193 x 28 mm |
| Weight | 1.1 kg |
| IP Rating | Front panel IP65 |
| VESA | 75 x 75 |
| Power Requirement | DC +12V ~ +24V or Powered LAN 802.3at |
| Power Mode | AT |
| System Fan | Fanless |
| Color | White |
| Construction | Plastic PC+ABS w/ Antibacterial |
Component
| Adapter | Optional, Input: 100 ~ 240Vac/ 50 ~ 60Hz, Output: 60W adapter (12V @ 5A adapter) AC-DC adapter |
|---|
