What are the key features of the VNS-15W01?

The VNS-15W01 is a 15.6" (1920x1080) PCAP-touch Venus-series fanless panel PC with an Intel Atom x5-Z8350, 2GB/4GB DDR3L, 32GB/64GB eMMC, onboard Wi-Fi, an NFC reader, dual LED bars, Realtek Gigabit Powered-LAN, and a wide DC 12~24V input running Windows 10 IoT, Android 5.1, or Linux.

Which processor does the VNS-15W01 use?

It uses the Intel Atom x5-Z8350, a low-power quad-core SoC paired with the Intel x5-Z8350 PCH, enabling a thin, fanless, cost-effective design.

How much memory and storage does the VNS-15W01 have?

It is offered with 2GB or 4GB DDR3L memory and 32GB or 64GB eMMC storage.

Which operating systems does the VNS-15W01 support?

It supports Windows 10 IoT (64-bit), Android 5.1 (64-bit), and Linux (64-bit).

Does the VNS-15W01 support Powered LAN?

Yes, its Realtek Gigabit LAN supports Powered-LAN (802.3at), so it can be powered and networked over a single cable, or via the DC jack.

Does the VNS-15W01 include NFC and Wi-Fi?

Yes, it has an integrated NFC reader and onboard Wi-Fi 802.11 b/g/n.

What display and touch does the VNS-15W01 offer?

A 15.6" 1920x1080 panel at 220 cd/m² with projected-capacitive (PCAP) touch.

What I/O does the VNS-15W01 provide?

Externally a Gigabit Powered-LAN RJ45, 2x USB 2.0 Type-A and a headphone jack; internally A-MIC, eDP, I2C, dual LED bar, Micro-SD, Micro-USB, touch button, and USB headers.

What power input does the VNS-15W01 use?

A wide DC 12~24V input via a DC jack or Powered-LAN (802.3at).

What applications is the VNS-15W01 best suited for?

As a slim fanless Venus-series touch terminal with NFC and LED bars, it suits healthcare bedside, digital signage, and self-service applications.

What is an Industrial Panel PC?

An Industrial Panel PC is a robust computing device designed for industrial environments, featuring a touchscreen display integrated with a computer. These systems are built to withstand harsh conditions including dust, moisture, temperature extremes, and vibration, while providing reliable operation for factory automation, control systems, and HMI applications.

What makes a Panel PC 'industrial grade'?

Industrial grade Panel PCs feature rugged construction with IP65/IP66 front panel protection, extended temperature operation, shock and vibration resistance, fanless cooling for reliability, wide voltage input tolerance, and long product lifecycles designed for 24/7 operation in challenging environments.

What is the difference between a Panel PC and an HMI?

While both provide operator interface functionality, a Panel PC is a full-featured computer running a standard operating system (Windows, Linux) that can host any software application. An HMI is typically a simpler device with an embedded operating system designed specifically for machine/process control with limited functionality beyond its control software.

What mounting options are available for Panel PCs?

Panel PCs typically offer multiple mounting options including panel mount (cutout installation in cabinets/enclosures), VESA mount (standard bracket mounting to walls or arms), and sometimes desktop stands. Some specialized models may offer additional mounting options for specific industries.

What operating systems are supported on industrial Panel PCs?

Most industrial Panel PCs support Windows 10 IoT Enterprise, Windows 11 Pro, and various Linux distributions like Ubuntu. The specific OS support depends on the hardware configuration, with some models offering pre-installed options or being compatible with multiple operating systems.

What is IP65/IP66 protection and why is it important?

IP65/IP66 protection ratings indicate dust-tight (6) protection and resistance to water jets (5/6). This is essential for industrial Panel PCs that may be exposed to harsh factory environments with dust, splashes, or washdown procedures, ensuring reliable operation and longevity in challenging conditions.

Why are fanless designs important in industrial Panel PCs?

Fanless designs eliminate moving parts that could fail, prevent dust and contaminant ingress through ventilation openings, reduce maintenance requirements, increase reliability in high-vibration environments, and allow sealed enclosures for protection against harsh industrial conditions.

What is PCAP multi-touch technology?

PCAP (Projected Capacitive) multi-touch technology allows multiple simultaneous touch points on the screen, enabling intuitive gestures like pinch-to-zoom. It offers better optical clarity than resistive touchscreens, with a durable glass surface resistant to scratches, though it requires bare finger or special stylus operation.

What is a watchdog timer and why is it important?

A watchdog timer is a hardware-based timer that triggers a system reset if the software becomes unresponsive. This is crucial for industrial systems requiring high reliability and 24/7 operation, as it automatically recovers from software crashes or freezes without human intervention.

What does wide voltage input range mean for Panel PCs?

A wide voltage input range (typically 9-36VDC) allows Panel PCs to operate reliably in industrial environments with fluctuating power conditions. This provides flexibility in power source options and protection against voltage spikes and drops common in factory settings.

What is TPM and why is it included in industrial Panel PCs?

TPM (Trusted Platform Module) is a security chip that provides hardware-based encryption capabilities and secure storage for authentication credentials. In industrial settings, it helps protect sensitive data, secure communication channels, and ensure the integrity of control systems against unauthorized access.

How are Panel PCs typically mounted in industrial environments?

Panel PCs are typically installed using panel mount (where the unit is fitted into a cutout in a control cabinet with mounting clips or screws), VESA mount (attached to arms or wall mounts using standardized mounting patterns), or sometimes with custom mounting solutions for specific applications.

What cutout dimensions are needed for panel mounting?

Cutout dimensions vary by model and screen size. It's essential to refer to the specific Panel PC's installation guide for precise measurements. Most manufacturers provide detailed dimensional drawings showing the exact cutout size and mounting hole positions required.

What environmental conditions should be considered when installing Panel PCs?

Consider operating temperature range, humidity levels, exposure to dust or liquids, vibration/shock conditions, available power supply stability, electromagnetic interference sources, and ambient light conditions that might affect screen visibility when installing Panel PCs.

Do Panel PCs require additional cooling?

Most industrial Panel PCs are designed with fanless cooling systems that dissipate heat through the chassis. While they typically don't require additional cooling, it's important to ensure adequate air circulation around the unit and to avoid installing them in locations that exceed their specified operating temperature range.

What power supply requirements should be considered for Panel PCs?

Consider voltage requirements (typically 9-36VDC), current/power consumption specifications, power supply stability, surge protection needs, and whether battery backup or uninterruptible power supply (UPS) is necessary for critical applications to prevent data loss during power interruptions.

What should I do if the touchscreen becomes unresponsive?

First, try restarting the Panel PC. If the issue persists, check if the touch driver is installed and functioning properly, verify the touchscreen cable connection, ensure the operating environment is within specifications (especially for capacitive screens in high humidity), and check for physical damage to the screen surface.

How can I resolve overheating issues with fanless Panel PCs?

To address overheating: ensure the Panel PC is installed with adequate clearance for passive cooling, check that the ambient temperature is within specified operating range, clean dust buildup on cooling fins/chassis, verify that CPU-intensive applications aren't causing excessive load, and consider adding external cooling to the enclosure if necessary.

What causes Panel PCs to restart unexpectedly?

Unexpected restarts can be caused by unstable power supply, overheating, hardware failures, software issues, or watchdog timer activations due to system hangs. Check power stability, environmental conditions, system logs for error messages, and consider disabling the watchdog timer temporarily for diagnostic purposes.

How can I improve the visibility of the Panel PC screen in bright environments?

To improve visibility in bright environments, adjust the screen brightness to maximum, install an anti-glare shield or hood, position the Panel PC to avoid direct light sources, consider a higher-brightness model (500+ cd/m²) for new installations, or apply an anti-reflective film designed for industrial displays.

What should I do if Windows fails to boot on my Panel PC?

If Windows fails to boot, try booting in Safe Mode, use System Restore to revert to a working state, run startup repair from recovery options, check for hardware issues (particularly storage drives), verify BIOS/UEFI settings are correct, or restore from a system image backup if available.

Avalue · Panel PC / Monitor / Mobile

VNS-15W01

Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

15.6" (1920x1080) PCAP touch Venus-series panel PC, fanless
Intel Atom x5-Z8350 Processor
2GB / 4GB DDR3L memory, 32GB / 64GB eMMC storage
Onboard Wi-Fi 802.11 b/g/n, NFC Reader
Realtek RTL8111H(S) Gigabit Powered-LAN
2x USB 2.0 Type-A, headphone jack, Micro-SD, Micro-USB
Dual LED bar, internal eDP / I2C / touch-button interfaces
Wide DC 12~24V input, DC jack or Powered-LAN (802.3at)
Windows 10 IoT / Android 5.1 / Linux (64-bit); CE / FCC Class B

Product Description

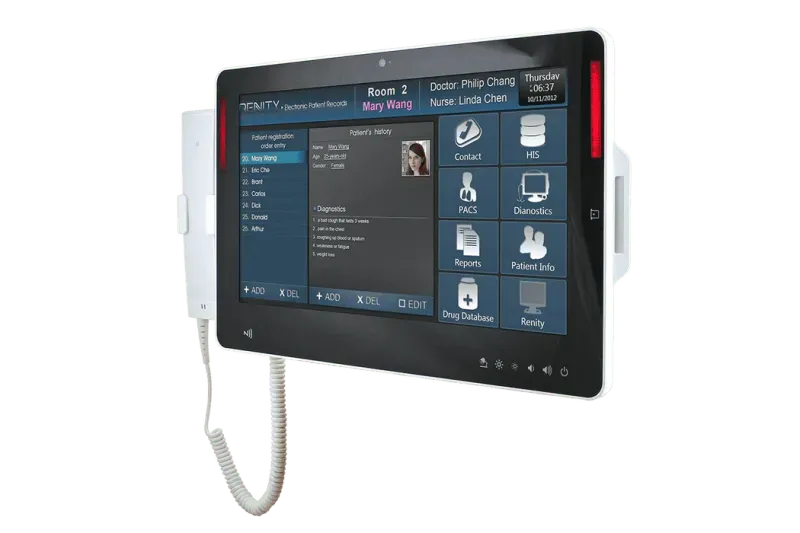

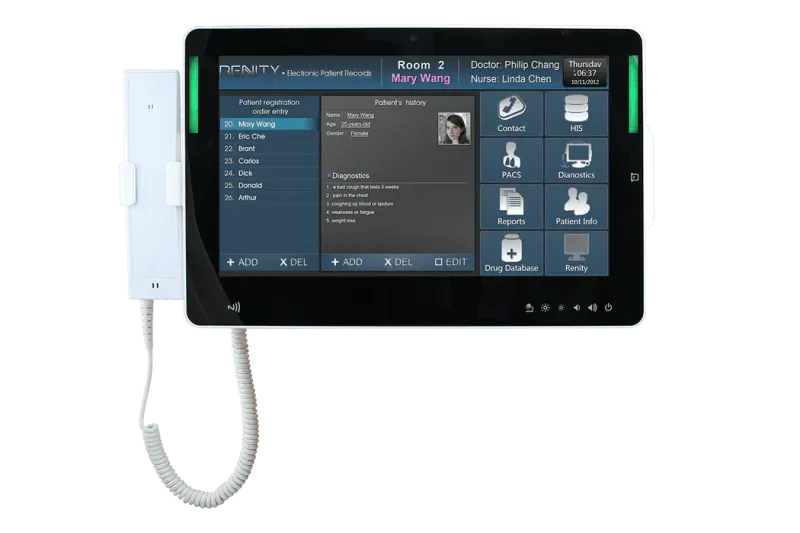

The Avalue VNS-15W01 is a 15.6" Venus-series industrial touch panel PC built on the low-power Intel Atom x5-Z8350 processor, designed as a slim, fanless interactive terminal for healthcare, signage, and self-service applications.

With 2GB/4GB DDR3L, 32GB/64GB eMMC, onboard Wi-Fi, NFC, and dual LED bars, it runs Windows 10 IoT, Android 5.1, or Linux in a compact tablet-style enclosure.

The 1920x1080 PCAP panel pairs with Realtek Gigabit Powered-LAN, USB 2.0 ports, a headphone jack, an NFC reader, and a Micro-SD/Micro-USB combo, plus internal eDP/I2C/touch-button interfaces for embedded integration.

A wide DC 12~24V input with Powered-LAN (802.3at) support makes the VNS-15W01 a flexible, embeddable touch front-end for bedside and signage deployments.

Technical Specifications

Processor

Intel Atom® x5-Z8350 Processor

Platform Controller Hub

Intel x5-Z8350

System Memory

2GB / 4GB DDR3L

Storage

32GB/ 64GB eMMC

Spec. & Resolution

LVDS: Max. resolution 1920x1280 @ 60Hz

Multiple Display

Windows support extended mode

Speaker Output

4Ω 2.0W/2.5W(MAX)

LAN Chipset

Realtek RTL8111H(S)-CG

DC Input

12~24V

OS

Windows 10 IoT (64 bit), Android 5.1(64 bit), Linux (64bit)

Certification Information

CE/FCC Class B

LCD Size

15.6"

Resolution

1920x1080

Luminance

220 cd/m2

Viewing angle

89 (U), 89 (D), 89(L), 89 (R)

Touch Type

PCAP

LAN Port

1 x RJ-45

External I/O Connector

1 x 10/100/1000 RJ45 Powered LAN

2 x USB 2.0 Type A

1 x Headphone Jack

Internal I/O Connector

1 x A-MIC

1 x eDP

1 x I2C

2 x LED Bar

1 x Micro SD slot

1 x Micro USB

1 x Touch Button

5 x USB

NFC

NFC Reader

WLAN

WIFI 802.11 b/g/n

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Storage Temp.

-10°C ~ 60°C(-14°F ~ 140°F)

Operating Humidity

40°C @ 95% Relative Humidity, non-condensing

Weight

2.5 kg

VESA

75 x 75

Dimension (W x L x D)

472.1 x 269 x 70.1 mm

Power Requirement

DC 12~24V

Power Mode

DC jack or Powered LAN 802.3AT

Ordering Information

VNS-15W01-BV37C-1R : VNS-15W01-32G-Ubuntu 19.04 (抗), VNS-15W01-BV38C-1R : VNS-15W01-32G-2016 Win 10 (抗), VNS-15W01-BV38C-3R : VNS-15W01-32G-2019 Win 10 (抗), VNS-15W01-BV39C-1R : VNS-15W01-32G-Android 5.1 (抗), VNS-15W01-BW47C-1R : VNS-15W01-64G-Ubuntu 19.04 (抗), VNS-15W01-BW48C-1R : VNS-15W01-64G-2016 Win 10 (抗), VNS-15W01-BW48C-3R : VNS-15W01-64G-2019 Win 10 (抗), VNS-15W01-BW48C-5R : VNS-15W01-64G-2016 Win 10 (抗 / AID HS)"

What is VNS-15W01?

The VNS-15W01 is a panel pc / monitor / mobile manufactured by Avalue, designed specifically for industrial-panel-pc applications. The Avalue VNS-15W01 is a 15.6" Venus-series industrial touch panel PC built on the low-power Intel Atom x5-Z8350 processor, designed as a slim, fanless interactive terminal for healthcare, signage, and self-service applications. With 2GB/4GB DDR3L, 32GB/64GB eMMC, onboard Wi-Fi, NFC, and dual LED bars, it runs Windows 10 IoT, Android 5.1, or Linux in a compact tablet-style enclosure. The 1920x1080 PCAP panel pairs with Realtek Gigabit Powered-LAN, USB 2.0 ports, a headphone jack, an NFC reader, and a Micro-SD/Micro-USB combo, plus internal eDP/I2C/touch-button interfaces for embedded integration. A wide DC 12~24V input with Powered-LAN (802.3at) support makes the VNS-15W01 a flexible, embeddable touch front-end for bedside and signage deployments.

Key Features & Benefits

15.6" (1920x1080) PCAP touch Venus-series panel PC, fanless
Intel Atom x5-Z8350 Processor
2GB / 4GB DDR3L memory, 32GB / 64GB eMMC storage
Onboard Wi-Fi 802.11 b/g/n, NFC Reader
Realtek RTL8111H(S) Gigabit Powered-LAN
2x USB 2.0 Type-A, headphone jack, Micro-SD, Micro-USB
Dual LED bar, internal eDP / I2C / touch-button interfaces
Wide DC 12~24V input, DC jack or Powered-LAN (802.3at)
Windows 10 IoT / Android 5.1 / Linux (64-bit); CE / FCC Class B

Applications & Use Cases

The VNS-15W01 is ideal for various industrial automation applications:

Dust-sensitive environments and silent operation requirements
DC-powered industrial installations and mobile applications
Wireless connectivity and remote monitoring applications
High-performance computing and data processing tasks
Networked industrial systems and data communication
Interactive control interfaces and operator panels
Peripheral device connectivity and data transfer
Memory-intensive applications and multitasking
