Product Datasheet
20 May 2026
Panel PC / Monitor / Mobile · Industrial-Panel-PC
VNS-15W01
Series: VNS

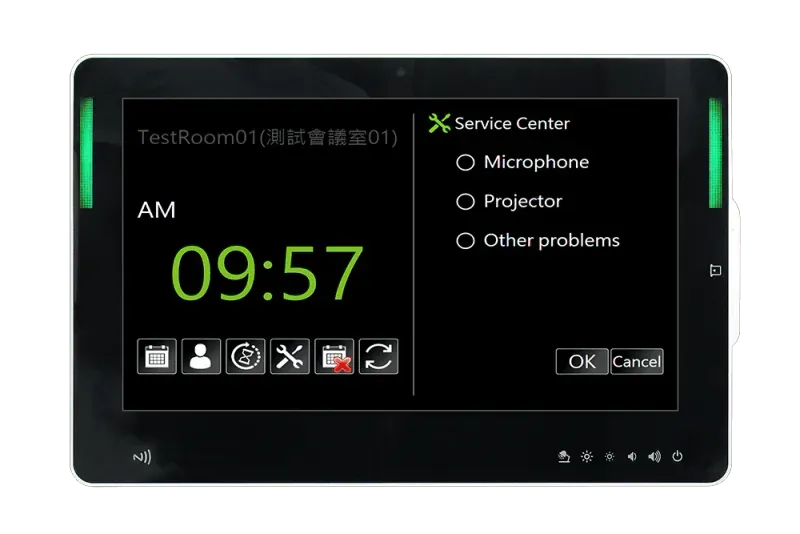

The Avalue VNS-15W01 is a 15.6" Venus-series industrial touch panel PC built on the low-power Intel Atom x5-Z8350 processor, designed as a slim, fanless interactive terminal for healthcare, signage, and self-service applications. With 2GB/4GB DDR3L, 32GB/64GB eMMC, onboard Wi-Fi, NFC, and dual LED bars, it runs Windows 10 IoT, Android 5.1, or Linux in a compact tablet-style enclosure. The 1920x1080 PCAP panel pairs with Realtek Gigabit Powered-LAN, USB 2.0 ports, a headphone jack, an NFC reader, and a Micro-SD/Micro-USB combo, plus internal eDP/I2C/touch-button interfaces for embedded integration. A wide DC 12~24V input with Powered-LAN (802.3at) support makes the VNS-15W01 a flexible, embeddable touch front-end for bedside and signage deployments.
Key Features
- 15.6" (1920x1080) PCAP touch Venus-series panel PC, fanless
- Intel Atom x5-Z8350 Processor
- 2GB / 4GB DDR3L memory, 32GB / 64GB eMMC storage
- Onboard Wi-Fi 802.11 b/g/n, NFC Reader
- Realtek RTL8111H(S) Gigabit Powered-LAN
- 2x USB 2.0 Type-A, headphone jack, Micro-SD, Micro-USB
- Dual LED bar, internal eDP / I2C / touch-button interfaces
- Wide DC 12~24V input, DC jack or Powered-LAN (802.3at)
- Windows 10 IoT / Android 5.1 / Linux (64-bit); CE / FCC Class B
Technical Specifications
System Information
| Processor | Intel Atom® x5-Z8350 Processor |
|---|---|
| Platform Controller Hub | Intel x5-Z8350 |
| System Memory | 2GB / 4GB DDR3L |
Storage
| Storage | 32GB/ 64GB eMMC |
|---|
Display
| Spec. & Resolution | LVDS: Max. resolution 1920x1280 @ 60Hz |
|---|---|
| Multiple Display | Windows support extended mode |
Audio
| Speaker Output | 4Ω 2.0W/2.5W(MAX) |
|---|
Ethernet
| LAN Chipset | Realtek RTL8111H(S)-CG |
|---|
Power Requirement
| DC Input | 12~24V |
|---|
Software Support
| OS | Windows 10 IoT (64 bit), Android 5.1(64 bit), Linux (64bit) |
|---|
Certification
| Certification Information | CE/FCC Class B |
|---|
Panel
| LCD Size | 15.6" |
|---|---|
| Resolution | 1920x1080 |
| Luminance | 220 cd/m2 |
| Viewing angle | 89 (U), 89 (D), 89(L), 89 (R) |
| Touch Type | PCAP |
External I/O
| LAN Port | 1 x RJ-45 |
|---|
Internal I/O
| External I/O Connector | 1 x 10/100/1000 RJ45 Powered LAN, 2 x USB 2.0 Type A, 1 x Headphone Jack |
|---|---|
| Internal I/O Connector | 1 x A-MIC, 1 x eDP, 1 x I2C, 2 x LED Bar, 1 x Micro SD slot, 1 x Micro USB, 1 x Touch Button, 5 x USB |
Data Collection
| NFC | NFC Reader |
|---|
Data Communication
| WLAN | WIFI 802.11 b/g/n |
|---|
Mechanical & Environmental
| Operating Temp. | 0°C ~ 40°C (32°F ~ 104°F) |
|---|---|
| Storage Temp. | -10°C ~ 60°C(-14°F ~ 140°F) |
| Operating Humidity | 40°C @ 95% Relative Humidity, non-condensing |
| Weight | 2.5 kg |
| VESA | 75 x 75 |
| Dimension (W x L x D) | 472.1 x 269 x 70.1 mm |
| Power Requirement | DC 12~24V |
| Power Mode | DC jack or Powered LAN 802.3AT |
Ordering Information
| Ordering Information | VNS-15W01-BV37C-1R : VNS-15W01-32G-Ubuntu 19.04 (抗), VNS-15W01-BV38C-1R : VNS-15W01-32G-2016 Win 10 (抗), VNS-15W01-BV38C-3R : VNS-15W01-32G-2019 Win 10 (抗), VNS-15W01-BV39C-1R : VNS-15W01-32G-Android 5.1 (抗), VNS-15W01-BW47C-1R : VNS-15W01-64G-Ubuntu 19.04 (抗), VNS-15W01-BW48C-1R : VNS-15W01-64G-2016 Win 10 (抗), VNS-15W01-BW48C-3R : VNS-15W01-64G-2019 Win 10 (抗), VNS-15W01-BW48C-5R : VNS-15W01-64G-2016 Win 10 (抗 / AID HS)" |
|---|
