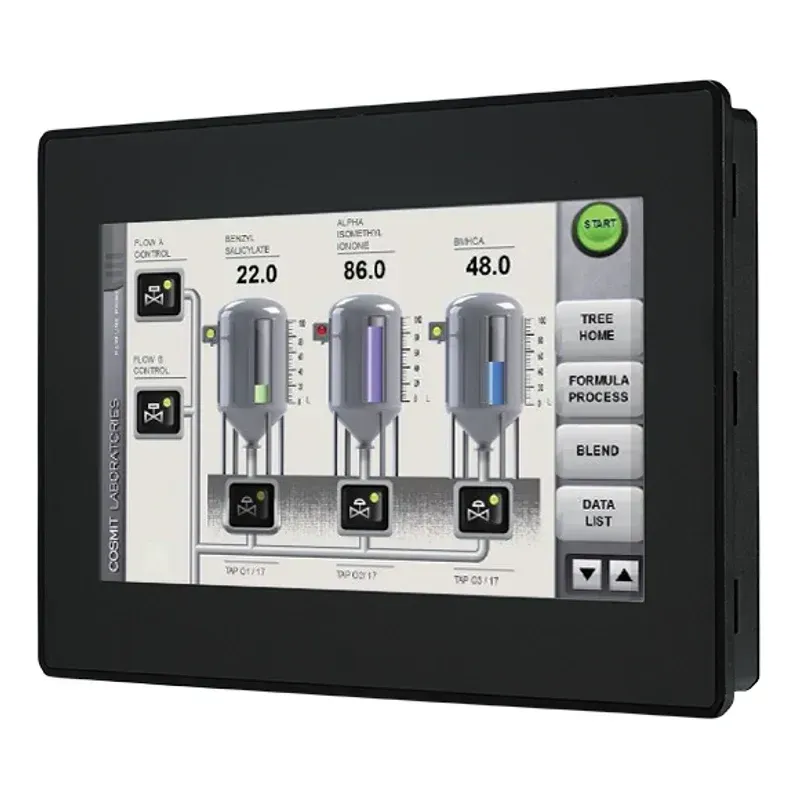

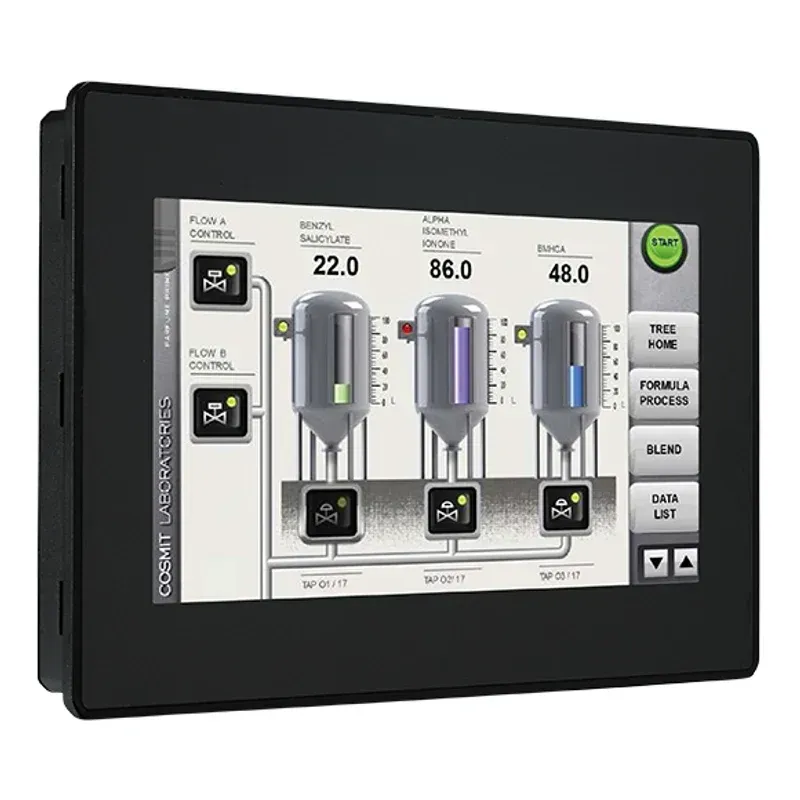

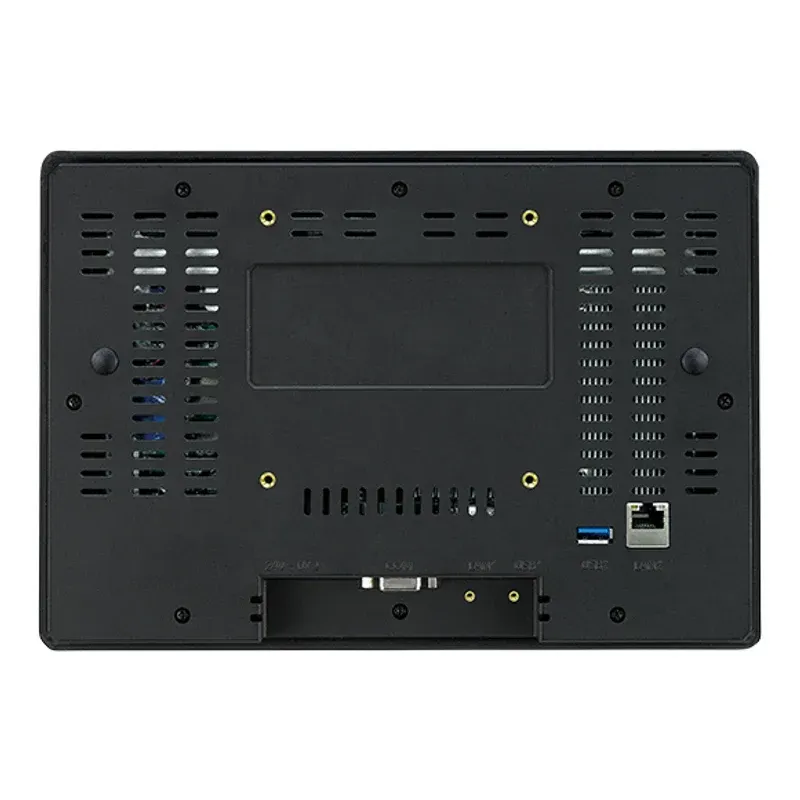

Nexcom eLITE610 10.1" HMI Panel PC — Front ViewNexcom eLITE610 10.1" HMI Panel PC — Front ViewNexcom eLITE610 10.1" HMI Panel PC — Front ViewNexcom eLITE610 10.1" HMI Panel PC — Front ViewNexcom eLITE610 10.1" HMI Panel PC — Front View
eLITE610, Image 1eLITE610, Image 2eLITE610, Image 3eLITE610, Image 4eLITE610, Image 5
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Nexcom

Highlights

  • 10.1" widescreen WSVGA (1024 x 600) TFT panel, 16:9, 16.7M colours, 240 cd/m² typ.
  • Resistive touchscreen with LED backlight dimmable to 0%
  • Intel Atom x5-E3930 (Apollo Lake) SoC, fanless thermal design
  • 4 GB DDR3L system memory, 32 GB onboard flash
  • Windows 10 Enterprise (64-bit) preloaded; supplied with JMobile HMI runtime
  • 2 x 10/100/1000 Mbit Gigabit LAN, 2 x USB 3.0, 1 x RS-232/422/485 (BIOS-configurable)
  • JMobile Studio compatible — SVG vector graphics, multilanguage, alarms, recipes, scheduler, VNC remote, scripting
  • IP66 front, IP20 rear; system frame ground protection (GPE)
  • 24 V DC input (19.2–28.8 V DC), 1.64 A max @ 24 V DC; plastic chassis, ~1.37 kg
  • Panel cutout 271 x 186 mm, faceplate 282 x 197 mm, depth 29 + 6 mm — panel or VESA mount
  • CE (EN 61000-6-4 / EN 61000-6-2 industrial) and FCC

Product Description

The Nexcom eLITE610 is a cost-efficient 10.1" widescreen (WSVGA, 1024 x 600) HMI panel PC powered by the Intel Atom x5-E3930 SoC and a 16:9 TFT display with LED backlight dimmable down to 0%.

Designed as a slim, plastic-chassis terminal for factory and building automation, the eLITE610 ships preloaded with the JMobile HMI runtime and is fully compatible with JMobile Studio for SVG-based vector graphics, multilanguage applications, data acquisition, alarms, schedulers, recipes, user management, e-mail and RSS feeds, VNC-based remote maintenance and a powerful scripting language with debugging.

Connectivity includes two Gigabit LAN ports, two USB 3.0 ports and one BIOS-configurable RS-232/422/485 serial port covering most building and machine automation buses, with optional plug-in modules for fieldbus systems.

The 240 cd/m² TFT panel and resistive touchscreen are paired with a true-flat front protected to IP66 (IP20 rear), a wide 19.2–28.8 V DC input and a mounting depth under 30 mm for panel or VESA installation.

CE-marked (EN 61000-6-4 emissions / EN 61000-6-2 immunity for industrial environments) and FCC-tested, the eLITE610 is sized for machine control and monitoring, robot interface terminals, SCADA stations and integration into long-life factory or building automation projects.

TSL Automation supplies the Nexcom eLITE610 worldwide.

Technical Specifications

Processor

Intel Atom x5-E3930 (Apollo Lake) SoC

System Memory

4 GB DDR3L

Real-Time Clock

Yes

Buzzer

Yes

CPU Cooler (Type)

Passive (Fanless)

System Frame Ground Protection

GPE Design

Onboard Flash

32 GB

LCD Size

10.1" widescreen

Aspect Ratio

16:9

Display Type

TFT WSVGA

Resolution

1024 x 600

Luminance

240 cd/m² typ.

LCD Colour

16.7M

Active Display Area

10.1" diagonal

Backlight

LED, dimmable to 0%

Touch Type

Resistive touchscreen

Ethernet

2 x 10/100/1000 Mbit Gigabit LAN

USB Port

2 x USB 3.0

Serial

1 x RS-232/422/485 (BIOS-configurable)

DC Input

DC-in connector

Expansion

Optional plug-in modules for fieldbus systems, I/O and controllers

DC Input

24 V DC (19.2 – 28.8 V DC)

Current Consumption

1.64 A at 24 V DC (max.)

OS

Windows 10 Enterprise (64-bit)

HMI Runtime

JMobile runtime included (eLITE610 SKU); JMobile Studio compatible

HMI Features

Full SVG vector graphic support with transparency / alpha blending

Data acquisition, alarm handling, scheduler and timed actions

Recipes, users and passwords, e-mail and RSS feeds

Multilanguage applications (incl. Far East languages)

Remote monitoring + control with mobile clients

VNC-based remote maintenance and support

Off-line HMI application simulation

Powerful scripting language with debugging

Wide library of factory / building automation communication drivers

Certification Information

CE — Emission EN 61000-6-4

CE — Immunity EN 61000-6-2 (industrial environments)

FCC

Operating Temp.

-5°C ~ 50°C (23°F ~ 122°F)

Storage Temp.

-20°C ~ 70°C (-4°F ~ 158°F)

Operating & Storage Humidity

5% ~ 85% relative humidity, non-condensing

IP Rating

IP66 (front), IP20 (rear)

Faceplate (L x H)

282 x 197 mm

Panel Cutout (A x B)

271 x 186 mm

Mounting Depth (D + T)

29 + 6 mm (under 30 mm slim depth)

Weight

Approx. 1.37 kg

Mounting Kit

Panel mount / VESA

System Fan

Fanless

Construction

Plastic chassis

Barebone

eLITE610 (P/N: 10IE0061000X0) — with JMobile runtime

eLITE610-NH (P/N: 10IE0061001X0) — without JMobile runtime
