RITY103

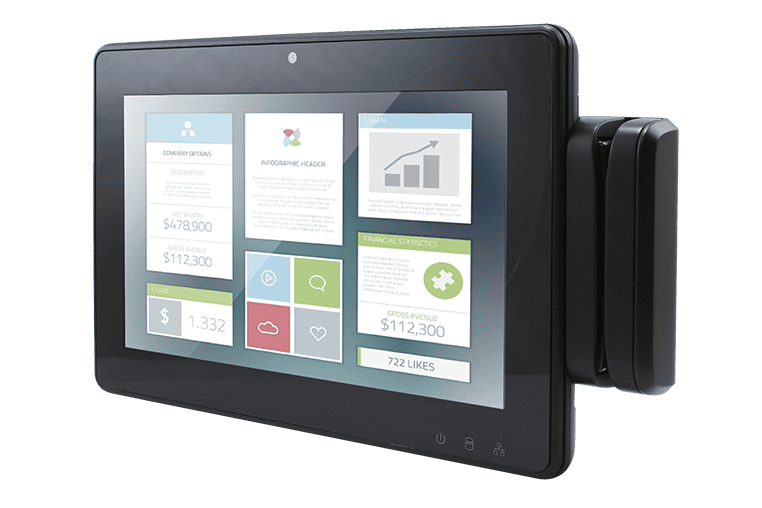

RITY103 Front
RITY103 Front

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Product Features

Product Description

The Avalue RITY103 is a 10.1‑inch flat‑touch POS terminal designed for retail, kiosk and countertop applications. Powered by Intel® Celeron® N3350 (Apollo Lake) at 1.1 GHz and supporting up to 8 GB DDR3L memory, it delivers reliable performance for point‑of‑sale operations.

Key features include WSVGA 1024×600 resolution display with resistive / PCT touch, dual Gigabit Ethernet, 2× USB 2.0 and 4× USB 3.0 ports for peripheral connectivity, COM ports (RS‑232/422/485) for legacy devices, support for dual‑display via HDMI + LVDS, and rugged fanless build for quiet, stable operation.

With its compact dimensions, VESA‑compatible mounting, and DC 19‑24 V input, RITY103 is suitable for space-constrained retail counters and kiosk environments.

Technical Specifications

System Information

Processor

Intel® Celeron® Processor N3350 1.1GHz

Platform Controller Hub

Intel® Apollo Lake SoC

System Memory

1 x 204-pin DDR3L 1066MHz SO-DIMMup to 8 GB

I/O Chipset

EC ITE IT8528E

Watchdog Timer

H/W reset, 1sec. ~ 65535sec. and 1sec./step

H/W Status Monitor

Monitoring CPU & system temperature and voltage

Expansion

Expansion

1 x M.2 B key slot support

Storage

Storage

1 x 2.5 Drive bay

1 x M.2 B key slot

Display

Graphic Chipset

Intel® Apollo Lake SoC integrated Graphics

Supports dual display

Spec. & Resolution

LVDS:Max. resolution 1024x768@ 60Hz

HDMI:Max. resolution 1920x1080@ 60Hz

Audio

Audio Codec

Realtek ALC888S supports 2-CH

Speaker Output

2 x 2W

Ethernet

LAN Chipset

2 x Realtek RTL8111E-VB-GR

Ethernet Interface

10/100/1000 Base-Tx GbE compatible

Power Requirement

DC Input

+19V ~ +24V

DC Input Connector

minidin 4P for DC in w/ lock type

Software Support

OS

Win 10

Certification

Certification Information

CE

FCC Class B

VCCI

External I/O

USB Port

4 x USB 3.0

2 x USB 2.0

LAN Port

2 x RJ-45

Panel

LCD Size

10.1\"

Display Type

WSVGA

Resolution

1024 x 600

Pixel pitch

262K color by 6 bit RGB signal

Luminance

350 cd/m2

Contrast ratio

500

Viewing angle

140(H) X 140(V)

Response time

16ms

Backlight

LED

Touch Type

5 wires resistive / PCT

Touch Light Transmission

RES 75% / PCT 90%

Touch Controller

Onboard USB touch (penmount) / USB touch (EETI)

I/O

COM Port

2 x RS-232/422/485 (BIOS)

1 x RS-232

HDMI

1 x HDMI 1.4b

Mechanical & Environmental

Operating Temp.

0°C ~ 40°C (32°F ~ 95°F)

Storage Temp.

-10°C ~ 60°C (14°F ~ 140°F)

Operating Humidity

0% ~ 90% Relative humidity, non-condensing

Dimension (W x L x H)

260 X 178 X 42mm

Weight

3.65 kg

Vibration Test

With SSD : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis

Shock Test

With SSD : 10Grms, IEC 60068-2-27, half sine, 11ms

Power Mode

AT/ATX (ATX is default setting)

System Fan

Fanless

Construction - Front

Black coverlens

Construction - Rear

Black

Component

Adapter

Input: 100 ~ 240Vac/ 50 ~ 60Hz

Output: 60W adapter (12V @ 5A adapter)

Ordering Information

Ordering Information

RITY103-1RM0300A1R

10\" 1024 x 600 POS Terminal with Intel N3350 1.1GHz/2G DDR3L/5 Wire Resistive Touch/VGA/RJ11/3 x COM/ 4 x USB/32G SSD/90W Adapter/VESA Mount


EU Power Cord E170203183DR

US Power Cord E1702031835R

JP Power Cord E17120318001R

UK Power Cord E170P060370R

What is RITY103?

The RITY103 is a panel pc / monitor / mobile manufactured by Avalue, designed specifically for pos-terminal applications. The Avalue RITY103 is a 10.1‑inch flat‑touch POS terminal designed for retail, kiosk and countertop applications. Powered by Intel® Celeron® N3350 (Apollo Lake) at 1.1 GHz and supporting up to 8 GB DDR3L memory, it delivers reliable performance for point‑of‑sale operations. Key features include WSVGA 1024×600 resolution display with resistive / PCT touch, dual Gigabit Ethernet, 2× USB 2.0 and 4× USB 3.0 ports for peripheral connectivity, COM ports (RS‑232/422/485) for legacy devices, support for dual‑display via HDMI + LVDS, and rugged fanless build for quiet, stable operation. With its compact dimensions, VESA‑compatible mounting, and DC 19‑24 V input, RITY103 is suitable for space-constrained retail counters and kiosk environments.

Key Features & Benefits

Features information coming soon.

Applications & Use Cases

The RITY103 is ideal for various industrial automation applications:

  • Space-constrained retail counters and kiosk environments
  • Interactive kiosk and self-service terminals
  • Industrial control and monitoring systems
  • Factory automation and process control
  • Retail and point-of-sale applications
  • Machine control and visualization
  • SCADA and HMI applications
