RITY102

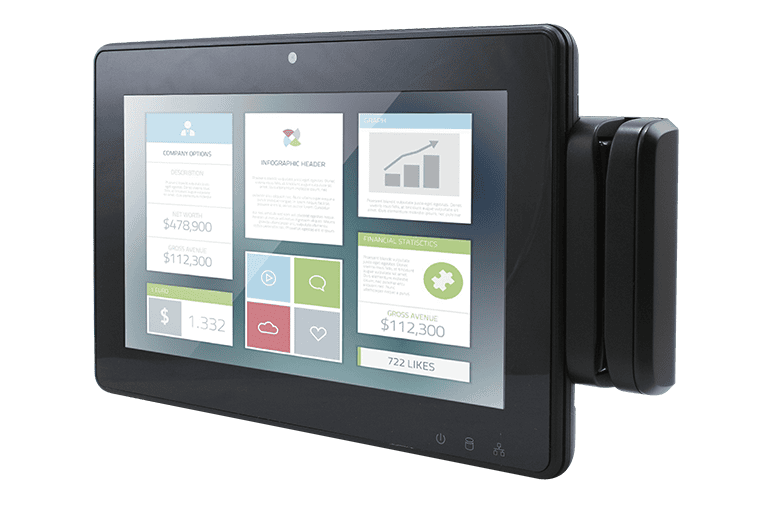

RITY102 Front
RITY102 Front

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Product Features

Product Description

The Avalue RITY102 is a 10.1‑inch WSVGA (1024×600) flat‑touch POS terminal built on the Intel® Atom™ E3845 4‑core 1.91 GHz processor, designed for retail, self-service kiosks and point‑of‑sale environments.

It supports up to 8 GB DDR3L memory, offers a resistive or PCAP touch interface, and features a fanless design with an IP65‑rated front panel for durability and hygiene. Connectivity includes multiple USB ports, COM ports, dual LAN, HDMI output and optional RJ‑11 for cash‑drawer support.

With 19–24 V DC input and operating temperature range 0°C–35°C, RITY102 is suited for robust, continuous use in commercial settings.",

Technical Specifications

System Information

Processor

Intel® Atom™ E3845 4-Core 1.91GHz processor

System Memory

1 x 204-pin DDR3L 1066MHz SO-DIMMup to 8 GB

Platform Controller Hub

Intel® Valleyview SoC

I/O Chipset

EC ITE IT8528E

Watchdog Timer

H/W reset, 1sec.~255min. and 1sec. or 1min./step

H/W Status Monitor

Monitoring CPU & system temperature and voltage

SBC

APC-BYTPOS

Expansion

Expansion

1 x Mini PCIe supports mSATA

Storage

Storage

1 x optional SATA slim SSD

1 x mSATA

Display

Graphic Chipset

Intel® Cedarview Integrated Graphics

Supports dual display

Spec. & Resolution

LVDS:Max. resolution 1024x600@ 60Hz

HDMI:Max. resolution 1920x1080@ 60Hz

Audio

Audio Codec

Realtek ALC888S supports 2-CH

Speaker Output

2 x 2W

Ethernet

LAN Chipset

2 x Realtek 8111E

Ethernet Interface

10/100/1000 Base-Tx GbE compatible

Power Requirement

DC Input

+19V ~ +24V

DC Input Connector

minidin 4P for DC in w/ lock type

Software Support

OS

Win 7 / Win 8 / POS ready / Linux

Certification

Certification Information

CE

FCC Class B

VCCI

External I/O

USB Port

3 x USB 3.0

1 x USB 2.0

LAN Port

2 x RJ-45

Panel

LCD Size

10.1\"

Display Type

WSVGA

Resolution

1024 x 600

Pixel pitch

262K color by 6 bit RGB signal

Luminance

350 cd/m2

Contrast ratio

500

Viewing angle

140(H) X 140(V)

Response time

16ms

Backlight

LED

Touch Type

5 wires resistive / PCT

Touch Light Transmission

RES 75% / PCT 90%

Touch Controller

Onboard USB touch (penmount) / USB touch (EETI)

I/O

COM Port

2 x RS-232/422/485 (BIOS)

1 x RS-232

Mechanical & Environmental

Operating Temp.

0°C ~ 35°C (32°F ~ 95°F)

Storage Temp.

-10°C ~ 60°C (14°F ~ 140°F)

Operating Humidity

0% ~ 90% Relative humidity, non-condensing

Dimension (W x L x H)

260 X 178 X 42mm

Weight

3.65 kg

Vibration Test

With SSD/mSATA : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis

Shock Test

With CF/SSD : 10Grms, IEC 60068-2-27, half sine, 11ms

Power Mode

AT/ATX (ATX is default setting)

System Fan

Fanless

Construction - Front

Black coverlens

Construction - Rear

Black

Component

Adapter

Input: 100 ~ 240Vac/ 50 ~ 60Hz

Output: 60W adapter (12V @ 5A adapter)

Ordering Information

Ordering Information

RITY102-0RM0300A1R

10\" 1024 x 600 POS Terminal with Intel SoC QC E3845 1.91GHz/2G DDR3L/5 Wire Resistive Touch/VGA/RJ11/3 x COM/ 4 x USB/32G mSATA/90W Adapter/VESA Moun


RITY102-0CM0300A3R

10\" 1024 x 600 POS Terminal with Intel SoC QC E3845 1.91GHz/2G DDR3L/Projective Capacitive Touch/VGA/RJ11/3 x COM/ 4 x USB/32G mSATA/90W Adapter/VESA Mount


EU Power Cord E170203183DR

US Power Cord E1702031835R

JP Power Cord E17120318001R

UK Power Cord E170P060370R

What is RITY102?

The RITY102 is a panel pc / monitor / mobile manufactured by Avalue, designed specifically for pos-terminal applications. The Avalue RITY102 is a 10.1‑inch WSVGA (1024×600) flat‑touch POS terminal built on the Intel® Atom™ E3845 4‑core 1.91 GHz processor, designed for retail, self-service kiosks and point‑of‑sale environments. It supports up to 8 GB DDR3L memory, offers a resistive or PCAP touch interface, and features a fanless design with an IP65‑rated front panel for durability and hygiene. Connectivity includes multiple USB ports, COM ports, dual LAN, HDMI output and optional RJ‑11 for cash‑drawer support. With 19–24 V DC input and operating temperature range 0°C–35°C, RITY102 is suited for robust, continuous use in commercial settings.",

Key Features & Benefits

Features information coming soon.

Applications & Use Cases

The RITY102 is ideal for various industrial automation applications:

  • Interactive kiosk and self-service terminals
  • Industrial control and monitoring systems
  • Factory automation and process control
  • Retail and point-of-sale applications
  • Machine control and visualization
  • SCADA and HMI applications
