RITY153

RITY153 FrontRITY153 FrontRITY153 FrontRITY153 FrontRITY153 Front
RITY153 FrontRITY153 FrontRITY153 FrontRITY153 FrontRITY153 Front

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Product Features

Product Description

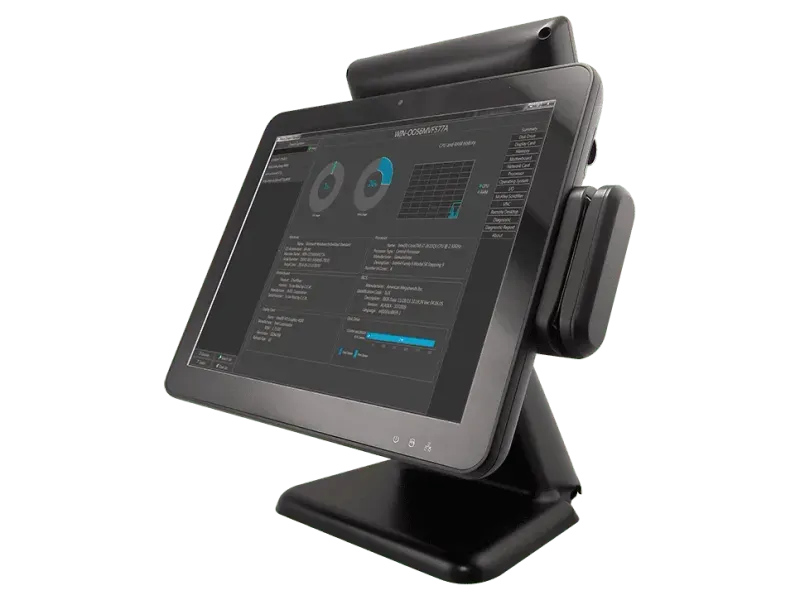

The Avalue RITY153 is a 15‑inch XGA (1024×768) flat touch panel PC intended for POS, kiosk and retail applications. It is powered by the Intel® Celeron® N3350 1.1GHz (Apollo Lake SoC) and supports up to 8 GB DDR3L memory in one SO‑DIMM socket.

Key features include dual display support (LVDS + HDMI), 6 × USB, 1 × HDMI 1.4b, 2 × RS‑232/422/485 (BIOS selectable) plus 1 × RS‑232, dual Gigabit LAN ports, 2.5″ drive bay + M.2 B‑key slot, fanless design and 19‑24 V DC input.

Its rugged design meets shock and vibration requirements (10 Grms, 1.5 Grms) and is well suited for 0°C to 40°C operating environments.

Technical Specifications

System Information

Processor

Intel® Celeron® Processor N3350 1.1GHz

Platform Controller Hub

Intel® Apollo Lake SoC

System Memory

1 x 204-pin DDR3L 1066MHz SO-DIMMup to 8 GB

I/O Chipset

EC ITE IT8528E

Watchdog Timer

H/W reset, 1sec. ~ 65535sec. and 1sec./step

H/W Status Monitor

Monitoring CPU & system temperature and voltage

Battery

Support battery pack 4S1P 14.4V (optional)

Expansion

Expansion

1 x M.2 B key slot support

Storage

Storage

1 x 2.5 Drive bay

1 x M.2 B key slot

Display

Graphic Chipset

Intel® Apollo Lake SoC integrated Graphics

Supports dual display

Spec. & Resolution

LVDS:Max. resolution 1024x768@ 60Hz

HDMI:Max. resolution 1920x1080@ 60Hz

Audio

Audio Codec

Realtek ALC888S supports 2-CH

Audio Interface

Line-out

Ethernet

LAN Chipset

RealTek RTL8119I-CG x2

Ethernet Interface

10/100/1000 Base-Tx GbE compatible

Power Requirement

DC Input

+19V ~ +24V

DC Input Connector

minidin 4P for DC in w/ lock type

Software Support

OS

Win 10

Certification

Certification Information

CE

FCC Class B

VCCI

External I/O

USB Port

4 x USB 3.0

2 x USB 2.0

LAN Port

2 x RJ-45

Panel

LCD Size

15\", 4:3

Display Type

XGA

Resolution

1024 x 768

Pixel pitch

16.2M

Luminance

400 cd/m2

Contrast ratio

700

I/O

COM Port

2 x RS-232/422/485 (BIOS)

1 x RS-232

HDMI

1 x HDMI 1.4b

Mechanical & Environmental

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Storage Temp.

-10°C ~ 60°C (14°F ~ 140°F)

Operating Humidity

0% ~ 90% Relative humidity, non-condensing

Dimension (W x L x H)

362.1 X 290.08 X 51 mm

Weight

6 Kg /with stand

Vibration Test

With SSD : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis

Shock Test

With SSD : 10Grms, IEC 60068-2-27, half sine, 11ms

Power Mode

AT/ATX (ATX is default setting)

System Fan

Fanless

Construction - Front

Black coverlens

Construction - Rear

Black

Component

Adapter

Input: 100 ~ 240Vac/ 50 ~ 60Hz

Output: 90W adapter (24V @ 3.75A adapter)

Ordering Information

Ordering Information

RITY153-0RH0300A2R

15\"1024 x 768 POS Terminal withIntel N3350 1.1GHz/2G DDR3/5 Wire Resistive Touch/VGA/RJ11/3 x COM/ 6 x USB/320G HDD/Audio/90W Adapter/VESA Mount


RITY153-0RH0300A3R

15\"1024 x 768 POS Terminal with Intel N3350 1.1GHz/2G DDR3/5 Wire Resistive Touch/VGA/RJ11/3 x COM/ 6 x USB/320G HDD/Battery function reserve/90W Adapter/VESA Mount


EU Power Cord E170203183DR

US Power Cord E1702031835R

JP Power Cord E17120318001R

UK Power Cord E170P060370R

What is RITY153?

The RITY153 is a panel pc / monitor / mobile manufactured by Avalue, designed specifically for pos-terminal applications. The Avalue RITY153 is a 15‑inch XGA (1024×768) flat touch panel PC intended for POS, kiosk and retail applications. It is powered by the Intel® Celeron® N3350 1.1GHz (Apollo Lake SoC) and supports up to 8 GB DDR3L memory in one SO‑DIMM socket. Key features include dual display support (LVDS + HDMI), 6 × USB, 1 × HDMI 1.4b, 2 × RS‑232/422/485 (BIOS selectable) plus 1 × RS‑232, dual Gigabit LAN ports, 2.5″ drive bay + M.2 B‑key slot, fanless design and 19‑24 V DC input. Its rugged design meets shock and vibration requirements (10 Grms, 1.5 Grms) and is well suited for 0°C to 40°C operating environments.

Key Features & Benefits

Features information coming soon.

Applications & Use Cases

The RITY153 is ideal for various industrial automation applications:

  • Interactive kiosk and self-service terminals
  • Industrial control and monitoring systems
  • Factory automation and process control
  • Retail and point-of-sale applications
  • Machine control and visualization
  • SCADA and HMI applications
