What is the RITY152 POS terminal used for?

The RITY152 is a point-of-sale terminal designed for retail, hospitality, and commercial environments to manage billing, transactions, and daily sales operations.

Is the RITY152 suitable for retail and hospitality applications?

Yes, the RITY152 is suitable for retail stores, restaurants, cafes, supermarkets, and hospitality environments requiring a reliable POS terminal.

Does the RITY152 support touchscreen operation?

Yes, the RITY152 features a touchscreen interface for fast and intuitive point-of-sale operations.

Can the RITY152 integrate with POS software?

Yes, it is compatible with standard POS software platforms used for billing, inventory management, and sales reporting.

Is the RITY152 designed for long operating hours?

Yes, it is designed for reliable continuous operation in commercial environments with extended daily usage.

What peripherals are supported by the RITY152 POS terminal?

The RITY152 supports common POS peripherals such as barcode scanners, receipt printers, cash drawers, and customer displays.

Is the RITY152 suitable for compact checkout counters?

Yes, its compact all-in-one design makes it suitable for checkout counters with limited space.

What are the benefits of using an all-in-one POS terminal?

All-in-one POS terminals reduce counter clutter, simplify installation, improve system reliability, and enhance checkout efficiency.

Can the RITY152 handle high-traffic business environments?

Yes, it is suitable for high-traffic retail and hospitality environments that require fast and stable transaction processing.

Why should businesses choose a dedicated POS terminal like the RITY152?

Dedicated POS terminals provide optimized performance, reliable peripheral integration, and efficient transaction handling compared to general-purpose systems.

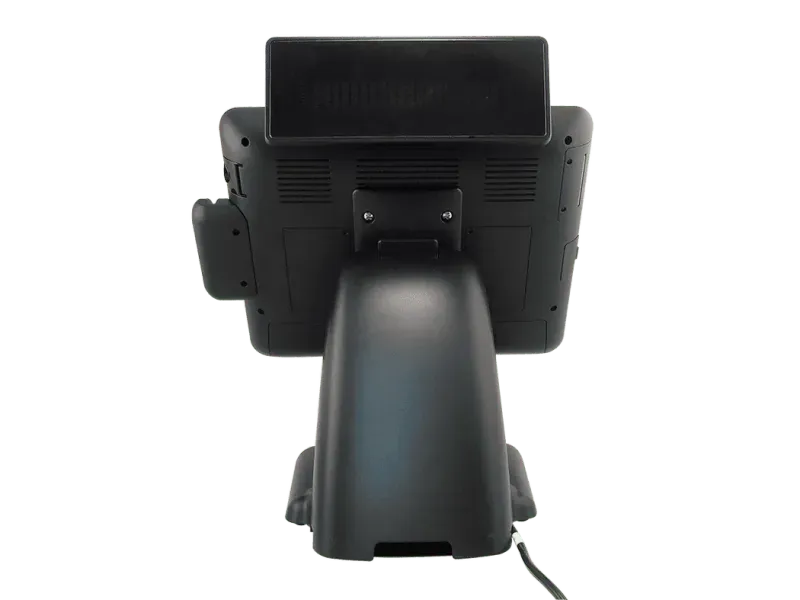

Avalue RITY152 15\" XGA Flat Touch POS Terminal with...

Product Description

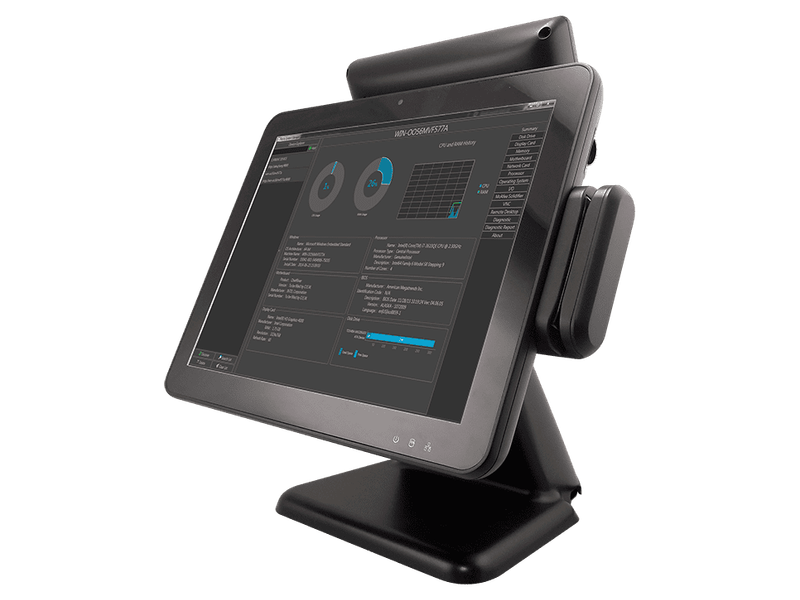

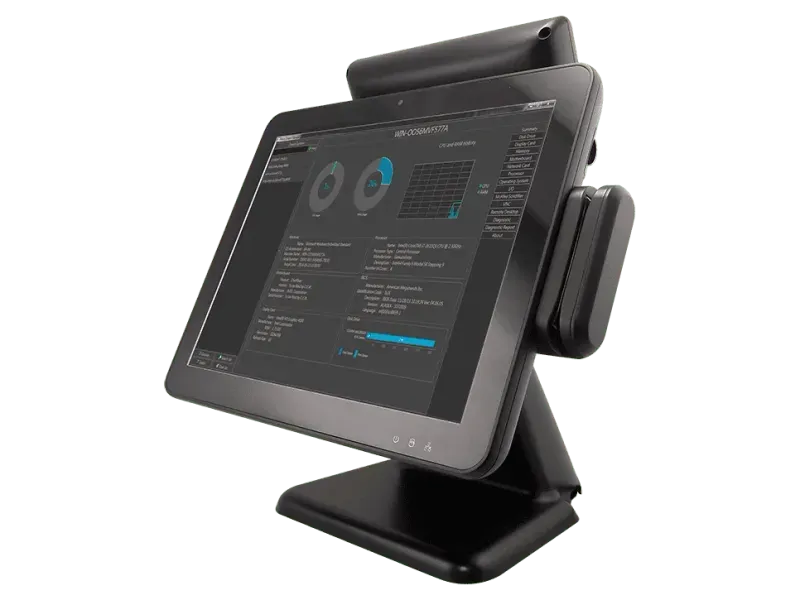

The Avalue RITY152 is a 15‑inch XGA (1024×768) flat touch panel PC designed for POS and kiosk applications. Powered by the Intel® Atom™ E3845 1.91GHz 4‑core SoC with Intel® Valleyview platform controller hub, it supports up to 8GB DDR3L 1066 MHz SO‑DIMM memory.

It provides dual display support via LVDS (1024×768) and HDMI (1920×1080), along with 3 × USB 3.0, 3 × USB 2.0, 2 × RJ‑45 LAN ports, and 2 × RS‑232/422/485 (via BIOS) + 1 × RS‑232. The system features a 2.5″ drive bay + mSATA support, fanless operation, and ±19‑24 V DC input.

Built for reliability under retail conditions, it meets vibration and shock standards (1.5 Grms, 10 Grms) and operates in 0 °C to 35 °C. It’s offered as RITY152‑0RH0300A2R and variants, and supports Windows 7, Windows 8, and POS ready configurations.

Technical Specifications

System Information

Processor

Intel® Atom™ E3845 4-Core 1.91GHz processor

Platform Controller Hub

Intel® Valleyview SoC

System Memory

1 x 204-pin DDR3L 1066MHz SO-DIMMup to 8 GB

I/O Chipset

EC ITE IT8528E

Watchdog Timer

H/W reset, 1sec. ~ 65535sec. and 1sec./step

H/W Status Monitor

Monitoring CPU & system temperature and voltage

SBC

APC-BYTPOS

Expansion

1 x Mini PCIe supports mSATA

Storage

1 x 2.5 Drive bay

1 x mSATA

Display

Graphic Chipset

Intel® Valleyview SoC integrated Graphics

Supports dual display

Spec. & Resolution

LVDS:Max. resolution 1024x768@ 60Hz

HDMI:Max. resolution 1920x1080@ 60Hz

Audio

Audio Codec

Realtek ALC888S supports 2-CH

Audio Interface

Line-out

Speaker Output

2 x 2W

Ethernet

LAN Chipset

RealTek RTL8119I-CG x2

Ethernet Interface

10/100/1000 Base-Tx GbE compatible

Power Requirement

DC Input

+19V ~ +24V

DC Input Connector

minidin 4P for DC in w/ lock type

Software Support

OS

Win 7 / Win 8 / POS ready

Certification

Certification Information

CE

FCC Class B

VCCI

External I/O

USB Port

3 x USB 3.0

3 x USB 2.0

LAN Port

2 x RJ-45

Panel

LCD Size

15\", 4:3

Display Type

XGA

Resolution

1024 x 768

Pixel pitch

16.2M

Luminance

400 cd/m2

Contrast ratio

700

Viewing angle

80(H) X 70(V)

Response time

8ms

Backlight

LED

Touch Type

5 wires resistive / PCT

Touch Light Transmission

RES 75% / PCT 90%

Touch Controller

Onboard USB touch (penmount) / USB touch (EETI)

I/O

COM Port

2 x RS-232/422/485 (BIOS)

1 x RS-232

Mechanical & Environmental

Operating Temp.

0°C ~ 35°C (32°F ~ 95°F)

Storage Temp.

-10°C ~ 60°C (14°F ~ 140°F)

Operating Humidity

0% ~ 90% Relative humidity, non-condensing

Dimension (W x L x H)

362.1 X 290.08 X 51 mm

Weight

6 Kg /with stand

Vibration Test

With SSD : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis

Shock Test

With SSD : 10Grms, IEC 60068-2-27, half sine, 11ms

Power Mode

AT/ATX (ATX is default setting)

System Fan

Fanless

Construction - Front

Black coverlens

Construction - Rear

Black

Component

Adapter

Input: 100 ~ 240Vac/ 50 ~ 60Hz

Output: 90W adapter (24V @ 3.75A adapter)

Ordering Information

RITY152-0RH0300A2R

15\" 1024 x 768 POS Terminal with Intel SoC QC E3845 1.91GHz/2G DDR3/5 Wire Resistive Touch/VGA/RJ11/3 x COM/ 6 x USB/320G HDD/90W Adapter/VESA Mount

RITY152-0RH0300A4R

15\" 1024 x 768 POS Terminal with Intel SoC QC J1900 2GHz/2G DDR3/5 Wire Resistive Touch/VGA/RJ11/3 x COM/ 6 x USB/320G HDD/90W Adapter/VESA Mount/250nits LCD

RITY152-0CH0300A2R

15\"1024 x 768 POS Terminal withIntel SoC QC E3845 1.91GHz/2G DDR3/Projective Capacitive Touch/VGA/RJ11/3 x COM/ 6 x USB/320G HDD/90W Adapter/VESA Mount

EU Power Cord E170203183DR

US Power Cord E1702031835R

JP Power Cord E17120318001R

UK Power Cord E170P060370R

What is RITY152?

The RITY152 is a panel pc / monitor / mobile manufactured by Avalue, designed specifically for pos-terminal applications. The Avalue RITY152 is a 15‑inch XGA (1024×768) flat touch panel PC designed for POS and kiosk applications. Powered by the Intel® Atom™ E3845 1.91GHz 4‑core SoC with Intel® Valleyview platform controller hub, it supports up to 8GB DDR3L 1066 MHz SO‑DIMM memory. It provides dual display support via LVDS (1024×768) and HDMI (1920×1080), along with 3 × USB 3.0, 3 × USB 2.0, 2 × RJ‑45 LAN ports, and 2 × RS‑232/422/485 (via BIOS) + 1 × RS‑232. The system features a 2.5″ drive bay + mSATA support, fanless operation, and ±19‑24 V DC input. Built for reliability under retail conditions, it meets vibration and shock standards (1.5 Grms, 10 Grms) and operates in 0 °C to 35 °C. It’s offered as RITY152‑0RH0300A2R and variants, and supports Windows 7, Windows 8, and POS ready configurations.

Key Features & Benefits

Features information coming soon.

Applications & Use Cases

The RITY152 is ideal for various industrial automation applications:

Interactive kiosk and self-service terminals
Industrial control and monitoring systems
Factory automation and process control
Retail and point-of-sale applications
Machine control and visualization
Pos and kiosk applications
SCADA and HMI applications
