What are the key features of the RiVar-1539?

The RiVar-1539 is a 15.6" Full-HD (1920x1080) all-in-one fanless POS terminal with an Intel Twin Lake N150, 8GB onboard LPDDR5, 128GB eMMC, onboard TPM 2.0, projected-capacitive touch, dual Gigabit LAN, 4x USB 3.0, 2x COM, HDMI, and an IP65 front running Windows 10/11 or Linux.

Which processor does the RiVar-1539 use?

It uses the Intel Twin Lake N150 processor with Intel UHD Graphics for efficient fanless POS performance.

How much memory and storage does the RiVar-1539 have?

8GB onboard LPDDR5 memory and 128GB onboard eMMC storage.

Is the RiVar-1539 a POS terminal or a monitor?

It is an all-in-one POS terminal — it includes the CPU, memory, storage, touch display, and retail I/O in one fanless unit.

Does the RiVar-1539 include hardware security?

Yes, it has onboard TPM 2.0 for hardware key storage and platform integrity — important for payment and retail compliance.

What display and touch does the RiVar-1539 offer?

A 15.6" 1920x1080 panel at 350 cd/m² with a 1500:1 contrast ratio and projected-capacitive touch reported over USB.

What networking does the RiVar-1539 provide?

Dual RTL8125BG Gigabit LAN, with optional 802.11ac Wi-Fi / Bluetooth 5.0 via an M.2 slot.

What I/O does the RiVar-1539 provide?

4x USB 3.0, 2x COM, 1x HDMI, and line-out audio.

Which operating systems does the RiVar-1539 support?

Windows 10, Windows 11, and Linux.

Is the RiVar-1539 suitable for spill-prone retail counters?

Yes, its IP65-rated front panel resists dust and liquid splashes, and the fanless design avoids dust intake.

What colors is the RiVar-1539 available in?

Black or white plastic front and rear.

What power input does the RiVar-1539 use?

A +24V DC input via a DC jack in ATX mode, with a 60W (24V@2.5A) adapter.

What are the RiVar-1539's dimensions and weight?

390 x 247 x 42 mm and approximately 2.5 kg.

What applications is the RiVar-1539 best suited for?

As a compact fanless all-in-one POS terminal, it suits retail checkout, hospitality, and self-service kiosk front-ends.

What are the benefits of using an all-in-one POS terminal?

All-in-one POS terminals reduce clutter, simplify installation, improve reliability, and enhance operational efficiency.

Why is a dedicated POS terminal important for businesses?

Dedicated POS terminals provide reliable performance, better integration with peripherals, and efficient transaction handling compared to general-purpose systems.

Avalue · Panel PC / Monitor / Mobile

RiVar-1539

Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

15.6" Full-HD (1920x1080) projected-capacitive touch all-in-one POS terminal, fanless
Intel Twin Lake N150 Processor
Onboard 8GB LPDDR5, 128GB eMMC
Onboard TPM 2.0
Dual RTL8125BG Gigabit LAN
4x USB 3.0, 2x COM, 1x HDMI, line-out
Optional Wi-Fi 802.11ac / BT 5.0
IP65 front panel, black or white
24V DC input, fanless; CE / FCC / UKCA / VCCI

Product Description

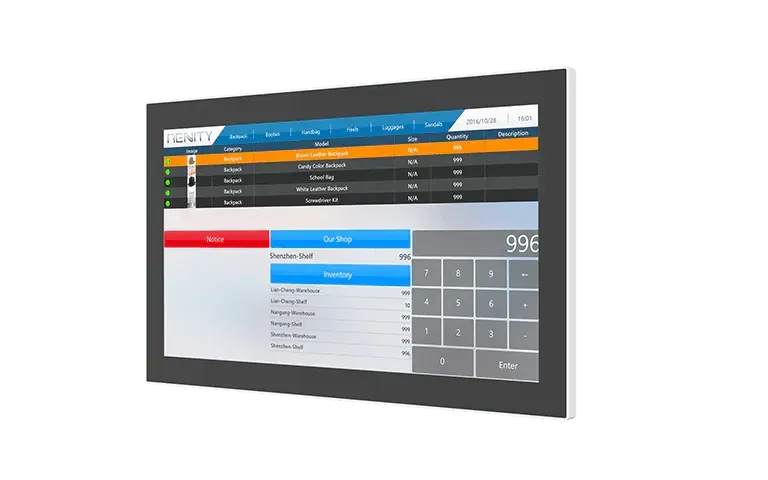

The Avalue RiVar-1539 is a 15.6" Full-HD all-in-one POS terminal powered by the Intel Twin Lake N150 processor, designed as a compact, fanless point-of-sale and self-service front-end.

With 8GB onboard LPDDR5, 128GB eMMC, onboard TPM 2.0, and an IP65 front panel, it delivers reliable retail performance in a slim plastic enclosure available in black or white.

The 1920x1080 projected-capacitive touch panel pairs with dual RTL8125BG Gigabit LAN, 4x USB 3.0, 2x COM, HDMI, line-out, and optional Wi-Fi/BT 5.0.

A 24V DC input and fanless operation make the RiVar-1539 a clean, low-maintenance POS and kiosk terminal.

Technical Specifications

Processor

Intel® Twin Lake N150 Processor

System Memory

Onboard LPDDR5 8GB

I/O Chipset

EC IT8784E

TPM

TPM 2.0

Expansion

1 x 2 slot for WiFi module (option)

Storage

Onboard 128GB eMMC

Graphic Chipset

Intel® UHD Graphics

Audio Codec

Realtek ALC897

Audio Interface

2 x 2W

LAN Chipset

2 x RJ45 Gigabit LAN RTL8125BG

DC Input

+24V

DC Input Connector

DC Jack

OS

Win 10 / Win 11/ Linux

Certification Information

CE/FCC/UKCA/VCCI

USB Port

4 x USB 3.0

Audio Port

1 x Line-out

LAN Port

2 x LAN

COM Port

2 x COM

HDMI Port

1 x HDMI

LCD Size

15.6"

Display Type

Full HD

Resolution

1920 x 1080

Pixel pitch

0.179 x 0.179

Luminance

350 cd/m2

Contrast ratio

1500

Viewing angle

89 (U), 89 (D), 89 (L), 89 (R)

Response time

25ms

Backlight

LED

Touch Type

Projective capacitive

Touch Controller

USB interface

WLAN

Option IEEE 802.11 a/b/g/n/AC

Bluetooth

Option Bluetooth 5.0

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Storage Temp.

-10°C ~ 60°C (14°F ~ 140°F)

Dimension (W x L x H)

390 x 247 x 42mm

Weight

2.5 Kg

Vibration Test

1.5 Grms, IEC 60068-2-64, random, 5~500Hz, 30min/axis

Shock Test

10 Grms, IEC60068-2-27, half sine, 11ms

IP Rating

IP65 for front panel

Power Mode

ATX

System Fan

Fanless

Construction - Front

Black/white

Construction - Rear

Black/white

Construction

Plastic

Adapter

Input: 100 ~ 240Vac/ 50 ~ 60Hz

Output: 60W adapter (24V @2.5A)

Ordering Information

EU Power Cord E1702031000R, US Power Cord E1702031833R, JP Power Cord E1702031834R, UK Power Cord E170P060380R

What is RiVar-1539?

The RiVar-1539 is a panel pc / monitor / mobile manufactured by Avalue, designed specifically for pos-terminal applications. The Avalue RiVar-1539 is a 15.6" Full-HD all-in-one POS terminal powered by the Intel Twin Lake N150 processor, designed as a compact, fanless point-of-sale and self-service front-end. With 8GB onboard LPDDR5, 128GB eMMC, onboard TPM 2.0, and an IP65 front panel, it delivers reliable retail performance in a slim plastic enclosure available in black or white. The 1920x1080 projected-capacitive touch panel pairs with dual RTL8125BG Gigabit LAN, 4x USB 3.0, 2x COM, HDMI, line-out, and optional Wi-Fi/BT 5.0. A 24V DC input and fanless operation make the RiVar-1539 a clean, low-maintenance POS and kiosk terminal.

Key Features & Benefits

15.6" Full-HD (1920x1080) projected-capacitive touch all-in-one POS terminal, fanless
Intel Twin Lake N150 Processor
Onboard 8GB LPDDR5, 128GB eMMC
Onboard TPM 2.0
Dual RTL8125BG Gigabit LAN
4x USB 3.0, 2x COM, 1x HDMI, line-out
Optional Wi-Fi 802.11ac / BT 5.0
IP65 front panel, black or white
24V DC input, fanless; CE / FCC / UKCA / VCCI

Applications & Use Cases

The RiVar-1539 is ideal for various industrial automation applications:

Harsh industrial environments requiring dust and water protection
Dust-sensitive environments and silent operation requirements
DC-powered industrial installations and mobile applications
Wireless connectivity and remote monitoring applications
High-performance computing and data processing tasks
Networked industrial systems and data communication
Interactive control interfaces and operator panels
Peripheral device connectivity and data transfer
