RiVar-1539

Series: RiVar

Manufactured byAvalue

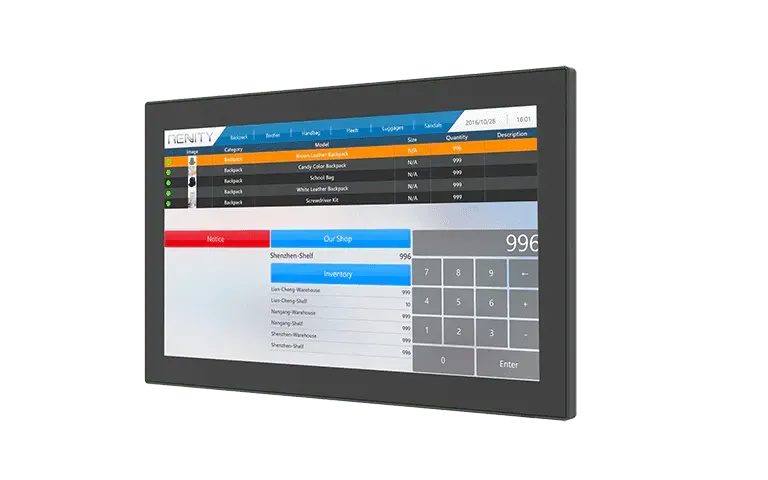

The Avalue RiVar-1539 is a 15.6" Full-HD all-in-one POS terminal powered by the Intel Twin Lake N150 processor, designed as a compact, fanless point-of-sale and self-service front-end. With 8GB onboard LPDDR5, 128GB eMMC, onboard TPM 2.0, and an IP65 front panel, it delivers reliable retail performance in a slim plastic enclosure available in black or white. The 1920x1080 projected-capacitive touch panel pairs with dual RTL8125BG Gigabit LAN, 4x USB 3.0, 2x COM, HDMI, line-out, and optional Wi-Fi/BT 5.0. A 24V DC input and fanless operation make the RiVar-1539 a clean, low-maintenance POS and kiosk terminal.

Key Features

15.6" Full-HD (1920x1080) projected-capacitive touch all-in-one POS terminal, fanless
Intel Twin Lake N150 Processor
Onboard 8GB LPDDR5, 128GB eMMC
Onboard TPM 2.0
Dual RTL8125BG Gigabit LAN
4x USB 3.0, 2x COM, 1x HDMI, line-out
Optional Wi-Fi 802.11ac / BT 5.0
IP65 front panel, black or white
24V DC input, fanless; CE / FCC / UKCA / VCCI

Technical Specifications

System Information

Processor	Intel® Twin Lake N150 Processor
System Memory	Onboard LPDDR5 8GB
I/O Chipset	EC IT8784E
TPM	TPM 2.0

Expansion

Expansion	1 x 2 slot for WiFi module (option)

Storage

Storage	Onboard 128GB eMMC

Display

Graphic Chipset	Intel® UHD Graphics

Audio

Audio Codec	Realtek ALC897
Audio Interface	2 x 2W

Ethernet

LAN Chipset	2 x RJ45 Gigabit LAN RTL8125BG

Power Requirement

DC Input	+24V
DC Input Connector	DC Jack

Software Support

OS	Win 10 / Win 11/ Linux

Certification

Certification Information	CE/FCC/UKCA/VCCI

External I/O

USB Port	4 x USB 3.0
Audio Port	1 x Line-out
LAN Port	2 x LAN
COM Port	2 x COM
HDMI Port	1 x HDMI

Panel

LCD Size	15.6"
Display Type	Full HD
Resolution	1920 x 1080
Pixel pitch	0.179 x 0.179
Luminance	350 cd/m2
Contrast ratio	1500
Viewing angle	89 (U), 89 (D), 89 (L), 89 (R)
Response time	25ms
Backlight	LED
Touch Type	Projective capacitive
Touch Controller	USB interface

Wireless Communication

WLAN	Option IEEE 802.11 a/b/g/n/AC
Bluetooth	Option Bluetooth 5.0

Mechanical & Environmental

Operating Temp.	0°C ~ 40°C (32°F ~ 104°F)
Storage Temp.	-10°C ~ 60°C (14°F ~ 140°F)
Dimension (W x L x H)	390 x 247 x 42mm
Weight	2.5 Kg
Vibration Test	1.5 Grms, IEC 60068-2-64, random, 5~500Hz, 30min/axis
Shock Test	10 Grms, IEC60068-2-27, half sine, 11ms
IP Rating	IP65 for front panel
Power Mode	ATX
System Fan	Fanless
Construction - Front	Black/white
Construction - Rear	Black/white
Construction	Plastic

Component

Adapter	Input: 100 ~ 240Vac/ 50 ~ 60Hz, Output: 60W adapter (24V @2.5A)

Ordering Information

Ordering Information	EU Power Cord E1702031000R, US Power Cord E1702031833R, JP Power Cord E1702031834R, UK Power Cord E170P060380R
