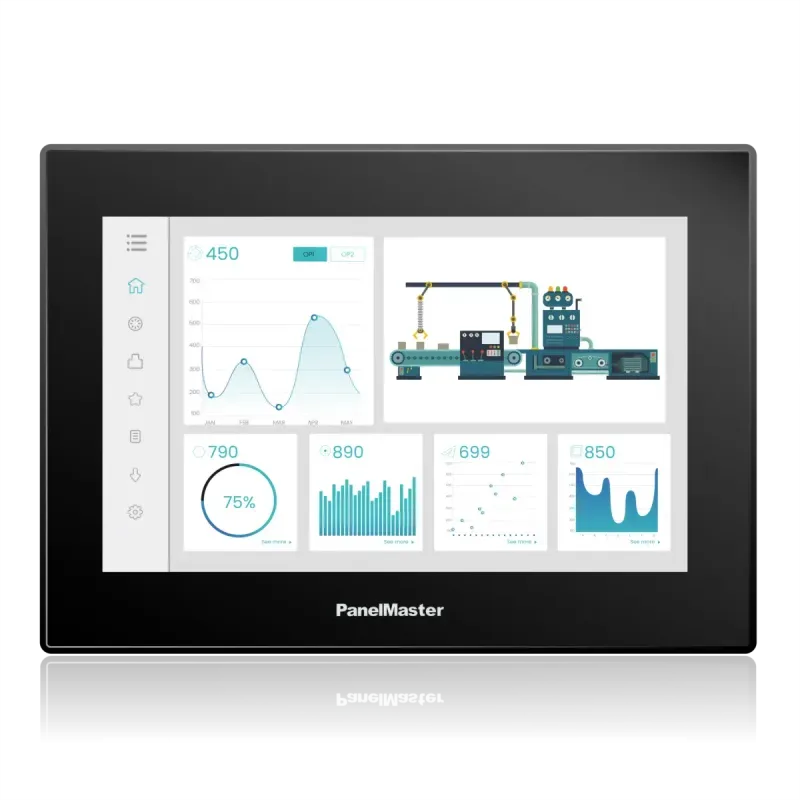

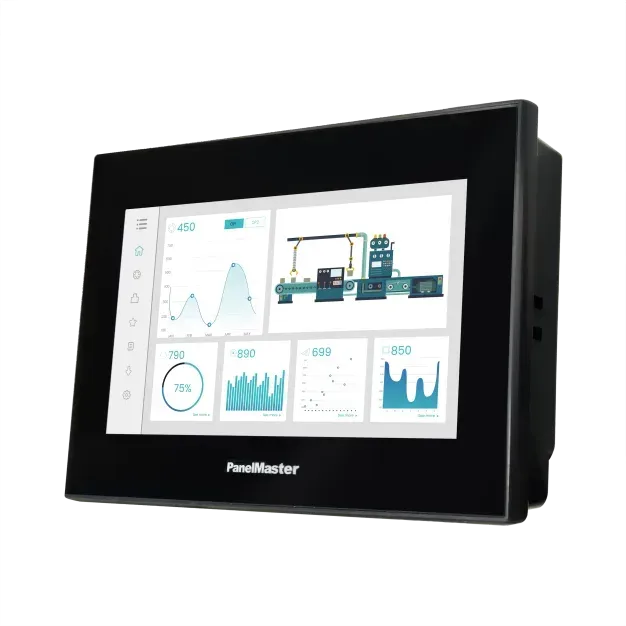

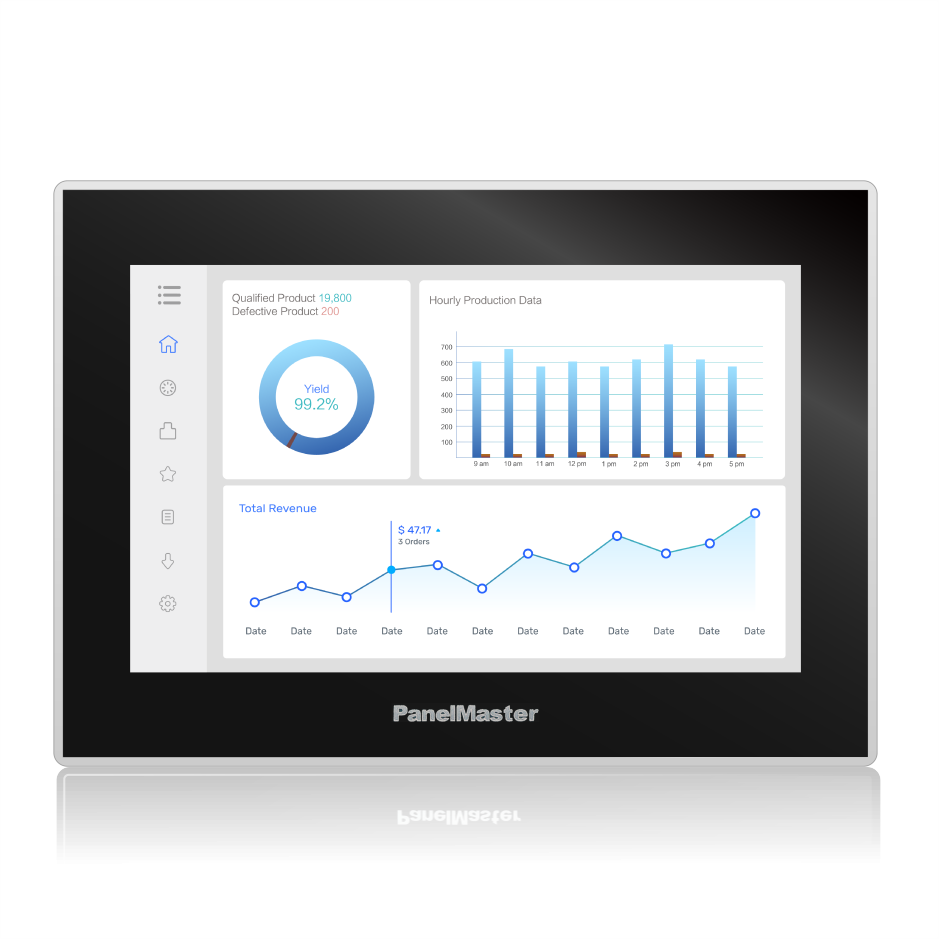

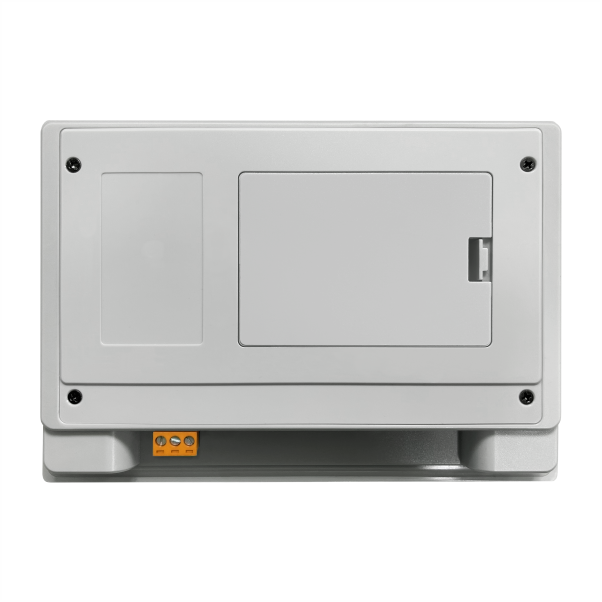

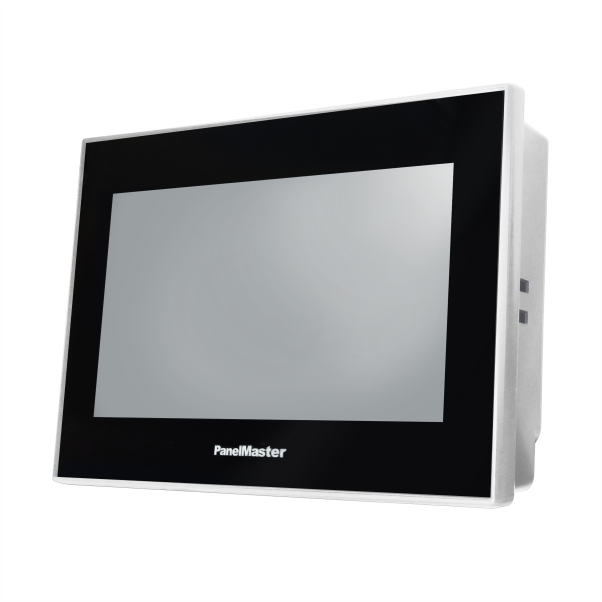

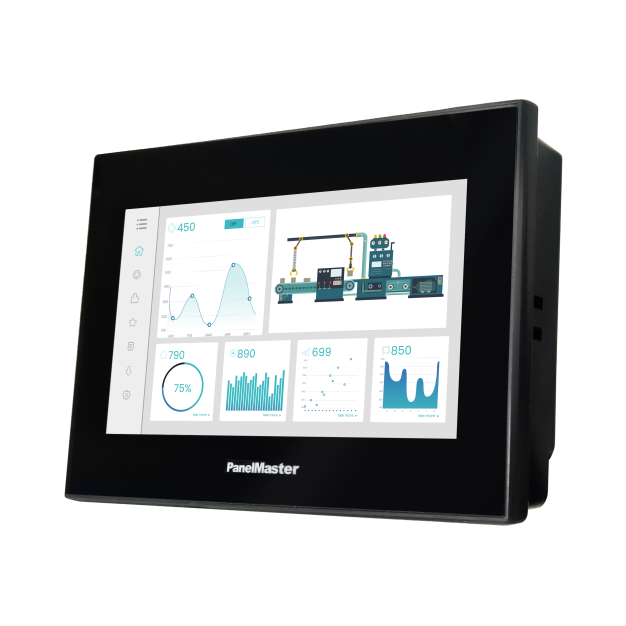

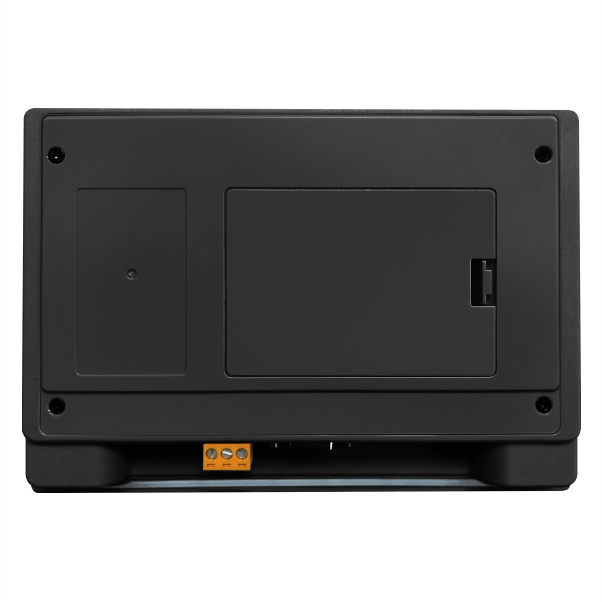

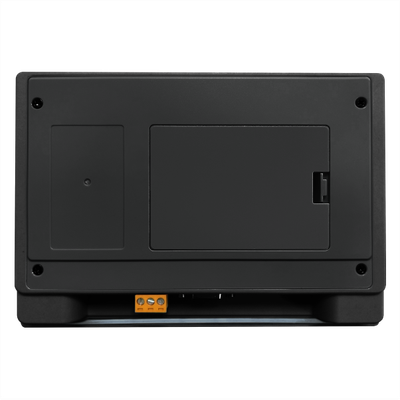

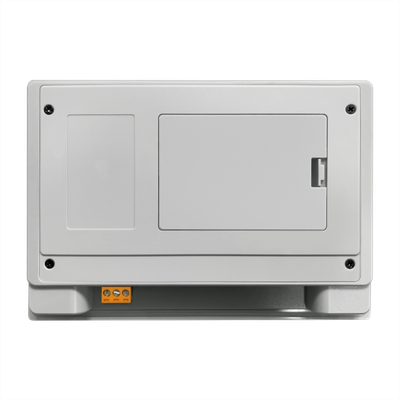

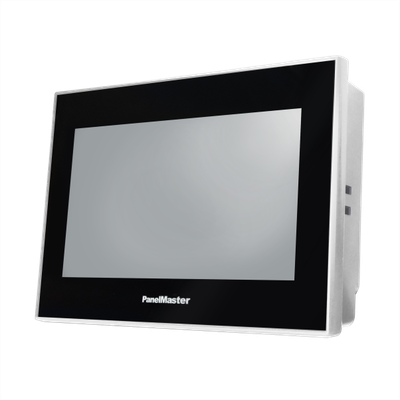

IPM207

*Price on request. Contact us for a quote.

Manufacturer: Cermate

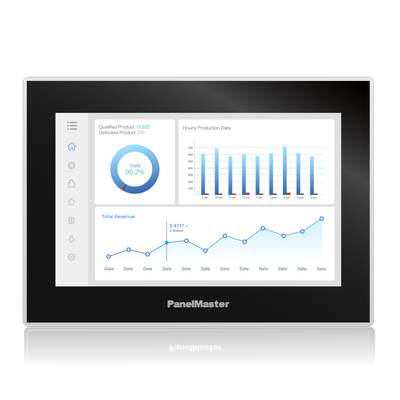

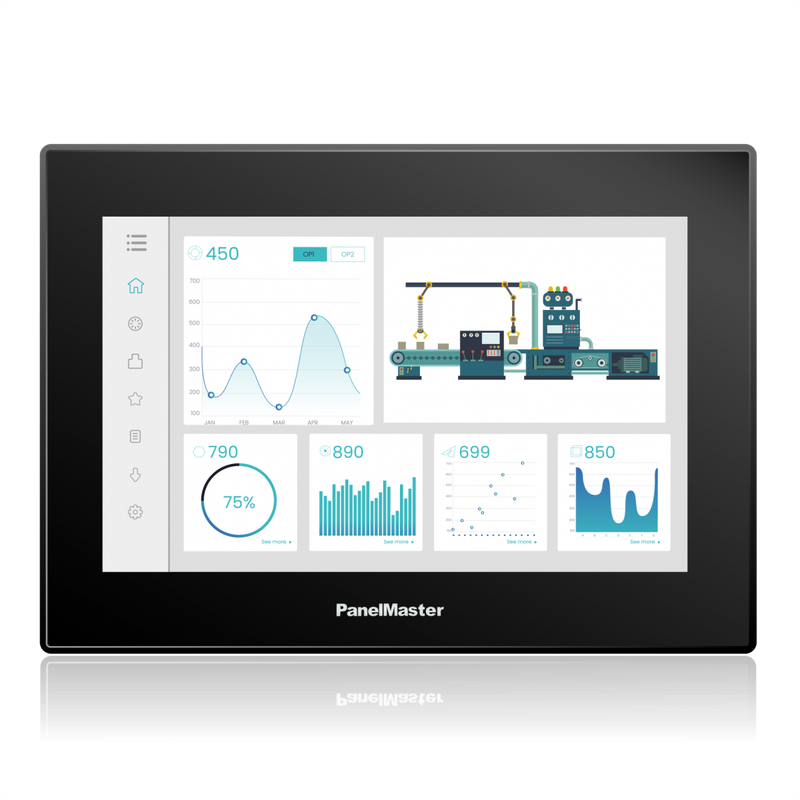

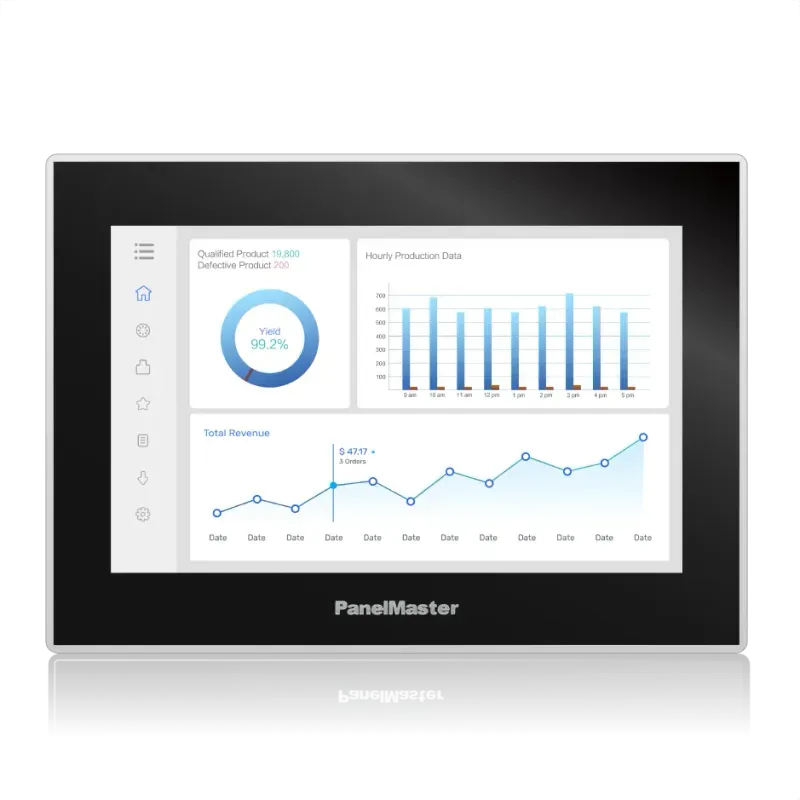

[RTOS] 7" High definition (1024x600)、True color(16.7M)LCD Screen

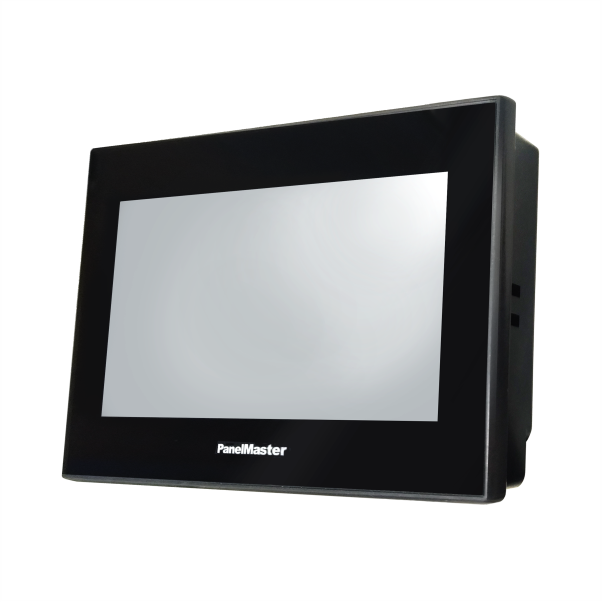

Compact fuselage, formality black flat panel
Equipped with high-definition high definition LCD screen and ultra-wide vision angle
Ergonomic design, streamlined frame design, front aluminum frame customization service
IP65 standard waterproof and dustproof protection, suitable for various operating spaces and environments
Patented fasteners, tool-free quick installation
Equipped with multi-interface, data transmission is faster and more secure
Support IoT communication protocol MQTT
Support PLC remote penetration
Support automatic data exchange
Support Inter-Device Connection Service (IDCS)
Support PLC channel setting software (tManager)

Product Description

A 7" TFT-LCD HMI panel featuring a 1024x600 resolution and 16.7M true color display. It includes an ARM9 32-bit RISC CPU, multiple communication interfaces (USB, RS232, RS422/485, Ethernet), and is IP65 rated for water and dust resistance.

Designed for industrial environments, it supports IoT protocols like MQTT, PLC remote penetration, and extensive programming with PM Designer v4.0 software. The panel offers robust and secure data transmission, ergonomic design, and easy installation.

Technical Specifications

LCD Display

Size

Max. Resolution

1024 x 600

Type

TFT LCD with LED Backlight

Chromatic Number

16.7M

Backlight (hr)

About 20,000

Luminance (cd/m2)

350 cd/m2

Touch Panel

4-wire Resistive Type

CPU & Memory

CPU

RISC ARM9 32Bit

BKRAM

Standard: NAND Flash 128KB / Optional: MRAM 128KB

Working Memory

128MB DRAM

Application Memory

40MB

Real-Time Clock (RTC)

YES (External unchargeable battery type,1 year battery life)

Max. Programming Pages

7999 Pages

Max. Macro Commands

Unlimited

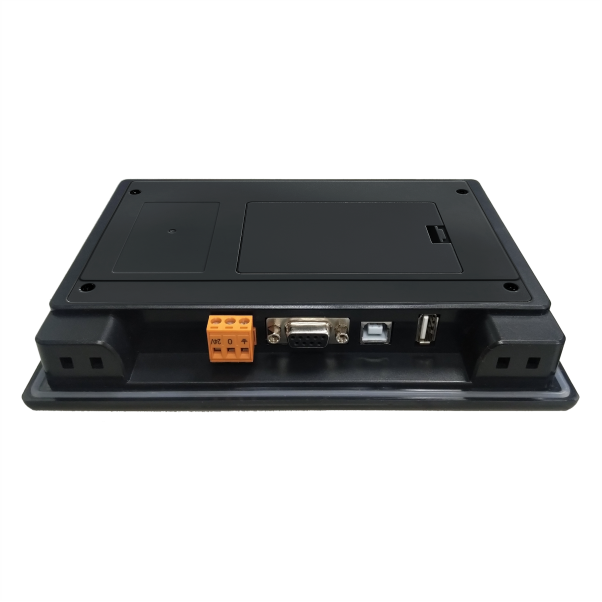

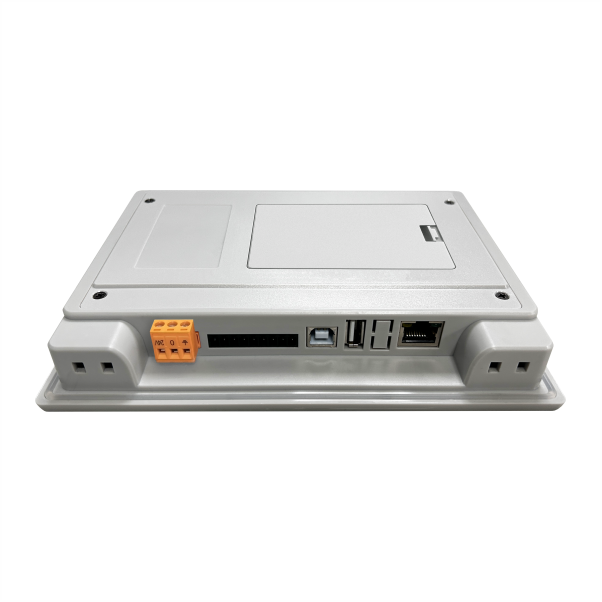

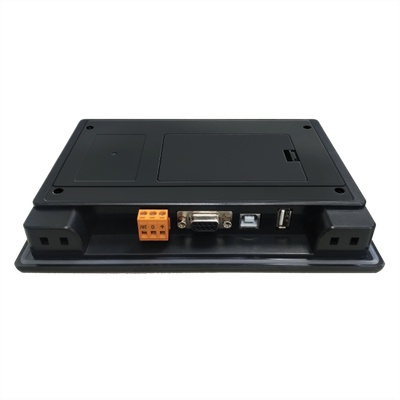

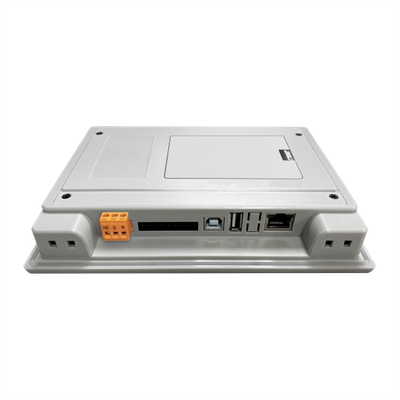

Communication Interface

USB Host

YES (USB2.0)

USB Client

YES (USB2.0)

COM1

RS232 (9Pin Terminal)

COM2

RS422/485 (9Pin Terminal)

COM3

N/A (*Optional: RS232 or RS485 or CANBus)

Ethernet

YES (10/100Mbps)

Power

Supply Voltage

24VDC±10% (Isolated)

External Battery Port

YES (Battery type: CR2032H 3V 240mA)

Consumption

20W

Environment

Operating Temperature

-10°C~60°C

Relative Humidity

10%~90%

Shock (operation)

Half sine, 20G, 11ms duration

Vibration (operation)

Random vibration 1 Grms (5~500 Hz)

EMI

FCC Part 15 Class A

CE

EN61000-6-2, EN61000-6-4

Ingress Protection

IP65 (Use screw-free lock, the thickness of the plate needs to be ≧ 2~3mm)

Cooling

Natural Cooling

Mechanism Spec.

Dimension WxHxD (mm)

197mm x 140.1mm x 25.7mm

Cutout Dimension AxB (mm)

185mm × 128mm

Net Weight (g)

409±10 (g)

Software

Software Version

PM Designer v4.0

Connection Service

IDCS (Inter-Device Connection Service)

Transparent Service

tManager

OPC Server/MQTT

YES

What is IPM207?

The IPM207 is a hmi - human machine interface manufactured by Cermate, designed specifically for human-machine-interface applications. A 7" TFT-LCD HMI panel featuring a 1024x600 resolution and 16.7M true color display. It includes an ARM9 32-bit RISC CPU, multiple communication interfaces (USB, RS232, RS422/485, Ethernet), and is IP65 rated for water and dust resistance. Designed for industrial environments, it supports IoT protocols like MQTT, PLC remote penetration, and extensive programming with PM Designer v4.0 software. The panel offers robust and secure data transmission, ergonomic design, and easy installation.

Key Features & Benefits

[RTOS] 7" High definition (1024x600)、True color(16.7M)LCD Screen
Compact fuselage, formality black flat panel
Equipped with high-definition high definition LCD screen and ultra-wide vision angle
Ergonomic design, streamlined frame design, front aluminum frame customization service
IP65 standard waterproof and dustproof protection, suitable for various operating spaces and environments
Patented fasteners, tool-free quick installation
Equipped with multi-interface, data transmission is faster and more secure
Support IoT communication protocol MQTT
Support PLC remote penetration
Support automatic data exchange
Support Inter-Device Connection Service (IDCS)
Support PLC channel setting software (tManager)

Applications & Use Cases

The IPM207 is ideal for various industrial automation applications:

Harsh industrial environments requiring dust and water protection
DC-powered industrial installations and mobile applications
Human-machine interface for industrial automation
Memory-intensive applications and multitasking
PLC integration and programmable logic control
Manufacturing process control and monitoring
Internet of Things (IoT) and edge computing
Visual monitoring and data display systems
