Cermate IPM210 10.1" HMI: IP65 Industrial Operator Panel with IoT Connectivity

A rugged 10.1" industrial HMI

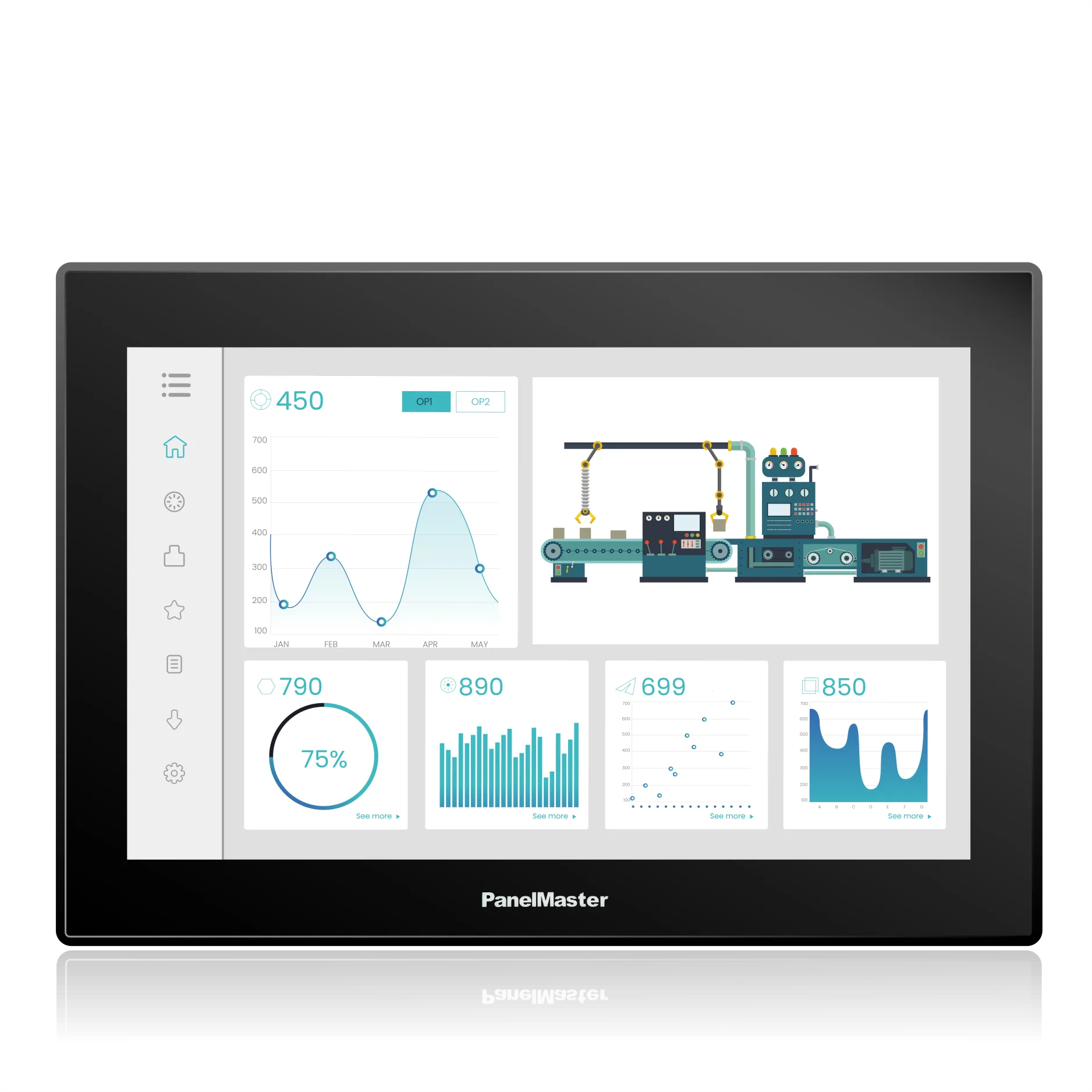

The Cermate IPM210 is a 10.1-inch human-machine interface panel built for industrial operator stations. It uses a 1024 x 600 TFT-LCD with true 16.7M colour and an ultra-wide viewing angle, housed in a compact flat black panel with a streamlined front aluminium frame (customisation available).

Built for the plant floor

The IPM210 carries an IP65 rating for water and dust resistance, making it suitable for a wide range of operating environments. Patented fasteners allow tool-free quick installation, and the ergonomic, slim-frame design fits cleanly into machine and cabinet cut-outs.

Connectivity and IoT

It is powered by an ARM9 32-bit RISC CPU and provides multiple communication interfaces — USB, RS-232, RS-422/485 and Ethernet — for fast, secure data transmission. The IPM210 supports the MQTT IoT protocol, PLC remote penetration and automatic data exchange, so it integrates into modern connected-factory architectures as both an operator panel and a data node.

Software and remote management

The IPM210 is programmed with Cermate's PM Designer v4.0 and supports an ecosystem of management tools: Inter-Device Connection Service (IDCS), the tManager PLC channel-setting software, the HIH mobile remote-monitoring app, and the PanelVision multi-window monitoring system — giving engineers flexible local and remote visibility of the line.

Availability

TSL Automation Solutions supplies Cermate worldwide. The Cermate IPM210 is listed on our site with full specifications. Contact our team for pricing, lead time and application support.
