It is a COM Express Type 6 module (125 x 95 mm) built on Intel Core Ultra U/H Series processors, with dual DDR5 6400/5600MHz SO-DIMM up to 96GB and onboard Nuvoton TPM 2.0 — an AI-capable, upgrade-ready compute core.

What is COM Express Type 6?

A PICMG COM.0 module standard exposing PCIe, USB, SATA and digital displays through a defined pin-out, so the CPU can be reused and upgraded on a custom carrier board.

Which processors does the ESM-ARL support?

Intel Core Ultra U-Series (15W) and H-Series (28W) processors with an integrated NPU for AI acceleration.

How much memory does the ESM-ARL support?

Two 262-pin DDR5 6400/5600MHz SO-DIMM sockets up to 96GB.

Does the ESM-ARL support AI workloads?

Yes — the Intel Core Ultra SoC integrates an NPU for on-device AI inferencing alongside Xe LPG graphics.

How many displays can the ESM-ARL drive?

Quad simultaneous independent displays via up to 3x DDI (HDMI 2.1 4096x2304@60Hz or DP 1.4 8K30) plus LVDS or eDP.

Does the ESM-ARL support USB4?

Yes, up to 2x USB4 ports (co-lay with DDI, in place of DDI1/DDI2), plus 4x USB3.2 Gen2 and 8x USB2.0.

What PCIe expansion does the ESM-ARL offer?

PCIe Gen4 lanes that differ by SKU — H-series: 1x x8 + 2x x4; U-series: 3x x4 — plus configurable x1/x2/x4 lanes; NVMe is optional.

Does the ESM-ARL include hardware security?

Yes, an onboard Nuvoton NPCT760 TPM 2.0 with an Infineon SLB9670 co-lay option.

What networking does the ESM-ARL have?

One Intel i226 2.5 Gigabit Ethernet controller.

What is the operating temperature range of the ESM-ARL?

Standard 0°C ~ 60°C operating, -40°C ~ 75°C storage.

What is the form factor of the ESM-ARL?

COM Express Type 6, 125 x 95 mm.

What applications is the ESM-ARL best suited for?

AI-capable high-performance embedded and edge systems — machine vision, medical imaging, autonomous machines — needing an upgrade-ready Core Ultra Type 6 compute core.

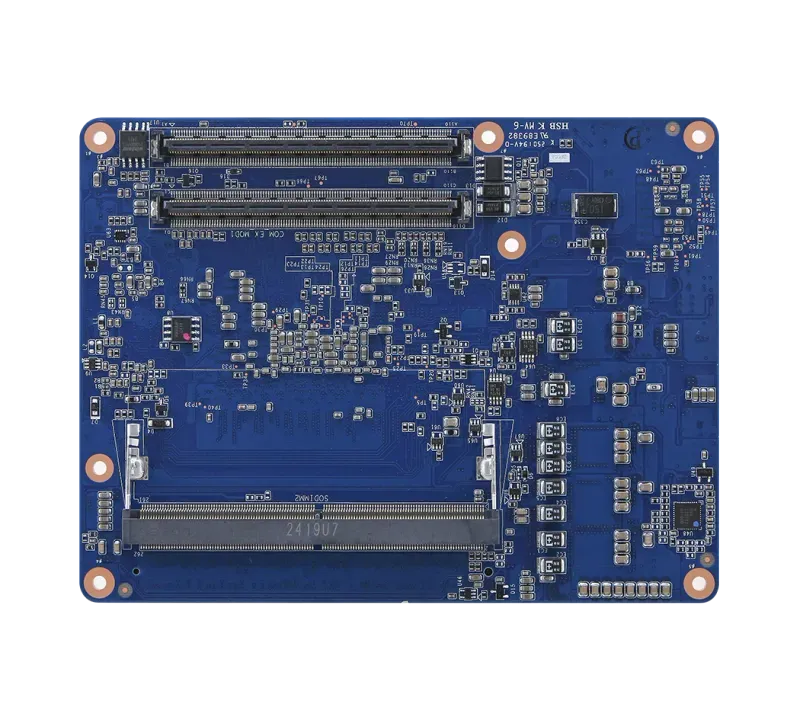

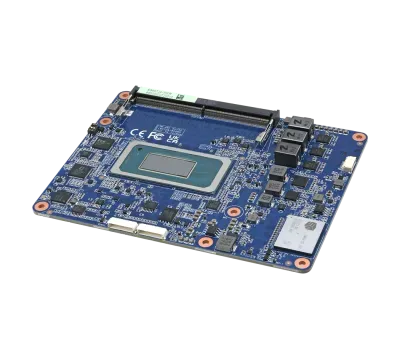

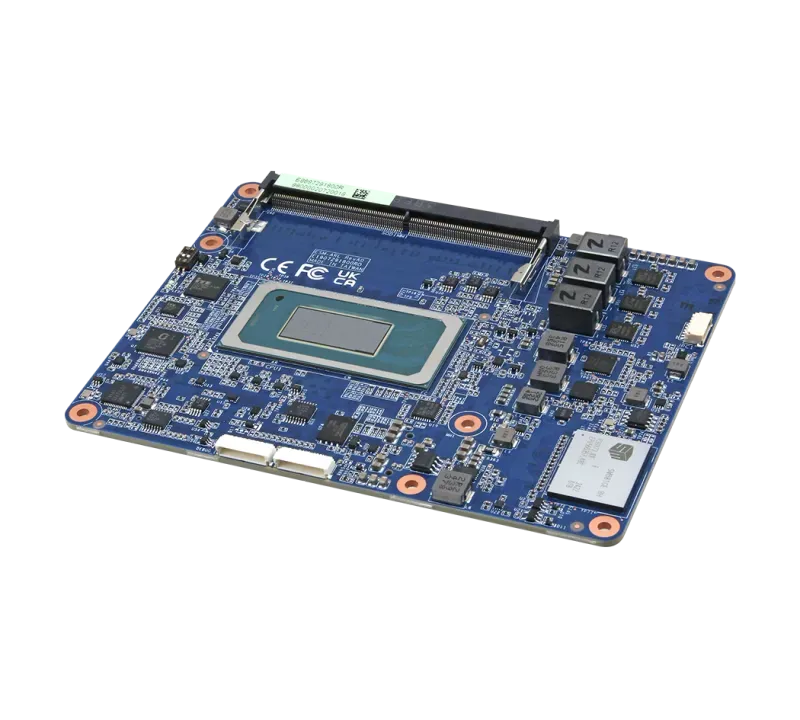

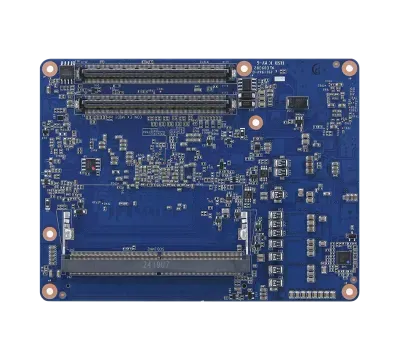

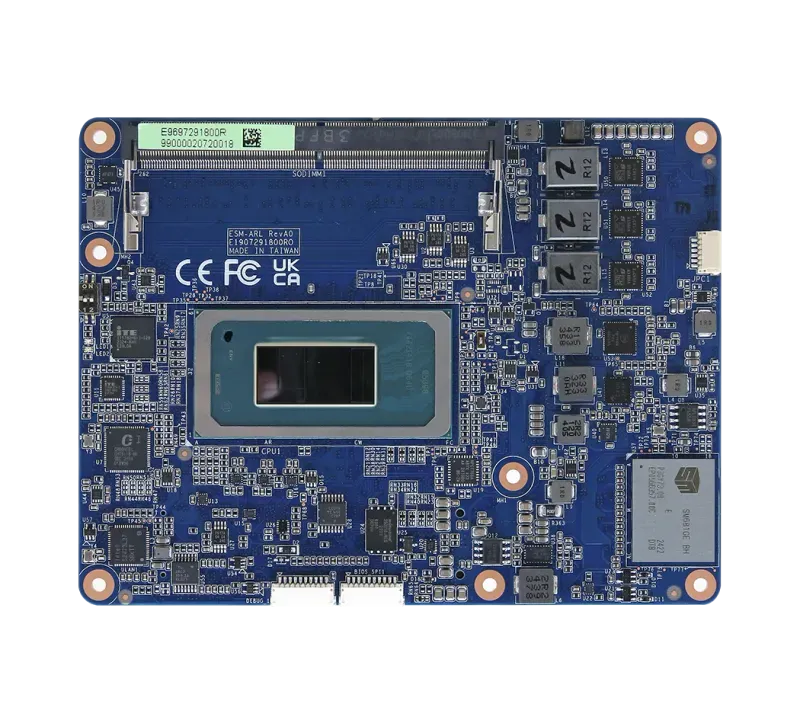

Avalue · Computer-on-Module

ESM-ARL

Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

COM Express Type 6 module (125 x 95 mm)
Intel Core Ultra U/H Series processors (TDP 28W/15W)
2 x 262-pin DDR5 6400/5600MHz SO-DIMM up to 96GB
Onboard Nuvoton NPCT760 TPM 2.0 (Infineon SLB9670 co-lay)
Intel Xe LPG graphics, quad independent display (HDMI 2.1 / DP 1.4 / LVDS / eDP)
PCIe Gen4 expansion, optional NVMe, optional USB4
Intel i226 2.5GbE, 4x USB3.2 Gen2 + 8x USB2.0, 2x SATA III
Standard 0~60°C operating
Windows 11 / Ubuntu 24.04; CE, FCC, RoHS

Product Description

The Avalue ESM-ARL is a COM Express Type 6 module (125 x 95 mm) built on Intel Core Ultra U/H Series processors (Arrow Lake/Meteor Lake class, 15W/28W), designed as a high-performance, AI-capable, upgrade-ready compute core for advanced embedded and edge designs.

With dual DDR5 6400/5600MHz SO-DIMM (up to 96GB), onboard Nuvoton TPM 2.0 (Infineon co-lay), and PCIe Gen4 expansion, it delivers modern x86 + NPU performance through the standardised Type 6 pin-out.

It offers Intel Xe LPG graphics with quad simultaneous independent display (3x DDI HDMI 2.1/DP 1.4, LVDS/eDP), optional USB4, 4x USB3.2 Gen2 + 8x USB2.0, 2x SATA III, Intel i226 2.5GbE, and a wide +9~19V input over 0~60°C, running Windows 11 or Ubuntu 24.04.

Technical Specifications

Processor

Intel® Core™ Ultra Processor U/H Series (TDP 28W/15W)

System Memory

2 x 262-Pin DDR5 6400/5600MHz SO-DIMM Up to 96GB

I/O Chipset

EC ITE IT5782VG-I-128/BX

Watchdog Timer

65536 level, 0 ~ 65535 sec

BIOS

AMI 256Mb UEFI BIOS, 256Mbit SPI Flash ROM

H/W Status Monitor

Monitoring CPU Temperature, Voltage with Auto Throttling Control

TPM

Onboard NuvoTon NPCT760AABYX support TPM 2.0, co-lay Infineon SLB9670VQ2.0 FW7.85

Expansion

PEG (H series): 1 x PCIe x8 Gen4, 2 x PCIe x4 Gen4

Note:

NVMe share with 1 x PCIe x4

PEG (U series): 3 x PCIe x4 Gen4

Note:

1. NVMe share with 1 x PCIe x4

2. PEG [3:0] from SoC

1 x PCIe x1 Gen4, 1 x PCIe x4 Gen 4 (configurable x1, x2, or x4)

It is recommended to use Discrete Graphics or Storage Devices on PEG PCIe (came from IOE).

Storage

1 x NVMe (Option)

Graphic Chipset

Intel® Xe LPG

Spec. & Resolution

DDI (HDMI/Display Port):

Up to 3 x DDI Port Support Configurable HDMI/DisplayPort

-HDMI 2.1: 4096 x 2304 @ 60Hz

-DisplayPort 1.4: 8K30

LCD (LVDS/eDP):

1 x LVDS (via CH7511B eDP-to-LVDS): 1920x1200 @60Hz (Default); or 1 x eDP 1.4b(By BOM Optional): Max 4K

Multiple Display

Quad Simultaneous Independent Display

LVDS

1 x LVDS (via CH7511B eDP-to-LVDS): 1920x1200 @60Hz

DDI

Up to 3 x DDI Port Support Configurable HDMI/DisplayPort

-HDMI 2.1: 4096 x 2304 @ 60Hz

-DisplayPort 1.4: 8K30

Audio Codec

Intel® HD Audio integrated in SoC

LAN Chipset

1 x Intel® i226 2.5G Gigabit Controller

Ethernet Interface

10/100/1000/2500 Base-Tx GbE compatible

OS

Windows 11, Ubuntu 24.04

Certification Information

CE, FCC Class, RoHS Compliant

USB

USB4: Up to 2 ports, Co-lay with DDI and in place of DDI1 & DDI2

USB3.2 (Gen2): 4 Ports (10 Gbps)

USB2.0: 8 Ports (480 Mbps)

COM Port

2 x UART (RX/TX Only)

SATA

2 x SATAIII (6.0Gb/s)

DIO

8 bit GPIO from EC

MIO

1 x SMBus

1 x LPC (via eSPI-to-LPC bridge IC ITE_IT8883FN)

1 x I2C

1 x SPI

Operating Temp.

Standard 0°C ~ 60°C (32°F ~ 140°F)

Storage Temp.

-40°C ~ 75°C (-40°F ~ 167°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

0.226lbs (0.101Kg) without NvMe

0.227lbs (0.103Kg) with NvMe

Power Requirement

+9V~+19V

Power Mode

AT/ATX

Dimension (L x W)

4.92" x 3.74" (125*95 mm)

Ordering Information

ESM-ARL-255U-A1R Intel® COM Express Module Type 6 on board Core™ Ultra 7 255U CPU, 15W/ 0℃~60℃, ESM-ARL-225U-A1R Intel® COM Express Module Type 6 on board Core™ Ultra 5 225U CPU, 15W/ 0℃~60℃, ESM-ARL-255H-A1R Intel® COM Express Module Type 6 on board Core™ Ultra 7 255H CPU, 28W/ 0℃~60℃, ESM-ARL-225H-A1R Intel® COM Express Module Type 6 on board Core™ Ultra 5 225H CPU, 28W/ 0℃~60℃, ACC-ESMARL-CL-1R Cooler for ESM-ARL W/FAN H=54.5mm P-28W / 0℃~60℃, ACC-ESMARL-SK-1R Heatsink for ESM-ARL H=30mm P-15W / 0℃~60℃, ACC-ESMARL-SD-1R Heatspreader for ESM-ARL H=11mm

What is ESM-ARL?

The ESM-ARL is a computer-on-module manufactured by Avalue, designed specifically for com-express-type-6 applications. The Avalue ESM-ARL is a COM Express Type 6 module (125 x 95 mm) built on Intel Core Ultra U/H Series processors (Arrow Lake/Meteor Lake class, 15W/28W), designed as a high-performance, AI-capable, upgrade-ready compute core for advanced embedded and edge designs. With dual DDR5 6400/5600MHz SO-DIMM (up to 96GB), onboard Nuvoton TPM 2.0 (Infineon co-lay), and PCIe Gen4 expansion, it delivers modern x86 + NPU performance through the standardised Type 6 pin-out. It offers Intel Xe LPG graphics with quad simultaneous independent display (3x DDI HDMI 2.1/DP 1.4, LVDS/eDP), optional USB4, 4x USB3.2 Gen2 + 8x USB2.0, 2x SATA III, Intel i226 2.5GbE, and a wide +9~19V input over 0~60°C, running Windows 11 or Ubuntu 24.04.

Key Features & Benefits

COM Express Type 6 module (125 x 95 mm)
Intel Core Ultra U/H Series processors (TDP 28W/15W)
2 x 262-pin DDR5 6400/5600MHz SO-DIMM up to 96GB
Onboard Nuvoton NPCT760 TPM 2.0 (Infineon SLB9670 co-lay)
Intel Xe LPG graphics, quad independent display (HDMI 2.1 / DP 1.4 / LVDS / eDP)
PCIe Gen4 expansion, optional NVMe, optional USB4
Intel i226 2.5GbE, 4x USB3.2 Gen2 + 8x USB2.0, 2x SATA III
Standard 0~60°C operating
Windows 11 / Ubuntu 24.04; CE, FCC, RoHS

Applications & Use Cases

The ESM-ARL is ideal for various industrial automation applications:

Extreme temperature environments and outdoor installations
High-performance computing and data processing tasks
Peripheral device connectivity and data transfer
Memory-intensive applications and multitasking
Visual monitoring and data display systems
Industrial automation and control
Manufacturing process monitoring
Quality assurance and inspection
