Avalue · Computer-on-Module

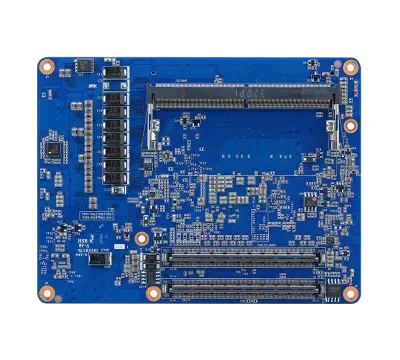

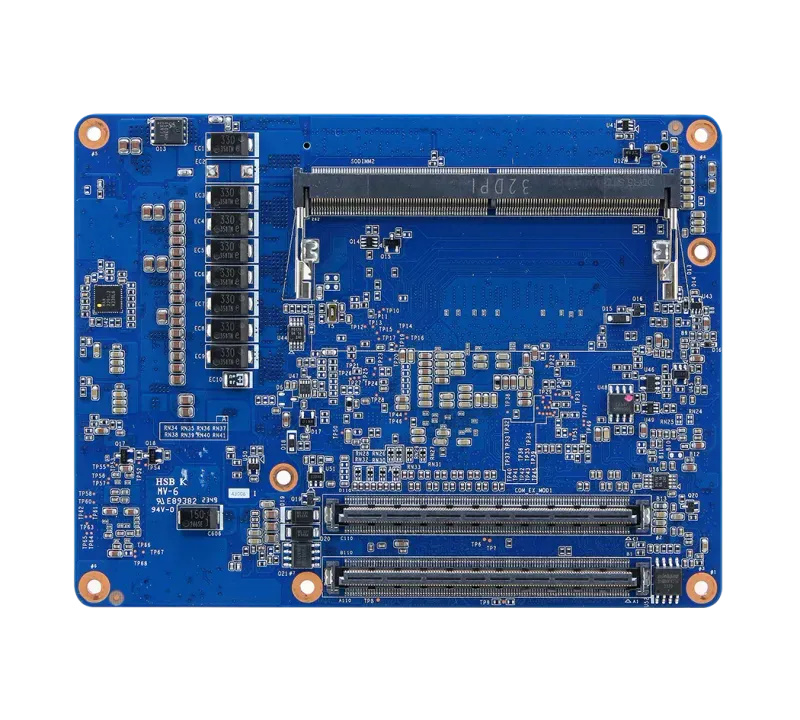

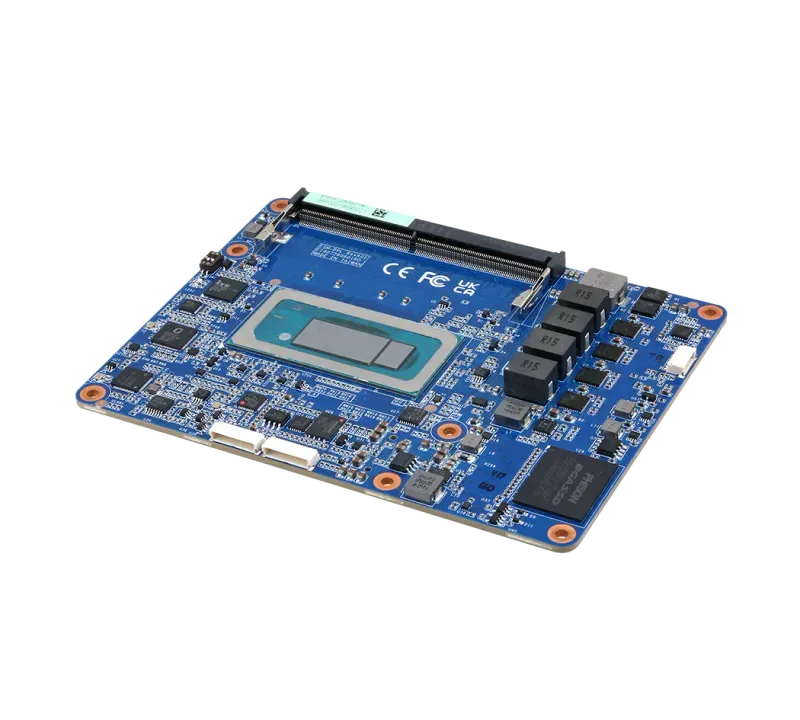

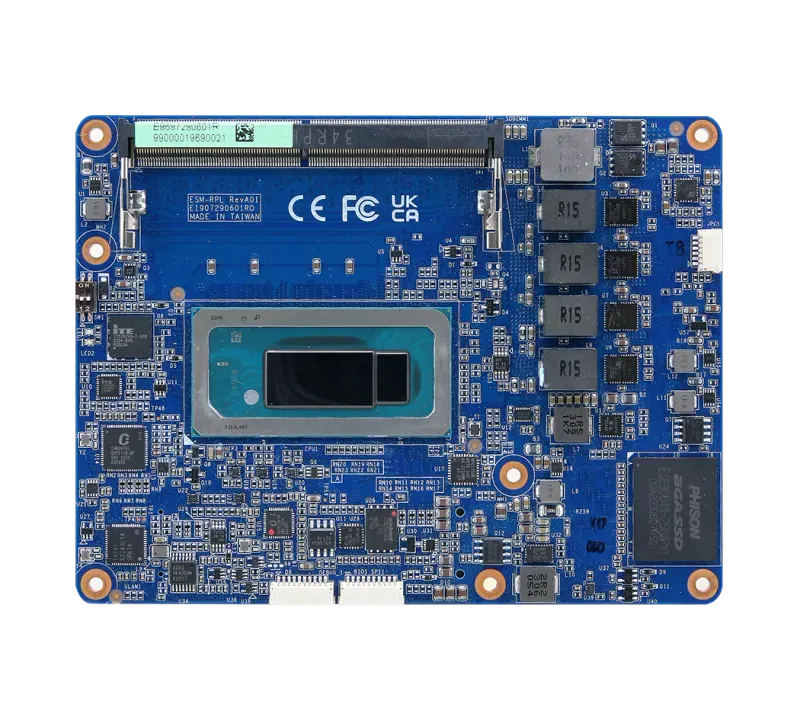

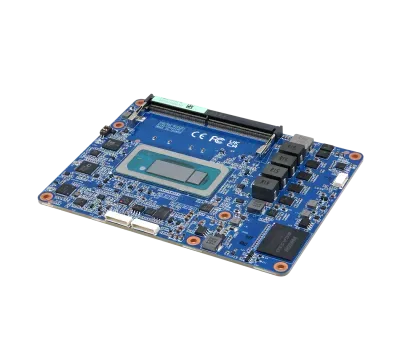

ESM-RPL

Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

COM Express Type 6 module (125 x 95 mm)
13th Gen Intel H-Series (45W) / P-Series (28W) embedded processors
2 x 262-pin DDR5 4800MT/s SO-DIMM up to 64GB
Onboard Nuvoton NPCT754 TPM 2.0
Intel Iris Xe / UHD Graphics, quad display up to 4K (3x DDI + eDP)
PCIe Gen4 (1x x8 selected SKU / 2x x4) + Gen3 (5x x1), optional USB4
Intel I226LM/IT 2.5GbE, 4x USB3.2 Gen2 + 8x USB2.0, 2x SATA III
Optional onboard NVMe SSD; standard 0~60°C / extended -40~70°C
Windows 11 64-bit / Linux; CE, FCC, RoHS

Product Description

The Avalue ESM-RPL is a COM Express Type 6 module (125 x 95 mm) built on 13th Gen Intel H-Series (45W) and P-Series (28W) embedded/industrial processors, designed as a high-performance, upgrade-ready compute core for demanding embedded and industrial designs.

With dual DDR5 4800MT/s SO-DIMM (up to 64GB), onboard Nuvoton TPM 2.0, and PCIe Gen4/Gen3 expansion, it delivers strong x86 performance through the standardised Type 6 pin-out.

It offers Intel Iris Xe / UHD graphics with quad display (3x DDI + eDP up to 4K), optional USB4, 4x USB3.2 Gen2 + 8x USB2.0, 2x SATA III, Intel I226LM/IT 2.5GbE, optional onboard NVMe SSD, and a wide +9~19V input with an extended -40~70°C option, running Windows 11 64-bit or Linux.

Technical Specifications

Processor

13th Gen. Intel® H-Series Embedded Industrial (45 W)

P-Series Embedded Industrial (28 W)

System Memory

2 x 262-Pin DDR5 4800MT/s SO-DIMM Up to 64GB

I/O Chipset

EC iTE IT5782

Watchdog Timer

H/W Reset, 1Sec. ~ 65535Sec. and 1Sec./Step

BIOS

AMI uEFI BIOS, 256 Mbit SPI Flash ROM

H/W Status Monitor

Monitoring System Temperature

Voltage and FAN Status with Auto Throttling Control

TPM

Onboard nuvoTon_NPCT754AADYX TPM 2.0 Optional

Expansion

1 x PCIe x8 (Gen4), (Selected SKU, H series)

2 x PCIe x4 (Gen4)

Default: 5 x PCIe x1 (Gen3), 2 x SATA (2 Lanes Shares with SATA)

Storage

On board Storage NVMe SSD (Optional)

Graphic Chipset

Intel® Iris® Xe Graphics on i7/i5 Processor

Intel® UHD Graphics on i3/Celeron® Processor

Intel® Gfx Up to 96 EU

Spec. & Resolution

3 x DDI, VGA, eDP/LVDS (BOM Optional)

VGA Supported by Build Option Via DP-to-VGA IC, Max. Resolution 1920x1200@60Hz

LVDS Single/Dual Channel 18/24-bit LVDS from eDP-to-LVDS IC, Max. Resolution 1920x1200@60Hz in Dual Mode or

eDP Build Option in Place of LVDS, 4 lanes, eDP 1.4b (by BOM)

USB4 Max. 2 x USB4 in Place of DDI 1/2, Supports DP 1.4a by DP Alternative Mode

DDI3 for Avalue EX-EX26 Carrier HDMI 2.1 or DP 1.4a

Select by BIOS, Support Feature Depend on Carrier Board.

Multiple Display

Four Display Support, Up to 4K (3DDI+eDP)

LVDS

CH7511B(eDP to LVDS)

DDI

3 x DDI, VGA, eDP/LVDS (BOM Optional)

HDMI/DP(Default)

VGA Supported by Build Option Via DP-to-VGA IC (In Place of DDI 3)

Audio Interface

Intel® HD Audio Integrated on CPU

LAN Chipset

1 x Intel® I226LM/IT

Ethernet Interface

10/100/1000/2500 Base-Tx GbE Compatible

OS

Windows 11 64bit, Linux

Certification Information

CE, FCC Class, RoHS Compliant

USB

2 x USB 4 by TCP Ports (Optional by BIOS)

4 x USB3.2 Gen2

8 x USB2.0

COM Port

2 x UART (RX/TX Only)

SATA

2 x SATA III

DIO

1 x 8-bit GPIO

MIO

1 x SMBus

1 x LPC (Via ESPI-to-LPC Bridge IC)

1 x I2C (User)

1 x GP_SPI (TBC)

1x SPI

Operating Temp.

Standard 0°C ~ 60°C (32°F ~ 140°F)

Extend: -40°C ~ 70°C (-40°F ~ 158°F)

Storage Temp.

-40°C ~ 85°C (-40°F ~ 185°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

0.2292lbs (0.104Kg)

Power Requirement

+9V ~ +19V

Power Mode

AT/ATX

Dimension (L x W)

4.92" x 3.74" (125*95 mm)

Ordering Information

ESM-RPL-S40-A1R | Intel® COM Express Module Type 6 on board Core™ I5-1340PE CPU, 28W

ESM-RPL-S80-A1R | Intel® COM Express Module Type 6 on board Core™ I7-13800HE CPU, 45W

ESM-RPL-S60-A1R | Intel® COM Express Module Type 6 on board Core™ I5-13600HE CPU, 45W

ESM-RPL-S30-A1R | Intel® COM Express Module Type 6 on board Core™ I3-13300HE CPU, 45W

ESM-RPL-W65-A1R | Intel® COM Express Module Type 6 on board Core™ I7-1365URE CPU, 15W

ESM-RPL-W70-A1R | Intel® COM Express Module Type 6 on board Core™ I7-1370PRE CPU, 28W

ESM-RPL-W50-A1R | Intel® COM Express Module Type 6 on board Core™ I5-1350PRE CPU, 28W

ESM-RPL-W80-A1R | Intel® COM Express Module Type 6 on board Core™ I7-13800HRE CPU, 45W

ESM-RPL-W60-A1R | Intel® COM Express Module Type 6 on board Core™ I5-13600HRE CPU, 45W

ESM-RPL-W30-A1R | Intel® COM Express Module Type 6 on board Core™ I3-13300HRE CPU, 45W
