ESM-TWLC

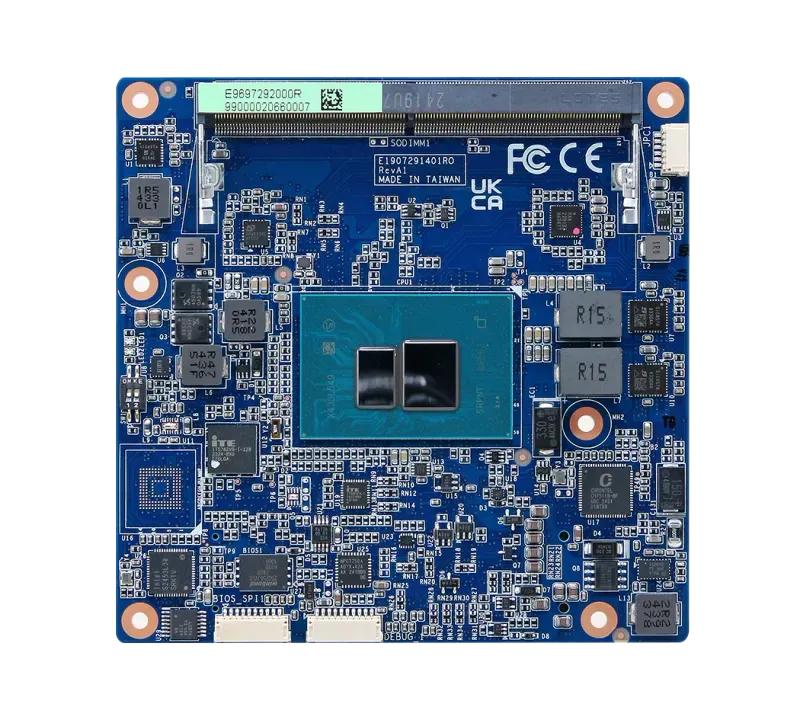

ESM-TWLC FrontESM-TWLC FrontESM-TWLC Front

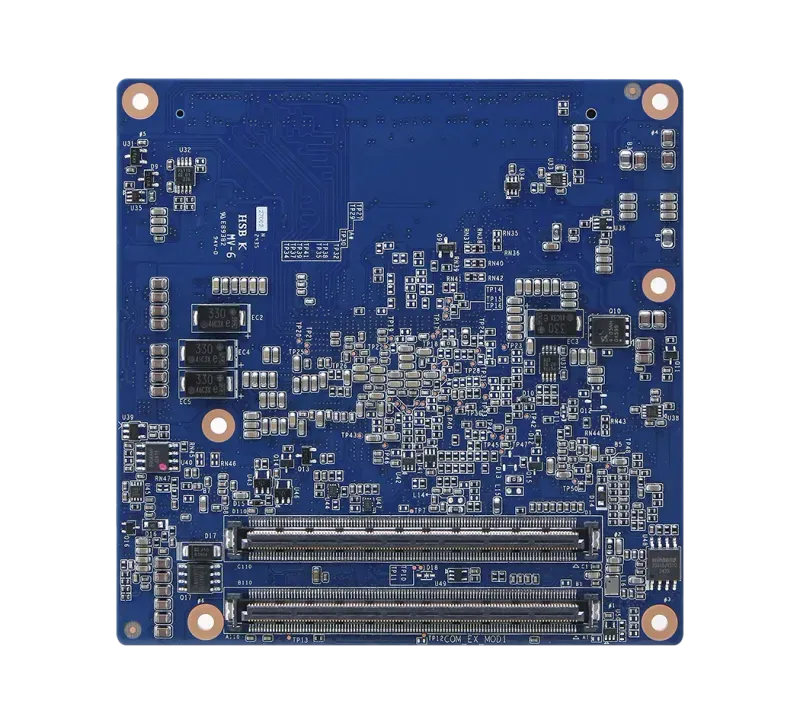

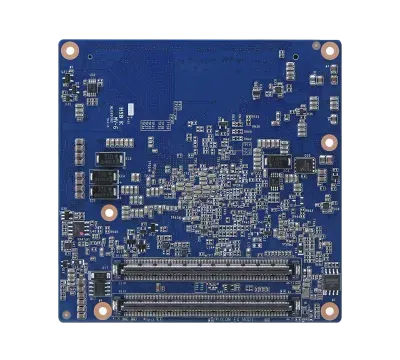

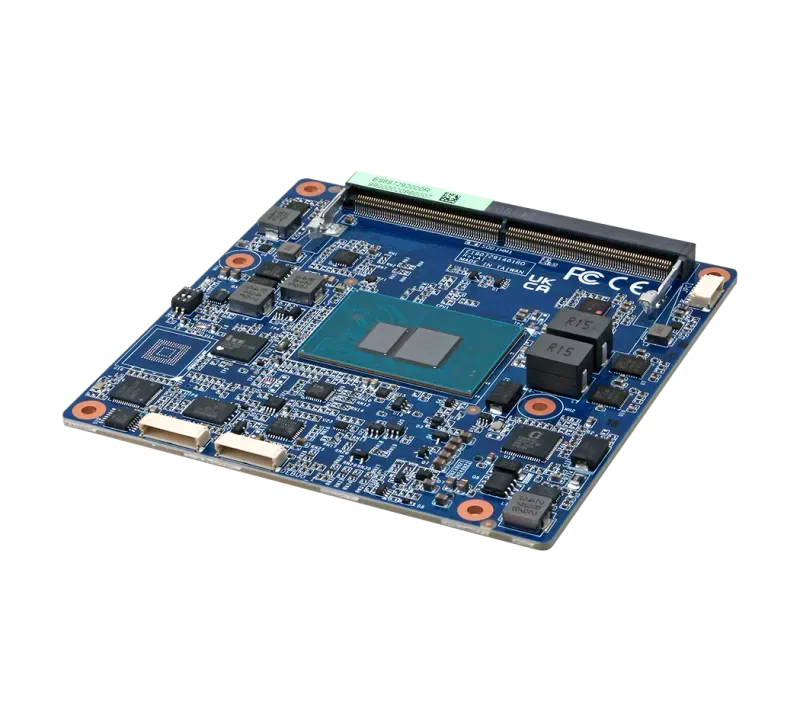

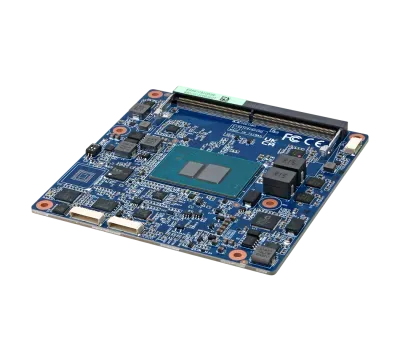

ESM-TWLC, Image 1ESM-TWLC, Image 2ESM-TWLC, Image 3
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

  • COM Express Type 6 Compact module (95 x 95 mm)
  • Intel Processor N150 / N250 / Intel Core 3 Processor N355 (Twin Lake)
  • 1 x 262-pin DDR5 4800MHz SO-DIMM up to 16GB
  • Onboard TPM 2.0, optional eMMC 5.1 up to 128GB
  • Configurable PCIe Gen3 (4x x1 / 1x x4 / 2x x1)
  • Intel i226V 2.5GbE, up to 4x USB3.2 Gen2 + 8x USB2.0
  • 2 x SATA III, HDMI 2.0b / DP 1.4 / LVDS triple display
  • Wide +9~19V input, 0~60°C operating
  • Windows 11 64-bit / Linux; CE, FCC, RoHS

Product Description

The Avalue ESM-TWLC is a COM Express Type 6 Compact module (95 x 95 mm) built on the Intel Processor N150/N250 and Intel Core 3 Processor N355 (Twin Lake), designed as a low-power, upgrade-ready compute core for embedded and industrial designs.

With a DDR5 4800MHz SO-DIMM (up to 16GB), onboard TPM 2.0, and optional eMMC up to 128GB, it delivers efficient x86 performance through the standardised Type 6 pin-out.

It exposes configurable PCIe Gen3 lanes, up to 4x USB3.2 Gen2 + 8x USB2.0, 2x SATA III, Intel i226V 2.5GbE, HDMI 2.0b / DP 1.4 / LVDS triple display, and a wide +9~19V input over -40~75°C storage, running Windows 11 64-bit or Linux.

Technical Specifications

Processor

Intel® Processor N150, N250 & Intel® Core™ 3 Processor N355

System Memory

1 x 262-pin DDR5 4800MHz SO-DIMM socket, supports up to 16GB Max

I/O Chipset

EC iTE IT5782VG-I-128/BX or Super IO Equivalent

Watchdog Timer

H/W Reset, 1Sec. ~ 65535Sec. and 1Sec./Step

BIOS

AMI uEFI BIOS, 256 Mbit SPI Flash ROM

H/W Status Monitor

CPU temperature monitoring

Voltages monitoring

CPU fan speed control

TPM

Onboard TPM 2.0

Expansion

BOM1(default) : 4 x PCIe x1 Gen3

BOM2: 1 x PCIe x4 Gen3

BOM3: 2 x PCIe x1 Gen3

Storage

eMMC 5.1 Up to 128GB (Optional)

Graphic Chipset

Intel® Graphics

Spec. & Resolution

HDMI 2.0b: 1920x1080 as Default or 4096x2160 @60Hz set by Bios.

*VBT1 use Vbios for Full HD/ no display audio. VBT3 use Vbios for output 4K/ support display audio

DP 1.4: 4096x2160 @60Hz

LVDS (via eDP-to-LVDS): 1920x1080 @60Hz, LVDS via CH7511B or eDP 1.4b(By BOM Optional): 2Lanes FHD 1920x1080 @60Hz

Multiple Display

Triple Display Support

LVDS

CH7511B-BF(eDP to LVDS)

DDI

DDIA: 2 CH LVDS (via eDP-to-LVDS) or eDP(By BOM Optional)

DDIB: DDI Signal

TCP0: DDI2 Signal or Type C Signal

Audio Interface

Intel® HD Audio Integrated on CPU

LAN Chipset

1 x Intel® i226V

Ethernet Interface

10/100/1000/2500 Base-Tx GbE Compatible

OS

Windows 11 64-bit, Linux

Certification Information

CE, FCC Class, RoHS Compliant

USB

BOM1(default) : 8 x USB2.0, 2 x USB3.2 Gen 2x1

BOM2: 8 x USB2.0, 4 x USB3.2 Gen 2x1

BOM3: 8 x USB2.0, 4 x USB3.2 Gen 2x1

COM Port

2 x UART (RX/TX Only)

SATA

BOM1(default) : 2 x SATA III

BOM2: N/A

BOM3: 2 x SATA III

DIO

1 x 8-bit GPIO

MIO

1 x SMBus

1 x LPC

1 x eSPI (W-B 10Px1 1.0mm 90D for debug conn)

1 x I2C

1 x SPI

Operating Temp.

Standard 0°C ~ 60°C (32°F ~ 140°F)

Storage Temp.

-40°C ~ 75°C (-40°F ~ 167°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

0.16lbs (0.07kg)

Power Requirement

+9V ~ +19V

Power Mode

AT/ATX

Dimension (L x W)

3.74” x 3.74” (95 x 95 mm)

Ordering Information

ESM-TWLC-N150-A1R Intel® Processor N150 COM Express Module 95*95 mm Type 6 / 0°C ~ 60°C, ESM-TWLC-N250-A1R Intel® Processor N250 COM Express Module 95*95 mm Type 6 / 0°C ~ 60°C, ESM-TWLC-N355-A1R Intel® Core™ 3 Processor N355 COM Express Module 95*95 mm Type 6 / 0°C ~ 60°C

ACC-ESMASLC-CL-1R | Cooler for ESM-ASLC/ESM-TWLC W/FAN H=60mm for wide temp

What is ESM-TWLC?

The ESM-TWLC is a computer-on-module manufactured by Avalue, designed specifically for com-express-type-6 applications. The Avalue ESM-TWLC is a COM Express Type 6 Compact module (95 x 95 mm) built on the Intel Processor N150/N250 and Intel Core 3 Processor N355 (Twin Lake), designed as a low-power, upgrade-ready compute core for embedded and industrial designs. With a DDR5 4800MHz SO-DIMM (up to 16GB), onboard TPM 2.0, and optional eMMC up to 128GB, it delivers efficient x86 performance through the standardised Type 6 pin-out. It exposes configurable PCIe Gen3 lanes, up to 4x USB3.2 Gen2 + 8x USB2.0, 2x SATA III, Intel i226V 2.5GbE, HDMI 2.0b / DP 1.4 / LVDS triple display, and a wide +9~19V input over -40~75°C storage, running Windows 11 64-bit or Linux.

Key Features & Benefits

  • COM Express Type 6 Compact module (95 x 95 mm)
  • Intel Processor N150 / N250 / Intel Core 3 Processor N355 (Twin Lake)
  • 1 x 262-pin DDR5 4800MHz SO-DIMM up to 16GB
  • Onboard TPM 2.0, optional eMMC 5.1 up to 128GB
  • Configurable PCIe Gen3 (4x x1 / 1x x4 / 2x x1)
  • Intel i226V 2.5GbE, up to 4x USB3.2 Gen2 + 8x USB2.0
  • 2 x SATA III, HDMI 2.0b / DP 1.4 / LVDS triple display
  • Wide +9~19V input, 0~60°C operating
  • Windows 11 64-bit / Linux; CE, FCC, RoHS

Applications & Use Cases

The ESM-TWLC is ideal for various industrial automation applications:

  • Extreme temperature environments and outdoor installations
  • High-performance computing and data processing tasks
  • Peripheral device connectivity and data transfer
  • Memory-intensive applications and multitasking
  • Visual monitoring and data display systems
  • Industrial automation and control
  • Manufacturing process monitoring
  • Quality assurance and inspection

Frequently Asked Questions
