Avalue · Computer-on-Module

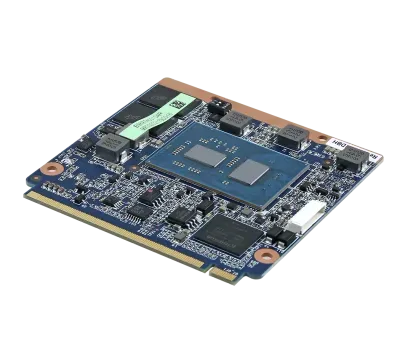

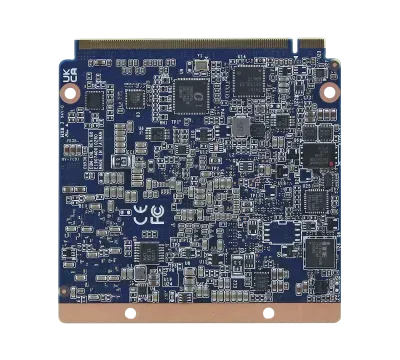

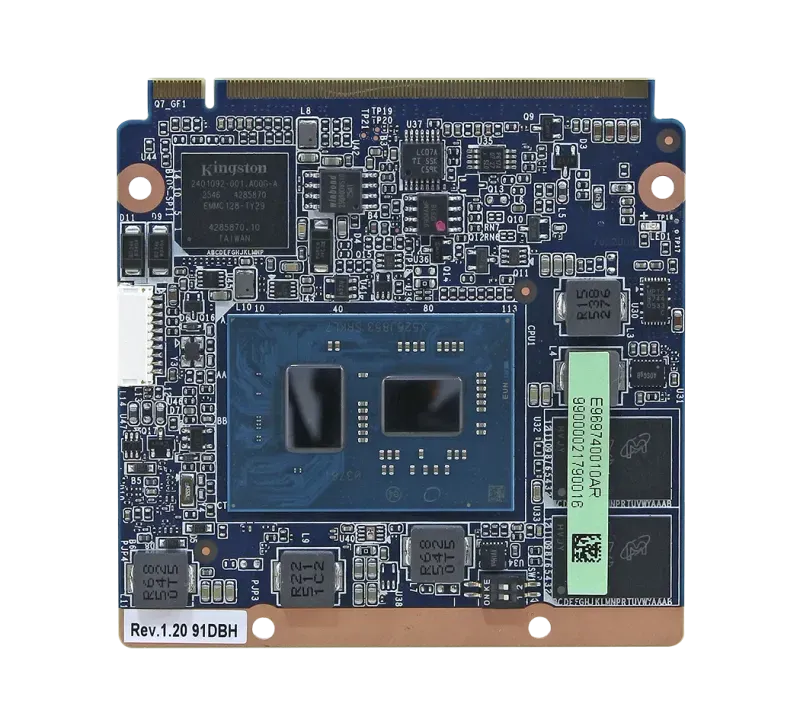

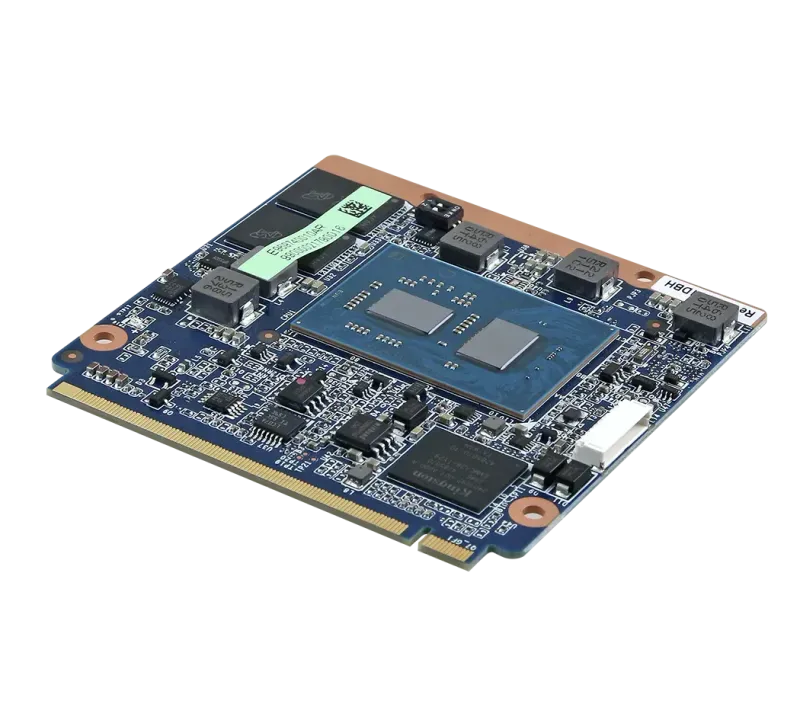

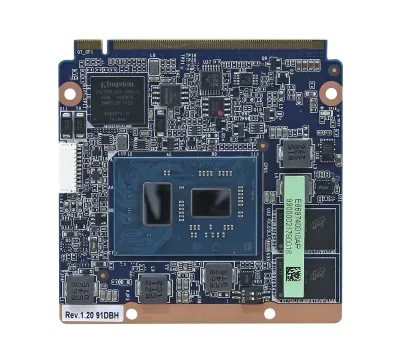

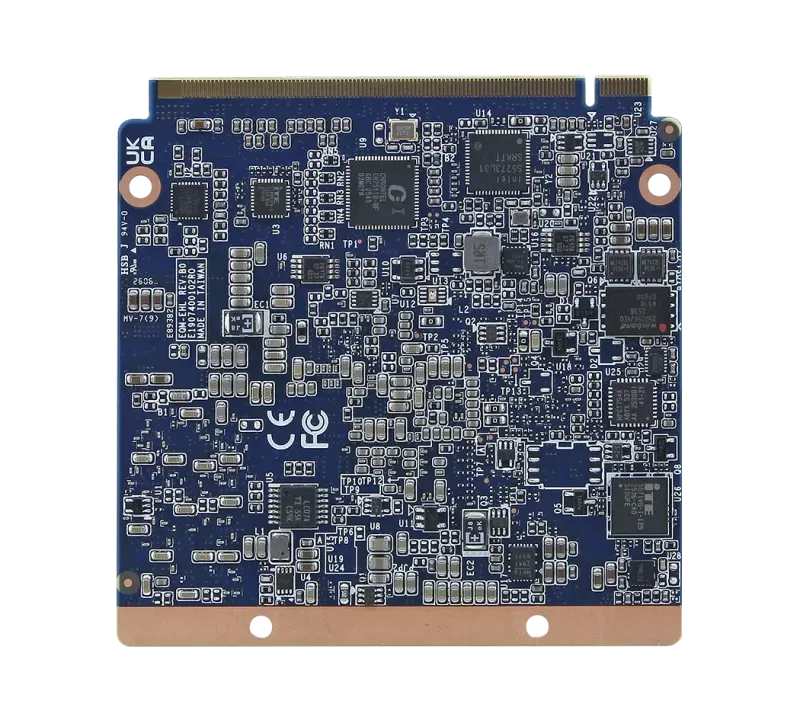

EQM-EHL-B1

Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

Qseven (70 x 70 mm) Computer-on-Module, Rev. 2.1 compliant
Intel Celeron SoC processor (Elkhart Lake)
Onboard single-channel LPDDR4 8GB @ 3200MT/s
Onboard eMMC 5.1 128GB storage
Onboard TPM 2.0
Intel Gen11 LP graphics, up to 2 independent displays (DP/HDMI/eDP/LVDS, 4K)
4 x PCIe x1 Gen3, Intel I226LM GbE
1 x USB 3.2 Gen1 + 8 x USB 2.0, 2 x SATA III
Operating temp 0°C ~ 60°C, storage -40°C ~ 85°C
Windows 10/11 IoT Enterprise / Linux; CE, FCC, RoHS

Product Description

The Avalue EQM-EHL-B1 is a Qseven (70mm x 70mm) Computer-on-Module built on the Intel Celeron SoC (Elkhart Lake) platform, updated to Qseven Spec Rev. 2.1, offering a compact, low-power compute core for embedded and IoT designs.

It integrates onboard single-channel LPDDR4 8GB memory at 3200MT/s, onboard eMMC 5.1 128GB storage, and onboard TPM 2.0 for secure boot.

Display support covers DP 1.4, HDMI 2.0b, eDP 1.3, and LVDS up to 4096x2160 across 2 independent displays, alongside Intel I226LM Gigabit Ethernet, 4x PCIe x1 Gen3, 1x USB 3.2 Gen1 with 8x USB 2.0, and 2x SATA III.

It runs Windows 10, Windows 11 IoT Enterprise, or Linux across a 0 to 60 degree C operating range, suiting industrial automation, IoT gateways, and machine vision applications. TSL Automation Solutions supplies and supports the EQM-EHL-B1 in India.

Technical Specifications

Processor

Intel® Celeron® SoC Processor

System Memory

On board Single channel LPDDR4 8GB with 3200MT/s

I/O Chipset

EC iTE IT5571

BIOS

AMI uEFI BIOS, 256 Mbit SPI Flash ROM

Watchdog Timer

H/W Reset, 1Sec. ~ 65535Sec. and 1Sec./Step

H/W Status Monitor

Monitoring System Temperature, Voltage with Auto Throttling Control

TPM

Onboard TPM 2.0

Expansion

4 x PCIe x1 (Gen 3)

Storage

Onboard eMMC 5.1 128 GB

Graphic Chipset

Intel® SoC Processor Integrated Gen11 LP Graphics

Spec. & Resolution

DP 1.4 Max Resolution 4096x2160 @60Hz or HDMI 2.0b Max Resolution 4096x2160 @60Hz

eDP 1.3 Max Resolution 4096x2160 @60Hz Only

or LVDS Max Resolution 1920 x 1080@60Hz Dual Channel 18/24-bits LVDS (Chrontel CH7511A-BF eDP to LVDS)

*By BOM Option Via HW/BIOS, Refer to Block Diagram for Detail.

Multiple Display

Up to 2 Independent Display

HDMI

eDP

LVDS

CH7511B(eDP to LVDS)

Audio Interface

Intel® HD Audio Integrated on CPU

LAN Chipset

1 x Intel® I226LM

Ethernet Interface

10/100/1000 Base-Tx GbE Compatible

OS

Windows 10, Windows 11 IoT Enterprise (64-bit)

Linux

Certification Information

CE, FCC Class, RoHS Compliant

USB

1 x USB 3.2 Gen1

8 x USB2.0

COM Port

1 x UART

PCIe

4 x PCIe x1 (Gen 3)

SATA

2 x SATA III

MIO

1 x SMBus

1 x LPC

1 x I2C

1 x SDIO

1 x SD

1 x SPI

Operating Temp.

Standard 0°C ~ 60°C (32°F ~ 140°F)

Storage Temp.

-40°C ~ 85°C (-40°F ~ 185°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

0.095lbs (0.043Kg)

Power Requirement

+5V

Power Mode

ATX

Dimension (L x W)

2.75" x 2.75" (70mm x 70mm)

Ordering Information

EQM-EHL-N6211-B1R Intel®Celeron® N6211 Q7/ 8G LPDDR4/ 128GB eMMC/ 0°C ~ 60°C

EQM-EHL-J6413-B1R Intel®Celeron® J6413 Q7/ 8G LPDDR4/ 128GB eMMC/ 0°C ~ 60°C

REV-Q703-B1-01R Mini ITX Evaluation Carrier Board for Q7 Rev.2.1 B1 (For EQM-TWL, EQM-EHL, EQM-EHL-B1 & EQM-APL)

E1961211065012R Heatsink for EQM-EHL-B1 w/o Fan, H=20mm, Standard Temp. SKUs (N6211, J6413)
