Avalue · Computer-on-Module

SMA-3568

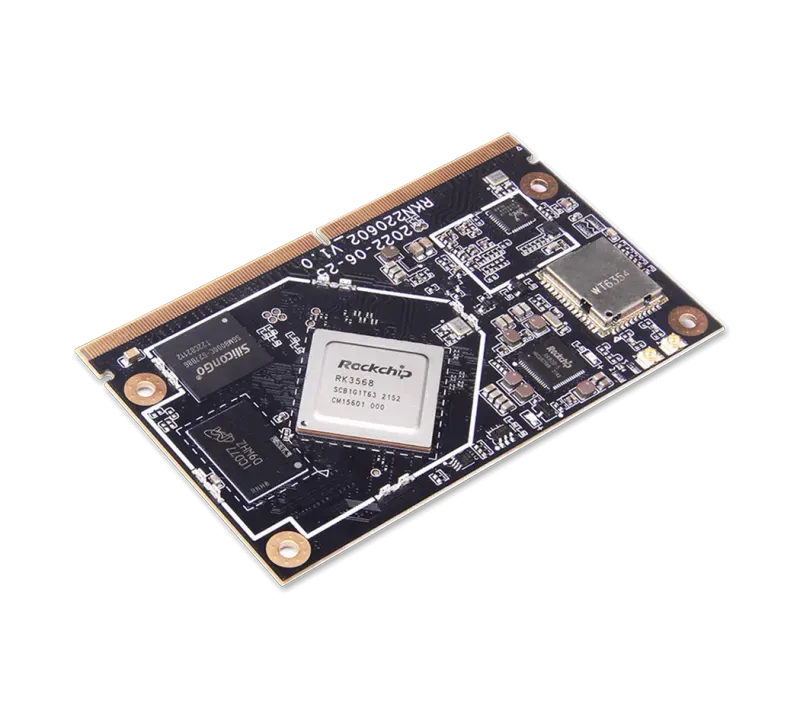

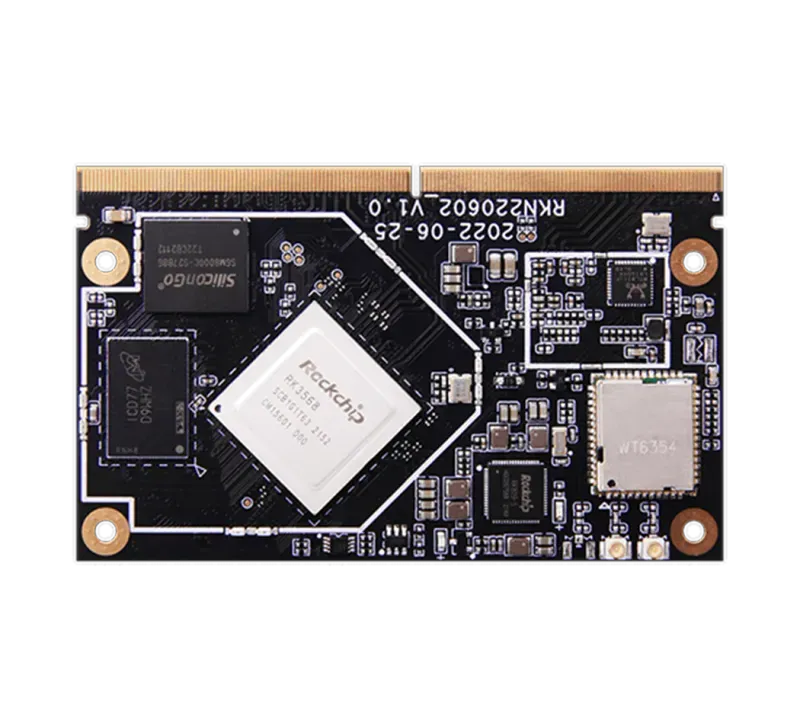

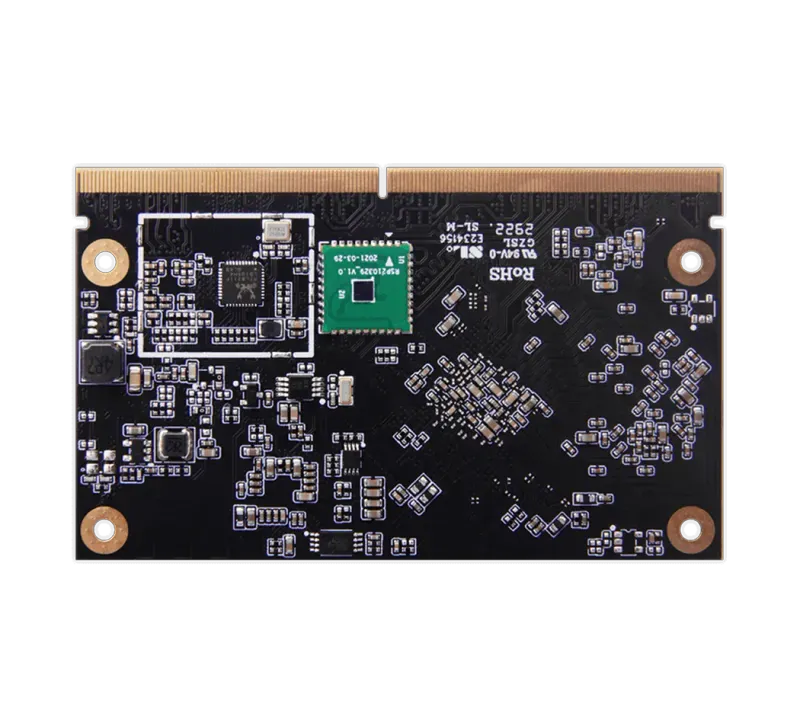

SMA-3568 FrontSMA-3568 FrontSMA-3568 Front

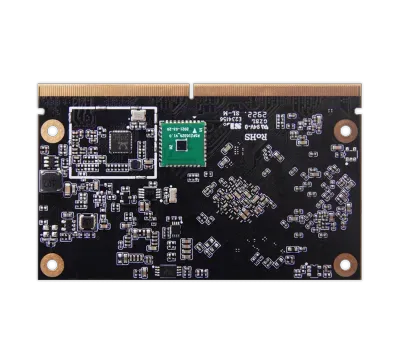

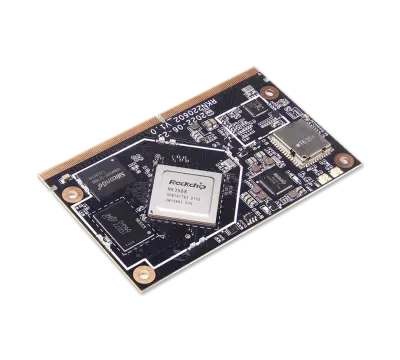

SMA-3568, Image 1SMA-3568, Image 2SMA-3568, Image 3
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

  • SMARC Computer-on-Module (82 x 50 mm)
  • Rockchip RK3568J quad-core Cortex-A55 up to 2.0GHz (22nm)
  • 1 TOPS @INT8 RKNN NPU (Caffe/TF/TFLite/ONNX/PyTorch/Keras/Darknet)
  • ARM G52 2EE GPU (OpenGL ES 3.2, OpenCL 2.0, Vulkan 1.1)
  • VPU: 4K60 H.265/H.264/VP9 decode, 1080p60 encode
  • 2/4/8GB LPDDR4, 32/64/128GB eMMC
  • Dual Gigabit Ethernet, PCIe 2.1 + PCIe 3.0, USB 3.0/2.0
  • HDMI 2.0, LVDS, MIPI DSI/CSI, Wi-Fi, CAN
  • -20~85°C operating, 5V/2A

Product Description

The Avalue SMA-3568 is a SMARC (82 x 50 mm) Computer-on-Module built on the Rockchip RK3568J (quad Cortex-A55, up to 2.0GHz) processor with a 1 TOPS NPU, designed as a low-power, AI-capable connectorised compute core for vision and edge designs.

With 2/4/8GB LPDDR4 and 32/64/128GB eMMC, an ARM G52 GPU, and 4K video, it delivers efficient Arm compute through the standardised SMARC connector.

It exposes dual Gigabit Ethernet, PCIe 2.1/3.0, USB 3.0/2.0, HDMI 2.0, LVDS, MIPI DSI/CSI, Wi-Fi, CAN, multiple UART/SPI/I2C and GPIO over a -20~85°C range.

Technical Specifications

Processor

Rockchip RK3568J Quad-core 64-bit Cortex-A55, 22nm lithography process, frequency up to 2.0GHz.

NPU

1Tops@INT8, integrated high-performance AI accelerator RKNN NPU

Supports one-click switching of Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet

GPU

ARM G52 2EE

Supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1

Embedded high-performance 2D acceleration hardware

VPU

Supports 4K 60fps H.265/H.264/VP9 video decoding

Supports 1080P 60fps H.265/H.264 video encoding

Supports 8M ISP, supports HDR

System Memory

2GB / 4GB / 8GB LPDDR4

Storage

32GB / 64GB / 128GB eMMC

External I/O Connector

Ethernet: *2（Giga ethernet）

PCIe 2.1 *1(1 lane)

PCIe 3.0 *1(2 lanes)

USB2.0 *2

USB3.0 HOST *1

USB3.0 OTG *1

MIPI CSI *1(4 lanes)

MIPI DSI *1(DSI0 &DSI1)

HDMI®*1(HDMI®2.0)

LVDS *1(multiplex with DSI1 )

Wi-Fi *1

GPIO *14（or more）

SDIO *1

UART *6

SPI *2

I2C *4

CAN *1

I2S *1

Operating Temp.

-20C ~85

Power Requirement

POWER: 5V/2A

Dimension (L x W)

82*50 mm

What is SMA-3568?

The SMA-3568 is a computer-on-module manufactured by Avalue, designed specifically for smarc applications. The Avalue SMA-3568 is a SMARC (82 x 50 mm) Computer-on-Module built on the Rockchip RK3568J (quad Cortex-A55, up to 2.0GHz) processor with a 1 TOPS NPU, designed as a low-power, AI-capable connectorised compute core for vision and edge designs. With 2/4/8GB LPDDR4 and 32/64/128GB eMMC, an ARM G52 GPU, and 4K video, it delivers efficient Arm compute through the standardised SMARC connector. It exposes dual Gigabit Ethernet, PCIe 2.1/3.0, USB 3.0/2.0, HDMI 2.0, LVDS, MIPI DSI/CSI, Wi-Fi, CAN, multiple UART/SPI/I2C and GPIO over a -20~85°C range.

Key Features & Benefits

  • SMARC Computer-on-Module (82 x 50 mm)
  • Rockchip RK3568J quad-core Cortex-A55 up to 2.0GHz (22nm)
  • 1 TOPS @INT8 RKNN NPU (Caffe/TF/TFLite/ONNX/PyTorch/Keras/Darknet)
  • ARM G52 2EE GPU (OpenGL ES 3.2, OpenCL 2.0, Vulkan 1.1)
  • VPU: 4K60 H.265/H.264/VP9 decode, 1080p60 encode
  • 2/4/8GB LPDDR4, 32/64/128GB eMMC
  • Dual Gigabit Ethernet, PCIe 2.1 + PCIe 3.0, USB 3.0/2.0
  • HDMI 2.0, LVDS, MIPI DSI/CSI, Wi-Fi, CAN
  • -20~85°C operating, 5V/2A

Applications & Use Cases

The SMA-3568 is ideal for various industrial automation applications:

  • Extreme temperature environments and outdoor installations
  • Wireless connectivity and remote monitoring applications
  • Networked industrial systems and data communication
  • Peripheral device connectivity and data transfer
  • Memory-intensive applications and multitasking
  • Industrial automation and control
  • Manufacturing process monitoring
  • Quality assurance and inspection
