Avalue · Computer-on-Module
SMA-IMX6-E1
*Price on request. Contact us for a quote.
Highlights
- SMARC Computer-on-Module (82 x 50 mm)
- NXP i.MX 6 Dual 800MHz / Quad 1.0GHz
- 4GB DDR3L, 8GB eMMC
- 1x SATA, 3x PCIe x1, 2x CAN
- 3x I2C, 3x I2S, SDIO, SPDIF, 2x SPI, MLB150, JTAG
- 12x GPIO, watchdog timer
- Wide -40~85°C operating
- Android 4.4.2 / Ubuntu 12.04 / Yocto 1.5.1
- CE, FCC Class B
Product Description

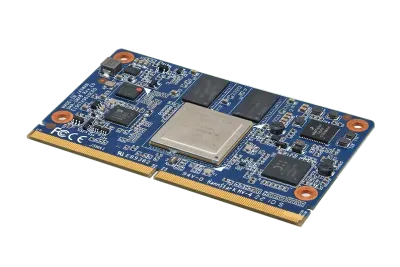

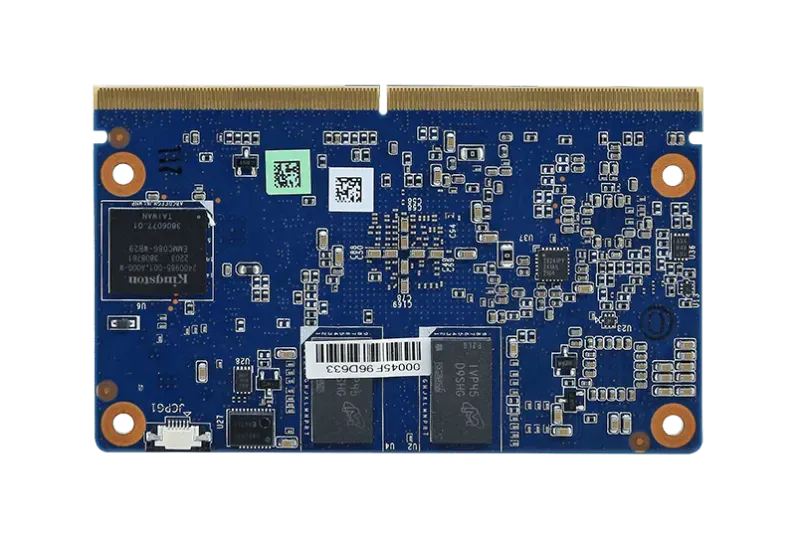

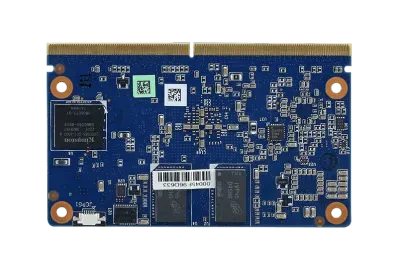

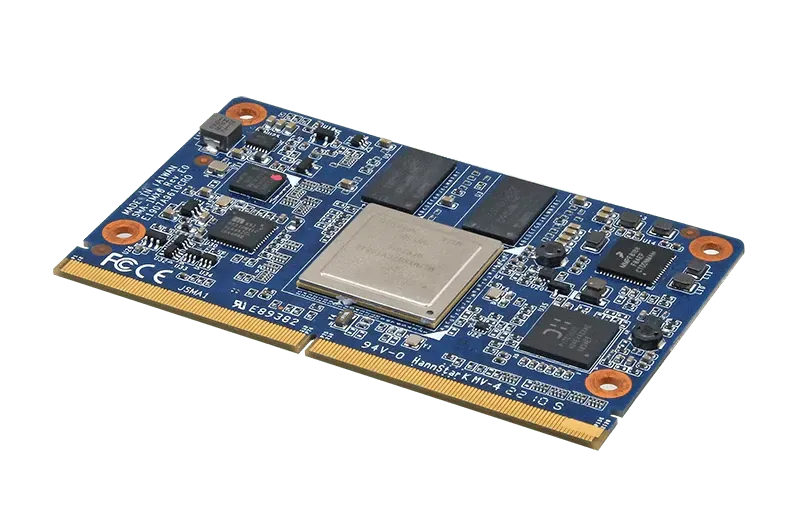

The Avalue SMA-IMX6-E1 is a SMARC (82 x 50 mm) Computer-on-Module built on the NXP i.MX 6 (Dual 800MHz / Quad 1.0GHz) processor, designed as a rugged, long-lifecycle connectorised compute core for industrial and IoT designs.
With 4GB DDR3L and 8GB eMMC, it delivers reliable Arm compute through the standardised SMARC connector running Android 4.4.2, Ubuntu 12.04 or Yocto 1.5.1.
It exposes SATA, triple PCIe x1, dual CAN, triple I2C/I2S, SDIO, SPDIF, dual SPI, MLB150, JTAG and 12x GPIO over a wide -40~85°C range.
Technical Specifications
What is SMA-IMX6-E1?
The SMA-IMX6-E1 is a computer-on-module manufactured by Avalue, designed specifically for smarc applications. The Avalue SMA-IMX6-E1 is a SMARC (82 x 50 mm) Computer-on-Module built on the NXP i.MX 6 (Dual 800MHz / Quad 1.0GHz) processor, designed as a rugged, long-lifecycle connectorised compute core for industrial and IoT designs. With 4GB DDR3L and 8GB eMMC, it delivers reliable Arm compute through the standardised SMARC connector running Android 4.4.2, Ubuntu 12.04 or Yocto 1.5.1. It exposes SATA, triple PCIe x1, dual CAN, triple I2C/I2S, SDIO, SPDIF, dual SPI, MLB150, JTAG and 12x GPIO over a wide -40~85°C range.
Key Features & Benefits
- SMARC Computer-on-Module (82 x 50 mm)
- NXP i.MX 6 Dual 800MHz / Quad 1.0GHz
- 4GB DDR3L, 8GB eMMC
- 1x SATA, 3x PCIe x1, 2x CAN
- 3x I2C, 3x I2S, SDIO, SPDIF, 2x SPI, MLB150, JTAG
- 12x GPIO, watchdog timer
- Wide -40~85°C operating
- Android 4.4.2 / Ubuntu 12.04 / Yocto 1.5.1
- CE, FCC Class B
Applications & Use Cases
The SMA-IMX6-E1 is ideal for various industrial automation applications:
- Memory-intensive applications and multitasking
- Internet of Things (IoT) and edge computing
- Industrial automation and control
- Manufacturing process monitoring
- Quality assurance and inspection
- Production line automation
