Avalue · Computer-on-Module

SMA-X8I

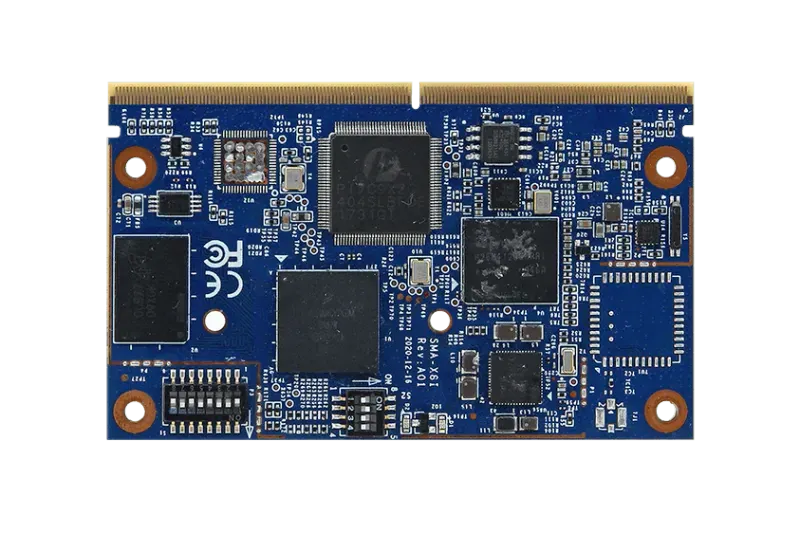

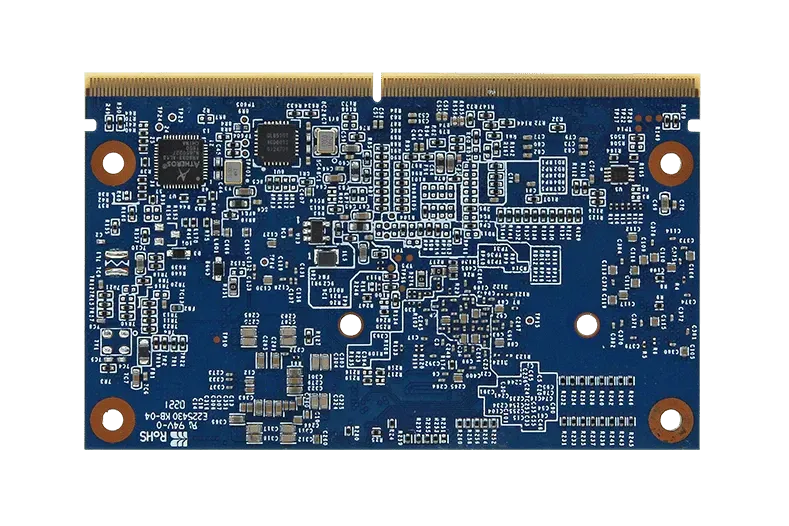

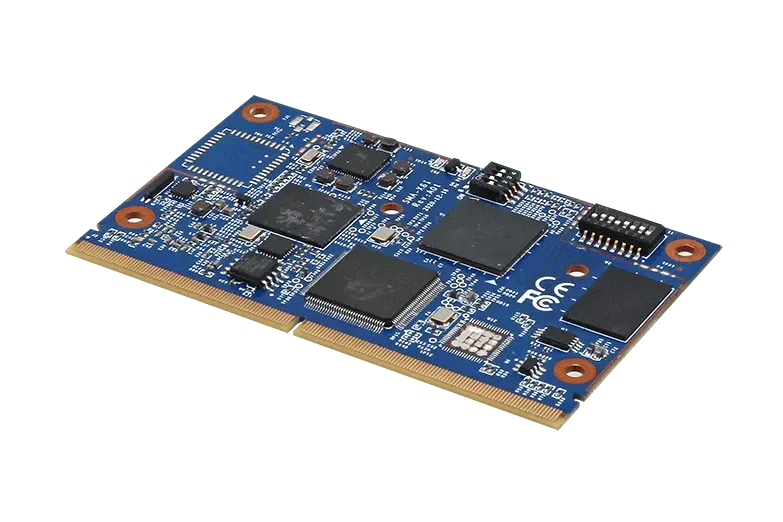

SMA-X8I FrontSMA-X8I FrontSMA-X8I Front

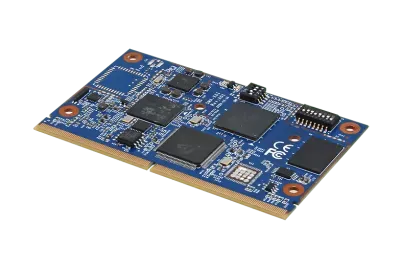

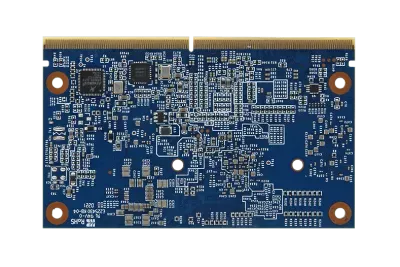

SMA-X8I, Image 1SMA-X8I, Image 2SMA-X8I, Image 3
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

  • SMARC Computer-on-Module (82 x 50 mm)
  • Onboard NXP i.MX 8M Mini processor
  • 2GB DDR, 16GB eMMC
  • RGMII Ethernet, MIPI CSI
  • 4x USB 2.0, 1x USB OTG, PCIe x1
  • 3x UART, 3x I2C, I2S, 2x ECSPI, 2x SDIO, GPIO
  • Wide -40~85°C operating
  • Linux Yocto 3.0 / Android 10
  • CE, FCC Class B

Product Description

The Avalue SMA-X8I is a SMARC (82 x 50 mm) Computer-on-Module built on the onboard NXP i.MX 8M Mini processor, designed as a compact, low-power, rugged connectorised compute core for embedded and IoT designs.

With 2GB DDR and 16GB eMMC, it delivers efficient Arm compute through the standardised SMARC connector running Linux Yocto 3.0 or Android 10.

It exposes USB 2.0/OTG, RGMII Ethernet, MIPI CSI, PCIe x1, multiple UART/I2C, I2S, dual SDIO, ECSPI and GPIO over a wide -40~85°C range.

Technical Specifications

Processor

Onboard NXP i.MX 8M Mini Processor

System Memory

2GB DDR

Storage

16GB eMMC

OS

Linux Yocto Version 3.0 Android Version 10

Certification Information

CE, FCC Class B

External I/O Connector

USB Port

4 x USB 2.0 Port

COM Port

2 x RX/TX (Ser1/3)

3 x UART (Ser1/2/3/4)

Other

1 x USB1_OTG

1 x MIPI CSI

3 x I2C

1 x I2S

1 x PCIex1

1 x GPIO

2 x ECSPI

2 x SDIO

1 x RGMII

Operating Temp.

-40°C ~ 85°C (-40°F ~ 185°F)

Storage Temp.

-40°C ~ 85°C (-40°F ~ 185°F)

Operating Humidity

0% ~ 90% Relative Humidity, Non-condensing

Weight

0.06kg

Dimension (L x W)

82 x 50 mm

Ordering Information

SMA-X8II4EJ-A03R00 : SMA-X8II4EJ-A03R00

What is SMA-X8I?

The SMA-X8I is a computer-on-module manufactured by Avalue, designed specifically for smarc applications. The Avalue SMA-X8I is a SMARC (82 x 50 mm) Computer-on-Module built on the onboard NXP i.MX 8M Mini processor, designed as a compact, low-power, rugged connectorised compute core for embedded and IoT designs. With 2GB DDR and 16GB eMMC, it delivers efficient Arm compute through the standardised SMARC connector running Linux Yocto 3.0 or Android 10. It exposes USB 2.0/OTG, RGMII Ethernet, MIPI CSI, PCIe x1, multiple UART/I2C, I2S, dual SDIO, ECSPI and GPIO over a wide -40~85°C range.

Key Features & Benefits

  • SMARC Computer-on-Module (82 x 50 mm)
  • Onboard NXP i.MX 8M Mini processor
  • 2GB DDR, 16GB eMMC
  • RGMII Ethernet, MIPI CSI
  • 4x USB 2.0, 1x USB OTG, PCIe x1
  • 3x UART, 3x I2C, I2S, 2x ECSPI, 2x SDIO, GPIO
  • Wide -40~85°C operating
  • Linux Yocto 3.0 / Android 10
  • CE, FCC Class B

Applications & Use Cases

The SMA-X8I is ideal for various industrial automation applications:

  • High-performance computing and data processing tasks
  • Networked industrial systems and data communication
  • Peripheral device connectivity and data transfer
  • Memory-intensive applications and multitasking
  • Internet of Things (IoT) and edge computing
  • Industrial automation and control
  • Manufacturing process monitoring
  • Quality assurance and inspection
