NISE 4200

Nexcom NISE 4200 6th Gen Core i5/i3 Fanless Industrial PC — Front I/ONexcom NISE 4200 6th Gen Core i5/i3 Fanless Industrial PC — Front I/ONexcom NISE 4200 6th Gen Core i5/i3 Fanless Industrial PC — Front I/ONexcom NISE 4200 6th Gen Core i5/i3 Fanless Industrial PC — Front I/O
NISE 4200, Image 1NISE 4200, Image 2NISE 4200, Image 3NISE 4200, Image 4
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Nexcom

Highlights

  • Fanless industrial box PC on 6th Gen Intel Core i5-6442EQ (Quad, 1.9 GHz, 6M) or Core i3-6102E (Dual, 1.9 GHz, 4M) BGA
  • Intel QM170 / HM170 PCH; turbo-boost disabled by default
  • 2 x DDR4 SO-DIMM, supports up to 32 GB (non-ECC, unbuffered)
  • Triple independent display: 1 x DVI-D + 2 x DisplayPort 1.2
  • Dual GbE: Intel I210-IT (WoL, PXE) + Intel I219-LM with Intel AMT 11 (NISE 4200Q-6442EQ SKU)
  • 4 x USB 3.0 (900 mA) + 2 x USB 2.0 (500 mA) on front; 1 x USB 2.0 type A + 1 x USB 2.0 box header internal
  • 6 x COM ports: COM1 RS-232/422/485 (BIOS-selectable, front DB9), COM2 RS-232/422/485 auto flow (rear DB9), COM3–6 RS-232 (rear DB9)
  • 16-channel GPIO (8 x GPO + 8 x GPI, TTL 5 V) on internal pin header
  • On-board TPM 2.0 (SLB9665) for data encryption
  • Storage: 1 x 2280/2240 B+M Key M.2 + 1 x mSATA (SATA 3.0) + 1 x 2.5" SATA HDD/SSD
  • 2 x internal mini-PCIe (optional Wi-Fi / 3.5G / LTE / mSATA) + 1 x SIM card socket
  • 24 V ±20% DC input; AT/ATX power mode (default ATX); optional 24 V / 120 W AC-DC adapter
  • Aluminium fanless chassis, -20°C to 70°C operating; 10–93% RH non-condensing
  • Dimensions 269 x 157 x 56 mm; gross 2.8 kg, net 2.1 kg
  • CE (EN 55032 / EN 55024) + FCC Class A; OS: Windows 7 32/64-bit, Windows 10 64-bit

Product Description

The Nexcom NISE 4200 is a wide-temperature fanless industrial box PC built on the 6th Generation Intel Core i5-6442EQ (Quad Core, 1.9 GHz, 6 MB cache) or Core i3-6102E (Dual Core, 1.9 GHz, 4 MB cache) BGA embedded processor on the Intel QM170 / HM170 PCH.

Two DDR4 SO-DIMM sockets accept up to 32 GB (unbuffered, non-ECC). Storage includes a 2280 / 2240 B+M Key M.2 slot, an mSATA slot and an internal 2.5" SATA HDD/SSD bay. Display reaches three independent outputs — 1 x DVI-D and 2 x DisplayPort 1.2 — covering dual or triple-display production HMIs.

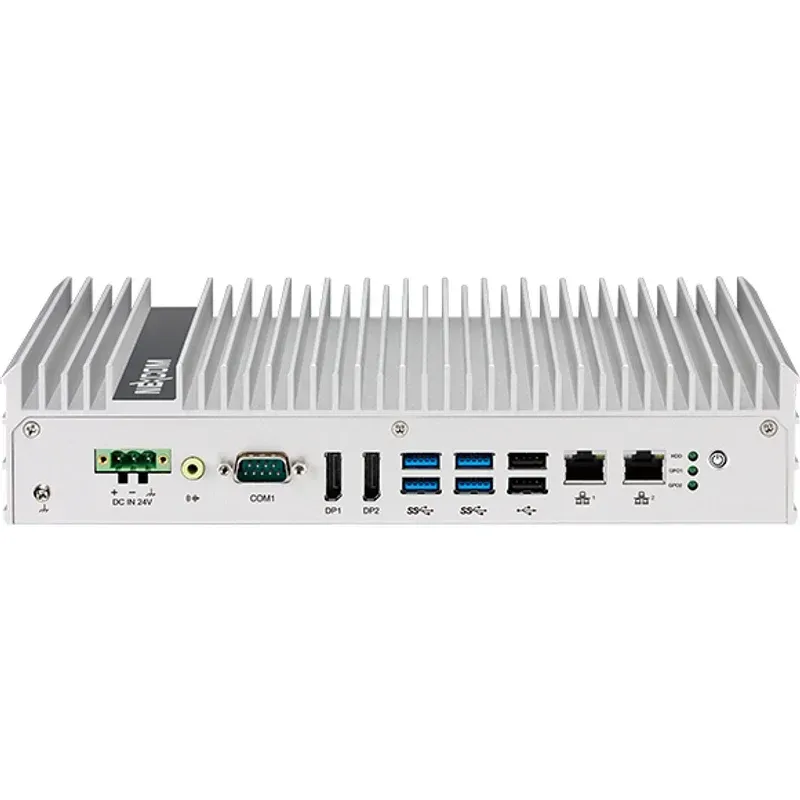

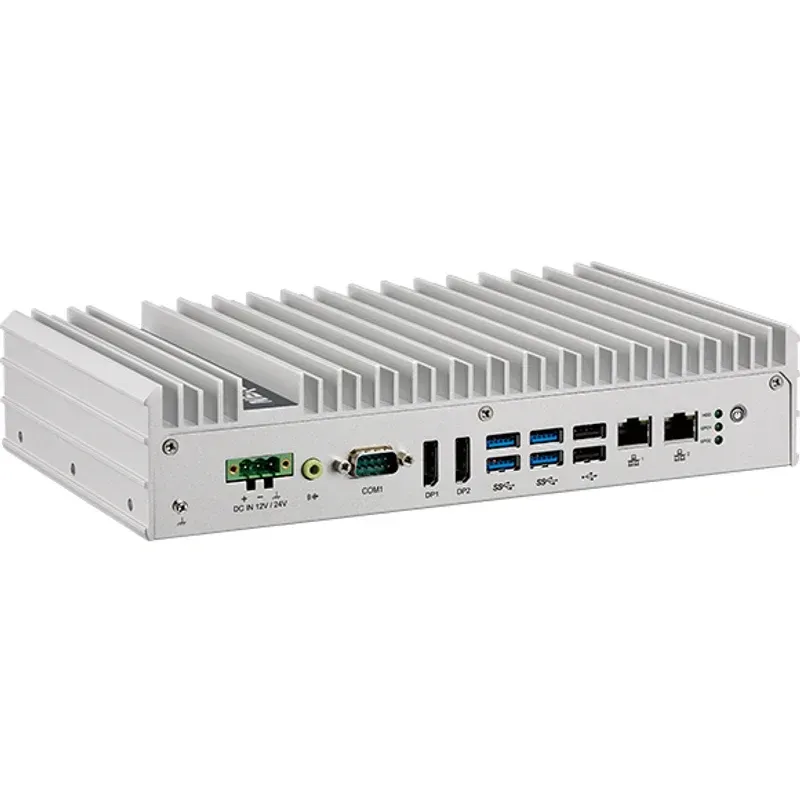

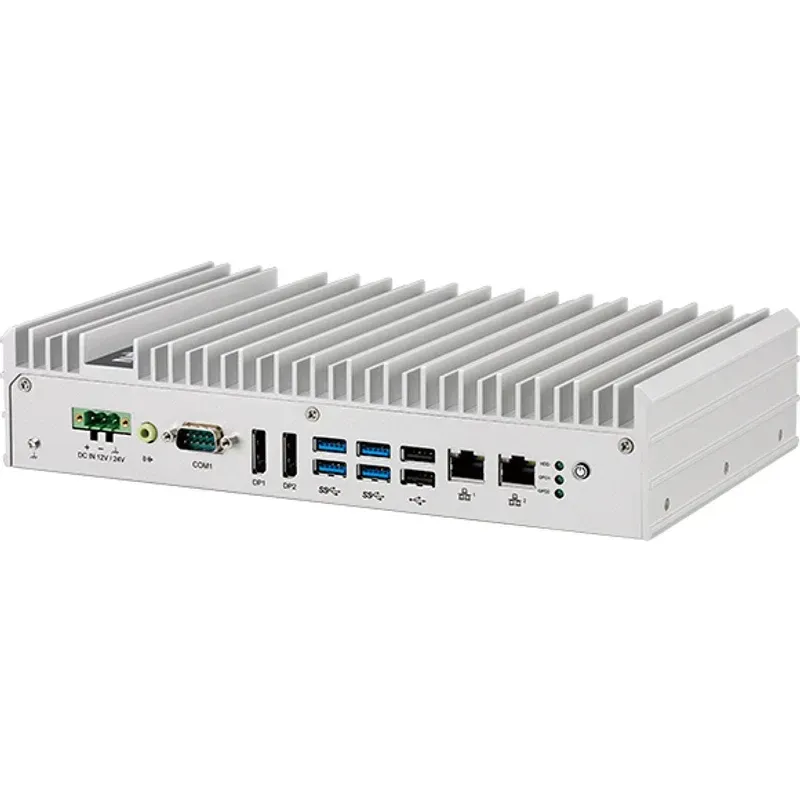

Front I/O carries the DC 24 V ±20% input, an ATX power switch, COM1 (RS-232/422/485 BIOS-selectable), 4 x USB 3.0, 2 x USB 2.0, both Gigabit LAN ports (Intel I210-IT + Intel I219-LM with iAMT 11 on the 4200Q-6442EQ SKU) and a line-out audio jack.

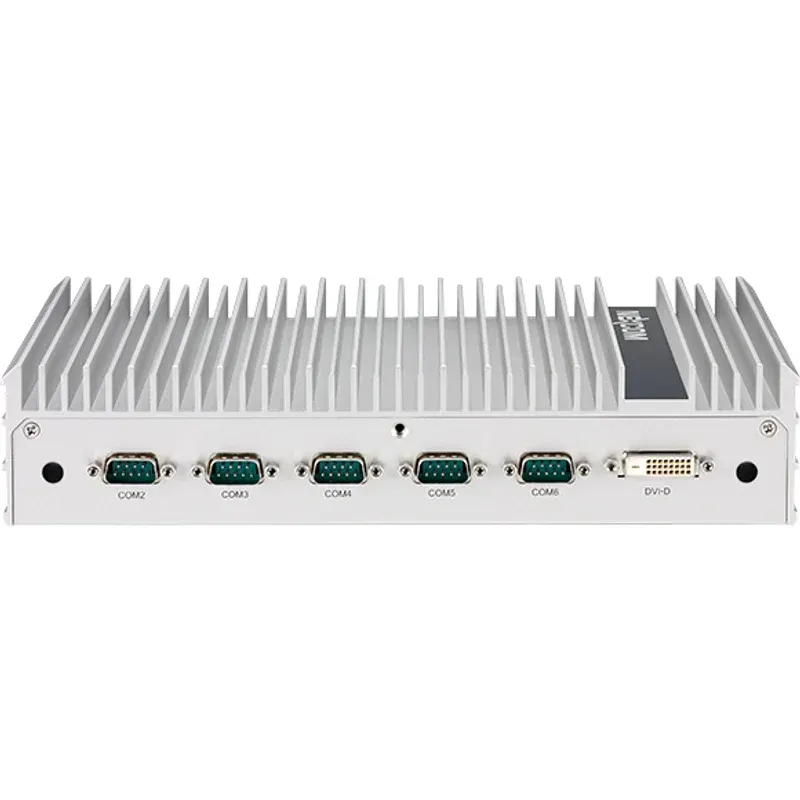

Rear I/O adds 5 x DB9 for COM2 (RS-232/422/485 auto flow control) plus COM3–COM6 (RS-232) and the 1 x DVI-D port.

Internal extras: 1 x USB 2.0 type A, 1 x USB 2.0 box header, 16-channel GPIO pin header (8 x GPO + 8 x GPI, TTL 5 V), on-board TPM 2.0 (SLB9665) for data encryption, two internal mini-PCIe sockets for Wi-Fi / 3.5G / LTE / mSATA and a SIM card socket.

The aluminium fanless chassis is rated -20°C to 70°C operating with airflow, 10–93% RH non-condensing, IEC 60068-2-64 / -2-6 vibration and IEC 60068-2-27 shock protection on both HDD and SSD/M.2. CE (EN 55032 / EN 55024) and FCC Class A. OS support: Windows 7 32/64-bit and Windows 10 64-bit.

Two SKUs: NISE 4200Q-6442EQ (P/N 10J00420002X0, iAMT) and NISE 4200H-6102E (P/N 10J00420005X0, without iAMT). TSL Automation supplies the Nexcom NISE 4200 worldwide.

Technical Specifications

CPU Support

6th Generation Intel Core i5-6442EQ Quad Core 1.9 GHz, 6 MB cache (BGA, NISE 4200Q-6442EQ)

6th Generation Intel Core i3-6102E Dual Core 1.9 GHz, 4 MB cache (BGA, NISE 4200H-6102E)

Turbo-boost disabled by default

Chipset

Intel QM170 / HM170 PCH

System Memory

2 x DDR4 SO-DIMM, up to 32 GB, unbuffered non-ECC

TPM

On-board TPM 2.0 (SLB9665) for data encryption

CPU Cooler

Passive (Fanless)

M.2

1 x 2280 or 2240 B+M Key M.2 slot

mSATA

1 x mSATA (SATA 3.0)

HDD/SSD Bay

1 x 2.5" SATA HDD or SSD (SATA 3.0)

Display Outputs

1 x DVI-D

2 x DisplayPort 1.2

Independent Display

Triple (DP + DP + DVI-D)

Dual (DP + DVI-D)

Power

24 V ±20% DC input

1 x ATX power on/off switch

Display

2 x DisplayPort 1.2

Audio

1 x Line-out

Serial

1 x DB9 COM1 (RS-232/422/485 BIOS-selectable)

USB

4 x USB 3.0 (900 mA per port)

2 x USB 2.0 (500 mA per port)

LAN

LAN1: Intel I210-IT GbE (WoL, PXE)

LAN2: Intel I219-LM GbE with Intel AMT 11 (NISE 4200Q-6442EQ only)

Status LEDs

2 x LAN active

2 x GPO status / COM1/2 TX/RX

1 x HDD access

Serial

5 x DB9 for COM2 + COM3–COM6

COM2: RS-232/422/485 auto flow control

COM3 / COM4 / COM5 / COM6: RS-232

Display

1 x DVI-D

USB

1 x USB 2.0 type A connector

1 x USB 2.0 box header

GPIO

16 channel: 8 x GPO + 8 x GPI, TTL 5 V level (internal pin header)

Mini-PCIe

2 x internal mini-PCIe (optional Wi-Fi / 3.5G / mSATA / LTE)

M.2

1 x 2280 or 2240 B+M Key M.2 slot

SIM

1 x SIM card socket

Power Mode

AT / ATX power mode (default: ATX)

DC Input

24 V ±20% DC input

Power Adapter (Optional)

24 V / 120 W AC-DC adapter w/o power cord (P/N 7400120023X00)

OS

Windows 7 32-bit and 64-bit

Windows 10 64-bit

Certification Information

CE — EN 55032

CE — EN 55024

FCC Class A

Dimensions (W x D x H)

269 x 157 x 56 mm (without wall mount bracket)

Gross Weight

2.8 kg

Net Weight

2.1 kg

Construction

Aluminium chassis, fanless

Operating Temp.

-20°C to 70°C ambient with airflow (IEC 60068-2-1 / -2-2 / -2-14)

Storage Temp.

-20°C to 80°C

Humidity

10–93% relative humidity, non-condensing

Shock — HDD

20 G half sine, 11 ms, IEC 60068-2-27

Shock — M.2

50 G half sine, 11 ms, IEC 60068-2-27

Vibration with HDD

Random 0.5 Grms @ 5–500 Hz, IEC 60068-2-64

Sinusoidal 0.5 Grms @ 5–500 Hz, IEC 60068-2-6

Vibration with SSD & M.2

Random 2 Grms @ 5–500 Hz, IEC 60068-2-64

Sinusoidal 2 Grms @ 5–500 Hz, IEC 60068-2-6

System

NISE 4200Q-6442EQ (P/N: 10J00420002X0) — 6th Gen Core i5-6442EQ fanless system with iAMT supported

NISE 4200H-6102E (P/N: 10J00420005X0) — 6th Gen Core i3-6102E fanless system without iAMT

Options

24 V / 120 W AC-DC power adapter w/o power cord (P/N 7400120023X00)
