HPM-621DE

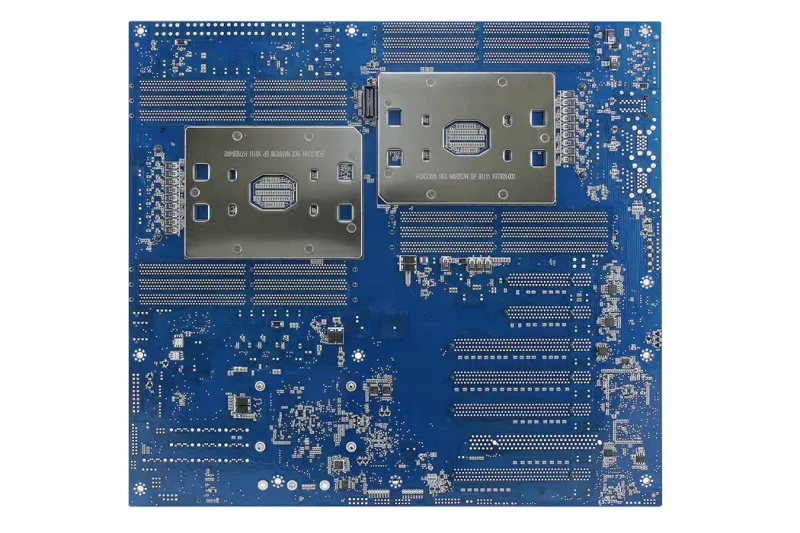

HPM-621DE FrontHPM-621DE Front
HPM-621DE, Image 1HPM-621DE, Image 2
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

  • Dual 1st/2nd Gen Intel® Xeon® Scalable EATX server board with IPMI 2.0
  • 2 x Intel FCLGA3647 sockets (max. TDP 150W each), Intel® C621 chipset
  • 12 x DDR4 2933/2666/2400/2133MHz RDIMM/LRDIMM up to 1.5TB
  • TPM 2.0 onboard; IPMI 2.0 with AST2500 BMC controller
  • 4 x Intel I210AT 1GbE controllers
  • 4 x PCIe Gen3 x16 + 2 x PCIe Gen3 x8 + 1 x PCI 3.0
  • 1 x M.2 M-Key PCIe 3.0 x4 NVMe (2242/2260/2280)
  • 10 x SATA III (RAID 0/1/5/10) + 4 x OCuLink for U.2
  • 12" x 13" (304.8 x 330.2 mm); Windows 10 IoT / Server / Ubuntu

Product Description

The Avalue HPM-621DE is a dual-socket EATX server board built on twin Intel FCLGA3647 sockets for 1st and 2nd Generation Intel® Xeon® Scalable processors (max. TDP up to 150W each) with the Intel® C621 chipset, designed as a high-core-count, storage-rich x86 platform for edge servers and HPC nodes.

With 12 x DDR4 2933/2666/2400/2133MHz RDIMM/LRDIMM up to 1.5TB, onboard TPM 2.0 and IPMI 2.0 via an ASPEED AST2500 BMC, it delivers two-socket server performance in a 12" x 13" board.

It provides 4 x PCIe Gen3 x16, 2 x PCIe Gen3 x8 and a PCI 3.0 slot, an M.2 M-Key PCIe 3.0 x4 NVMe, 10 x SATA III (RAID 0/1/5/10), 4 x OCuLink for U.2, quad Intel I210AT 1GbE, and USB 3.2 Gen1/USB 2.0, running Windows 10 IoT, Windows Server 2016/2019 or Ubuntu 18.04 LTS or later.

Technical Specifications

Processor

Dual Intel FCLGA3647 Sockets support 1st and 2nd Generation Intel® Xeon® Scalable Processor (Max. TDP at 150W each)

Platform Controller Hub

Intel® C621 Chipset

System Memory

12 x DDR4 2933/ 2666/ 2400/ 2133 MHz RDIMM/ LRDIMM up to 1.5TB

Watchdog Timer

System reset event 0 ~ 6553 seconds

BIOS

AMI UEFI BIOS

H/W Status Monitor

CPU temperature, fan speed and voltage monitoring, fan speed control, case open detection

TPM

TPM 2.0 onboard

IPMI

IPMI 2.0 with AST 2500 BMC controller onboard

USB

4 x USB 3.2 Gen1 ports

RJ-45

4 x RJ45 (LAN1 shares IPMI port)

Graphic Chipset

AST 2500 BMC controller

Resolution

1 x VGA port, VGA: 1920 x 1200 @ 60Hz 32bpp

Expansion

4 x PCIe Gen3 x16 slots, 2 x PCIe Gen3 x8 slots, 1 x PCI 3.0 slot

Slot 1, PCIe 3.0 x16 from CPU1

Slot 2, PCI 3.0

Slot 3, PCIe 3.0 x16 from CPU1

Slot 4, PCIe 3.0 x16 from CPU2

Slot 5, PCIe 3.0 x16 from CPU2

Slot 6, PCIe 3.0 x8 from CPU1

Slot 7, PCIe 3.0 x8 from CPU1 (closest to CPU)

M.2

1 x M.2 M-Key PCIe 3.0 x4 NVMe SSD, 2242/2260/2280 form factor

USB

2 x Internal USB 2.0 ports

2 x Internal USB 3.2 Gen1 ports

SATA

10 x SATA III Support RAID 0,1,5,10

Serial

2 x Internal RS232 ports

VGA

1 x Internal VGA port

Other

4 x OCuLink ports from CPU 2 for U.2 SSD

CMOS Battery

1 x Horizontal Socket Type CMOS Battery Holder with CR2450

LAN Chipset

4 x Intel I210AT 1GbE controllers

LAN Port

4 x RJ45 (LAN1 shares IPMI port)

Operating Temp.

0 ~ 60°C (32 ~ 140°F)

Storage Temp.

-40 ~ 85°C

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

1.8KG

Power Connector

1 x Std. 24 Pin ATX connector

2 x 8 Pin SSI 12V connectors

Dimension (L x W)

12" x 13" (304.8mm x 330.2mm), PCB thickness is 2.0mm

OS

Windows 10 IoT Enterprise

Windows Server 2016

Windows Server 2019

Ubuntu 18.04 LTS or Later

Ordering Information

HPM-621DEA-A1R: EATX 2xLGA3647 Intel 1st/2nd Gen. C621 w/12xDDR4/4xPCIex16/4x1GbE/6xUSB3.1/10xSATA3.0
