What are the key features of the EPM-1712 embedded peripheral?

The EPM-1712 offers high-density digital I/O, programmable logic, and robust EMC protection.

What applications is the EPM-1712 suitable for?

It is ideal for PLC expansion, industrial automation, and custom control solutions.

What are embedded peripherals and what are their typical applications?

Embedded peripherals are modular I/O and interface boards designed to expand the capabilities of embedded and industrial systems. They are used in automation, data acquisition, process control, and machine monitoring.

What are the advantages of using embedded peripherals?

They provide flexible I/O expansion, industrial-grade reliability, and easy integration with a wide range of embedded platforms.

What is the typical power input for embedded peripherals?

Most embedded peripherals support wide voltage input ranges (e.g., 9-36V DC) and are designed for low power consumption.

What communication interfaces are supported by embedded peripherals?

Common interfaces include RS-232/422/485, USB, Ethernet, CAN, and GPIO, depending on the model.

Are embedded peripherals compatible with standard industrial protocols?

Many models support protocols such as Modbus, CANopen, and EtherCAT for seamless integration.

What is the operating temperature range for embedded peripherals?

Most models support industrial temperature ranges, typically -40°C to +85°C.

How do I install an embedded peripheral in my system?

Most peripherals support DIN-rail, panel, or board-level mounting. Refer to the product manual for detailed installation steps.

What drivers or software are required for embedded peripherals?

Drivers and SDKs are usually provided for Windows and Linux platforms. Check the product page for downloads and documentation.

How do I connect embedded peripherals to my host system?

Use the appropriate interface cable (USB, serial, Ethernet, etc.) and ensure correct configuration in your system BIOS or OS.

What should I do if my embedded peripheral is not detected?

Check power supply, cable connections, and ensure drivers are properly installed. Try connecting to a different port or system if possible.

How can I update the firmware on my embedded peripheral?

Refer to the product manual for firmware update instructions. Updates are typically performed via USB or serial interface using vendor tools.

What steps should I take if I experience communication errors?

Verify interface settings (baud rate, parity, etc.), check for cable or connector damage, and ensure proper grounding and EMC protection.

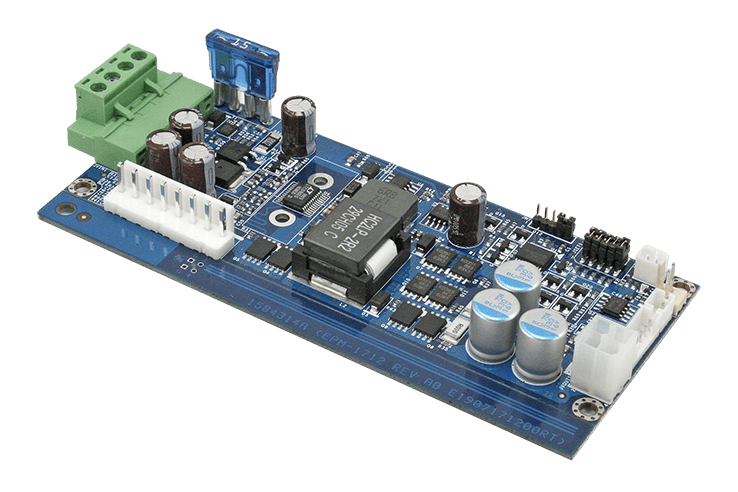

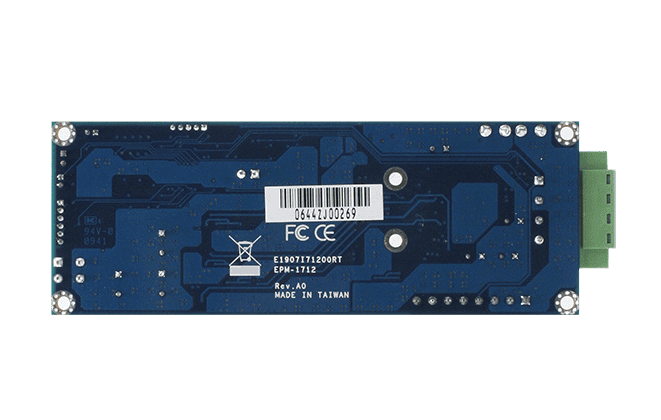

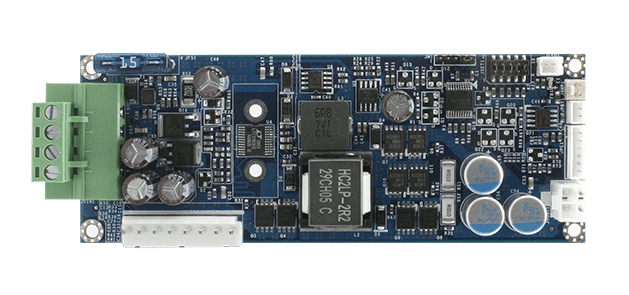

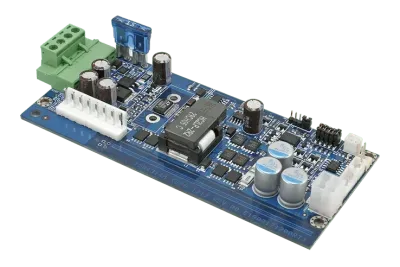

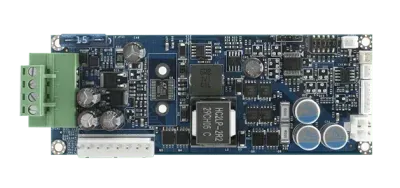

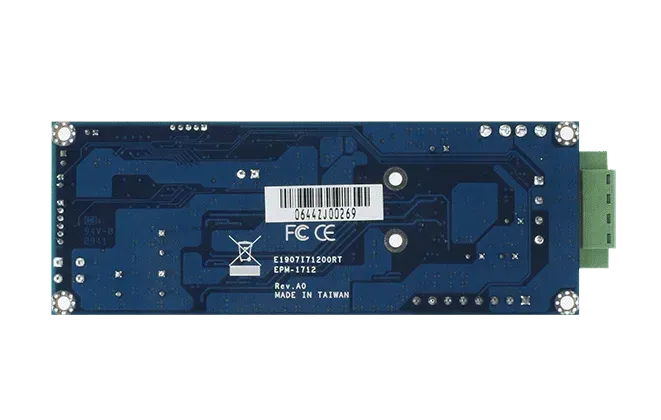

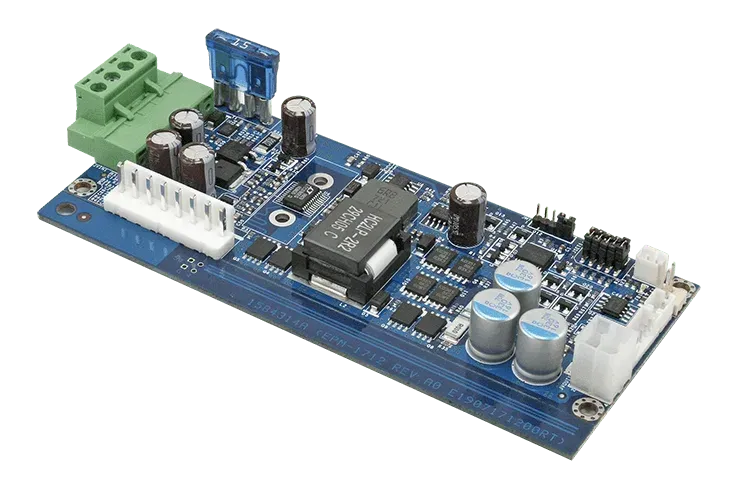

Avalue EPM-1712 DC to DC 100W Power Module

Product Description

The Avalue EPM-1712 is a DC to DC 100W power module engineered for industrial environments. It offers a wide input voltage range and provides a stable 12VDC output with a maximum current of 8.33A.

Designed with high efficiency and protection features, the EPM-1712 ensures reliable power conversion, safeguarding sensitive equipment against voltage fluctuations. This module is an excellent choice for embedded systems requiring dependable power solutions.

Technical Specifications

Mechanical & Environmental

Dimension

135mm x 50mm x 15mm

Operating Temp.

-20°C~+85°C

Storage Temp.

-40°C~+125°C

Output Current

12V 8.33A

Efficiency

Up to 88%

Input Voltage

+9V~+36V DC

Max Output

100W

Output Current

12V 8.33A

Input Current

15A

Ordering Information

EPM-1712-C1R/Vehicle 100Watt Smart DC/ DC Converter

What is EPM-1712?

The EPM-1712 is a industrial & embedded motherboard manufactured by Avalue, designed specifically for motherboard-embedded-peripheral applications. The Avalue EPM-1712 is a DC to DC 100W power module engineered for industrial environments. It offers a wide input voltage range and provides a stable 12VDC output with a maximum current of 8.33A. Designed with high efficiency and protection features, the EPM-1712 ensures reliable power conversion, safeguarding sensitive equipment against voltage fluctuations. This module is an excellent choice for embedded systems requiring dependable power solutions.

Key Features & Benefits

Features information coming soon.

Applications & Use Cases

The EPM-1712 is ideal for various industrial automation applications:

Custom industrial computing solutions
Industrial automation platforms
Embedded system development
Control system integration
