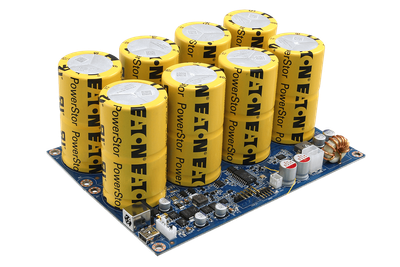

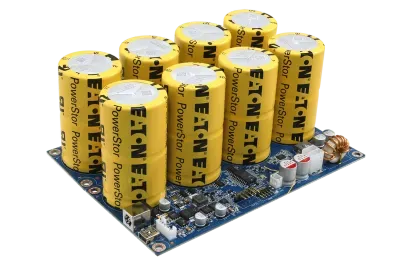

Avalue EPM-1715 DC to DC 60W Power Module

Product Description

The Avalue EPM-1715 is a DC to DC 60W power module engineered for industrial environments. It offers a wide input voltage range and provides a stable 12VDC output with a maximum current of 5A.

Designed with isolation and protection features, the EPM-1715 ensures reliable power conversion, safeguarding sensitive equipment against voltage fluctuations. This module is an excellent choice for embedded systems requiring dependable power solutions.

Technical Specifications

DC In/Out Connector

Input Power Connector

DC Jack 3-pin 2.5mm on board

Output Power Connector (DC-12V)

AT 2Px2 Power connector with power cable, follows ATX 2*2 +12V power pin assignment

DC In/Out Characteristics

Power Type

AT

Super-Cap

400F (-5% to +10% (20°C)

Rated Output Power

60W total output

Maximum Output Power

80W total output

Input Voltage Range

12V ~ 24V

Output Voltage Range

+12V ±5%

Output Ripple & Noise Range

+12V: 100mVpp

Super-Cap Cells Life Time

@2.5V 65°C is about 8000 hours, @2.5V 50°C is about 14000 hours

Maximum Output Current (DC-12V)

6.7A

Mechanical & Environmental

Operating Temp.

0 ~ +60°C

Storage Temp.

-40 ~ +75°C

Operating Humidity

0 ~ 90% Relative Humidity, Non-condensing

Dimension (W x L x H)

4cell: 160mmx74mmx70mm

6cell/8cell:160mmx148mmx70mm

Ordering Information

EPM-1715A-A1R

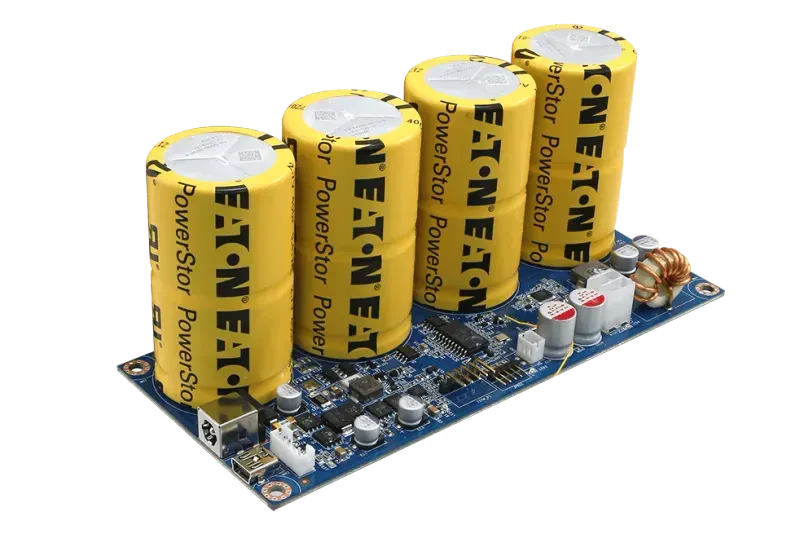

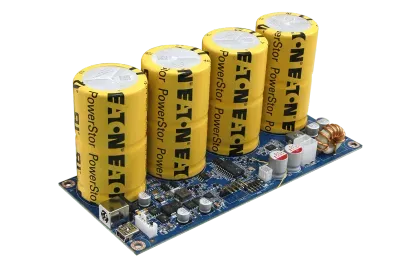

Supercapacitor Power Module 4cell

EPM-1715C-A1R

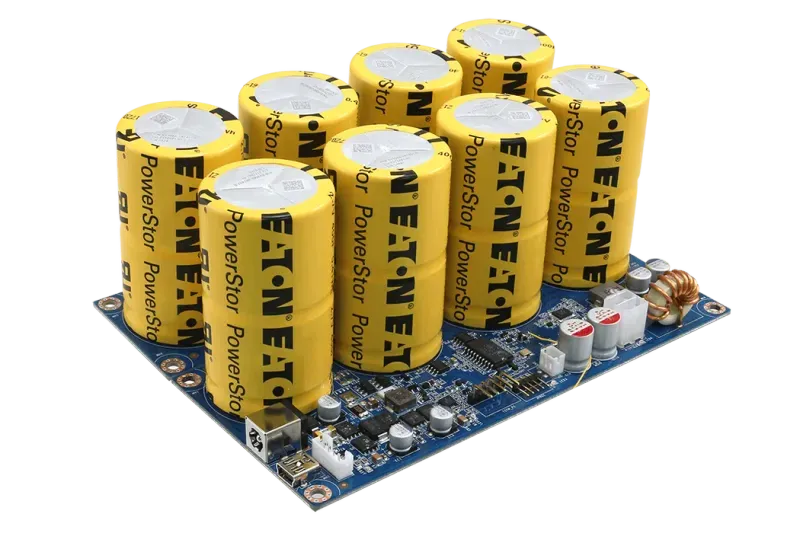

Supercapacitor Power Module 8cell

What is EPM-1715?

The EPM-1715 is a industrial & embedded motherboard manufactured by Avalue, designed specifically for motherboard-embedded-peripheral applications. The Avalue EPM-1715 is a DC to DC 60W power module engineered for industrial environments. It offers a wide input voltage range and provides a stable 12VDC output with a maximum current of 5A. Designed with isolation and protection features, the EPM-1715 ensures reliable power conversion, safeguarding sensitive equipment against voltage fluctuations. This module is an excellent choice for embedded systems requiring dependable power solutions.

Key Features & Benefits

Features information coming soon.

Applications & Use Cases

The EPM-1715 is ideal for various industrial automation applications:

Custom industrial computing solutions
Industrial automation platforms
Embedded system development
Control system integration
