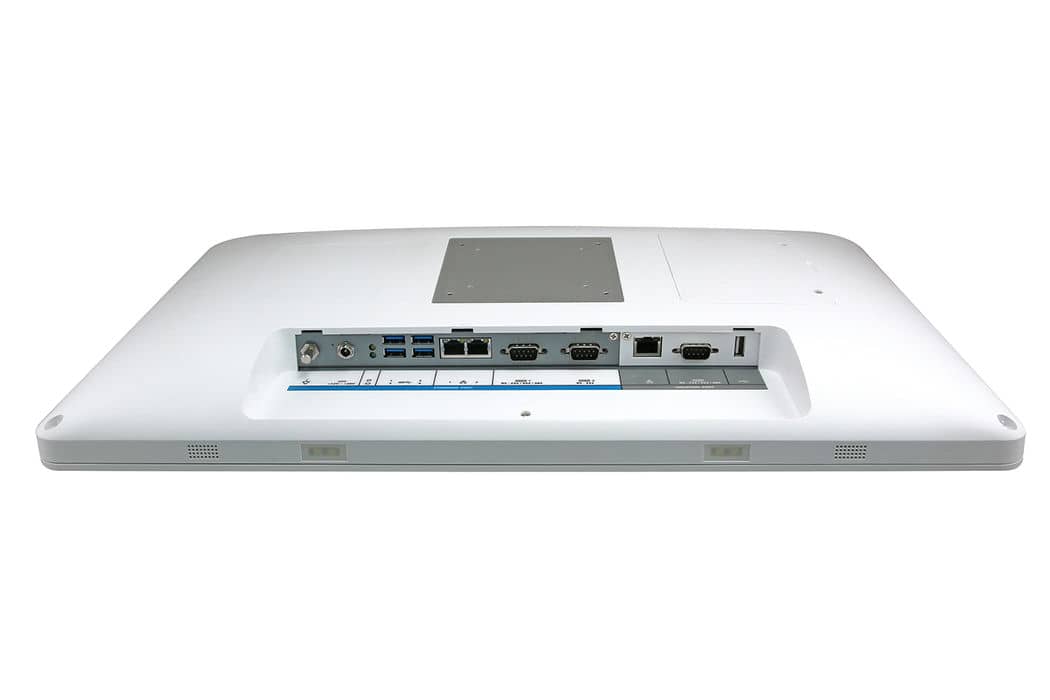

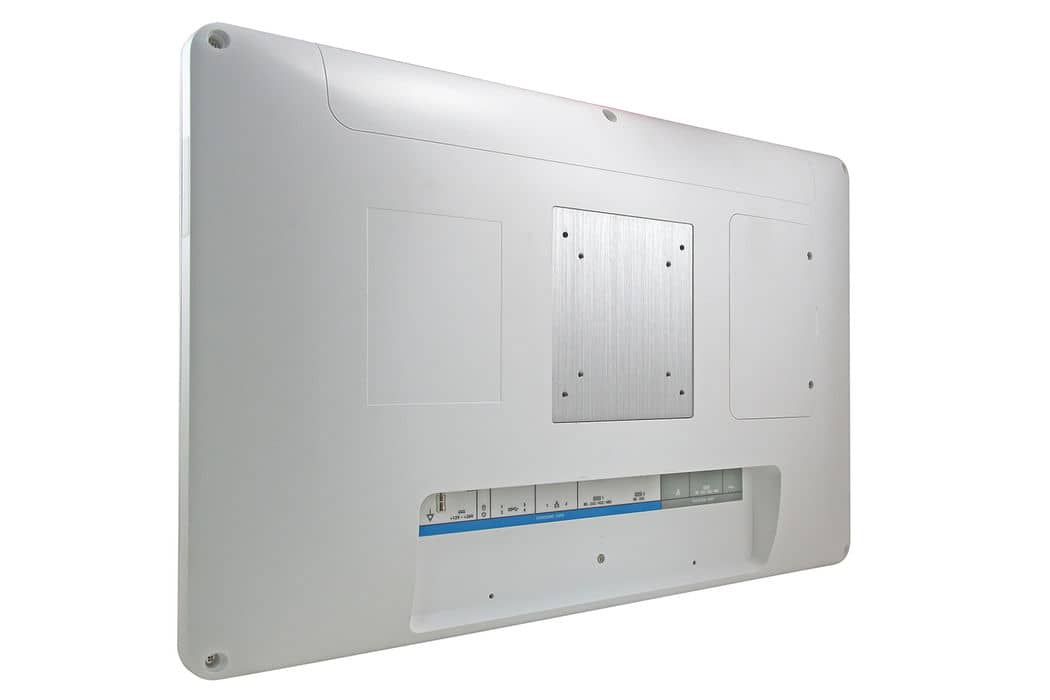

HID-2132

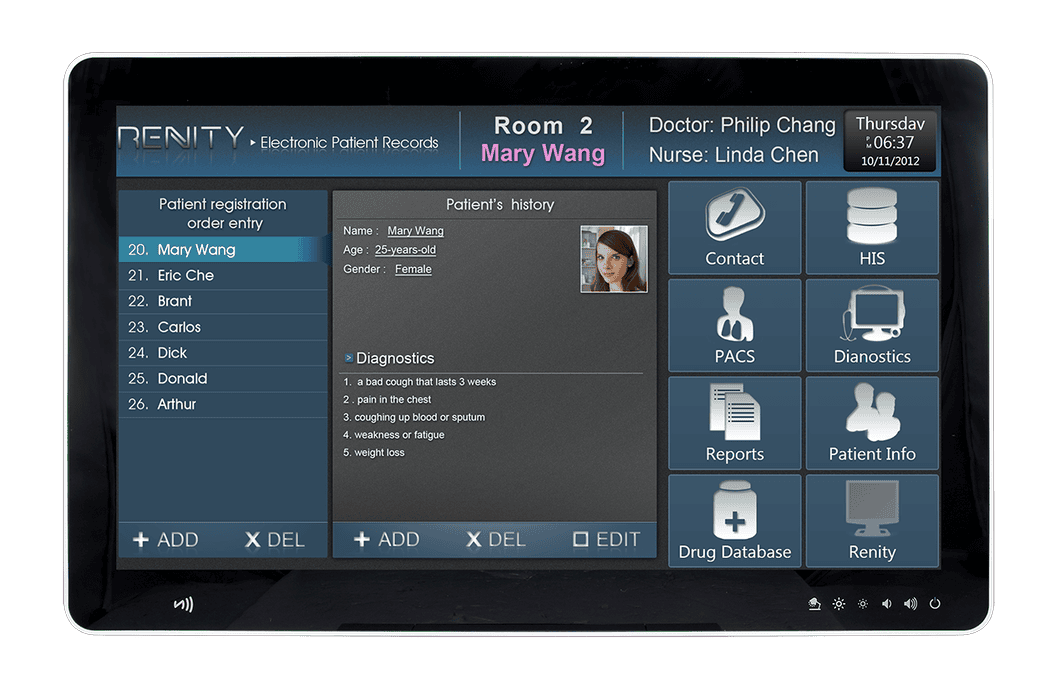

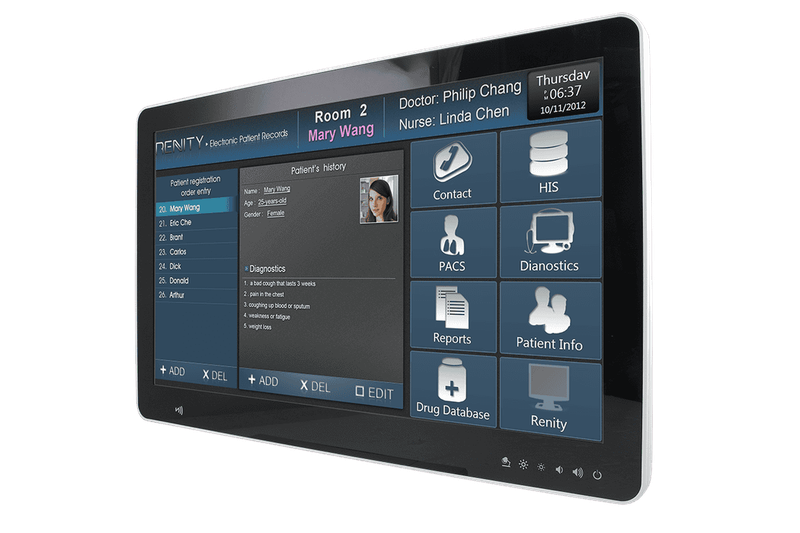

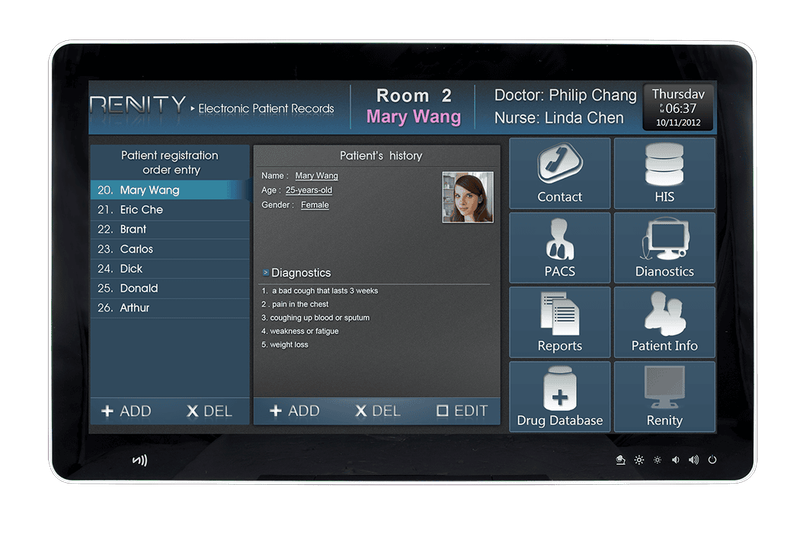

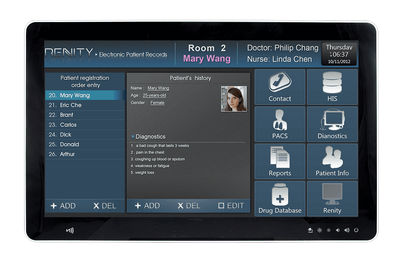

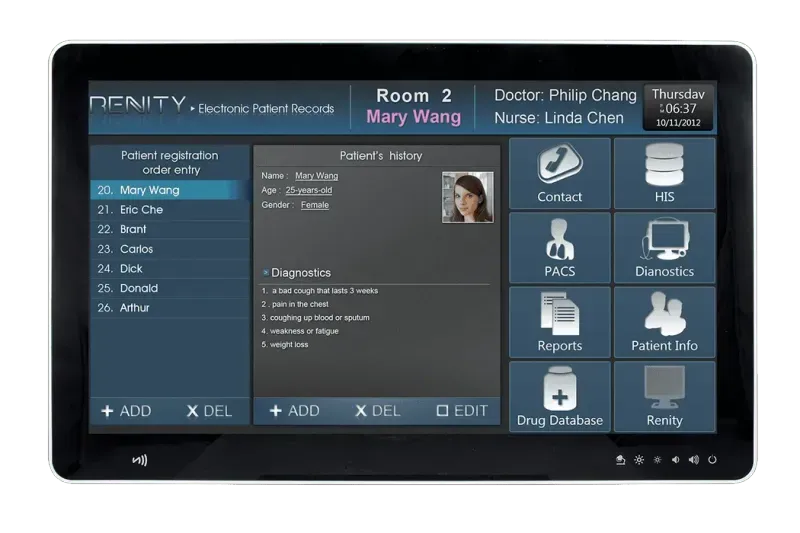

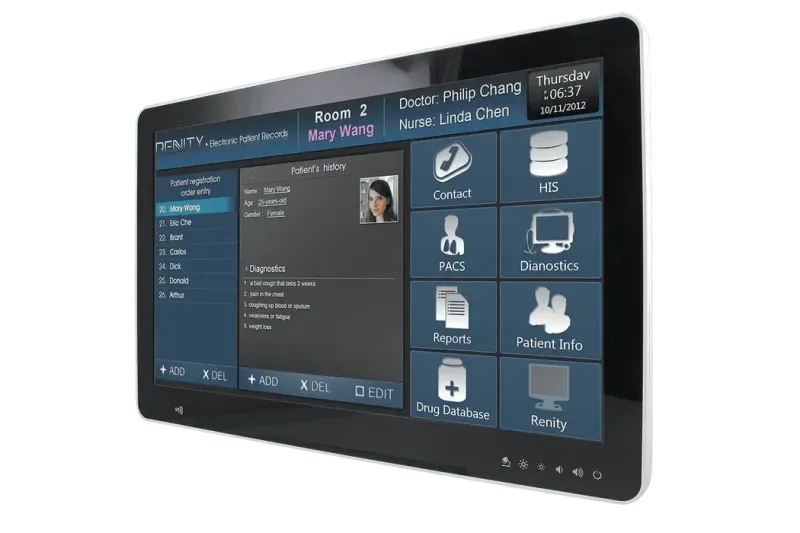

HID-2132 FrontHID-2132 FrontHID-2132 FrontHID-2132 Front
HID-2132 FrontHID-2132 FrontHID-2132 FrontHID-2132 Front

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Product Features

  • Onboard 6th Gen. Intel® Core™ i7/ i5 / i3/ Celeron Processor
  • Support 1x 260 pin SO-DIMM up to 16GB DDR4 SDRAM
  • Anti-Microbial finish
  • 4x USB3.0, 1x RS-232/422/485, 1x RS-232, 2x Intel® Gigabit LAN
  • LED reading light bar
  • Front panel IP65
  • 5-kV isolation USB/ COM/ LAN ports by IET module

Product Description

The Avalue HID-2132 is a 21.5-inch medical panel PC designed for precision imaging in healthcare settings. Powered by the 6th Generation Intel® Core™ i5-6300U processor, it offers robust performance for medical applications.

The Full HD PCAP touchscreen supports multi-touch functionality, while the IP65-rated front panel ensures hygiene and durability. Features include anti-microbial finish, dual LED reading light bars, and fanless design.

With multiple I/O ports, including 4x USB 3.0, 2x COM, and dual Intel® Gigabit LAN, the HID-2132 is a versatile solution for modern healthcare environments.

Technical Specifications

System Information

SBC

ARC-SKLU + isolation IET board

(default IET: ARC-SKLU DB-A I/O ports -> Extend 1x USB / 1x COM / 1x LAN


Optional IET : ARC-SKLU DB-B I/O ports -> Extend 2x USB 2.0 / 1x HDMI / 1x Line out / 1x mic in)

Processor

6th Generation Intel® Core™ i7/i5/i3/Celeron Processor

System Memory

1 x 260-pin DDR4 SODIMM (non ECC) support up to 16GB

I/O Chipset

EC ITE IT8528VG/FX

Watchdog Timer

H/W reset, 1sec. ~ 65535sec. and 1sec./step

H/W Status Monitor

CPU & system temperature monitoring and Voltages monitoring

TPM

Infineon TPM 2.0 (SLB 9665 TT2.0)

Battery

1100mAh 4S1P (by optional)

Platform Controller Hub

Integrated in Intel ® Skylake ULT Processor

Other

Dual LED reading light bar

I/O cover

Optional MSR/SCR module with MOQ apply

Optional smart backup battery module

Optional WIFI/BT module (by mini PCIe)

Optional handset & 1D barcode scanner

Expansion

Expansion

1 x Full size mini PCIe slot (for mSATA & PCIe & USB2.0 signal)

Storage

Storage

1 x 2.5 Drive bay

Display

Graphic Chipset

Intel® HD Graphics 520

Spec. & Resolution

HDMI: 3840 x 2160 @ 24Hz (optional by IET module)

Audio

Audio Codec

Realtek ALC888S

Speaker Output

2 x 2W

Ethernet

LAN Chipset

1 x Intel® I211AT, 1 x Intel® I219LM

1 x Isolation 5-kV Intel® I210AT (by IET Module)

Ethernet Interface

10/100/1000 Base-Tx GbE compatible

Power Requirement

DC Input

+19V

Power Mode

AT/ATX (ATX is default setting)

DC Input Connector

Lockable DC Jack

Battery Operating Time

Max. 20 mins backup operation

Software Support

OS

Win 7 / 8.1 / 10 / Linux

Certification

Certification Information

CE :

IEC/EN60601-1-2


FCC :

Part 15 class B


UL60601-1:

AAMI /ANSI ES60601-1:2005/(R)2012 and A1:2012,C1:2009/(R)2012 and A2:2010/(R)2012


CB:

IEC 60601-1/A1:2012 & EN 60601-1/A1:2013 (Ed 3.1)

EN 60601-1:2006+A11:2011+A1:2013+A12:2014

External I/O

USB Port

4 x USB 3.0

2 x USB 2.0 (by pin header)

1 x Isolation 5-kV USB1.1 (by IET module)

LAN Port

2 x RJ-45

1 x RJ-45 (by IET module)

Panel

LCD Size

21.5"

Resolution

1920 x 1080

Pixel pitch

0.24795 (H) x 0.24795 (V)

Luminance

250 cd/m2

Display Type

Full HD

Contrast ratio

1000

Response time

18 ms

Viewing angle

89(U), 89(D), 89(L), 89(R)

Backlight

LED

Touch Type

Projective capacitive multi-touch up to 10 points

Touch Light Transmission

86%

Touch Controller

USB touch (EETI EXC3188)

I/O

COM Port

1 x RS-232/422/485

1 x RS-232

1 x Isolation 5-kV RS-232/422/485 (by IET Module)

SATA

1 x SATA III

Mechanical & Environmental

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Storage Temp.

-20°C ~ 60°C (-4°F ~ 140°F)

Operating Humidity

0% ~ 90% relative humidity, non-condensing

Weight

5 kg

Vibration Test

With SSD/mSATA: 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis

Shock Test

With CF/SSD : 10Grms, IEC 60068-2-27, half sine, 11ms

Color

White

IP Rating

Front IP65

Construction - Front

White plastic

Construction - Rear

White plastic

Dimension (W x L x H)

539.6 x 342.6 x 45.2 mm

System Fan

Fanless

Fanless

Yes

Finishing

Anti-microbial

Component

Adapter

Medical grade

Input: 100~240 Vac/50~60Hz;

Output: 90W adapter (19V/4.74A adapter)

Ordering Information

Ordering Information

HID-2132-660-A2R

21.5" Full HD Multi-touch Medical PC,

Intel Core i7-6600U/8GB Memory/ NFC/4USB3.0/2COM/SPK/LED reading light/isolation USB/COM/LAN/19V Medical Power adapter


HID-2132-630-A2R

21.5" Full HD Multi-touch Medical PC,

Intel Core i5-6300U/8GB Memory/ NFC/4USB3.0/2COM/SPK/LED reading light/isolation USB/COM/LAN/19V Medical Power adapter


HID-2132-610-A2R

21.5" Full HD Multi-touch Medical PC,

Intel Core i3-6100U/8GB Memory/ NFC/4USB3.0/2COM/SPK/LED reading light/isolation USB/COM/LAN/19V Medical Power adapter


HID-2132-395-A2R

21.5" Full HD Multi-touch Medical PC,

Intel Celeron 3955U/8GB Memory/ NFC/4USB3.0/2COM/SPK/LED reading light/isolation USB/COM/LAN/,19V Medical Power adapter


ACC-HID-Handset

VoIP Handset for HID-2132 with 2D barcode scanner


ACC-HID-WIFI-01R

WiFI+BT Kit for HID-2132 (QCOM IEEE 802.11 a/b/g/n/ac draft 2.0 1T1R and BT4.0+BLE)


ACC-HID-BAT-01R

Smart battery Kit for HID-2132 (1150mAh 4S1P)


Power Cord:


EU E170203183DR


US E1702031835R


JP E170203183BR


UK E170P060370R


AU E170P060392R
