HID-2138

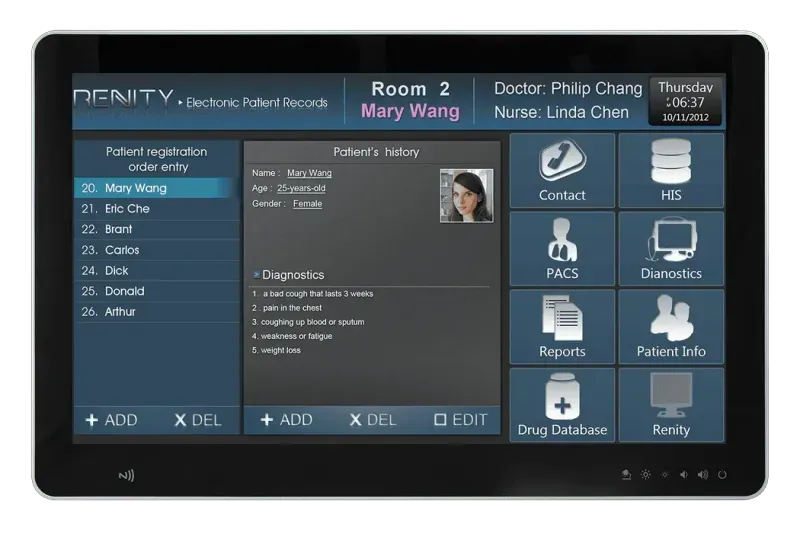

HID-2138 FrontHID-2138 FrontHID-2138 FrontHID-2138 Front
HID-2138 FrontHID-2138 FrontHID-2138 FrontHID-2138 Front

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Product Features

  • 21.5" FHD display with PCAP multi-touch
  • Ultra-slim design
  • Low profile PCIe expansion
  • Front panel IP65
  • Optional NFC/webcam/barcode/handset/WIFI

Product Description

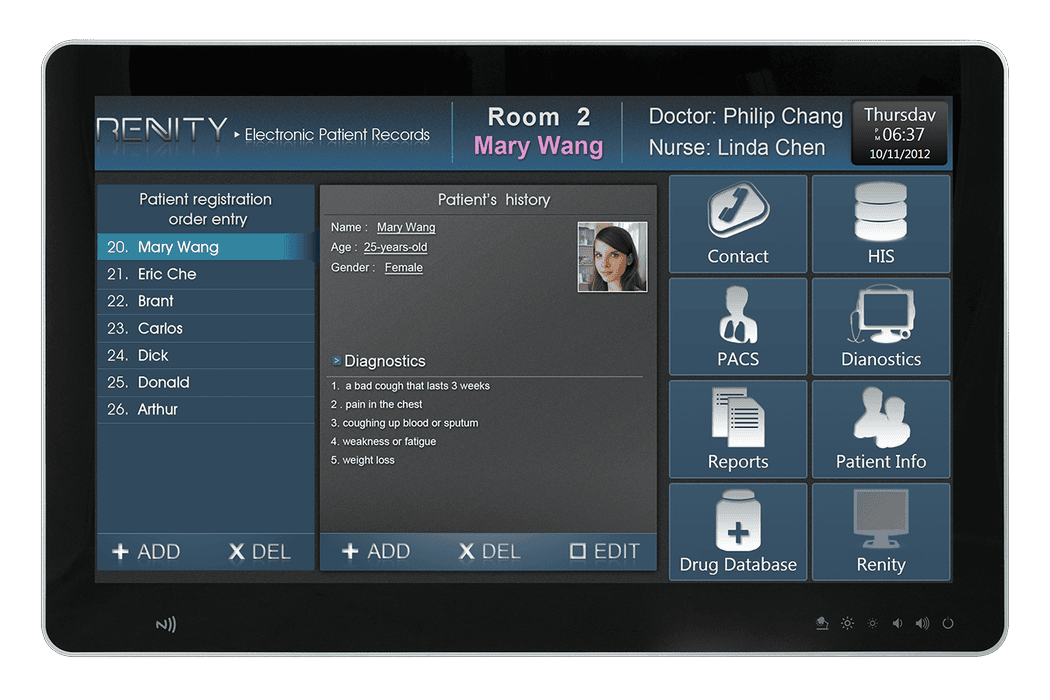

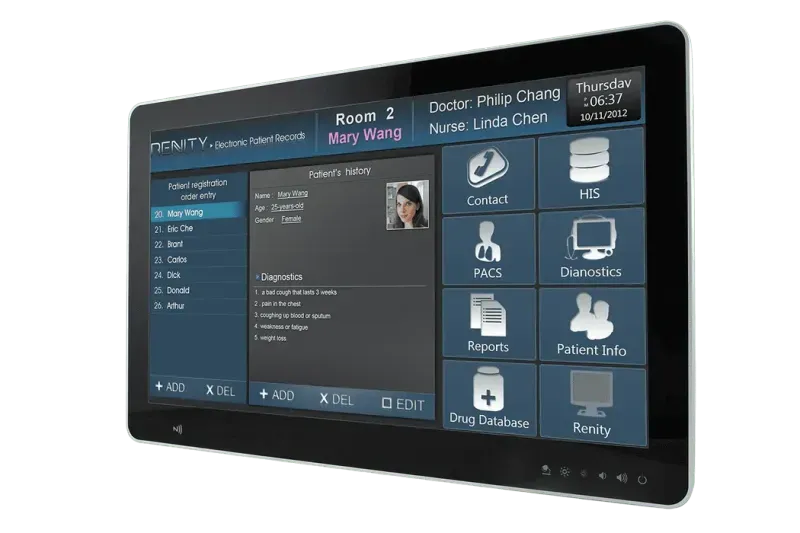

The Avalue HID-2138 is a 21.5-inch medical panel PC designed for critical healthcare environments. Powered by 11th Gen Intel® Core™ i7/i5/i3/Celeron processors, it offers robust performance for medical imaging and patient monitoring.

The Full HD PCAP touchscreen supports glove operation, while the antimicrobial, IP65-rated front panel ensures hygiene and durability.

With multiple I/O ports, including USB Type-C, dual LAN, and optional features like NFC, webcam, and barcode scanner, the HID-2138 is a versatile solution for modern healthcare settings.

Technical Specifications

System Information

SBC

HID-2138 mother board

Processor

11th Generation Intel® Core™ i7/i5/i3/Celeron Processor

System Memory

Two 260-pin DDR4 3200 MHz SO-DIMM socket, supports up to 64GB max

I/O Chipset

IT8528E

Watchdog Timer

H/W Reset, 1sec. – 65535sec./min.1sec. or 1min. step

H/W Status Monitor

CPU temperature monitoring

System temperature monitoring

VCORE voltage monitoring

VIN voltage monitoring

TPM

Onboard NuvoTon NPCT754AABYX support TPM 2.0

Platform Controller Hub

Integrated in processor (SOC)

Other

Dual LED reading light bar

I/O cover

Optional handset & 1D barcode scanner

Expansion

Expansion

1 x Low profile PCIe

1 x M.2 for 4G/5G

Storage

M.2

1 x M.2 storage

Audio

Audio Codec

Realtek ALC888S

Speaker Output

2 x 2W

Ethernet

LAN Chipset

1 x Intel® I219LM 1 x Intel® I225LM or I226LM

Ethernet Interface

10/100/1000/2500 Base-Tx GbE compatible

Power Requirement

DC Input

+19V

DC Input Connector

+Lockable DC Jack

Power Mode

AT/ATX (ATX is default setting)

Software Support

OS

Win 10/11 Linux

Certification

Certification Information

CE : IEC/EN60601-1-2

FCC : Part 15 class B

UL60601-1

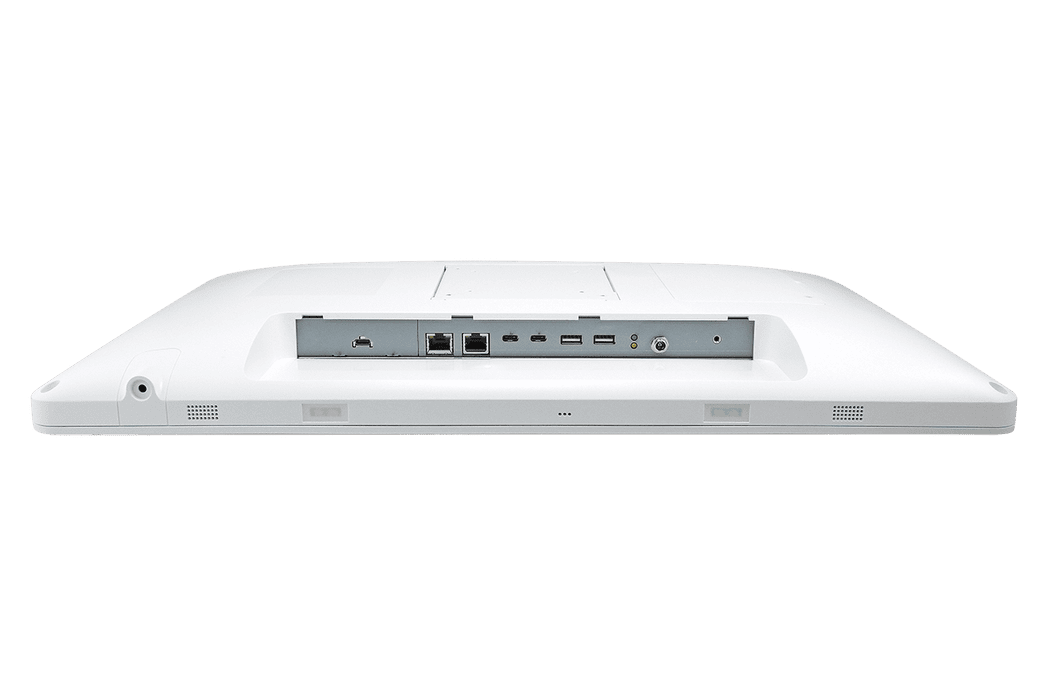

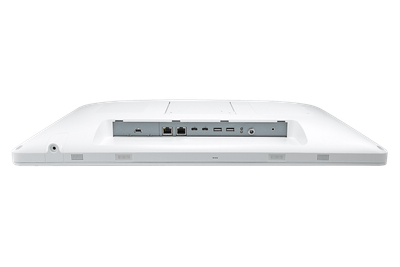

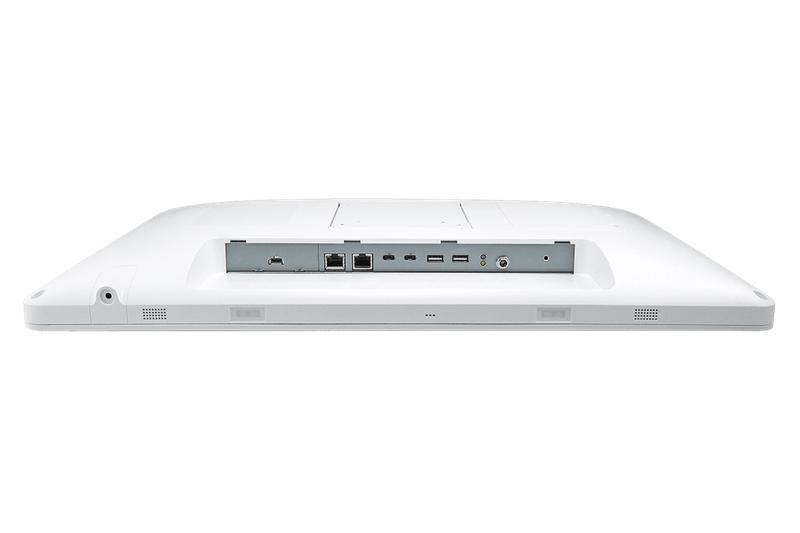

External I/O

USB Port

2 x USB 2.0

USB Type C x 2 (Output for USB 3.1: 5V/ 3A , 15W, Display Input for PD 3.0 15V)

LAN Port

2 x RJ-45

Panel

LCD Size

21.5"

Resolution

1920 x 1080

Pixel pitch

0.24795 (H) x 0.24795 (V)

Luminance

250 cd/m2

Display Type

Full HD

Contrast ratio

1000

Viewing angle

89(U), 89(D), 89(L), 89(R)

Response time

22 ms

Backlight

LED

Touch Type

Projective capacitive multi-touch up to 10 points

Touch Light Transmission

86%

Touch Controller

USB touch (EETI EXC3188)

I/O

SATA

1X SATAIII

COM Port

1 (optional)

Mechanical & Environmental

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Storage Temp.

-30°C ~ 70°C (-22°F ~ 158°F)

Operating Humidity

0% ~ 90% relative humidity, non-condensing

Weight

4.5 Kg

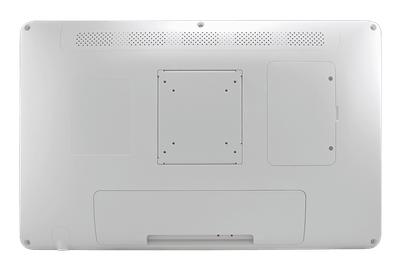

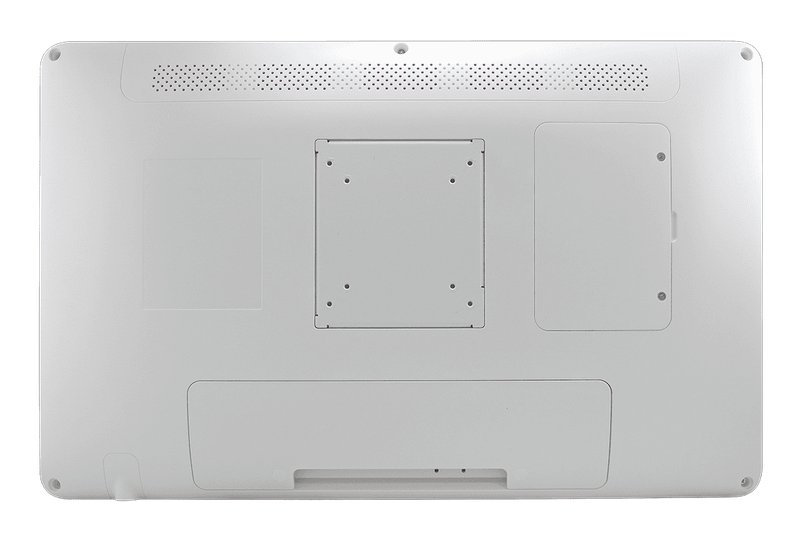

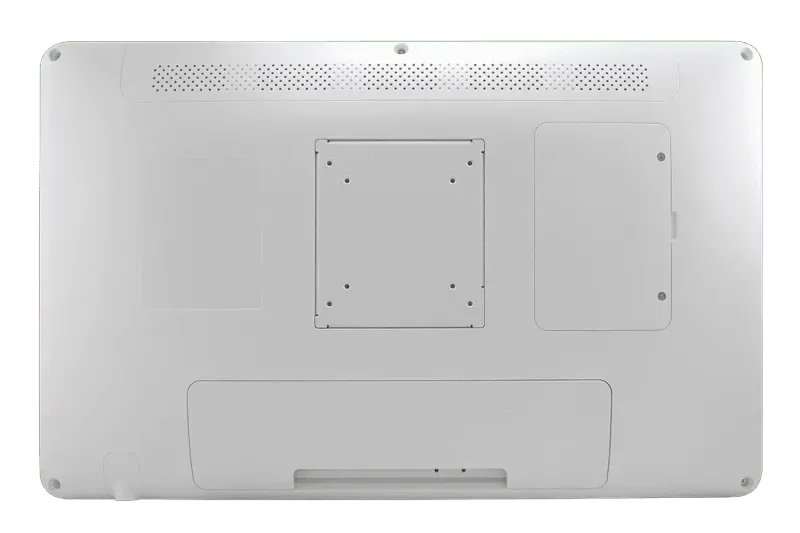

VESA

75x75, 100x100 mm

Vibration Test

With SSD/mSATA: 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis

Shock Test

With CF/SSD : 10Grms, IEC 60068-2-27, half sine, 11ms

Color

White

IP Rating

Front IP65

Dimension (W x L x H)

539.6 x 342.6 x 45.2 mm

System Fan

Fanless

Construction - Front

White plastic

Construction - Rear

White plastic

Fanless

Yes

Finishing

Anti-microbial

Component

Adapter

Medical grade

Input: 100~240 Vac/50~60Hz;

Output: 90W adapter (19V/4.74A adapter)

Packing List

Packing List

1 x HID-2138 Medical panel PC

1 x Medical power adapter

Ordering Information

Ordering Information

HID-2138-118-A1R

21.5” Tiger Lake Medical Multi-Touch Panel PC,

Intel Core i7-1185G7E/8GB Memory/256GB M.2/NFC/2USB/2TypeC/ 2LAN/SPK/LED reading light/19V Medical Adapter


HID-2138-114-A1R

21.5” Tiger Lake Medical Multi-Touch Panel PC,

Intel Core i5-1145G7E/8GB Memory/256GB M.2/NFC/2USB/2TypeC/ 2LAN/SPK/LED reading light/19V Medical Adapter


HID-2138-111-A1R

21.5” Tiger Lake Medical Multi-Touch Panel PC,

Intel Core i3-1115G4E/8GB Memory/256GB M.2/NFC/2USB/2TypeC/ 2LAN/SPK/LED reading light/19V Medical Adapter


RCC-HID-WIFI-01R

WIFI Dongle for HID-2138

SparkLan WUBT-239ACN(BT)_MU WIFI Dongle


RCC-HID-BCSCAN-01R

Barcode Scanner Kit for HID Series


ACC-NBCAM-08R

Camera for HID-2138


RCC-HID-PCIE-01R

PCIe USB3.0 2 Port for HID-2138


RCC-HID-PCIE-02R

PCIE 2 CH 1080P60 HDMI Capture Card for HID-2138


Power Cord:


EU E170203183DR


US E1702031835R


JP E170203183BR


UK E170P060370R


AU E170P060392R

What is HID-2138?

The HID-2138 is a intelligent healthcare manufactured by Avalue, designed specifically for medical-panel-pc applications. The Avalue HID-2138 is a 21.5-inch medical panel PC designed for critical healthcare environments. Powered by 11th Gen Intel® Core™ i7/i5/i3/Celeron processors, it offers robust performance for medical imaging and patient monitoring. The Full HD PCAP touchscreen supports glove operation, while the antimicrobial, IP65-rated front panel ensures hygiene and durability. With multiple I/O ports, including USB Type-C, dual LAN, and optional features like NFC, webcam, and barcode scanner, the HID-2138 is a versatile solution for modern healthcare settings.

Key Features & Benefits

  • 21.5" FHD display with PCAP multi-touch
  • Ultra-slim design
  • Low profile PCIe expansion
  • Front panel IP65
  • Optional NFC/webcam/barcode/handset/WIFI

Applications & Use Cases

The HID-2138 is ideal for various industrial automation applications:

  • Harsh industrial environments requiring dust and water protection
  • Wireless connectivity and remote monitoring applications
  • Interactive control interfaces and operator panels
  • Visual monitoring and data display systems
  • Healthcare and medical device integration
  • Barcode scanning and identification
  • Industrial automation and control
  • Critical healthcare environments
