HID-2232

*Price on request. Contact us for a quote.

Manufacturer: Avalue

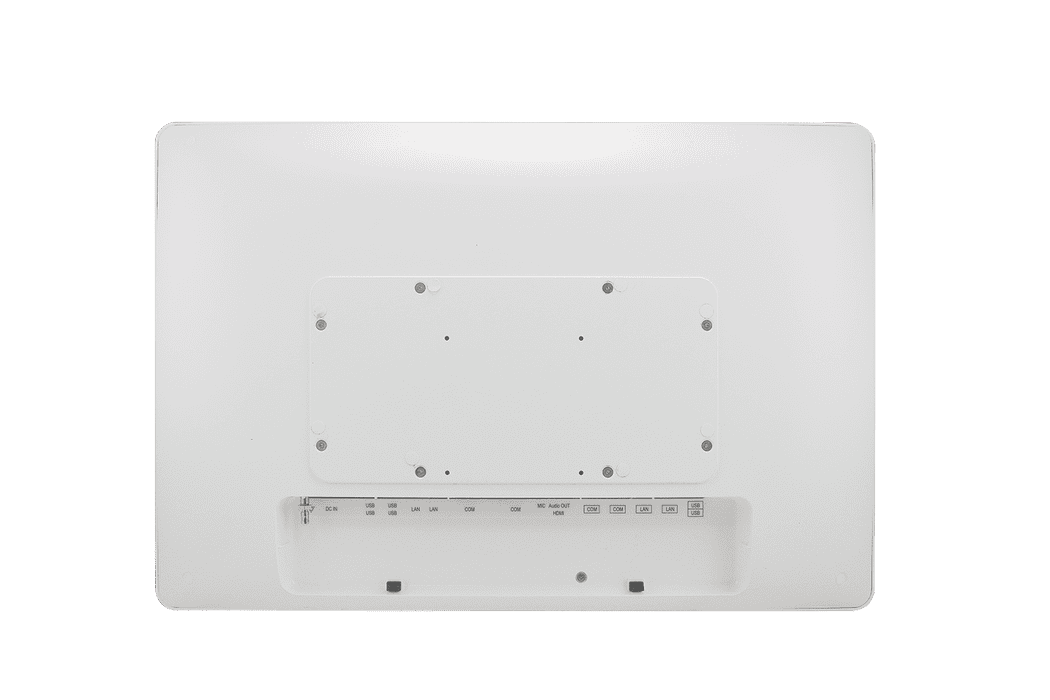

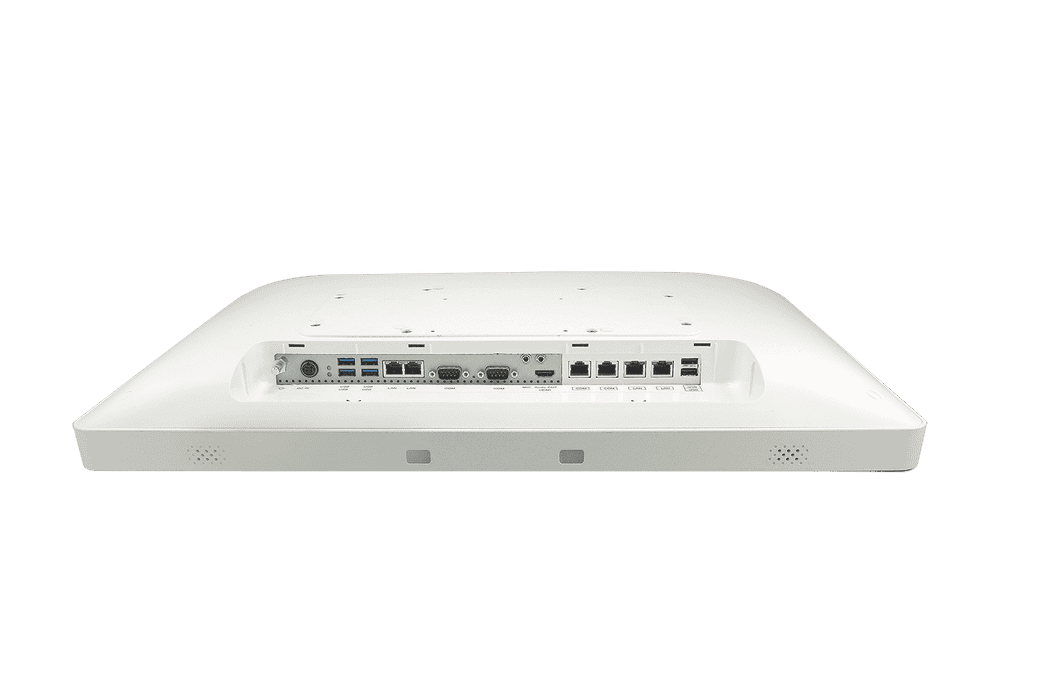

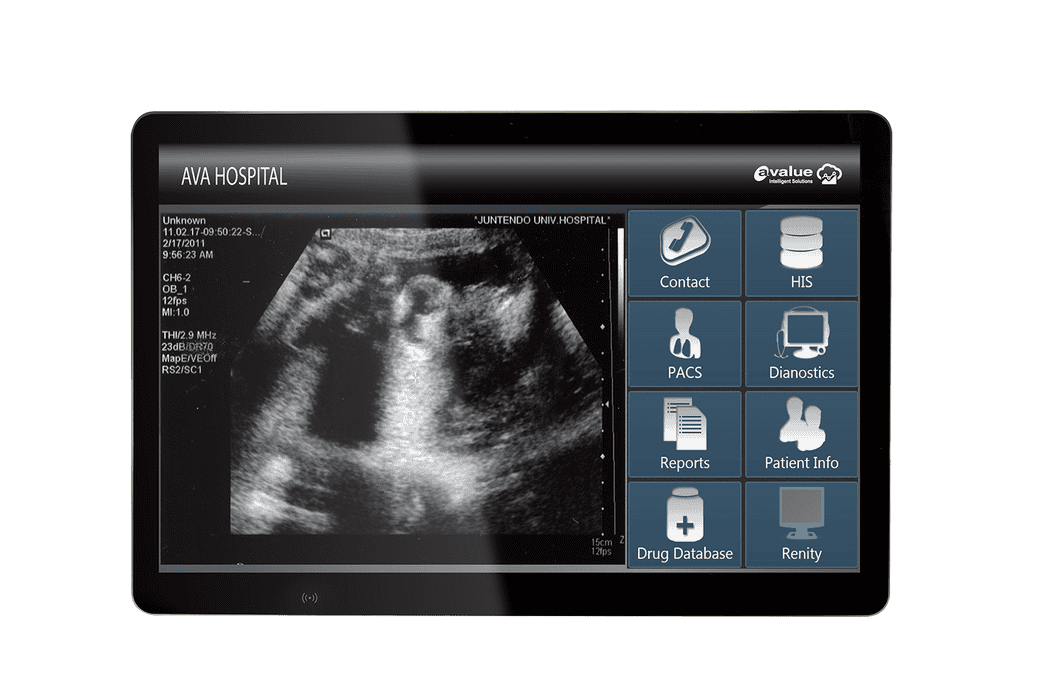

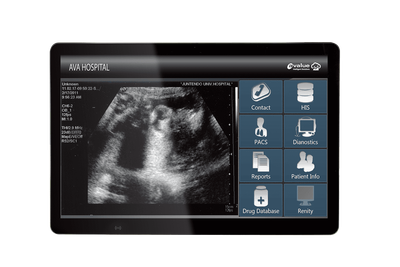

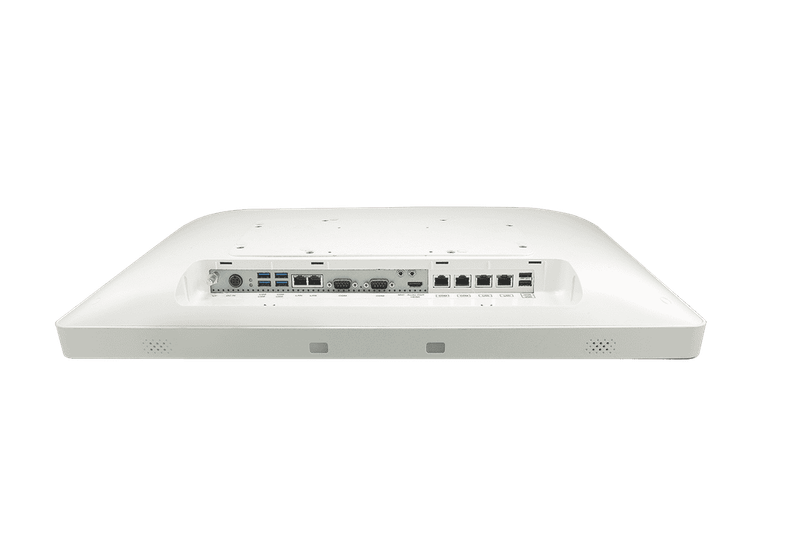

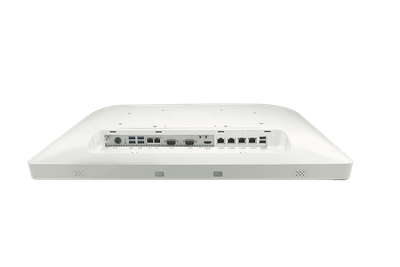

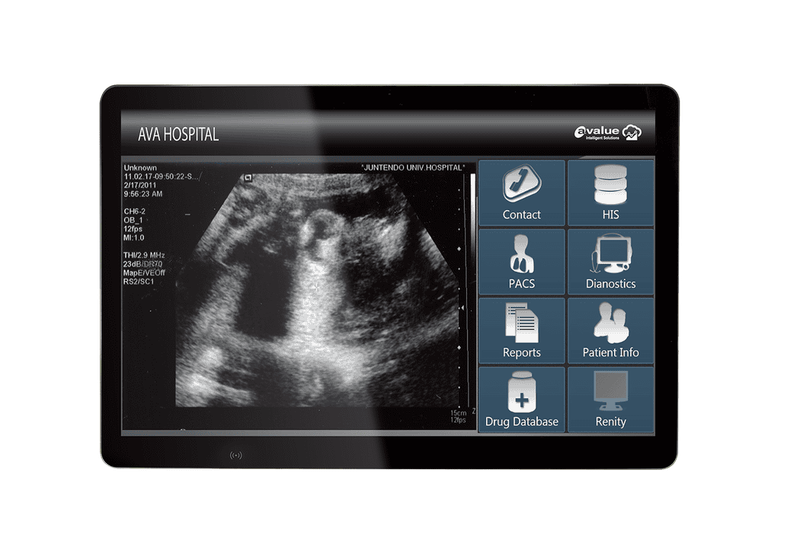

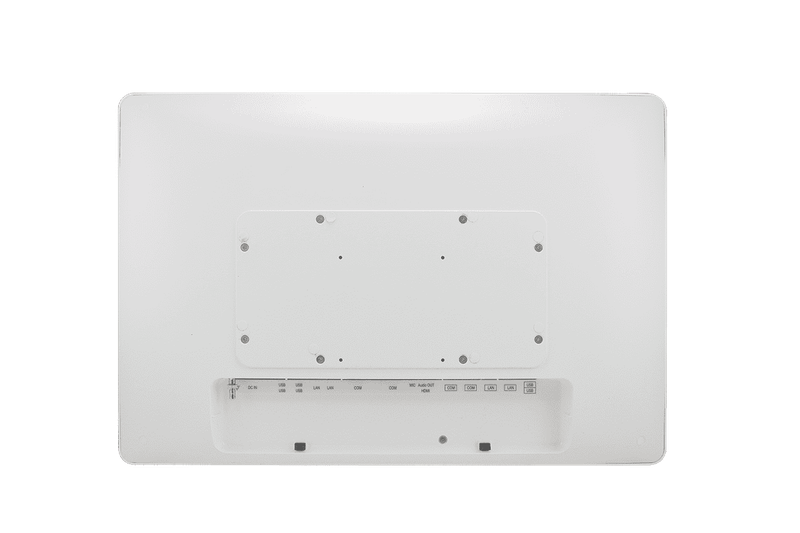

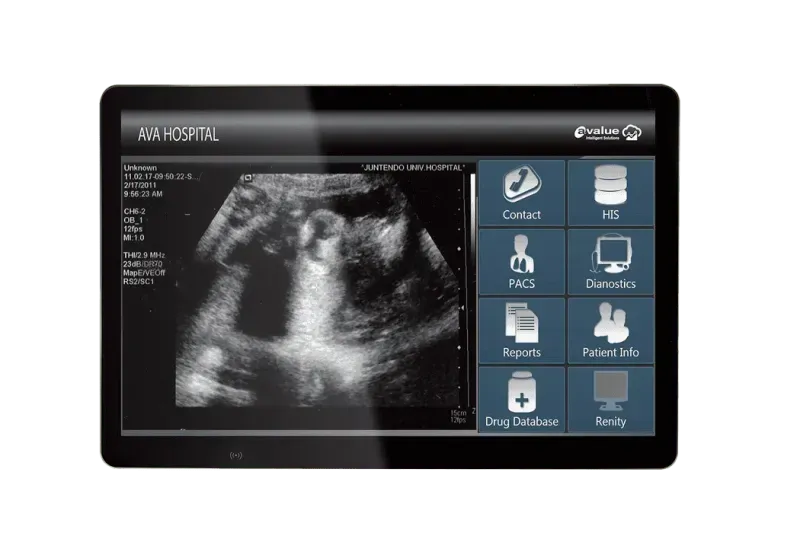

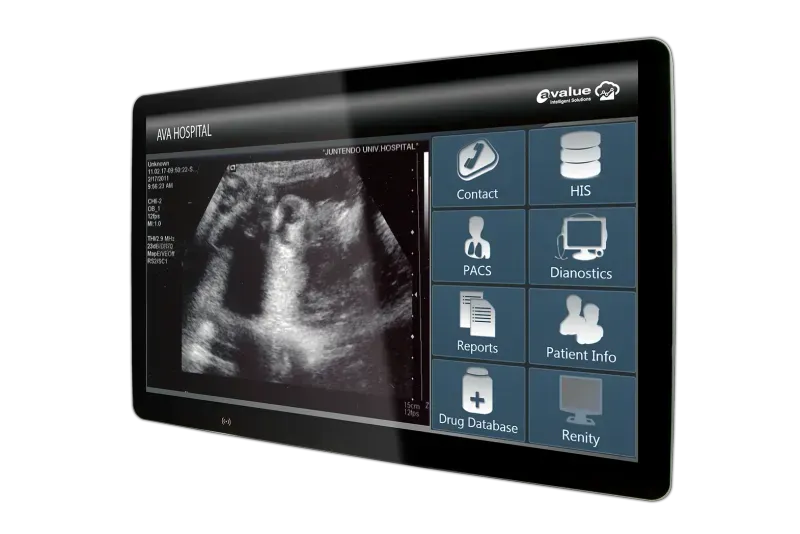

21.5" display with PCAP multi-touch
1x SO-DIMM up to 16GB DDR4 SDRAM support anti-microbial finish
4x USB3.0, 1x RS-232/422/485, 1x RS-232 2x Intel® Gigabit LAN
Isolation USBX2/ COMX2/ LANX2 / HDMI/ mini PCIe by IET module
Preset DICOM mode (din 6868-157)
LED reading light bar
IP-65 on front panel protection

Product Description

The Avalue HID-2232 is a 21.5-inch medical panel PC designed for precision imaging in healthcare settings. Powered by the 6th Generation Intel® Core™ i5-6300U processor, it offers robust performance for medical applications.

The Full HD PCAP touchscreen supports multi-touch functionality, while the IP65-rated front panel ensures hygiene and durability. Features include DICOM preset mode (DIN 6868-157), LED reading light bar, and anti-microbial finish.

With multiple I/O ports, including USB 3.0, RS-232/422/485, and dual Intel® Gigabit LAN, the HID-2232 is a versatile solution for modern healthcare environments.

Technical Specifications

System Information

Processor

6th Gen Intel® Core™ i5-6300U, 2-Core, 2.4GHz processor

System Memory

One 260-pin DDR4 SODIMM socket up to 16GB

TPM

Infineon TPM 2.0

Graphics Controller

Intel® HD Graphics 520

Platform Controller Hub

Integrated in Intel ® Skylake ULT Processor

Expansion

1 x Mini PCIe full size (support half size) auto switch for mSATA or mini PCIe, USB 1 x mini PCIe full size (support half size) auto switch for mSATA or mini PCIe, USB (by IET module)

Storage

HDD

2.5 SSD

Other Storage Device

mSATA (optional)

Display

Graphic Chipset

Intel® HD Graphics 520

Spec. & Resolution

HDMI: 3840 x 2160 @ 24Hz (optional by IET module)

Audio

Audio Interface

Audio out and mic in

Audio Codec

Realtek ALC888S

Speaker Output

2 x 0.5W

Software Support

OS

Win10 / Linux

Certification

Certification Information

DIN 6868157 CE, FCC class B UL60601-1 4th edition

External I/O

USB Port

4 x USB3.0, 4 x USB2.0 by pin header 2 x USB2.0 (isolated 5KV), 1 x USB2.0 by pin header on IET module

LAN Port

1 x Intel ® I219LM Gigabit Ethernet 1 x Intel ® I211AT Gigabit Ethernet 2 x Intel ® I210AT Gigabit Ethernet (isolated 5KV) on IET module

Panel

LCD Size

21.5"

Resolution

1920 x 1080

Pixel pitch

248.25 x 248.25

Luminance

250 cd/m2

Display Type

TFT-LCD

Contrast ratio

3000

Viewing angle

178/178 °

Response time

16 ms

Backlight

LED

Touch Type

Projective capacitive multi-touch up to 10 points

Touch Light Transmission

100% AG coating%

Touch Controller

USB interface, EETI

DICOM compliant

DIN 6868157

LCD Panel

21.5 TFT-LCD

I/O

Reading light bar

LED type

Camera

2.0M CMOS (optional)

COM Port

1 x RS-232/422/485, 1 x RS-232 1 x RS-232 (isolated 5KV), 1x RS-232/422/485 (isolated 5KV) on IET module

HDMI

HDMI video out on IET module

Display Port

1 x DP

Data Collection

NFC

USB interface supports ISO 14443-A (optional)

DC In/Out Connector

Input Power Connector

4 pin DC Jack

DC In/Out Characteristics

Input Voltage Range

100~240 Vac, 1.5~0.75A, 50~60Hz

Output Voltage Range

+24Vdc, 3.75A max. (90W)

Power Type

AT/ATX

Mechanical & Environmental

Operating Temp.

0°C~ 35° C (32°F ~ 95° F)

Storage Temp.

-20°C ~ 60°C (-4°F ~ 140°F)

Operating Humidity

0% ~ 90% relative humidity, non-condensing

Weight

5.5 kg

Vibration Test

With SSD/mSATA: 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis

Shock Test

With CF/SSD : 10Grms, IEC 60068-2-27, half sine, 11ms

IP Rating

Front Panel IP65 whole unit IPX1

Dimension (W x L x H)

521.0 mm x 326.0 mm x 56.5 mm

Construction

Plastic

Surface

Anti-microbial finishing

Component

Adapter

AC/ DC medical power adapter 100~240 Vac, 1.5~0.75A, 50~60Hz Input voltage +24Vdc, 3.75A max. (90W) output voltage

Ordering Information

HID-2232-630-A2R

21.5"/PCAP/DICOM/8GBmemory/128GB SSD/CAM

2COM/2LAN/4USB/HDMI/Line out/Mic in/Isolation

Isolation: 2COM (RJ45 type)/4USB/2LAN

WIFI/BT/24V 90W Medical power adapter

Power Cord:

EU E1702031000R

US E1702031833R

JP E170203183CR

UK E170P060380R

AU E1702031831R
