Manufacturer: Avalue

Product Features

  • 23.8" Full HD PCAP Multi touch
  • LED reading light bar
  • Optional barcode scanner
  • Opitonal 2 x 6900mAh hot swappable batteries
  • Optional 4 slots charging bay
  • IP65 front panel protection

Product Description

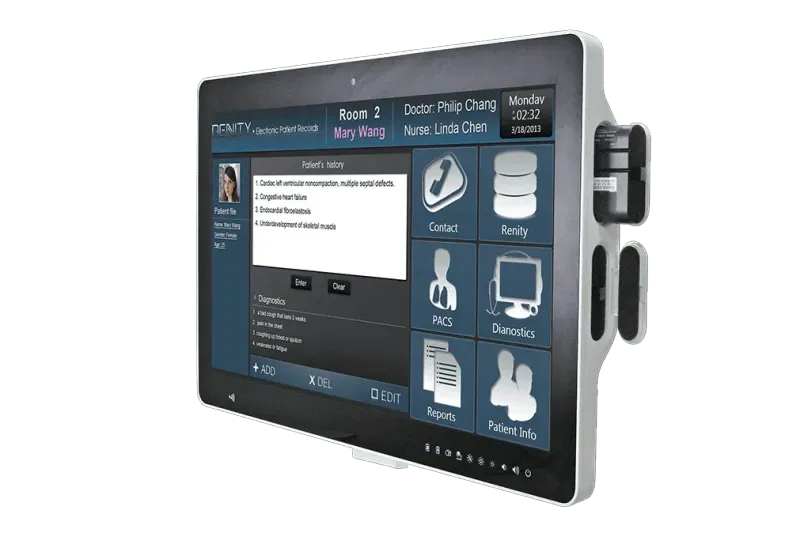

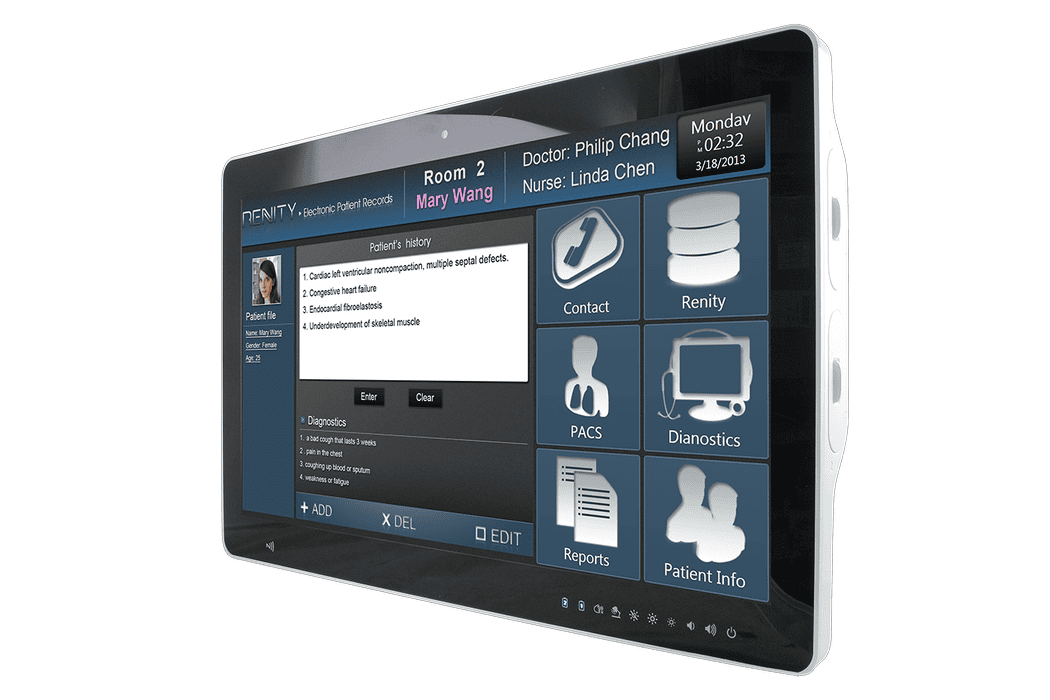

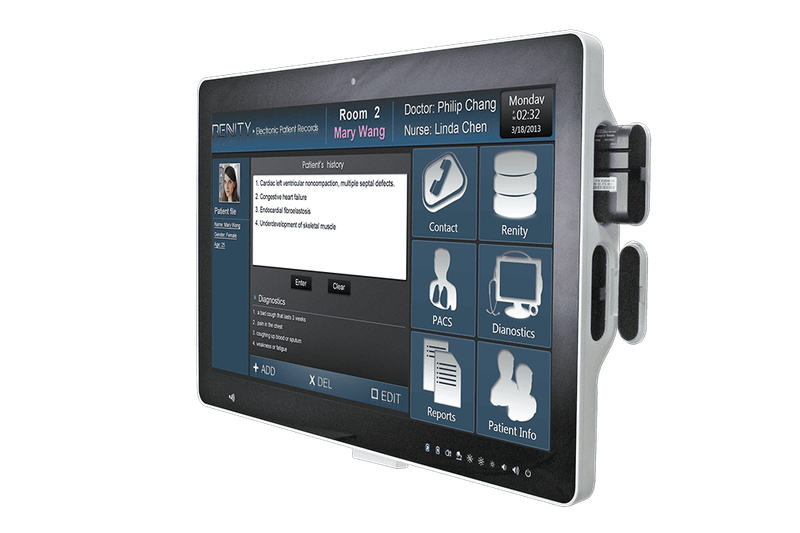

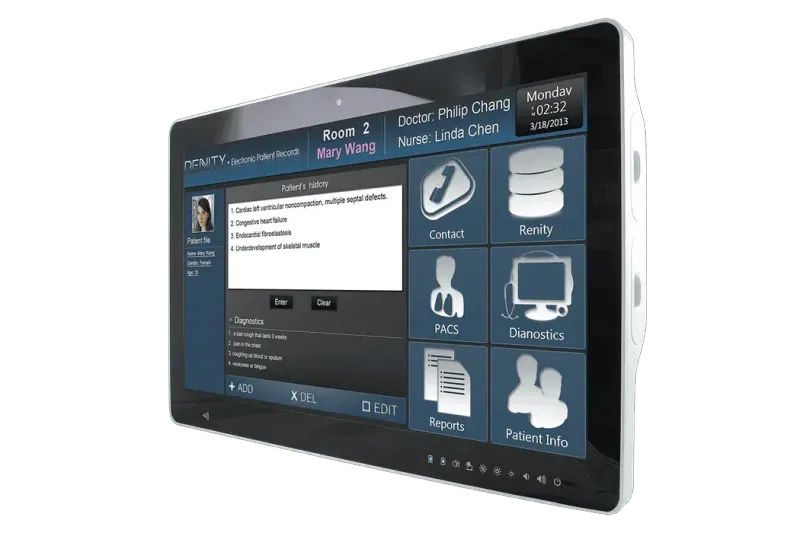

The Avalue HID-2334 is a 23.8-inch medical panel PC designed for healthcare environments. Powered by the 7th Generation Intel® Core™ i5-7300U processor, it offers robust performance for medical applications.

The Full HD PCAP touchscreen supports multi-touch functionality, while the IP65-rated front panel ensures hygiene and durability. Optional features include dual hot-swappable 6900mAh batteries, built-in NFC, barcode scanner, and a 5MP auto-focus camera.

With multiple I/O ports, including USB 3.0, HDMI, and DisplayPort, the HID-2334 is a versatile solution for modern healthcare settings.

Technical Specifications

System Information

SBC

HID-2334 M/B + charger board

Processor

7th Generation Intel® Core Kaby Lake i5-7300U Processor

System Memory

2 x 260pin SODIMM socket up to 32GB per slot DDR4 2400 SDRAM

Watchdog Timer

H/W reset, 1sec. ~ 65535sec. and 1sec./step

H/W Status Monitor

CPU & system temperature monitoring and Voltages monitoring

Battery

Optional smart battery pack

14.4V 6900mAh, 99.4Wh

Platform Controller Hub

Integrated in processor (SOC)

Expansion

Expansion

1 x M.2 2230

1 x mPCIe with SATA or PCIE x1 mSATA

Storage

M.2

1 x 2.5 Drive bay

Audio

Audio Codec

Realtek ALC888S

Speaker Output

2 x 2W

Ethernet

LAN Chipset

1 x Intel® I211AT, 1 x Intel® I219LM

Ethernet Interface

10/100/1000/2500 Base-Tx GbE compatible

Power Requirement

DC Input

+24V

DC Input Connector

+Lockable DC Jack

Software Support

OS

Win10 / Linux

Certification

Certification Information

CE :

IEC/EN60601-1-2


FCC :

Part 15 class B


UL60601-1:

AAMI /ANSI ES60601-1:2005/(R)2012 and A1:2012,C1:2009/(R)2012 and A2:2010/(R)2012


CB:

IEC 60601-1/A1:2012 & EN 60601-1/A1:2013 (Ed 3.1)

EN 60601-1:2006+A11:2011+A1:2013+A12:2014

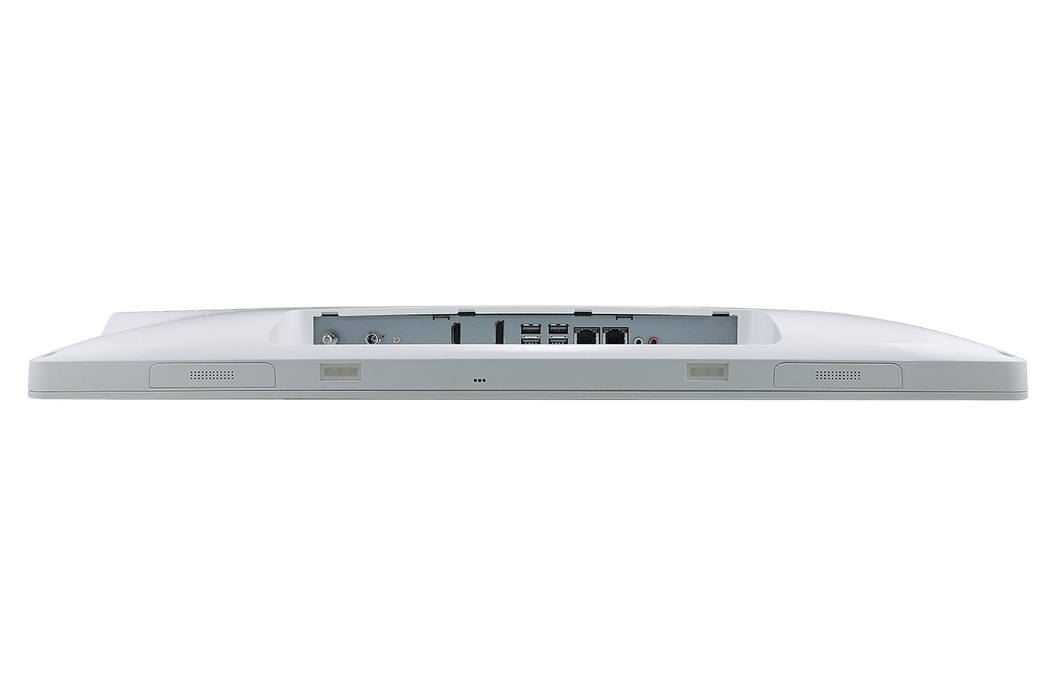

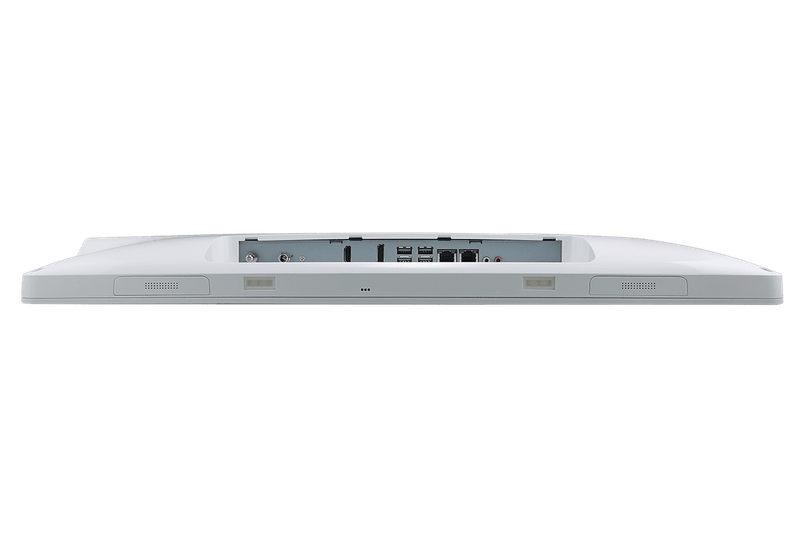

External I/O

USB Port

4 x USB 3.0

LAN Port

2 x RJ-45

Panel

LCD Size

23.8"

Resolution

1920 x 1080

Pixel pitch

274.5×274.5

Luminance

250 cd/m2

Display Type

Full HD

Contrast ratio

3000

Viewing angle

89(U), 89(D), 89(L), 89(R)

Response time

16 ms

Backlight

LED

Touch Type

Projective capacitive multi-touch up to 10 points

Touch Light Transmission

86%

Touch Controller

EETI EXC84H5680

I/O

Camera

2.0M webcam

SATA

1X SATAIII

HDMI

1 x HDMI

Display Port

1 x DP

Data Collection

NFC

NFC RFID module built In

Data Communication

WLAN

Optional WiFi 1T1R 802.11b/g/n/ac/ BT4.0

Mechanical & Environmental

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Storage Temp.

-30°C ~ 70°C (-22°F ~ 158°F)

Operating Humidity

0% ~ 90% relative humidity, non-condensing

Weight

6.9 kg (without batteries and adapter)

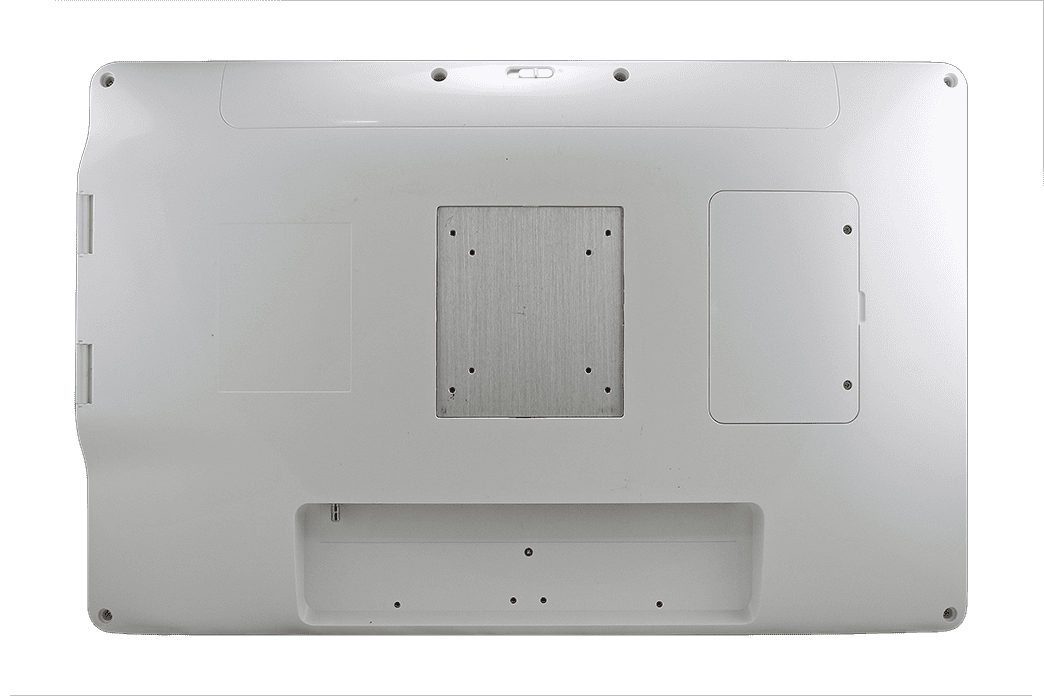

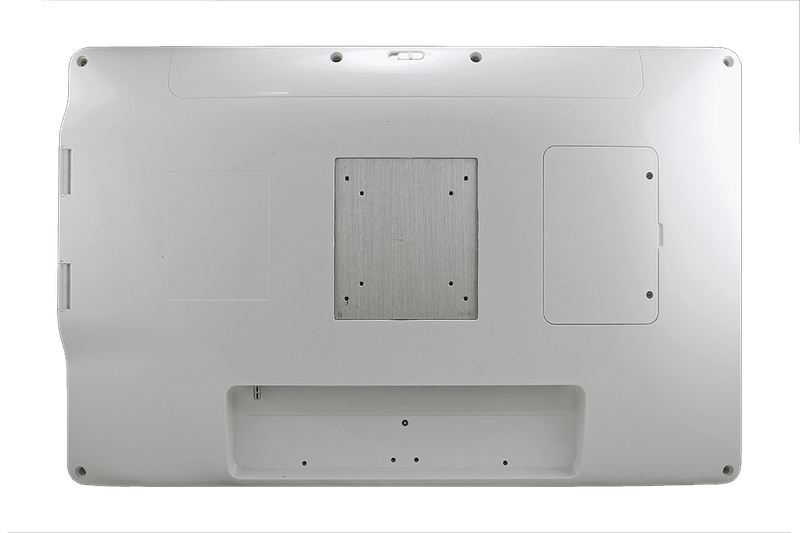

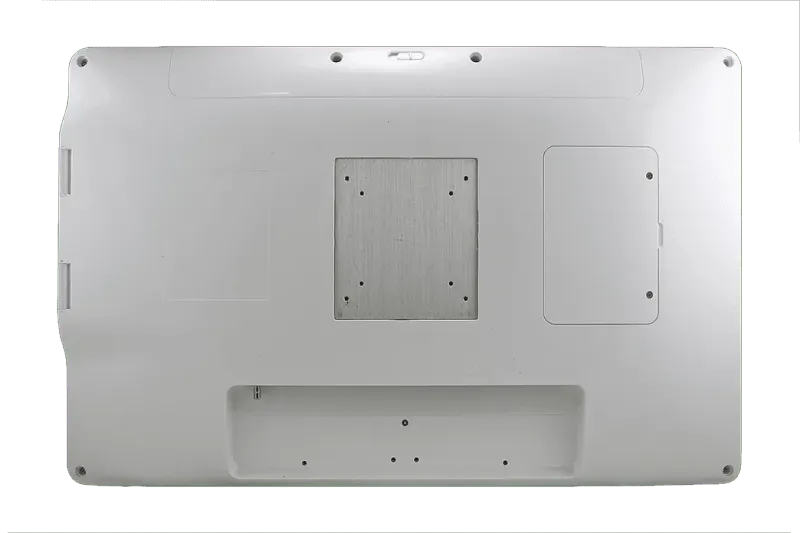

VESA

75x75, 100x100 mm

Vibration Test

With SSD/mSATA: 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis

Shock Test

With CF/SSD : 10Grms, IEC 60068-2-27, half sine, 11ms

Color

White

IP Rating

Front IP65

Dimension (W x L x H)

592 x 382 x 49.5mm

System Fan

Fanless

Construction - Front

White plastic

Construction - Rear

White plastic

Fanless

Yes

Finishing

Anti-microbial

Component

Adapter

Medical grade

120W/24V

Ordering Information

Ordering Information

HID-2334-730-A2R

HID 23.8 w/i5-7300U/4GB memory/LED/NFC/4USB3.0/SPK/24V medical adapter

Without: SSD/ Wifi/ Battery


ACC-HID-WIFI-02R

HID-2334 Wifi Kit


ACC-BAT-4S2P-01R

Rechargeable Lithium Ion Battery,4S2P


RCC-HID-BATCHR-01R

4 Bay Charging Station w/120W Power Adapter


RCC-HID-BCSCAN-01R

Barcode Scanner Kit for HID/APC


Power Cord:


E1702031000R EU Power Cord


E1702031833R US Power Cord


E170203183CR JP Power Cord


E170P060380R UK Power Cord

E1702031831R AU Power Cord


E170P060391R CN Power Cord
