HID-2340

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Sleek light weight design
23.8" Full HD PCAP touch
Socketed FCLGA1700 Intel® 13th Gen Core™ Processor
1 COM, 2 LAN, 1 USB 2.0, 3 USB 3.0, 1 USB type C
1 x M.2 Key B 3042/3052/2280, 1 x M.2 Key E for WIFI, 1 x M.2 Key M for storage
Optional 5KV isolation USB/ COM/ LAN ports by IET BD-A module
Optional webcam/ WIFI/ NFC/ barcode scanner
Optional HDMI/Audio/USB2.0/Mini PCIe/COM by IET BD-B module
Optional capture card integration

Product Description

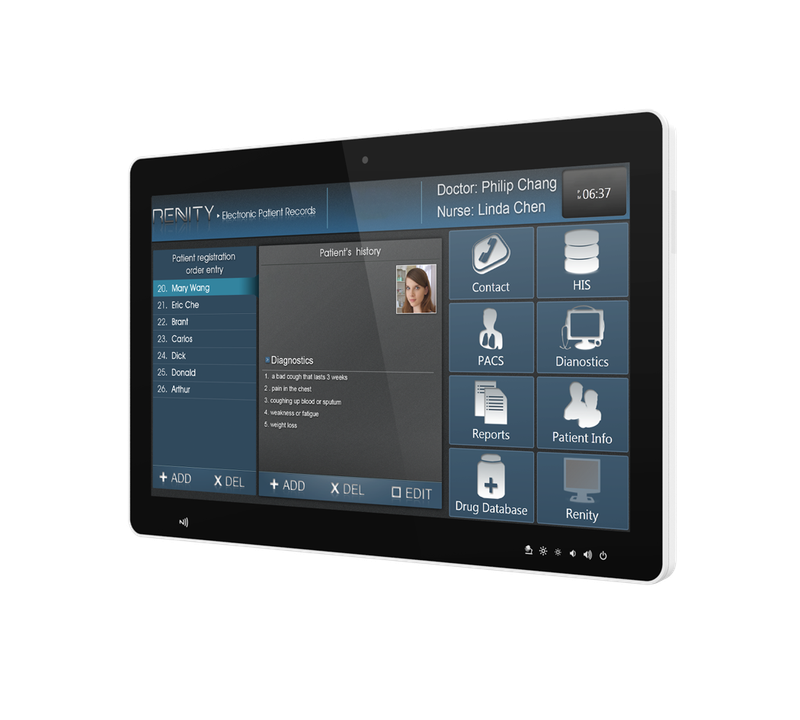

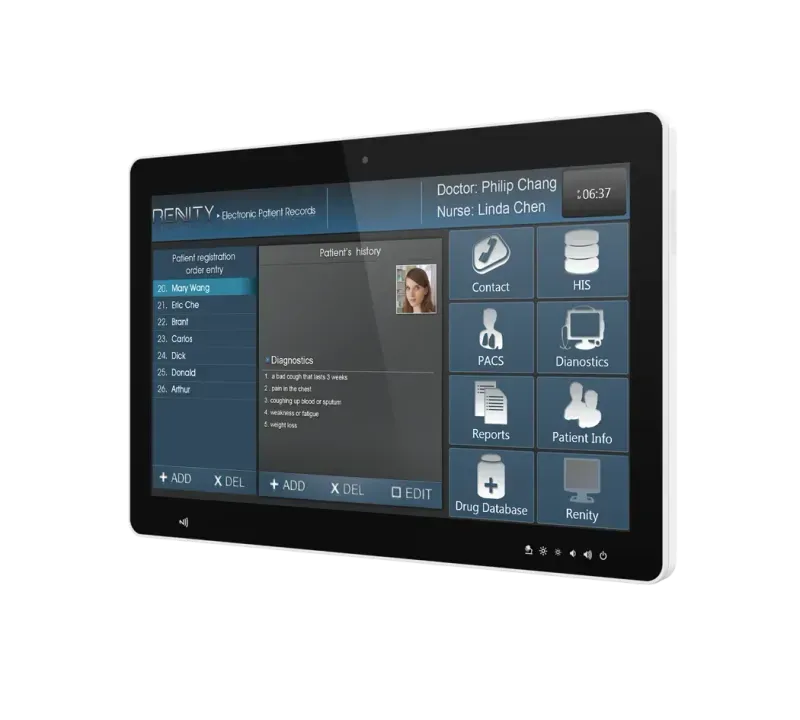

The Avalue HID-2340 is a 23.8-inch medical panel PC designed for critical healthcare environments. Powered by 12th/13th Gen Intel® Core™ i7/i5/i3 processors, it offers robust performance for medical imaging and patient monitoring.

The Full HD PCAP touchscreen supports glove operation, while the antimicrobial, IP65-rated front panel ensures hygiene and durability.

With multiple I/O ports, including USB Type-C, dual LAN, and COM ports, and optional features like Wi-Fi 6E, NFC, and a 5MP camera, the HID-2340 is a versatile solution for modern healthcare settings.

Technical Specifications

System Information

SBC

HID-2340 mother board

Processor

Socket Raptor Lake-PS Intel® Core™ Processor

Intel® Core™ 7 processor 160UL

Intel® Core™ 5 processor 120UL

System Memory

One 262-pin DDR5 4800MHz SO-DIMM socket, supports up to 32GB max (min 8GB)

I/O Chipset

IT5782VG

Watchdog Timer

H/W Reset, 1sec. – 65535sec./min.1sec. or 1min. step

H/W Status Monitor

CPU & system temperature monitoring and voltages monitoring

TPM

Onboard NuvoTon NPCT754AADYX support TPM 2.0 (optional)

Platform Controller Hub

Integrated in processor (SOC)

Expansion

1 x M.2 Key B 3042/3052/2280

1 x M.2 Key E for WIFI

1 x IET expansion

Storage

M.2

1 x M.2 Key M storage

1 x 2.5" SSD

Audio

Audio Codec

Realtek ALC888S

Speaker Output

2 x 2W

Ethernet

LAN Chipset

1 x Intel® I225LM

1 x Intel® I226LM

Ethernet Interface

10/100/1000/2500 Base-Tx GbE compatible

LAN Port

2 x RJ-45

Power Requirement

DC Input

+24V

DC Input Connector

+Lockable DC Jack

Power Mode

AT/ATX (ATX is default setting)

Software Support

OS

Win 10/11 Linux

Certification

Certification Information

Medical CE: EMC IEC/EN60601-1-2 & Safety IEC/EN 60601-1

FCC : Part 15 Class B

UL: AAMI ES60601-1

cUL: CAN/CSA-C22.2 No. 60601-1

CCC

External I/O

USB Port

1 x USB 2.0 3 x USB 3.0

1 x USB type C (output for USB 3.1 & display, 5V/3A 15W, no power receiving function)

COM Port

1 x RS-232/422/485

Wireless LAN

Optional 802.11abgn+acR2+axR2 Wi-Fi 6E BT5.2

Panel

LCD Size

23.8"

Resolution

1920 x 1080

Pixel pitch

274.5 x 274.5

Luminance

250 cd/m2

Display Type

Full HD

Contrast ratio

3000

Viewing angle

89(U), 89(D), 89(L), 89(R)

Response time

16 ms

Backlight

LED

Touch Type

Projective capacitive multi-touch up to 10 points

Touch Light Transmission

85%

Touch Controller

USB touch (EETI H8851A)

Mechanical & Environmental

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Storage Temp.

-10°C ~ 60°C (14°F ~ 140°F)

Operating Humidity

40°C @ 95% relative humidity, non-condensing

Weight

6 kg

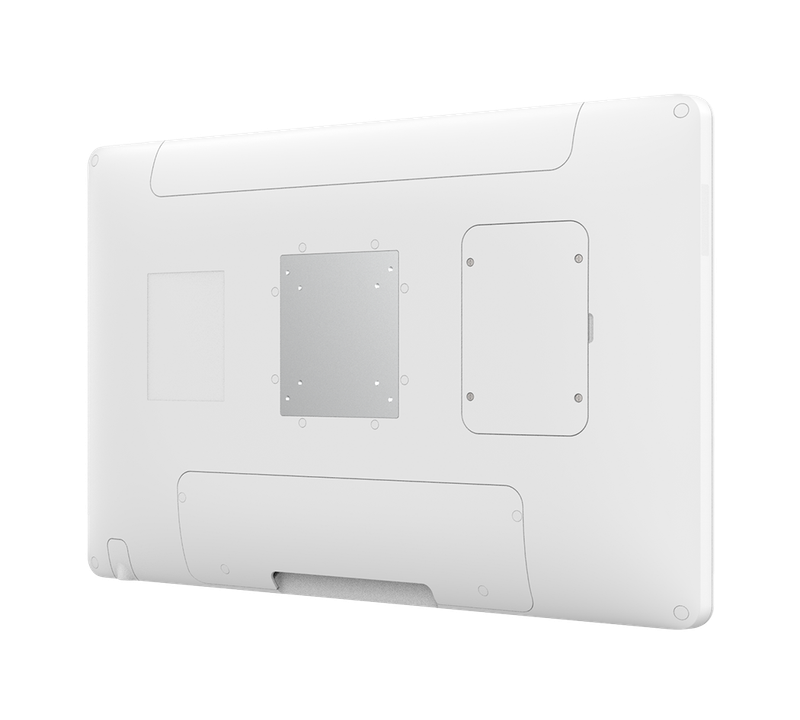

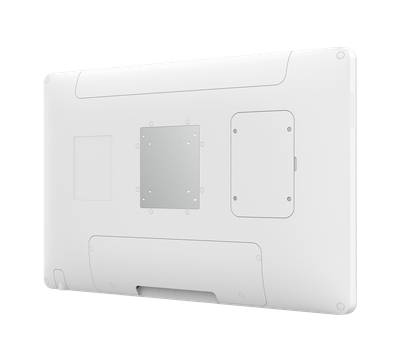

VESA

75x75, 100x100 mm

Vibration Test

With SSD/mSATA: 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis

Shock Test

With CF/SSD : 10Grms, IEC 60068-2-27, half sine, 11ms

IP Rating

Front IP65

Back IP54

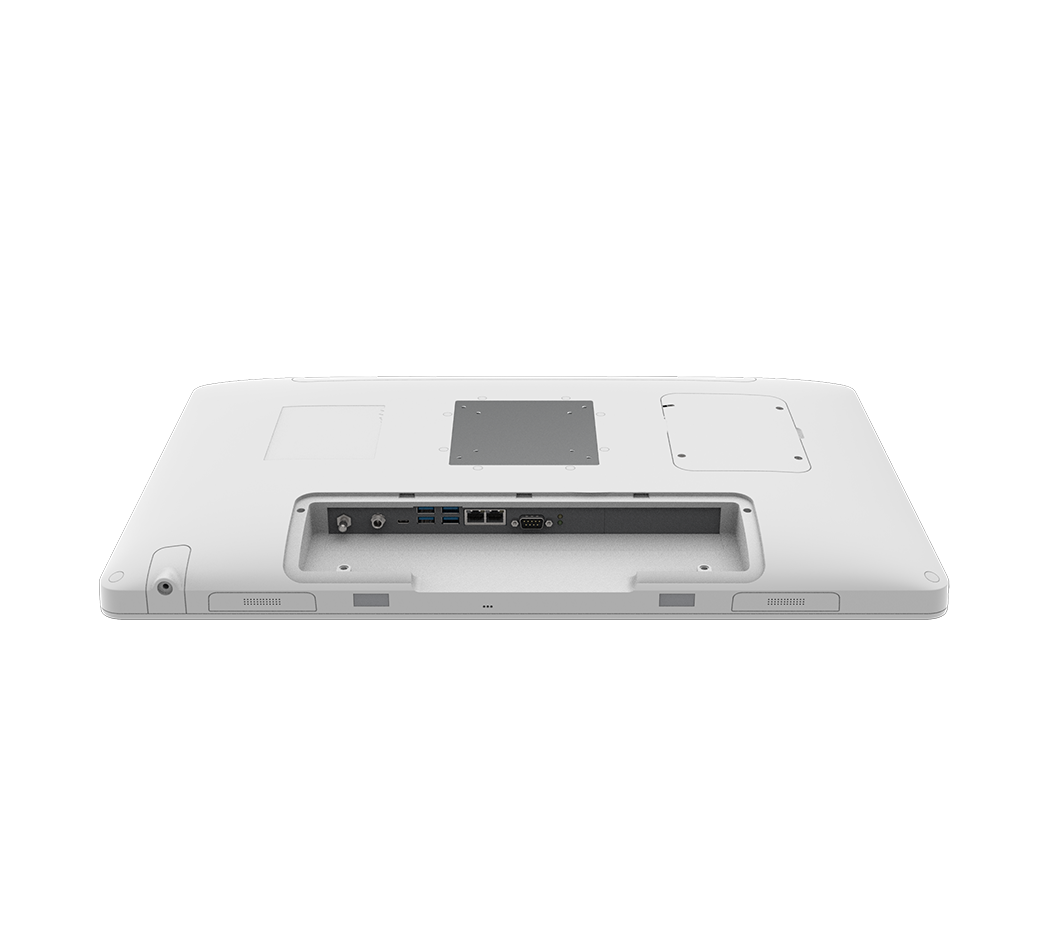

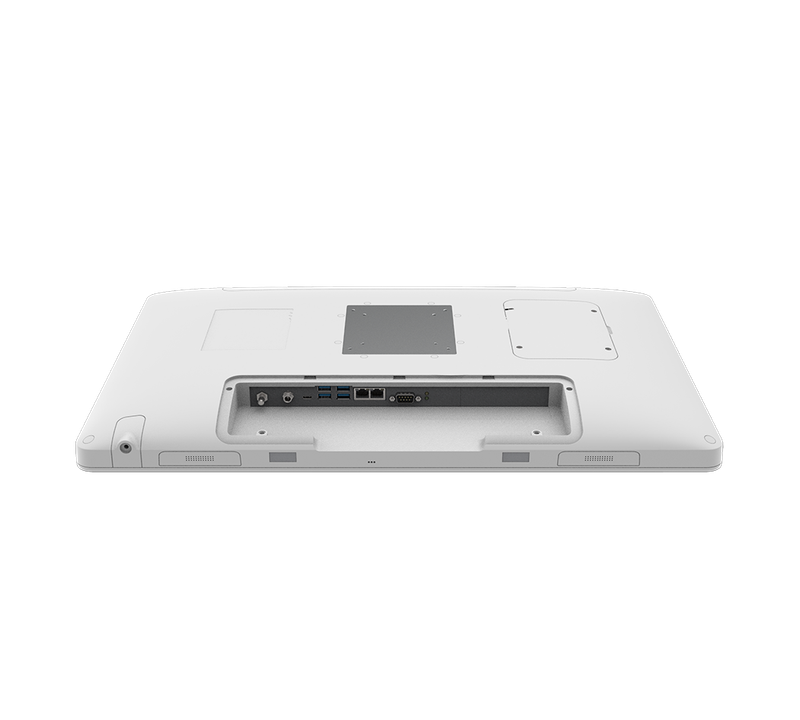

Dimension (W x L x H)

592 x 382 x 49.5mm

System Fan

Fanless

Construction - Front

White plastic

Construction - Rear

White plastic

Fanless

Yes

Finishing

Anti-microbial

Component

Adapter

72W(24V/3A) medical adapter EDAC EM10686V

Input: 100-240V~, 2.0-1.0A, 50-60Hz

Output: 120W adapter (24V/5A adapter)

Packing List

1 x HID-2340 Medical panel PC

1 x Medical power adapter

4 x VESA screws M4*6mm

4 x HDD screws M3*4mm

Ordering Information

HID-2340-123-A1R

23.8" Alder Lake Medical Multi-Touch Panel PC,Intel 12th Core i5-1235UL/8GB Memory/4USB/2LAN/COM/TYPEC/CAM/Audio/SPK/Light/Medical 24V adapter

HID-2340-126-A1R

23.8" Alder Lake Medical Multi-Touch Panel PC,Intel 12th Core i7-1265UL/8GB Memory/4USB/2LAN/COM/TYPEC/CAM/Audio/SPK/Light/Medical 24V adapter

HID-2340-120-B3R

23.8" Raptor Lake Medical Multi-Touch Panel PC,Intel 13th Core 5 120UL/8GB Memory/4USB/2LAN/COM/TYPEC/CAM/Audio/SPK/Light/Medical 24V adapter

HID-2340-160-B3R

23.8" Raptor Lake Medical Multi-Touch Panel PC,Intel 13th Core 7 160UL/8GB Memory/4USB/2LAN/COM/TYPEC/CAM/Audio/SPK/Light/Medical 24V adapter

E971XHI2340003R

WiFi module KIT for HID-2340

RCC-HID-BCSCAN-01R

Barcode scanner kit for HID/APC

E9697H10201R-A

DIP HID-2132 DB-A A1 isolation board with LAN/COM/USB

E9697H30002R-B-98

DIP HID-2340 DB-B A1 HDMI/2xAudio/2xUSB 2.0/Mini PCIe/COM

ACC-M2-80-CAP-01R

YUAN SC400N1 M2 AIO for HID-2340

ACC-M2-80-CAP-02R

YUAN SC400N2 M2 SDI for HID-2340

ACC-ARM-D55R

HID White Stand VESA 100x100/ 75x75

Power Cord:

E1702031000R EU Power Cord

E1702031833R US Power Cord

E170203183CR JP Power Cord

E170P060380R UK Power Cord

E1702031831R AU Power Cord

E170P060391R CN Power Cord
