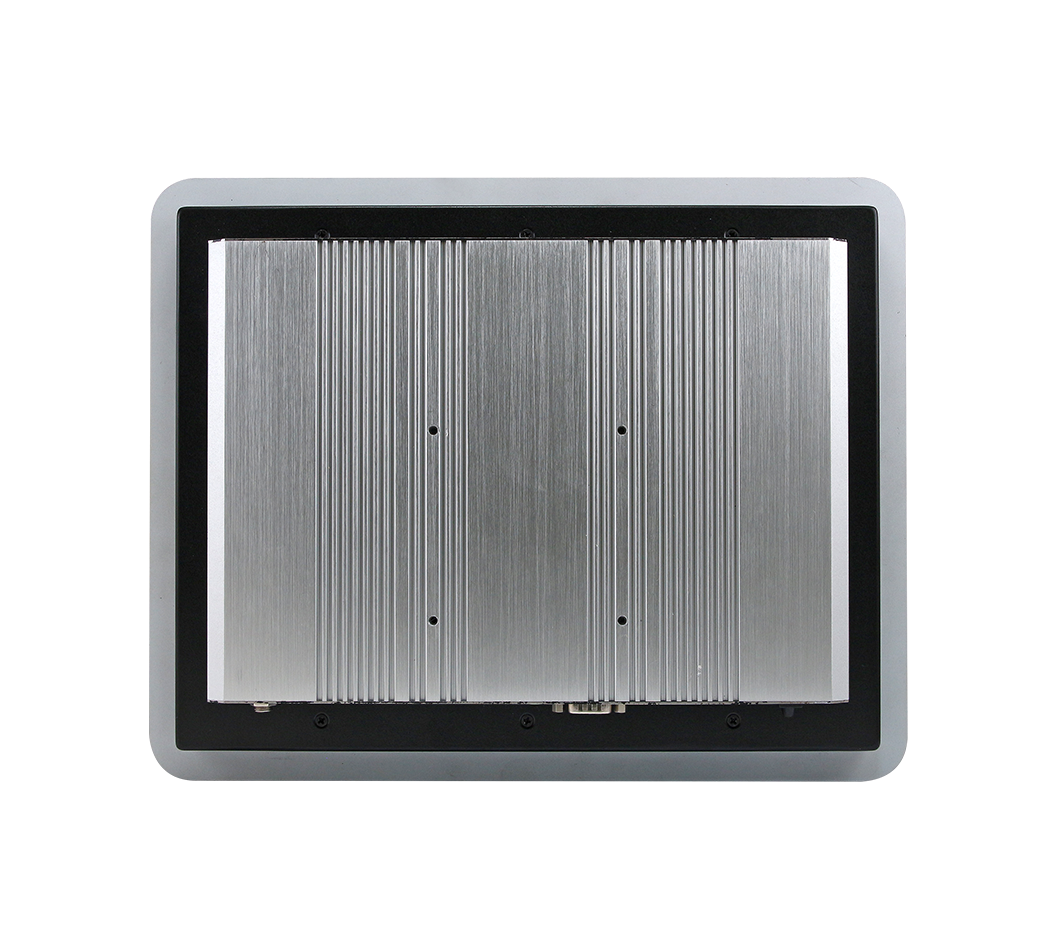

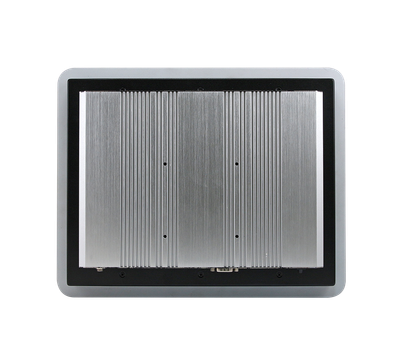

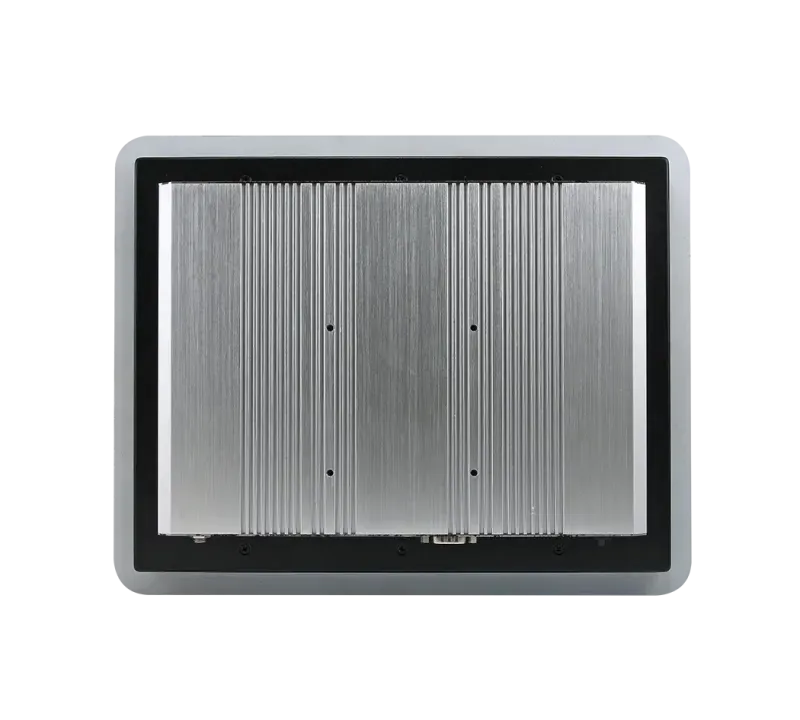

BFC-1232

*Price on request. Contact us for a quote.

Manufacturer: Avalue

6th Generation Intel® Core™ i5 Processor

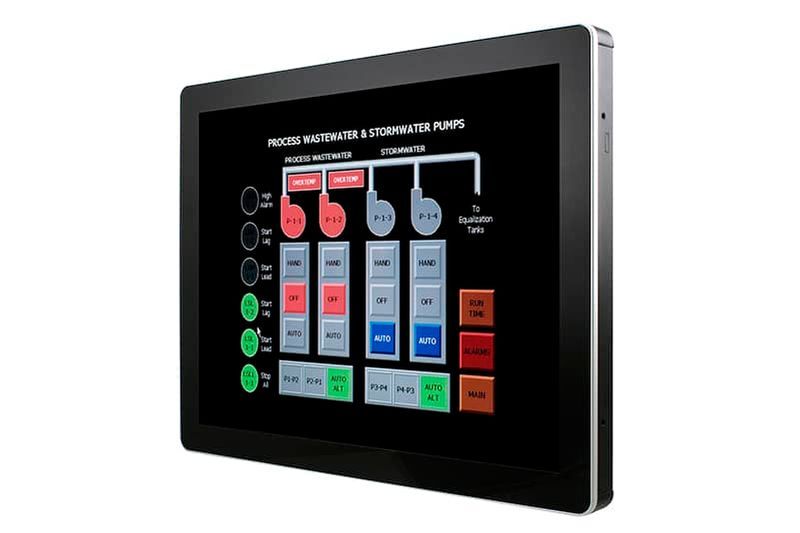

Full flat front panel with projected capacitive touch supports multi touch
2 x Intel® Gigabit Ethernet, 5.1-CH audio
1 HDMI, 6 USB 3.0, 3 COM
Fanless system & VESA compliance
Wide voltage +12V ~ +26V input, ErP power
Timer-power-on
Front side IP65 dust and water proof

Product Description

The Avalue BFC-1232 is a 12.1" industrial touch panel PC featuring a 6th Generation Intel® Core™ i5-6300U processor. It includes a full flat front panel with projected capacitive multi-touch support, fanless design, dual Gigabit LAN, multiple USB and COM ports, and HDMI support.

The panel is IP65 front and IP41 rear rated, suitable for rugged environments, with wide voltage input and an operating temperature range of 0°C to 40°C.

Technical Specifications

System Information

Processor

Intel® Core™ i5-6300U Processor, 3M Cache, up to 2.4 GHz

System Memory

1 x 260-pin DDR4 2133MHz SO-DIMM up to 16 GB

I/O Chipset

EC ITE IT8528E

Watchdog Timer

H/W reset, 1sec. ~ 65535min. and 1sec. or 1min./step

H/W Status Monitor

Monitoring CPU & System Temperature and Voltage

SBC

EBM-SKLU

CPU Cooler (Type)

Fanless Heatsink

Panel

LCD Size

12.1" 4:3

Display Type

XGA

Resolution

1024 x 768

Pixel pitch

0.240mm (H) x 0.240mm (V)

Luminance

600 cd/m²

Contrast ratio

1000

Viewing angle

89 (U), 89 (D), 89 (L), 89 ( R)

Response time

11 ms

Backlight

LCD

Touch Type

Projective capacitive multi-touch up to 10 points

Touch Light Transmission

89 %

Touch Controller

USB touch (EETI)

Expansion

1 x Mini PCIe support mSATA

1 x Mini PCIe support SIM card

Storage

1 x 2.5" Drive Bay (7mm HDD Restricted)

External And Internal I/O

USB Port

4 x USB 3.0

COM Port

1 x RS-232/422/485

1 x RS-232

HDMI

1x HDMI

LAN Port

2 x RJ-45

Audio

Audio Codec

Realtek ALC233

Audio Interface

Line-out

Display

Graphic Chipset

Intel® Skylake U SoC integrated graphics

Spec. & Resolution

HDMI:Max. Resolution 4096x2304@ 24Hz

Certifications

Certification Information

CE / FCC Class B

Ethernet

LAN Chipset

1 x Intel® I210AT

1 x Intel® I219LM

Ethernet Interface

10/100/1000 Base-Tx GbE compatible

Power Requirement

DC Input

+12V ~ +26V

DC Input Connector

Lockable DC Jack

Optional for phoenix connector

Adapter

Input: 100 ~ 240Vac/ 50 ~ 60Hz

Output: 60W adapter (12V @ 5A adapter) AC-DC adapter

ACPI

Single power ATX support S0, S3, S4, S5 and ACPI 3.0 compliant

Software Support

OS Information

Win 7 / Win 10 / Linux

System Control

LED Indicator

HDD LED, power LED

Mechanical & Environmental

Operating Temperature

0°C ~ 40°C (32°F ~ 104°F)

Storage Temperature

-10°C ~ 50°C (14°F ~ 122°F)

Operating Humidity

5% ~ 90% Relative humidity, non-condensing

Weight

3.8 Kg

Vibration Test

With SSD/mSATA : 3Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30 mins/axis

Shock Test

With CF/SSD : 10Grms, IEC 60068-2-27, half sine, 11ms

Drop Test

ISTA 2A, IEC-60068-2-32 Test:Ed

IP Rating

Front IP65

Mounting Kit

Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm

Panel Mount with mounting kits

Power Mode

AT/ATX (ATX is default setting)

System Fan

Fanless

Construction - Front

Silver aluminum

Construction - Rear

Silver alloy

Dimension

292.9 x 225.4 x 50.14mm

Ordering Information

BFC-1232-630-A1R

6th Gen Intel® ULT Core i5 6300U 2.4GHz/2LAN/3COM/6USB/12~26V Input/12V Adaptor

What is BFC-1232?

The BFC-1232 is a panel pc / monitor / mobile manufactured by Avalue, designed specifically for industrial-panel-pc applications. The Avalue BFC-1232 is a 12.1" industrial touch panel PC featuring a 6th Generation Intel® Core™ i5-6300U processor. It includes a full flat front panel with projected capacitive multi-touch support, fanless design, dual Gigabit LAN, multiple USB and COM ports, and HDMI support. The panel is IP65 front and IP41 rear rated, suitable for rugged environments, with wide voltage input and an operating temperature range of 0°C to 40°C.

Key Features & Benefits

6th Generation Intel® Core™ i5 Processor
Full flat front panel with projected capacitive touch supports multi touch
2 x Intel® Gigabit Ethernet, 5.1-CH audio
1 HDMI, 6 USB 3.0, 3 COM
Fanless system & VESA compliance
Wide voltage +12V ~ +26V input, ErP power
Timer-power-on
Front side IP65 dust and water proof

Applications & Use Cases

The BFC-1232 is ideal for various industrial automation applications:

Harsh industrial environments requiring dust and water protection
Dust-sensitive environments and silent operation requirements
DC-powered industrial installations and mobile applications
High-performance computing and data processing tasks
Networked industrial systems and data communication
Interactive control interfaces and operator panels
Panel-mounted installations and control cabinets
Peripheral device connectivity and data transfer
