Avalue · Panel PC / Monitor / Mobile

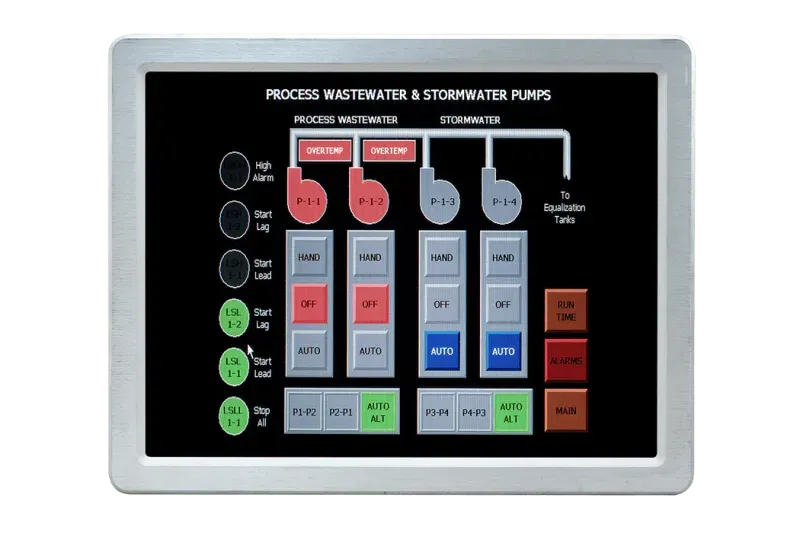

ARC-1239

Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

12.1" XGA (1024x768) 600-nit 5-wire resistive touch, fanless
Intel Alder Lake-N N97 / Amston Lake X7433RE / Twin Lake N150 (ARC-ASL SBC)
1 x DDR5 4800MHz SO-DIMM, up to 16GB (non-ECC)
TPM 2.0 (by default)
Dual Intel I226IT 2.5GbE
M.2 Key-B (SATA/USB, LTE SIM) + M.2 Key-E (Wi-Fi) + 80-pin IET
USB 3.2 + USB Type-C (display + 5V/3A); RS-232/422/485 + RS-232
1 x 2.5" drive bay + M.2 SATA SSD
Wide +12V ~ +24V input; Windows / Linux

Product Description

The Avalue ARC-1239 is a 12.1" XGA fanless industrial touch panel PC built on low-power Intel processors — Alder Lake-N N97, Amston Lake X7433RE, or Twin Lake N150 — with a bright 600 cd/m² 4:3 display and durable 5-wire resistive touch for gloved or stylus operation.

A single DDR5 4800MHz SO-DIMM supports up to 16GB, with TPM 2.0 by default on the ARC-ASL SBC.

The 1024x768 panel suits classic machine-mount HMI.

Connectivity includes dual Intel I226IT 2.5GbE, USB 3.2 (including USB Type-C with display and 5V/3A output), RS-232/422/485 plus RS-232, an M.2 Key-B (SATA/USB, SIM for LTE) and M.2 Key-E (Wi-Fi), an 80-pin IET expansion interface, plus a 2.5" drive bay.

A wide +12~24V input makes the ARC-1239 well suited to harsh-environment machine-side HMI on Windows or Linux.

Technical Specifications

Processor

Intel® Alder Lake-N N97, 6M Cache, up to 3.6 GHz, 12W

Intel® Amston Lake X7433RE, 6M Cache, up to 3.40 GHz, 9W

Intel® Twin Lake N150, 6M Cache, 0.8 GHz up to 3.60 GHz, 6W

System Memory

1x 262-pin DDR5 4800MHz SO-DIMM socket, supports up to 16GB max (non ECC only)

Watchdog Timer

H/W reset, 1sec. ~ 65535sec

H/W Status Monitor

Monitoring CPU & system temperature monitoring and voltages monitoring

TPM

TPM 2.0 (by default)

SBC

ARC-ASL

CPU Cooler (Type)

Fanless heatsink

Expansion

1 x M.2 (Key-B, 2242/3042/3052, SATAIII, USB3.2 Gen1x1(default, 5Gbp/s)) or PCIex1(via OEM BIOS request), USB2.0, SIM slot for LTE cards

(*not support PCIex2 device)

1 x M.2 (Key-E, 2230, PCIex1, USB2.0)

1 x 80-pin IET interface

Storage

1 x 2.5” Drive bay(7mm HDD restricted)

HDD/ SSD

1 x SATA3

Other Storage Device

1 x M.2 Key-B 2242/3042/3052 for M.2 SATAIII SSD

Audio Codec

Realtek ALC888S

Speaker Output

2 x 2W

LAN Chipset

2 x Intel® I226IT 2.5 Gigabit Ethernet

Ethernet Interface

10/100/1000/2.5G Base-Tx GbE compatible

DC Input

+12V ~ +24V

DC Input Connector

Lockable DC Jack (default)

Optional for phoenix connector

ACPI

Single power ATX support S0, S3, S4, S5 and ACPI 3.0 compliant

OS

Win10 / Win11 / Linux

Certification Information

CE / FCC Class B / UKCA

LCD Size

12.1", 4:3

Display Type

XGA

Resolution

1024 x 768

Pixel pitch

0.240mm (H) x 0.240mm (V)

Luminance

600 cd/m2

Contrast ratio

1000

Viewing angle

89 (U), 89 (D), 89 (L), 89 (R)

Response time

13 ms

Backlight

LED

Touch Type

5 wires resistive

Touch Light Transmission

80%

Touch Controller

Onboard USB touch (PenMount)

USB Port

2 x USB3.2 (1 x double deck, type A)

1 X USB type C (USB3.2(Gen2x1, 10Gbps, 5V/3A output), display function)

LAN Port

2 x RJ-45

COM Port

1 x RS-232/422/485

1 x RS-232

Expansion

1 x M.2 (Key-B, 2242/3042/3052, SATAIII, USB3.2 Gen1x1(default, 5Gbp/s)) or PCIex1(via OEM BIOS request), USB2.0, SIM slot for LTE cards

(*Not support PCIex2 device)

1 x M.2 (Key-E, 2230, PCIex1, USB2.0)

1 x 80-pin IET interface

DIO

12-bit GPIO + 2-pin CAN bus (by ARC-BYT DB-E)

Other

3 x Knockouts for antenna mounting

LED Indicator

HDD LED, power LED

Operating Temp.

-20°C ~ 60°C (-4°F ~ 140°F)

Storage Temp.

-20°C ~ 60°C (-4°F ~ 140°F)

Operating Humidity

40°C @ 95% Relative humidity, non-condensing

Dimension (W x L x H)

283 x 222 x 47.7mm

Weight

2.4 Kg

Vibration Test

With SSD/M.2 SSD : 2Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30mins/axis

Shock Test

Operating with SSD/CFast/mSATA : MIL-STD-810G, method 516.6, procedure I, functional shock=20G

Drop Test

ISTA 2A, IEC-60068-2-32 Test:Ed

IP Rating

Front panel IP65

Back cover IP41

Mounting Kit

Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm

Power Mode

AT/ATX (ATX is default)

System Fan

Fanless

Construction - Front

Silver aluminum

Construction - Rear

Black die casting

Adapter

Input: 100 ~ 240Vac/ 50 ~ 60Hz

Output: 72W adapter (19V @ 3.78A adapter) AC-DC adapter

Ordering Information

ARC-1239-X74-A1R | 12.1" 1024x768 600nits Industrial Touch Panel PC, ErP Design, Intel Processor X7433RE up to 3.40 GHz CPU/8GDDR5/2GLAN/2COM/2USB3/USB typeC/SPK/12~24V input/72W Adapter

ACC-ARC-USB-1R | 4 x USB 3.0 Kit for ARC Series

ACC-ARC-AUDIO-1R | HDMI + 5.1 CH Audio Kit for ARC Series

ACC-ARC-MPCIE-1R | HDMI + MPCIE w/SIM Kit for ARC Series

ACC-ARC-COM-1R | 2 x Isolated RS-232 Kit for ARC Series

ACC-ARC-COM-2R | 3 x RS-232 Kit for ARC Series

ACC-ARC-COM-3R | 2 x RS-232 + USB Kit for ARC Series

ACC-ARC-COM-4R | 2 x RS-232 + LAN Kit for ARC Series

ACC-ARC-GPIO-1R | 12-bit GPIO + 2-pin CAN Bus Kit for ARC Series

ACC-ARC-OBDII-1R | OBDII - CAN Bus Kit for ARC Series (OBDII/EOBD for Small Vehicle)

ACC-ARC-OBDII-2R | OBDII - CAN Bus Kit for ARC Series (J1939J1708 for Large Vehicle)

ACC-ARC-OBDII-3R | OBDII - CAN Bus Kit for ARC Series (ISO15765-4 for Special Large Vehicle)

E1702031835R | USA Power Cord

E170203183DR | EU Power Cord

E170203183BR | Japan Power Cord

E170P060370R | UK Power Cord

E170P060392R | Australia Power Cord
