Avalue · Panel PC / Monitor / Mobile

FPC-1736

Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

8th Generation Intel® Core™/i3/ i5/ i7 Processors
2 x Memory socket, max. up to 64GB DDR4 2133/2400/2666 MHz
4 x USB3.0, 1 x USB2.0(internal for dongle)

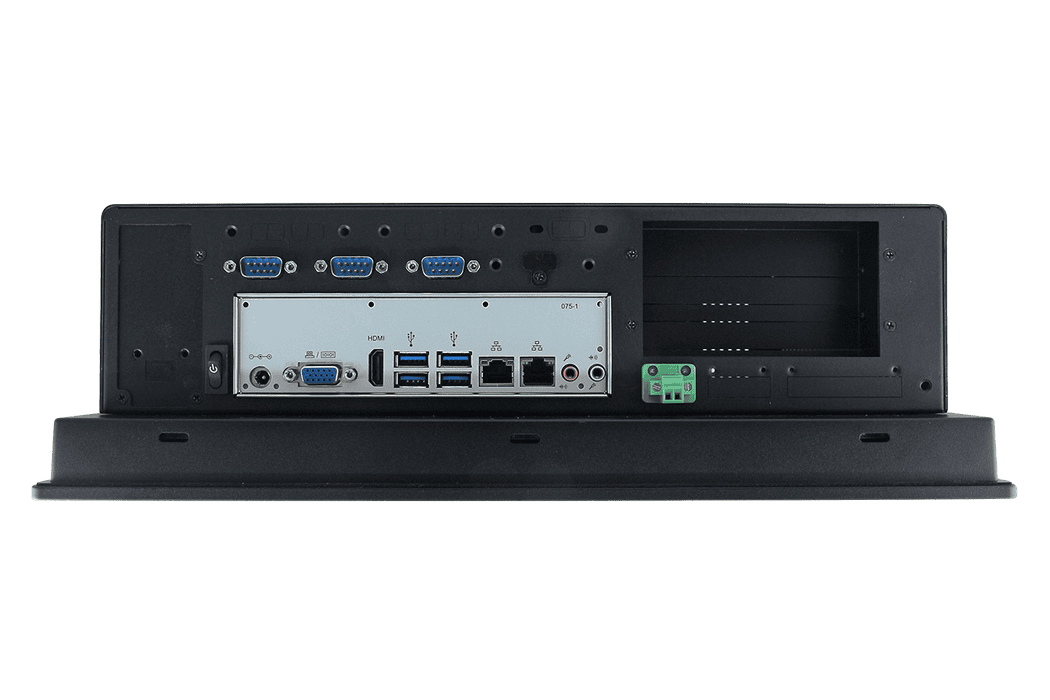

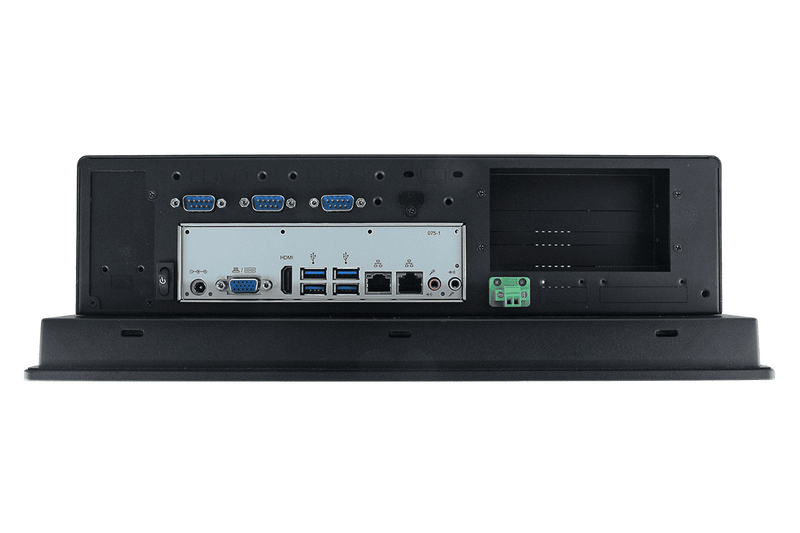

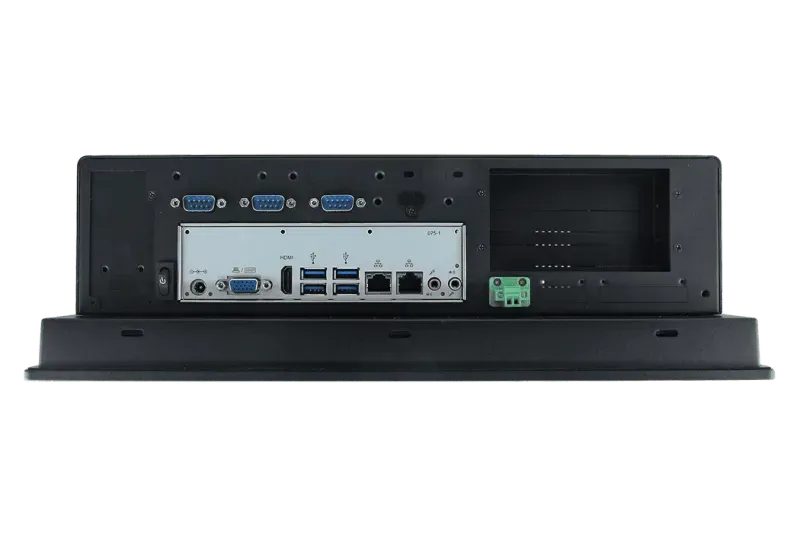

3 x RS232, 2 x LAN,1 x HDMI 1.4b, 1 x VGA
1 x Storage, 2.5” drive bay, 1 x M.2 SSD
1 x M.2 Key-E for Wi-Fi, bluetooth
Support 1 x PCIex4 expansion slot (option for 2 x PCI slot)
Wide voltage DC input +12V ~ +24V
Front IP65, panel mounting kits
CE / FCC Class A / CCC

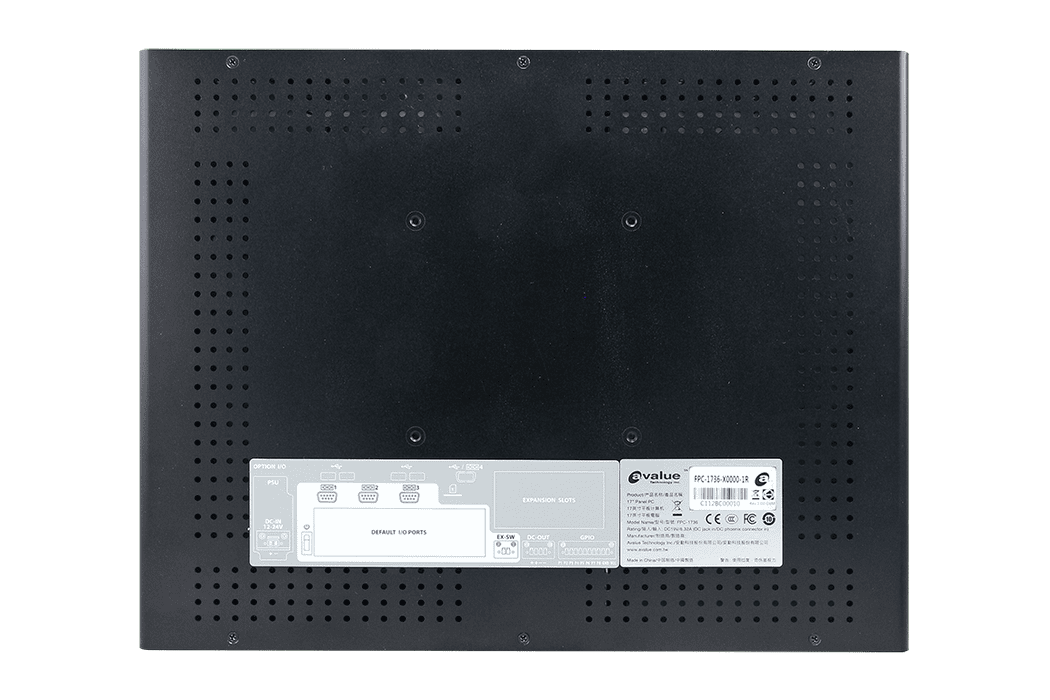

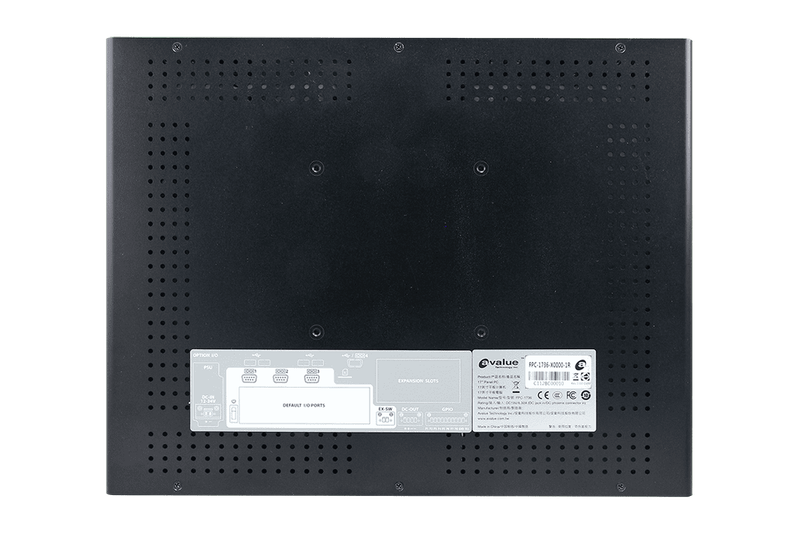

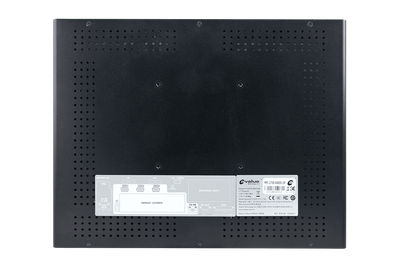

Product Description

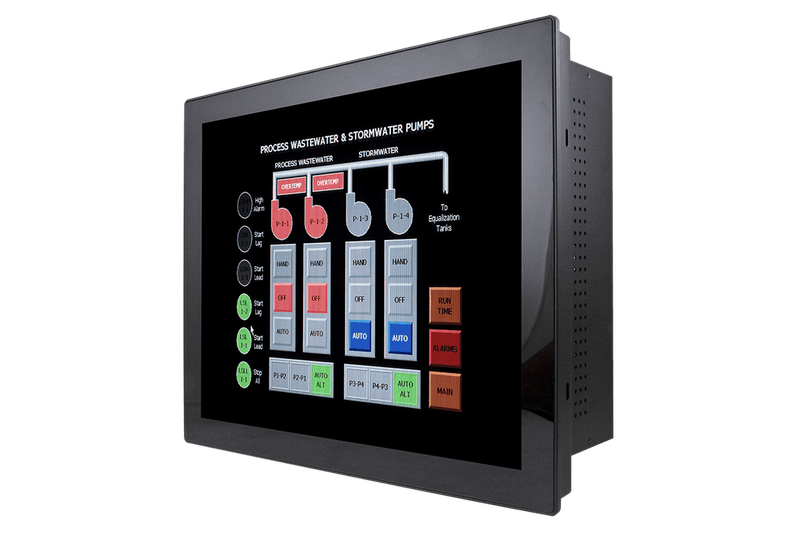

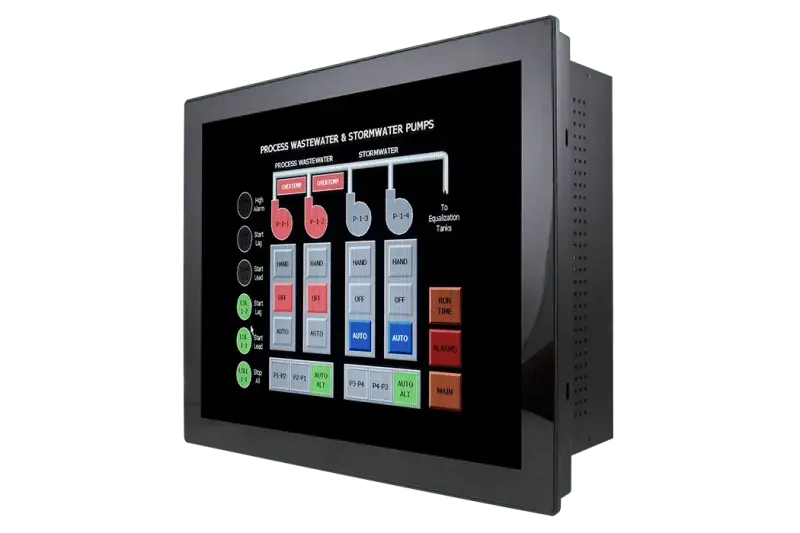

The Avalue FPC-1736 is a 17" industrial touch panel PC featuring 8th Generation Intel® Core™ i3/i5/i7 processors. It includes a fanless design, projected capacitive multi-touch screen, dual Gigabit LAN, multiple USB and COM ports, and HDMI support.

The panel is IP65 front rated for rugged environments, with wide voltage input and an operating temperature range from 0°C to 45°C. It offers expansion slots and various mounting options.

Technical Specifications

Processor

8th Generation Intel® Core™/i3/ i5/ i7 Processors

Intel® Core™ i3-8100T Processor, 6M Cache, 3.1 GHz

Intel® Core™ i5-8500T Processor, 9M Cache, 2.1 GHz

Intel® Core™ i7-8700T Processor, 12M Cache, 2.4 GHz

System Memory

2 x 260-pin DDR4 2666 MHz SO-DIMM socket, supports up to 64GB Max

I/O Chipset

ITE8786E

BIOS

AMI uEFI BIOS, 128Mbit SPI Flash ROM

Platform Controller Hub

Intel® H310 express chipset

SBC

EMX-H3102C

CPU Cooler (Type)

Cooler with fan

LCD Size

17", 4:3

Display Type

SXGA

Resolution

1280 x 1024

Pixel pitch

0.264mm(H) x 0.264mm(V)

Luminance

250 cd/m2

Contrast ratio

1000

Viewing angle

80 (U), 80 (D), 85 (L), 85 (R)

Response time

5 ms

Backlight

LED

Touch Type

Projective capacitive multi-touch up to 10 points

Touch Light Transmission

89%

Touch Controller

ILLITEK ICI2510P

Expansion

1 x M.2 E-Key, support Wi-Fi module (optional)

1 x PCIex4 slot (option for 2 x PCI slot)

Storage

1 x SATA III for SSD expansion

1 x M.2 B-key 2242 slot support SATA

USB Port

4 x USB3.0, 1 x USB2.0 (internal type A for dongle)

4 x USB2.0 (option)

COM Port

3 x RS232, 1 x RS232 (option)

LAN Port

2 x RJ-45

Antenna

Reserved for WIFI6 2.4GHz~7.1GHz antenna

PCIe

1 x PCI-ex4 (Option for 2 x PCI slot by module)

GPIO

8 bit GPIO (option)

SATA

WLAN

Bluetooth

Audio Codec

Realtek ALC888S

Audio Interface

Line-out

Mic-in

Speaker Output

2 x 5W

Graphic Chipset

Intel® 8/9th generation CPU integrated

Spec. & Resolution

1 x VGA: 2048 x1536 @ 50 Hz

1 x HDMI 1.4b: 4096x2160@30Hz

Certification Information

CE / FCC Class A / CCC

LAN Chipset

1 x Intel i219-V Gigabit Ethernet

1 x Intel i225-V 2.5 Gigabit Ethernet

Ethernet Interface

Intel i219-V: 10/100/1000 Base-Tx GbE compatible

Intel i225-V: 10/100/1000/2.5G Base-Tx GbE compatible

DC Input

+12V ~ +24V

DC Input Connector

Lockable DC Jack(default)

Optional for phoenix connector

ACPI

Single power ATX support S0, S3, S4, S5 and ACPI 3.0 compliant

Adapter

Input: 100 ~ 240Vac/ 50 ~ 60Hz

Output: 120W (24V @ 5A ) AC-DC power adapter

OS Information

Win 10 / Linux

LED Indicator

HDD LED, power LED

Operating Temperature

0 ~ 45°C

Storage Temperature

-20°C ~ 60°C (-4°F ~ 140°F)

Operating Humidity

40°C @ 95% Relative humidity, non-condensing

Weight

7.5 Kg

Dimension (W x L x H)

392.72 x 325.32 x 121.55mm

Vibration Test

With SSD/mSATA : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 1hr/axis

Shock Test

With CF/SSD : 10Grms, IEC 60068-2-27, half sine, 11ms

Drop Test

ISTA 2A, IEC-60068-2-32 Test:Ed

IP Rating

Front panel IP65

Mounting Kit

Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm

Panel mount with mounting kits

Power Mode

AT/ATX (ATX is default)

System Fan

2 x 12V

Construction - Front

Die casting

Construction - Rear

Metal black

Ordering Information

FPC-1736-X0000-1R

17 1280x1024 250nits Industrial Touch Panel PC, ErP Design, PCAP Multi Touch(ALC897) Intel w/H310/2LAN/4USB3/HDMI/VGA/DCin/Line out/Mic in/Barebone/120W Power adapter

w/PCIex4 expansion slot

ACC-CPU-8700TR

Intel Core i7-8700T 2.4GHz Processor

ACC-CPU-8500TR

Intel Core i5-8500T 2.1GHz Processor

ACC-CPU-8100TR

Intel Core i3-8100T 3.1GHz Processor

C971XFP1736000R

Double USB KIT For FPC-1736

C971XFP1736001R

Single USB KIT For FPC-1736

C971XFP1736002R

Internal Single USB KIT For FPC-1736

C971XFP1736003R

4Terminal Block DC IN KIT For FPC-1736

C971XFP1736004R

Terminal Block GPIO KIT For FPC-1736

C971XFP1736005R

WiFi module KIT for FPC-1736 Intel AX210

C971XFP1736006R

Riser card KIT For FPC-1736 PCIex1 to 2PCI Riser Card

C971XFP1736007R

WiFi module KIT for FPC-1736 IntelAC8265

C971XFP1736008R

WiFi module KIT for FPC-1736 IntelAC9260

C971XFP1736008R

CPU cooler 4P/12V/Fan/84*84*28/AL/65W

C971XFP1736008R

CPU Cooler for LGA1155 Package 4-Pin/12V

C170P060040R

US Power Cord SM001/3P+SM006/3P 1.83M

C170P060050R

EU Power Cord SH005/3P+SH006/3P 1.83M

C170P060060R

JP Power Cord SH001/3P+SH006/3P 1.83M

C170P060070R

UK Power Cord YP61A/3P+YC12/3P 1.83M

C170P060080R

AU Power Cord SH051/3P+SH006/3P 1.83M

What is FPC-1736?

The FPC-1736 is a panel pc / monitor / mobile manufactured by Avalue, designed specifically for industrial-panel-pc applications. It features processor of 8th Generation Intel® Core™/i3/ i5/ i7 Processors, Intel® Core™ i3-8100T Processor, 6M Cache, 3.1 GHz, Inte…, display of 17", 4:3 and touch of Projective capacitive multi-touch up to 10 points. The Avalue FPC-1736 is a 17" industrial touch panel PC featuring 8th Generation Intel® Core™ i3/i5/i7 processors. It includes a fanless design, projected capacitive multi-touch screen, dual Gigabit LAN, multiple USB and COM ports, and HDMI support. The panel is IP65 front rated for rugged environments, with wide voltage input and an operating temperature range from 0°C to 45°C. It offers expansion slots and various mounting options.

Key Features & Benefits

8th Generation Intel® Core™/i3/ i5/ i7 Processors
2 x Memory socket, max. up to 64GB DDR4 2133/2400/2666 MHz
4 x USB3.0, 1 x USB2.0(internal for dongle)
3 x RS232, 2 x LAN,1 x HDMI 1.4b, 1 x VGA
1 x Storage, 2.5” drive bay, 1 x M.2 SSD
1 x M.2 Key-E for Wi-Fi, bluetooth
Support 1 x PCIex4 expansion slot (option for 2 x PCI slot)
Wide voltage DC input +12V ~ +24V
Front IP65, panel mounting kits
CE / FCC Class A / CCC

Applications & Use Cases

The FPC-1736 is ideal for various industrial automation applications:

Harsh industrial environments requiring dust and water protection
DC-powered industrial installations and mobile applications
Wireless connectivity and remote monitoring applications
High-performance computing and data processing tasks
Networked industrial systems and data communication
Panel-mounted installations and control cabinets
Peripheral device connectivity and data transfer
Memory-intensive applications and multitasking

Frequently Asked Questions

The FPC-1736 is a 17" fully-sealed industrial panel PC featuring Intel processors, flat-front design with full IP65/IP66 protection, projected capacitive multi-touch, comprehensive I/O ports, fanless thermal management, stainless steel construction, and wide temperature operation. It's designed for harsh environments requiring a large display with complete protection against dust, water, chemicals, and physical impact.

The FPC-1736 features a fully-sealed design with stainless steel construction and IP65/IP66 protection across the entire unit (not just the front panel). This comprehensive protection makes it ideal for food processing facilities, pharmaceutical manufacturing, chemical plants, outdoor installations, and other environments where exposure to water, cleaning chemicals, dust, or contaminants is expected, and where regular washdown procedures are common.

The FPC-1736's 17" display provides generous screen space for complex industrial interfaces, detailed process visualizations, and multi-function control screens. The larger format improves readability of data, charts, and controls from a distance, making it suitable for control rooms, production lines, and operator stations where visibility is crucial for monitoring multiple systems simultaneously, all within a fully-sealed, washable enclosure.

Unlike standard panel PCs that typically offer IP65 protection only on the front panel, the FPC-1736 features complete IP65/IP66 protection for the entire unit, enabling installation in locations exposed to moisture from all directions. Its stainless steel construction provides superior durability, chemical resistance, and cleanability compared to aluminum or plastic housings, making it suitable for regular sanitization in hygiene-critical environments.
