RITY122

Discontinued

Avalue no longer manufactures the RITY122

Still running the RITY122? We can check remaining stock and spares.

Replaced by

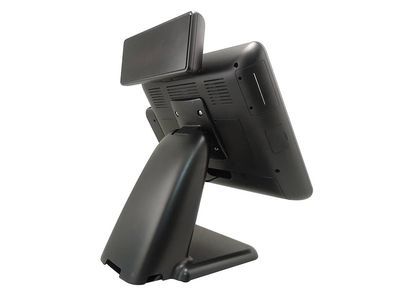

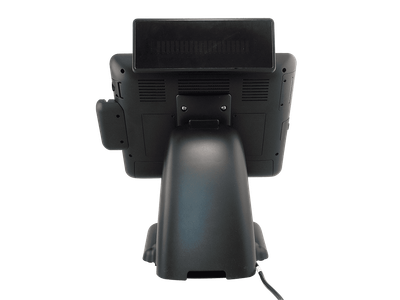

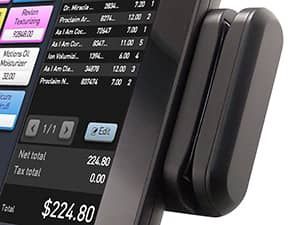

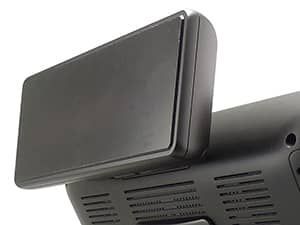

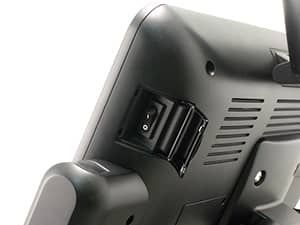

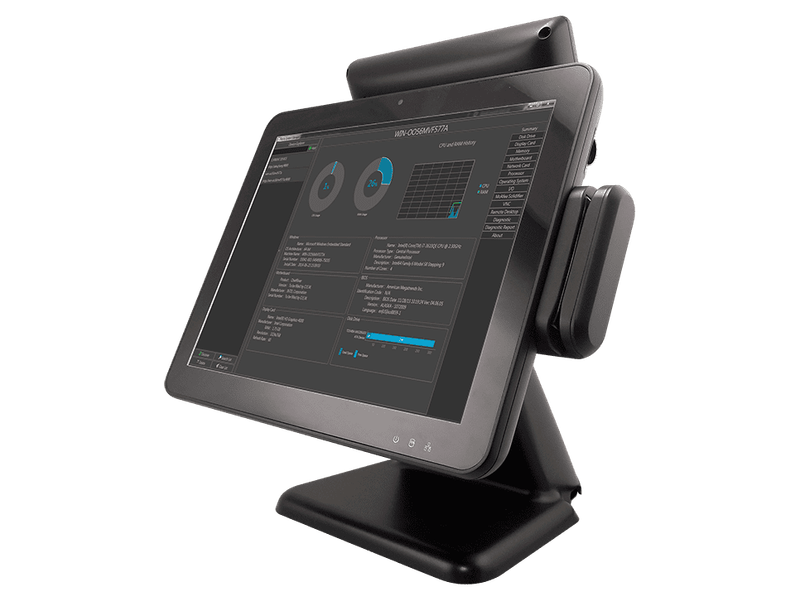

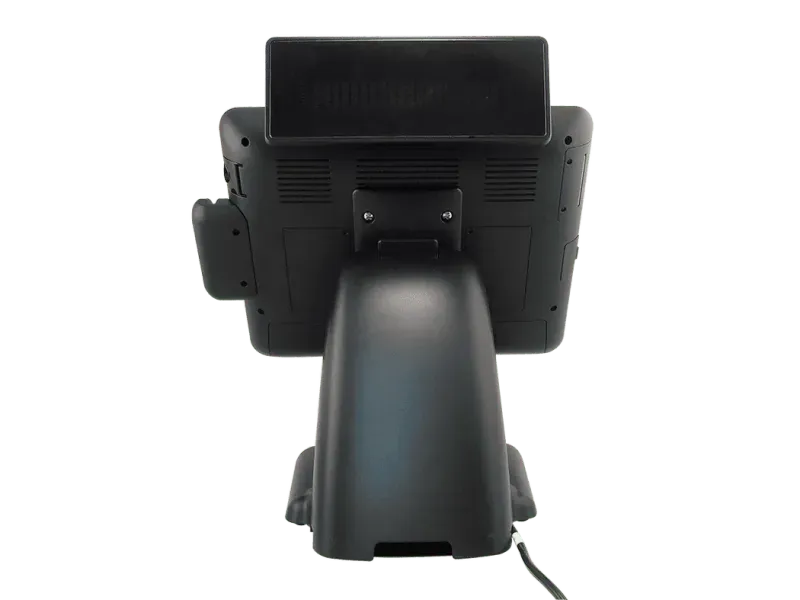

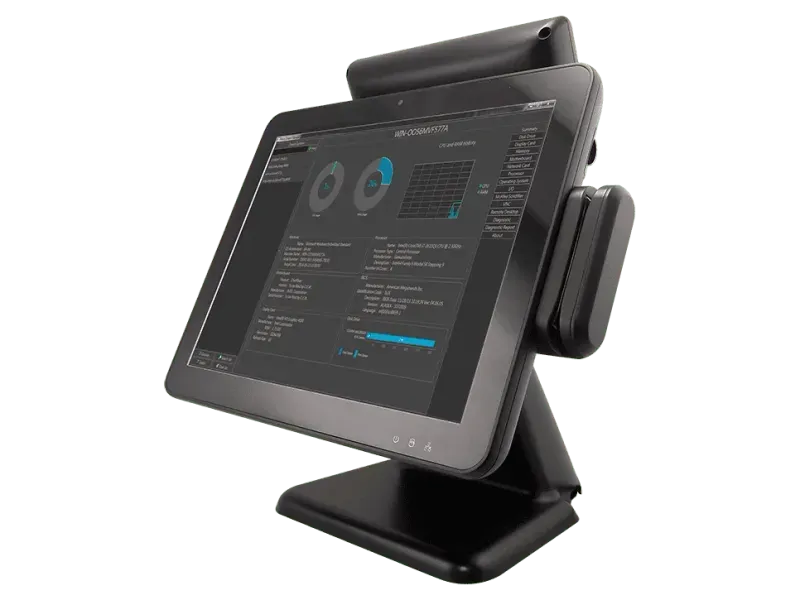

RITY122 FrontRITY122 BackRITY122 side angle 2RITY122 side angle 3RITY122 side angle 4RITY122 side angle 5
Data Sheet

*Price on request. Contact us for a quote.

Manufacturer: Avalue

Highlights

Product Description

The Avalue RITY122 is a 12.1‑inch XGA (1024×768) flat touch POS terminal designed for compact retail and kiosk environments. It supports Intel® Atom™ E3845 1.91GHz or Intel® Celeron® J1900 2.0GHz processors, up to 8 GB DDR3L memory, and offers dual display output (LVDS + HDMI).

Key I/O includes 3× RS‑232 (2 ports BIOS selectable for RS‑422/485), 2× RJ‑45 LAN, 3× USB 2.0, 3× USB 3.0, and 1× RJ‑11.

With a 600 cd/m² brightness panel, fanless design, IP65 front panel rating, and support for POS‑ready OS, the RITY122 is ideal for retail POS, self‑service kiosks, and compact countertop installations.

Technical Specifications

Processor

Intel® Atom™ E3845 4-Core 1.91GHz processor

Intel® Celeron® J1900 2.0GHz processor

Platform Controller Hub

Intel® Valleyview SoC

System Memory

1 x 204-pin DDR3L 1066MHz SO-DIMMup to 8 GB

I/O Chipset

EC ITE IT8528E

Watchdog Timer

H/W reset, 1sec. ~ 65535sec. and 1sec./step

H/W Status Monitor

Monitoring CPU & system temperature and voltage

SBC

APC-BYTPOS

Expansion

1 x Mini PCIe supports mSATA"

Storage

1 x 2.5 Drive bay

1 x mSATA

Graphic Chipset

Intel® Valleyview SoC integrated Graphics

Supports dual display

Spec. & Resolution

LVDS:Max. resolution 1024x768@ 60Hz

HDMI:Max. resolution 1920x1080@ 60Hz

Audio Codec

Realtek ALC888S supports 2-CH

Audio Interface

Line-out

Speaker Output

2 x 2W

LAN Chipset

2 x Realtek 8111E

Ethernet Interface

10/100/1000 Base-Tx GbE compatible

DC Input

+19V ~ +24V

DC Input Connector

minidin 4P for DC in w/ lock type

OS

Win 7 / Win 8 / POS ready / Linux

Certification Information

CE

FCC Class B

VCCI

USB Port

3 x USB 3.0

3 x USB 2.0

LAN Port

2 x RJ-45

LCD Size

12.1\", 4:3

Display Type

XGA

Resolution

1024 x 768

Pixel pitch

16.2M

Luminance

600 cd/m2

Contrast ratio

700

Viewing angle

80(H) X 70(V)

Response time

8ms

Backlight

LED

Touch Type

5 wires resistive / PCT

Touch Light Transmission

RES 75% / PCT 90%

Touch Controller

Onboard USB touch (penmount) / USB touch (EETI)

COM Port

2 x RS-232/422/485 (BIOS)

1 x RS-232

Operating Temp.

0°C ~ 35°C (32°F ~ 95°F)

Storage Temp.

-10°C ~ 60°C (14°F ~ 140°F)

Operating Humidity

0% ~ 90% Relative humidity, non-condensing

Dimension (W x L x H)

322 X 250 X 47mm

Weight

5 Kg /with stand

Vibration Test

With SSD : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis

Shock Test

With SSD : 10Grms, IEC 60068-2-27, half sine, 11ms

Power Mode

AT/ATX (ATX is default setting)

System Fan

Fanless

Construction - Front

Black coverlens

Construction - Rear

Black

Adapter

Input: 100 ~ 240Vac/ 50 ~ 60Hz

Output: 60W adapter (12V @ 5A adapter)

Ordering Information

RITY122-0RH0800A1R

12\" 1024 x 768 POS Terminal with Intel SoC QC E3845 1.91GHz/2G DDR3/5 Wire Resistive Touch/VGA/RJ11/3 x COM/ 6 x USB/320G HDD/90W Adapter/Stand


RITY122-0RH0300A1R

12\" 1024 x 768 POS Terminal with Intel SoC QC E3845 1.91GHz/2G DDR3/5 Wire Resistive Touch/VGA/RJ11/3 x COM/ 6 x USB/320G HDD/90W Adapter/VESA Mount


EU Power Cord E170203183DR

US Power Cord E1702031835R

JP Power Cord E17120318001R

UK Power Cord E170P060370R

What is RITY122?

The RITY122 is a panel pc / monitor / mobile manufactured by Avalue, designed specifically for pos-terminal applications. It features processor of Intel® Atom™ E3845 4-Core 1.91GHz processor, Intel® Celeron® J1900 2.0GHz processor, display of 12.1\", 4:3 and touch of 5 wires resistive / PCT. The Avalue RITY122 is a 12.1‑inch XGA (1024×768) flat touch POS terminal designed for compact retail and kiosk environments. It supports Intel® Atom™ E3845 1.91GHz or Intel® Celeron® J1900 2.0GHz processors, up to 8 GB DDR3L memory, and offers dual display output (LVDS + HDMI). Key I/O includes 3× RS‑232 (2 ports BIOS selectable for RS‑422/485), 2× RJ‑45 LAN, 3× USB 2.0, 3× USB 3.0, and 1× RJ‑11. With a 600 cd/m² brightness panel, fanless design, IP65 front panel rating, and support for POS‑ready OS, the RITY122 is ideal for retail POS, self‑service kiosks, and compact countertop installations.

Key Features & Benefits

Features information coming soon.

Applications & Use Cases

The RITY122 is ideal for various industrial automation applications:

  • Interactive kiosk and self-service terminals
  • Industrial control and monitoring systems
  • Factory automation and process control
  • Compact retail and kiosk environments
  • Retail and point-of-sale applications
  • Machine control and visualization
  • SCADA and HMI applications
